Hello Steemians! Another lesson following up from last night.

Forces in 2-Dimensions

Example 1

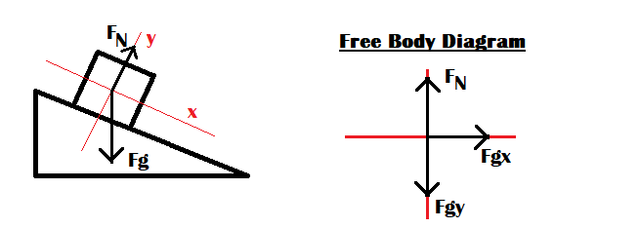

A 22-kg box lays on a ramp with incline 28 degrees (on Earth). What is the acceleration of the box?

  • Always draw a model and free body diagram with forces that include the force of gravity (Fg and break it up into components Fgx and Fgy), the normal force, and friction if the problem states it.
  • Fgy and FN are balanced since the box is not falling through the ramp.
  • Since the only force in the x-direction is Fgx, that is our net force.
Example 2

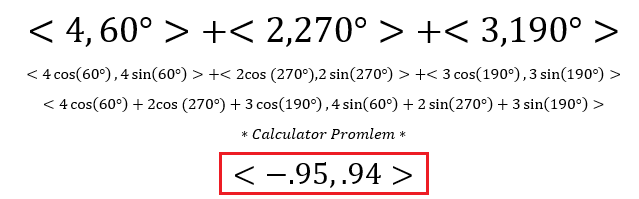

The several forces below affect the object in the middle. What is the net force vector?


With Friction

Example 1

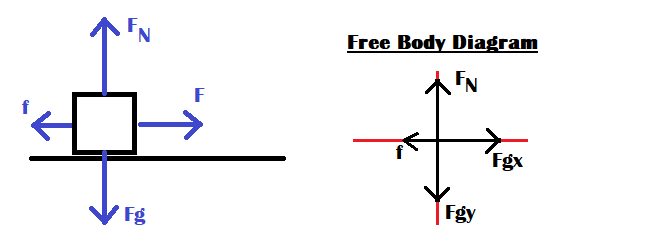

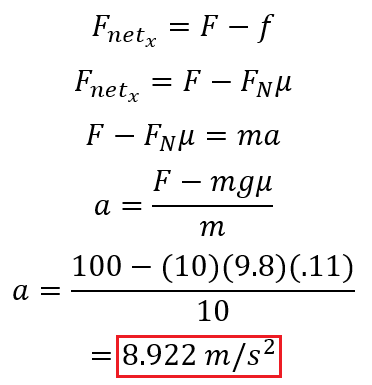

A box laying on a flat surface with mass 10 kilograms is pushed to the right with a force of 100 N. If there is a kinetic friction coefficient of .11, what is the acceleration?


Example 2

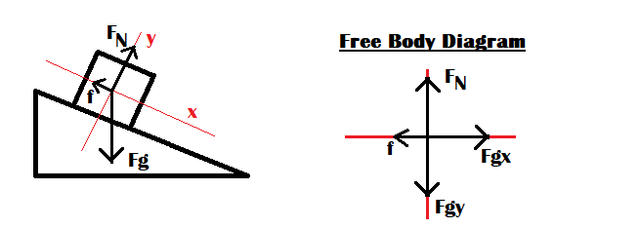

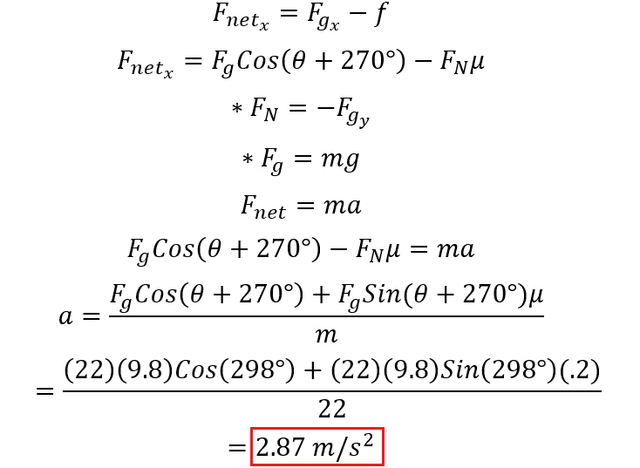

A 22-kg box lays on a ramp with incline 28 degrees (on Earth). What is the acceleration of the box if there is a kinetic friction of .2?



All SteemitEducation Posts

Physics

Kinematics Video, Circular Motion Video, Forces in 1 & 2 Dimensions Videos, Kinematics Full Lesson, Circular Motion and Gravitation Full Lesson

Computer Science

1, 2, 3, 4, 5, 6, 7, 8, 9, 10,

SAT

Asymptotes, Composite Functions, Contest 1 - Area, Contest 1 – Winners and Solution, PEMDAS, Systems of Equations, Functions, Exponents, Contest 2 - More Functions, Contest 2 – Winners and Solution, Percents, The Interest Equation, All About Division, Contest 3 - Factoring, Contest 3 – Winners and Solution, Fractional and Negative Exponents, Basic Trig, Contest 4 - Math Vocab

General Math

Basics of Algebra, Trigonometry Video, Proof of Quadratic Formula, Factoring Video, Unions and Intersections, Surface Area of a Cylinder, Substitution Video, Combinatorics Basics

Graphing from Algebra to Calculus

Algebra 1, Algebra 2, Pre-Calculus, Calculus

Piloting Airplanes

Introduction, Preflight, Requirements, Instruments, Take-Offs and Landings, Why a Plane Can Fly, Reading the Runway, Maneuvers

Other

Engineering (Isometric) Drawing, Pressure & SCUBA Diving


Thank you for your views Steemers! The support is much appreciated! Learn much and best wishes!
