Hi friend!

If you have seen the previous Masterclass, One Point Perspective and if you have made the exercise that I've proposed, then following the steps that I will show you in this lesson and participating in this Homework Contest will be very easy for you.
So, let's take a step forward to continue knowing the wonders of frontal or One Point Perspective perspective in practice.

-----------------------------------------------

HOMEWORK CONTEST - Week #2

*

We start by drawing the eye-level line and defining the vanishing point at approximately the center of the drawing sheet.

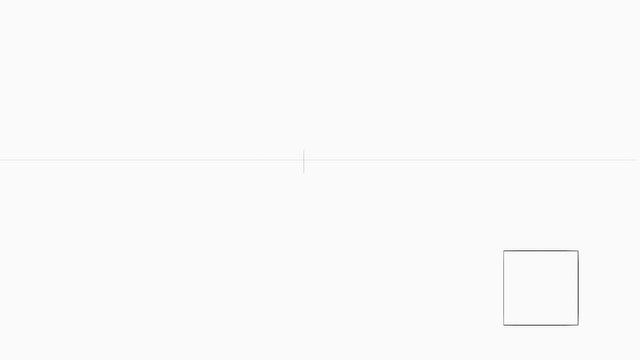

Then we draw a square somewhere as shown below.

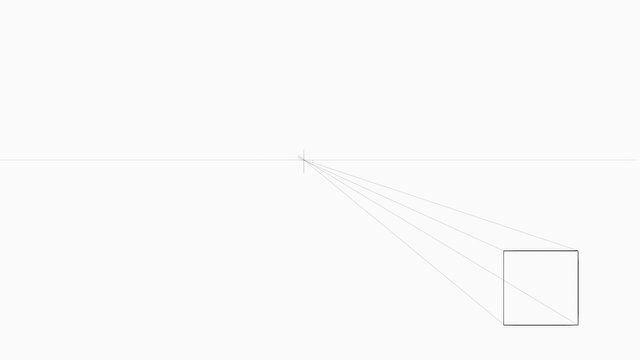

Draw the lines starting from the four corners of the square to the vanish point as shown.

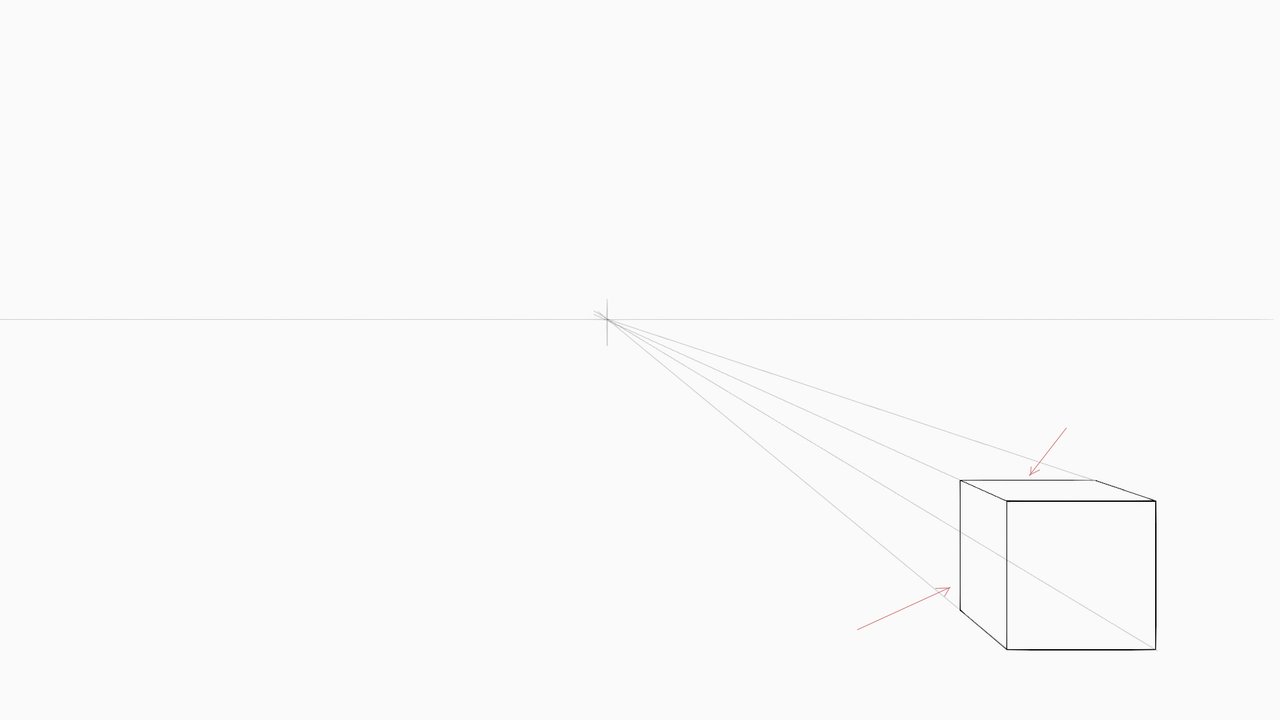

We will give volume to the square by drawing parallel lines as indicated by the red arrows in the image below.

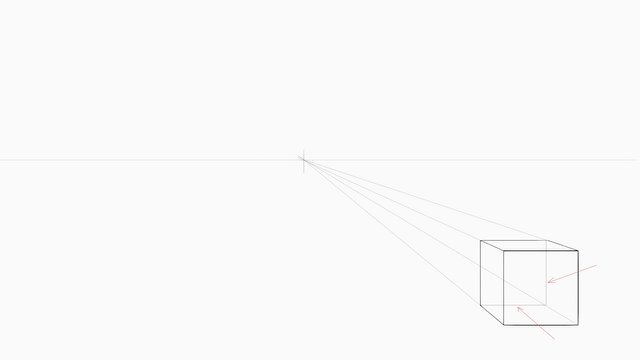

We complete the cube by drawing the lines on the back of the cube,

*

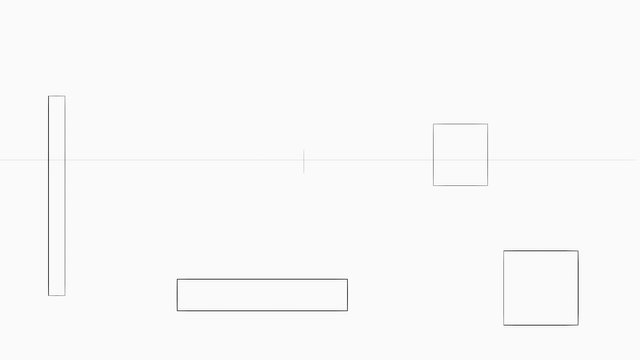

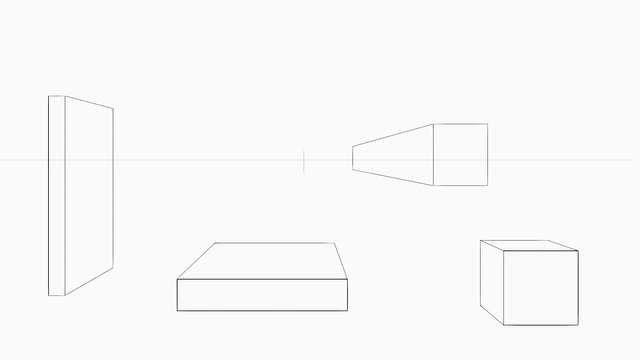

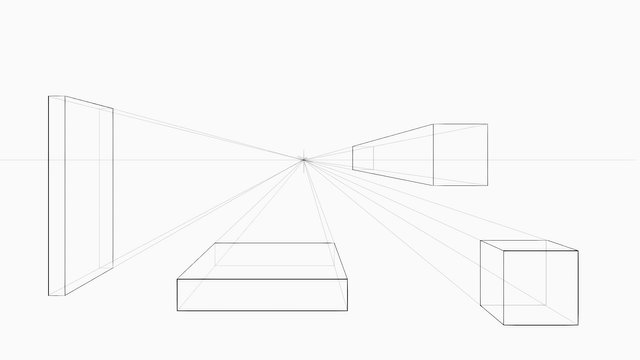

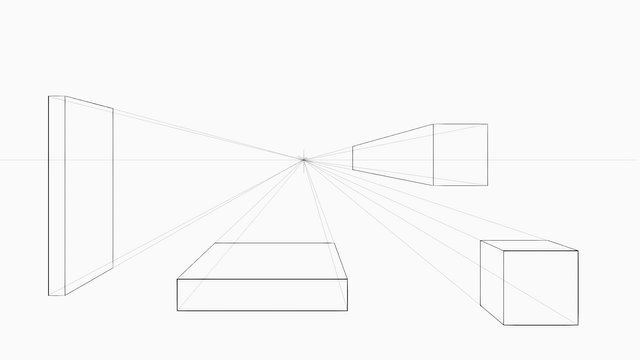

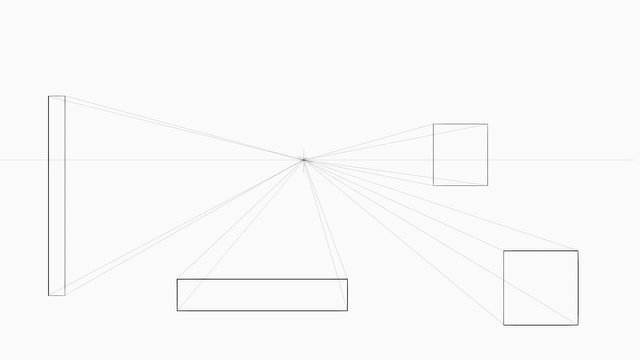

Today's task is to draw various squares and rectangles in different places as you can see in the example. Follow all the steps taught in this lesson and in the master class to represent them as volumes in space.

1


2


3


4


5


-----------------------------------------------

SOME RULERS

*

° The contest is open to the entire STEEMIT community
° The drawing must be a separate STEEMIT post with a link in the comments section.
° You have 7 days from the day of this publication to post the link to your task in the comments.

° The best homeworks of school participants will receive support from WOX curators.

-----------------------------------------------

I wish you a very nice day and good exercise!

-----------------------------------------------

I want to thank @bambuka and @stef1 once again for their encouragement and support.
Also, thanks to @xpilar for making these initiatives possible.

-----------------------------------------------

*

Here are the links to the previous related posts.
1-Introduction - 2-Introduction - 3-Introduction - 4-Introduction -
5-Introduction - 6-Lesson - 7-Lesson - 8-Lesson - 9-Lesson - 10-Lesson -
11-Masterclass - 12-HW Contest - 13-Lesson 14-Lesson - 15-Lesson -
16-Lesson - 17-HW results - 18-Masterclass - 19-HW Contest - 20-Lesson - 21-Lesson - 22-Lesson - 23-HW results - 24-Lesson - 25-Lesson -
26-Masterclass

-----------------------------------------------
