Van Conversion Progress - An Update

in #blog6 years ago

Reasons for my absence in Posts will become apparent below. My van conversion has progressed in giant leaps as I have spent quite a bit of planning, consideration and time putting some bulk into the build. This is PICTURE heavy, so I'll let most of the pictures do the talking.

Functional Kitchen.JPG
The current stage of things - Kitchen Units in, sink installed and working (less tap/faucet), all drainage holes done and a functional shower room.

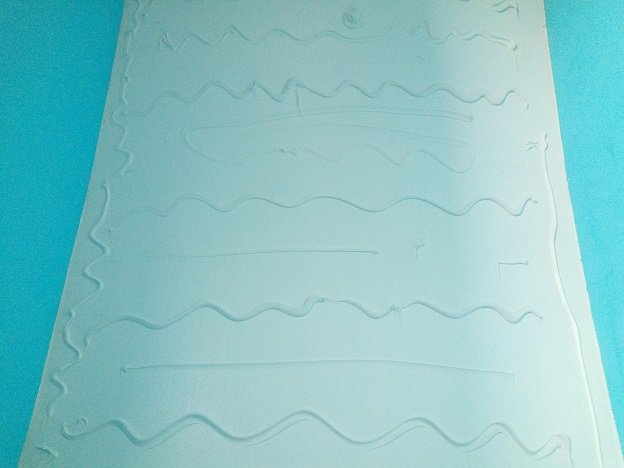

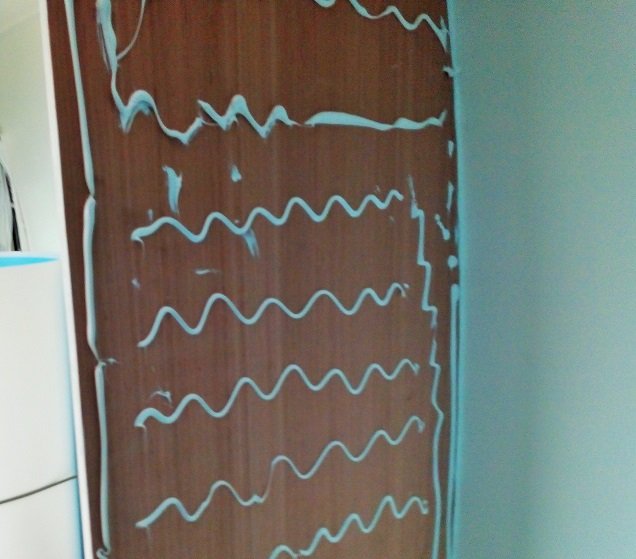

Below = just about to glue the hygienic PVC cladding for the shower cubicle. 'You can never have enough glue!'
Installing pvc wall cladding.jpg

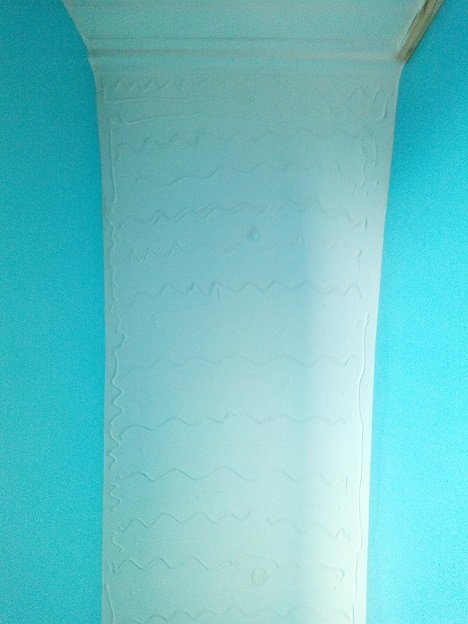

PVC shower walls installed and sealed - Blue plastic film about to be peeled off.
Glueing the Shower Wall cladding.jpg
The curved walls were frustratingly challenging.
Finalising the shower cubicle walls.jpg

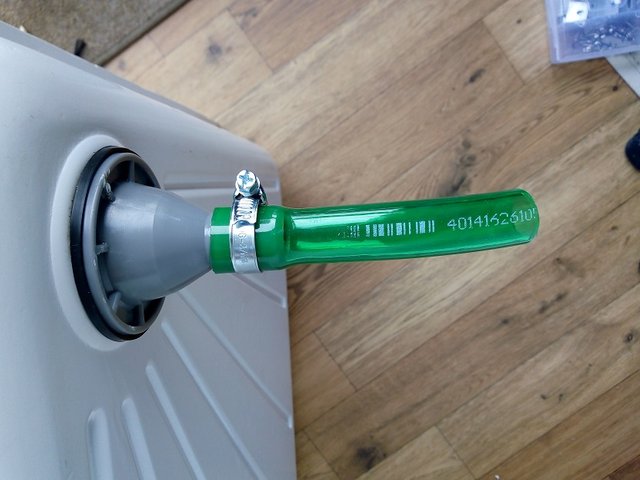

Bottom of the shower tray & the drain tube = SIMPLE!
Shower tray drainage.jpg

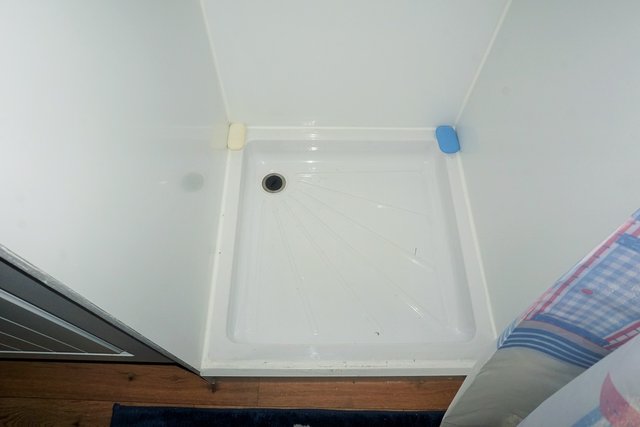

All in and sealed.
Shower Tray Installed.JPG

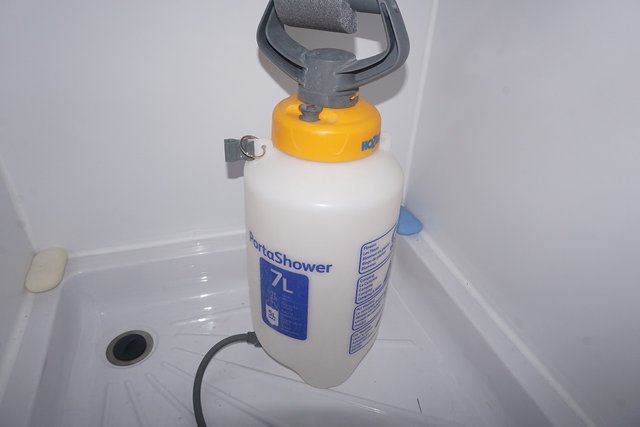

Before all the plumbing is finalised, I'll use my back-up shower.
Temporary Shower Unit.JPG

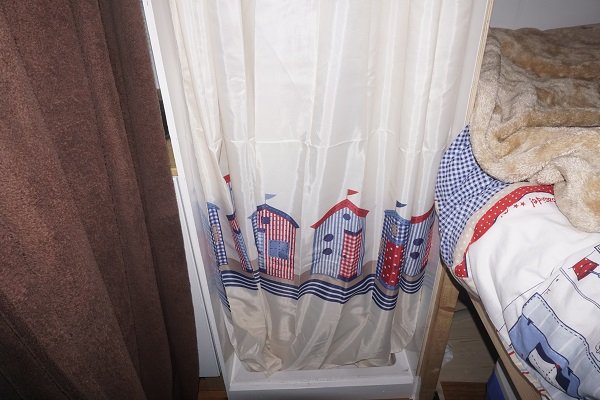

Shower curtain up!
Shower Curtain In.JPG

The Vanity Unit

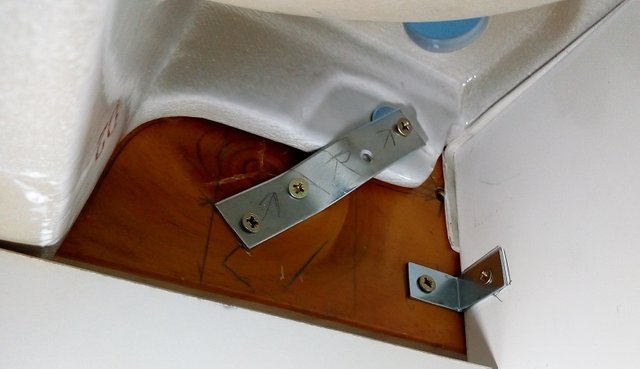

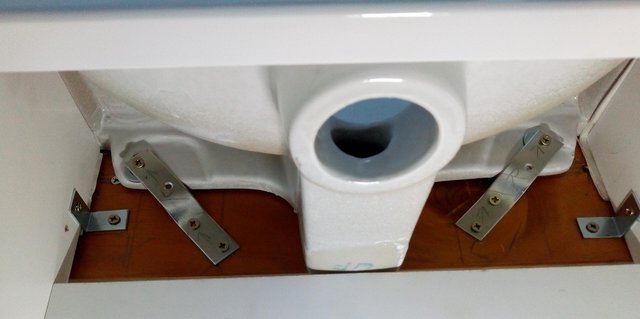

This is a standard vanity unit and sink. Made of porcelain, it is quite heavy and so required a robust installation approach, hence I made some custom brackets.

Custom made fixings.jpg

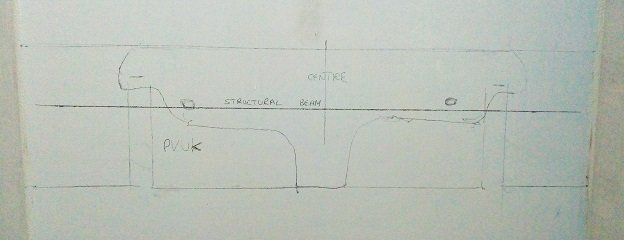

Some workings out!
Workings out on the Vanity Unit Installation.jpg

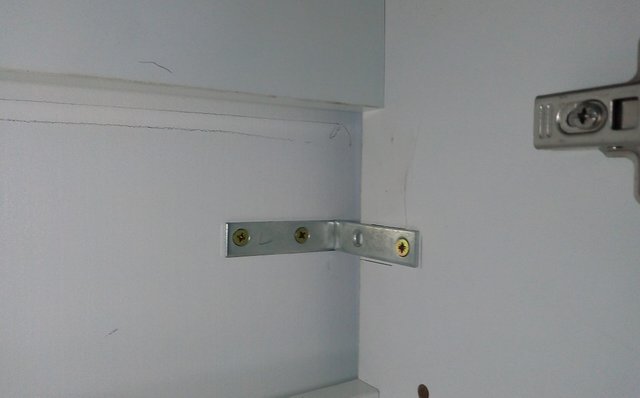

In a moving and vibrating vehicle, everything requires secure fixings to the wall.
Vanity Unit Sink Installation.jpg

No exceptions.
Securing the Vanity unit to the wall.jpg

DONE!
Vanity Unit In.JPG

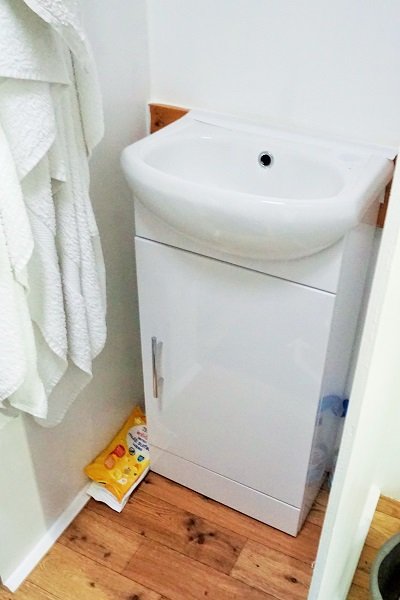

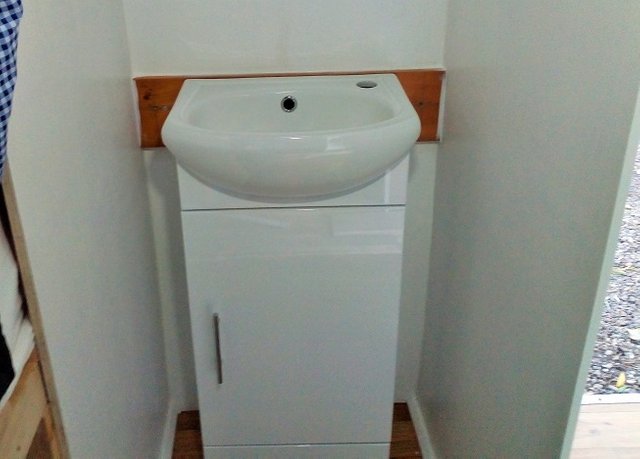

The dark strip of wood behind the sink strengthens the security/distribution of weight in the installation (The walls are only 6mm plywood).
Vanity Unit Installed.jpg

The Kitchen Units & Sink

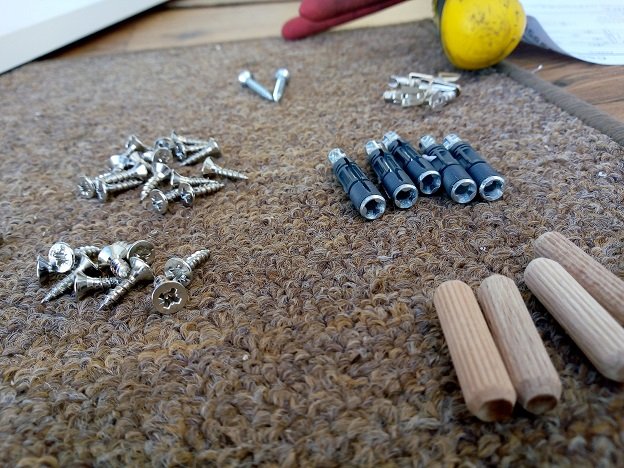

A 1ft cupboard and 3ft sink unit - A variety of supplied fixings, dowels and screws.

Screws and Fixings supplied.jpg

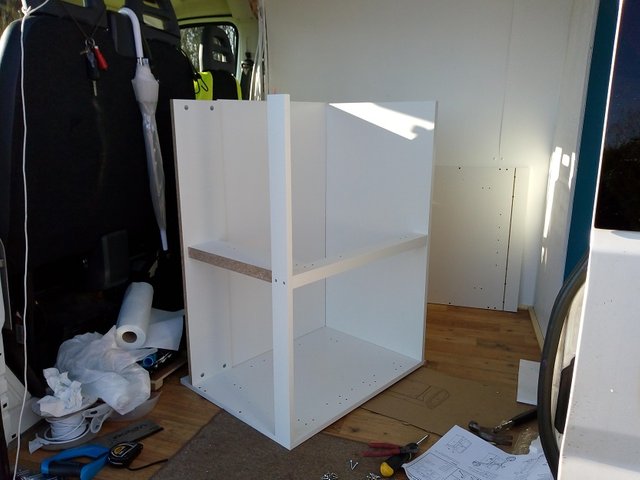

Now this was pretty easy! It came with instructions.
Building the Kitchen Unit.jpg

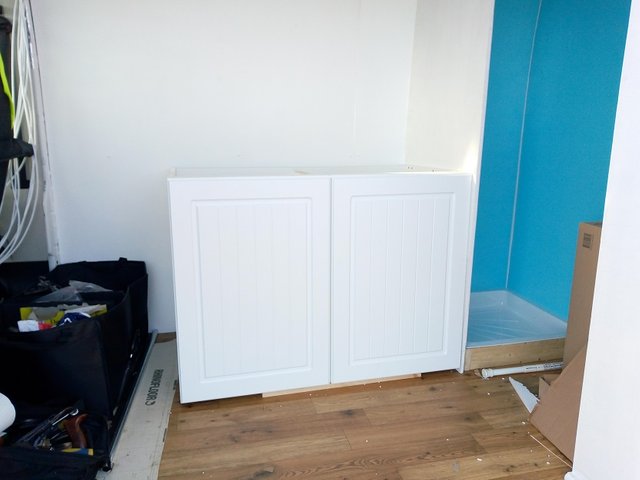

Taking shape nicely.
Kitchen Unit nearly complete.jpg

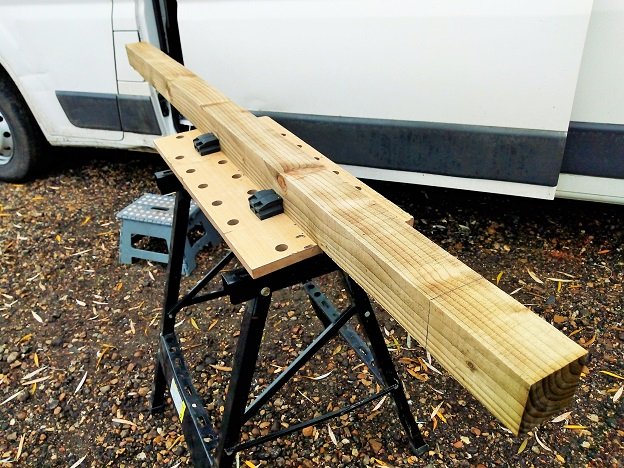

Once built, I discovered that the units were going to be too low and would result in back-ache when bending over at the cooker/sink, so decided to raise them to a comfortable height. It also allowed me to maintain some under-unit storage and to be able to secure the units to the floor and walls. First though, make some raising blocks out of this fence post.
Wooden Support Post to elevate the Kitchen Unit.jpg

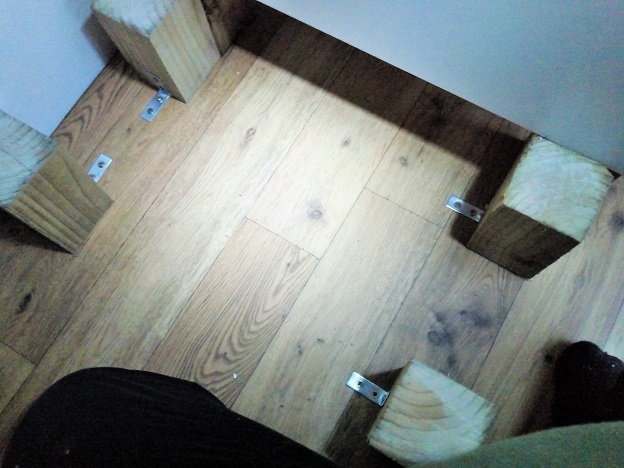

Uniformal in size and screwed to the floor.
Support Posts cut and in place.jpg

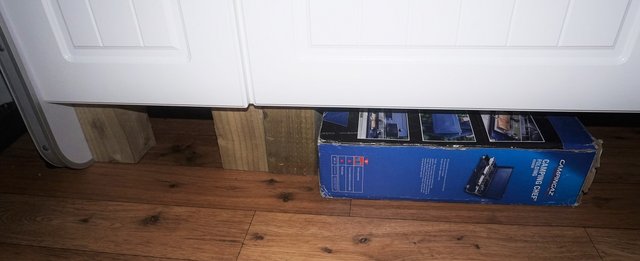

Cabinets then screwed to the blocks. My temporary Cooker stows nicely underneath.
Kitchen Raised and secured.JPG

The Kitchen Work Surface & Sink

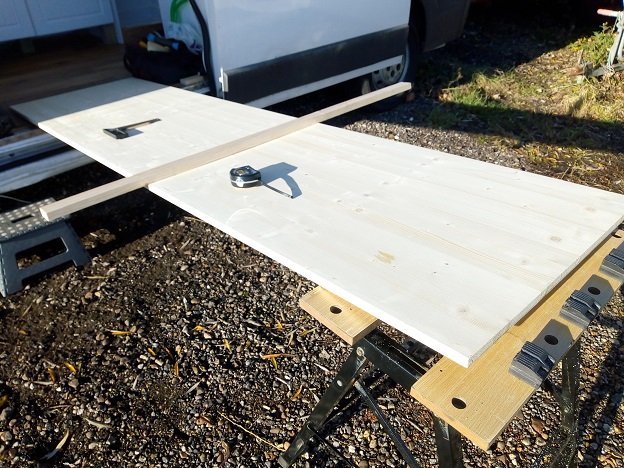

I used a long and flat piece of 12mm wood (shop bought) as it is lightweight and easy to work with.

Kitchen Work Surface.jpg

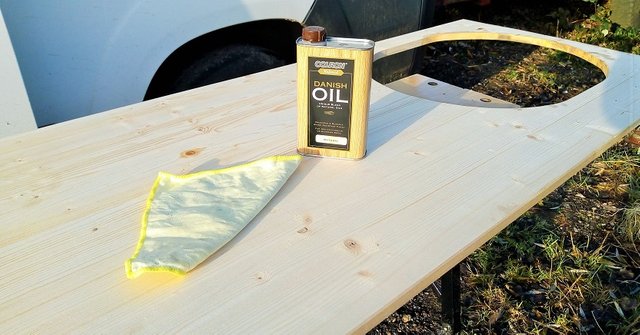

Cut, seasoned and preserved with some fine oil.
Sink Hole Cut.jpg

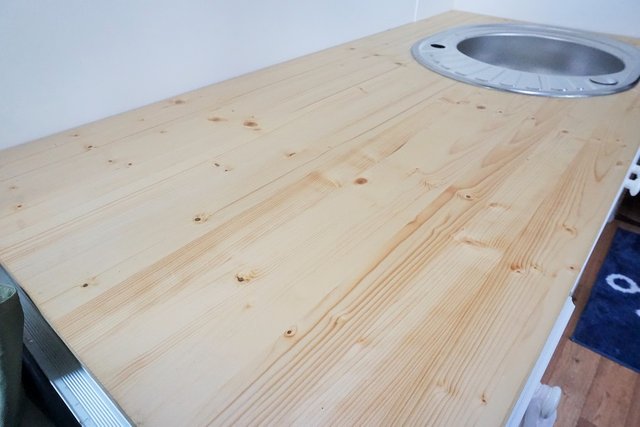

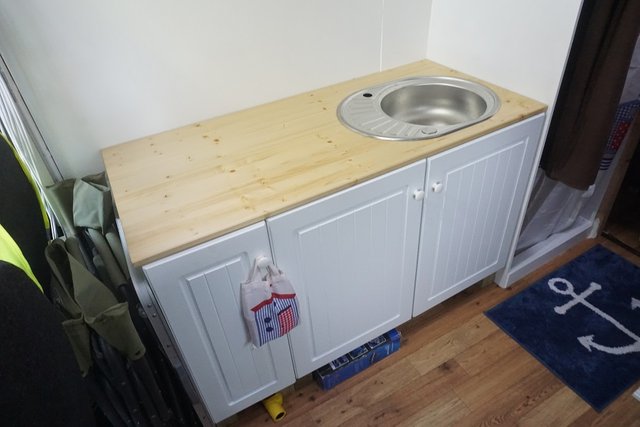

Some fine looking grain patterns. Just need a tap/faucet.
Kitchen Worktop Installed.JPG

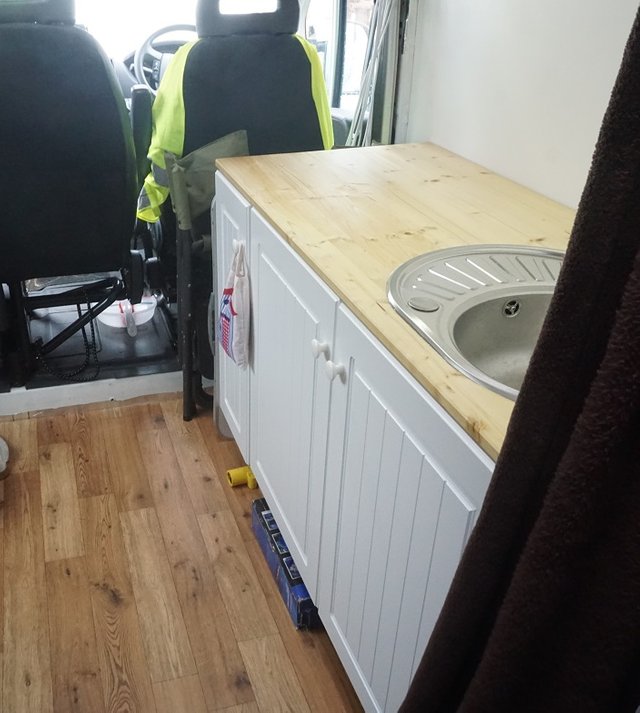

All secured and in place - Ready for a Trip!
Kitchen Units and Sink Installed.JPG

Thanks for dropping by folks... Questions, queries and comments below please (I am no DIY expert lol)!

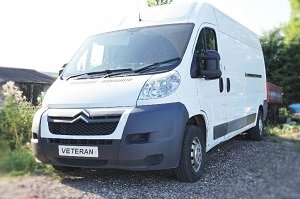

PREPPER VETERANs VAN.jpg
Van-build stages:
My Latest Brainwave & Project
Assessing The Task
The Strip Out
Floor Preparation & Rust Treatment
Hole Plugging & Lock mending
Finalising The Floor Foundations
The Insulation Begins
Insulating The Floor
Wall Insulation
The Bed & Test Run
Replacing The Windscreen
Building The Bathroom Walls
