Road Trip Van Conversion - FLOOR INSULATION

in blog •  2 months ago

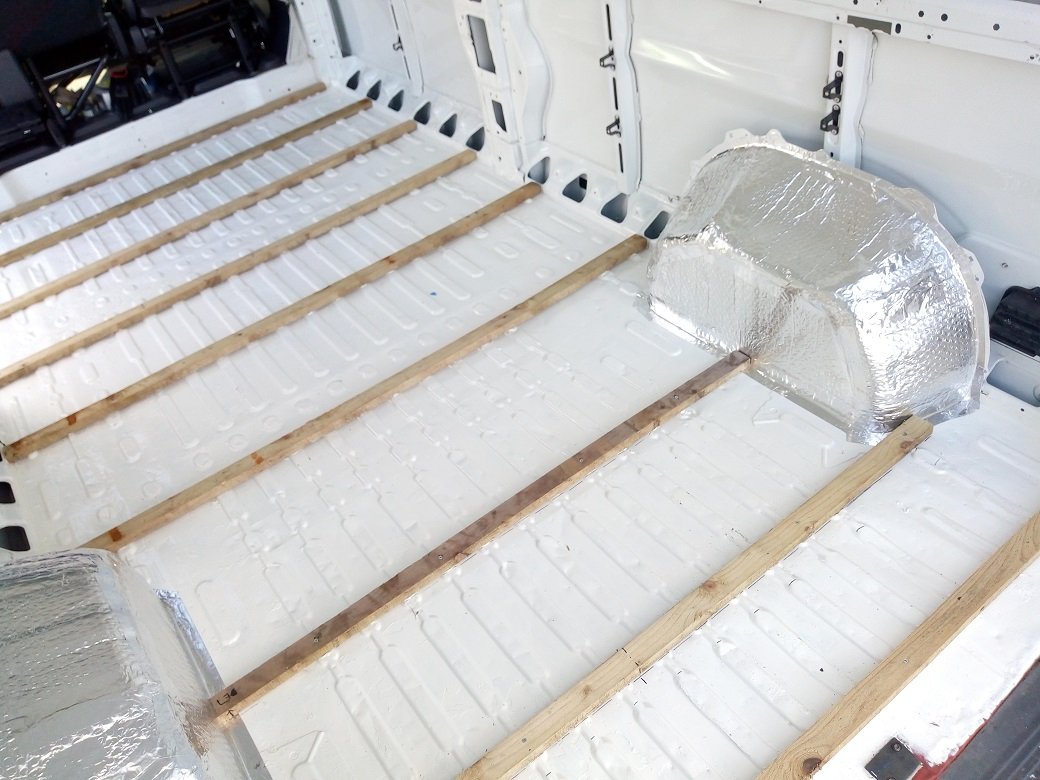

Everything on the floor was ready. LET THE CONVERSION COMMENCE! With timber prepared and cut to length, the floor batons were screwed and glued to the floor across the van. I felt this provided the most robust floor support system, as some of the floor was battered and uneven.

THE MAIN FLOOR SUPPORT BATONS.jpg

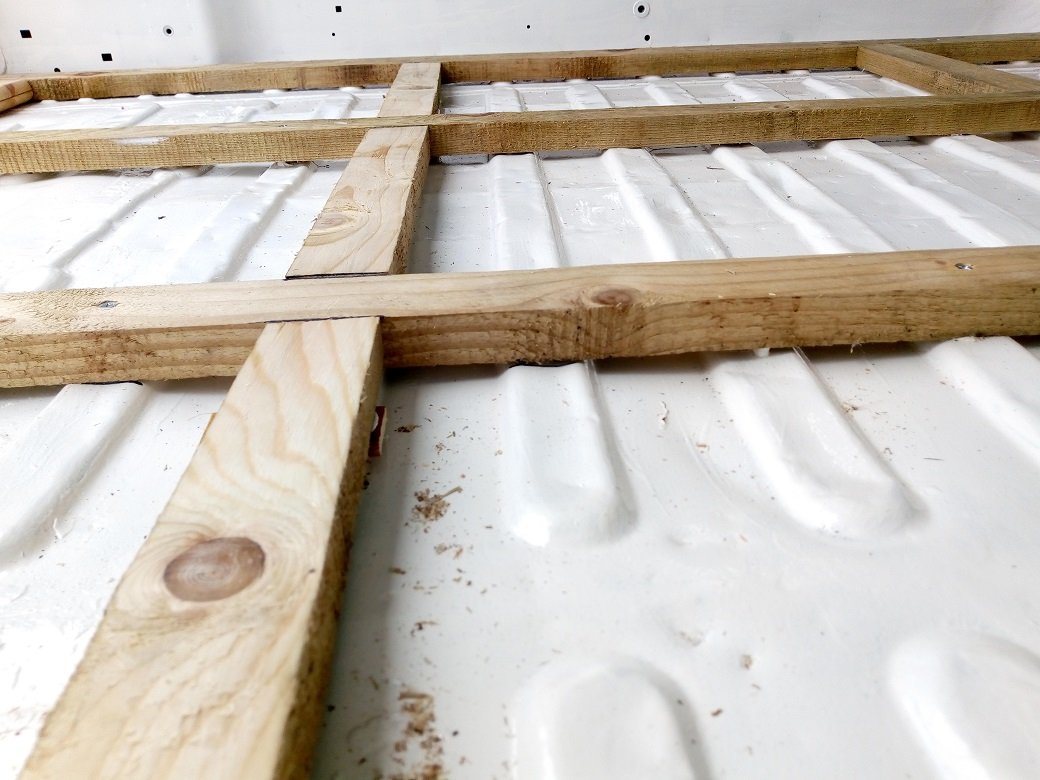

Cross member supports in place - Screwed n glued, with the odd additional under-beam packing.
FLOOR BATONS & CROSS MEMBERS.jpg

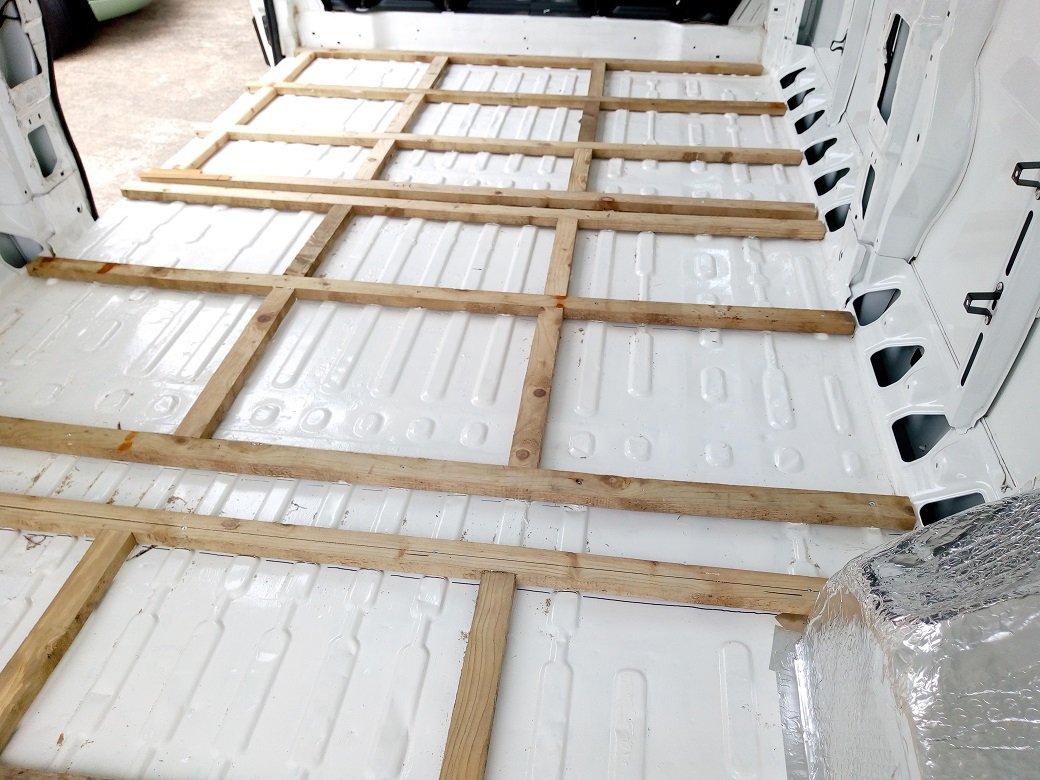

The square spaces are not too big that the floor may sag or bend later, but also provide a good insulating footprint.
FLOOR BATONS FINISHED.jpg

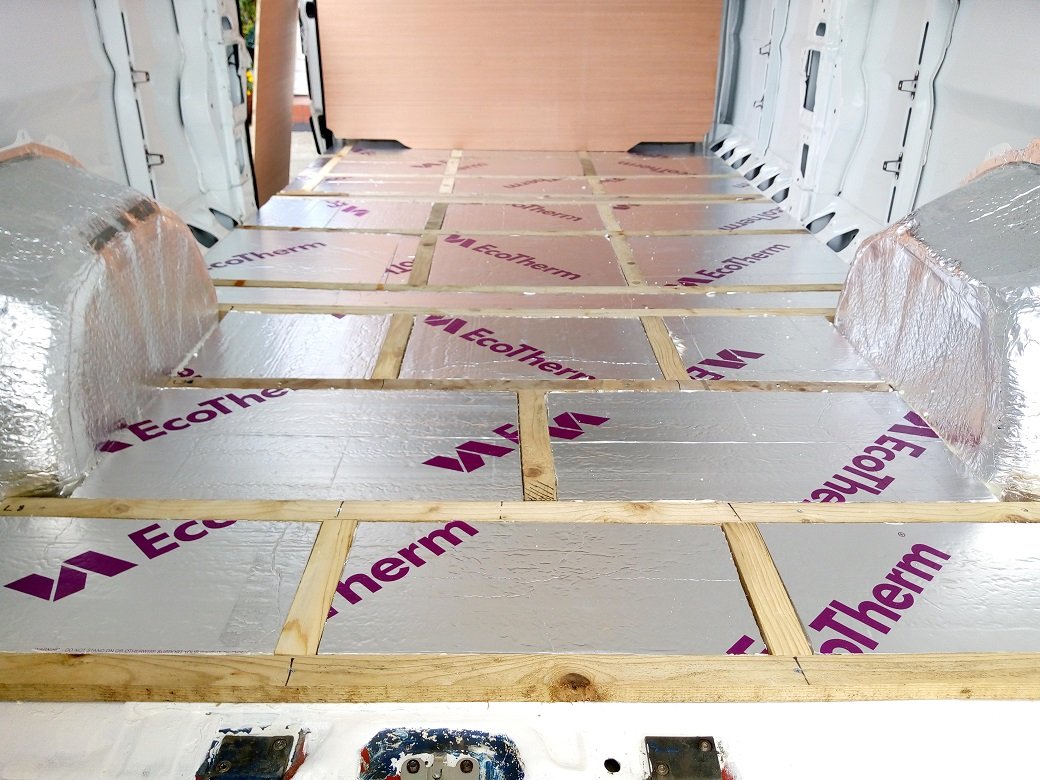

25 mm insulation board was used in order to maintain a decent floor height, also level with the batons. Just cut with a knife and slotted into place. I used Ecotherm insulation board which provided a thermal conductivity rating of 0.022W/mK
THERMAL FLOOR INSULATION BOARDS FITTED.jpg

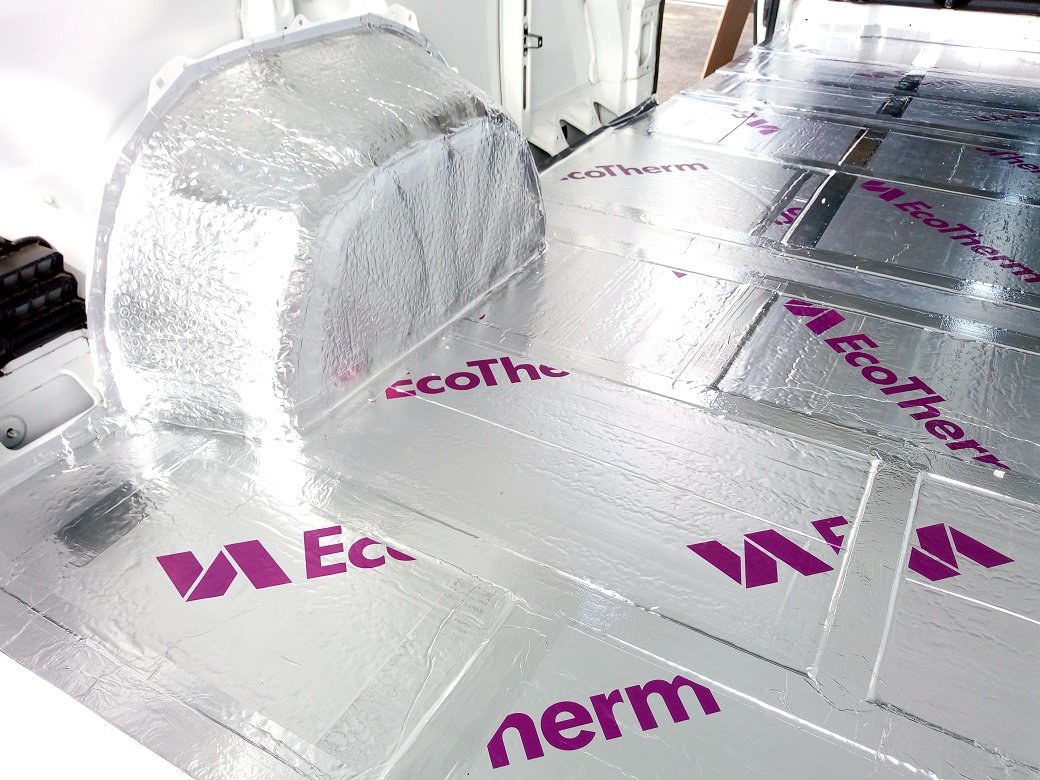

Next, I taped over all of the floor batons with aluminium foil tape. This provides a complete vapour barrier to stop warm air hitting the external floor and condensing, thereby potentially causing rust.
ALUMINIUM FOIL VAPOUR BARRIER FINISHED.jpg

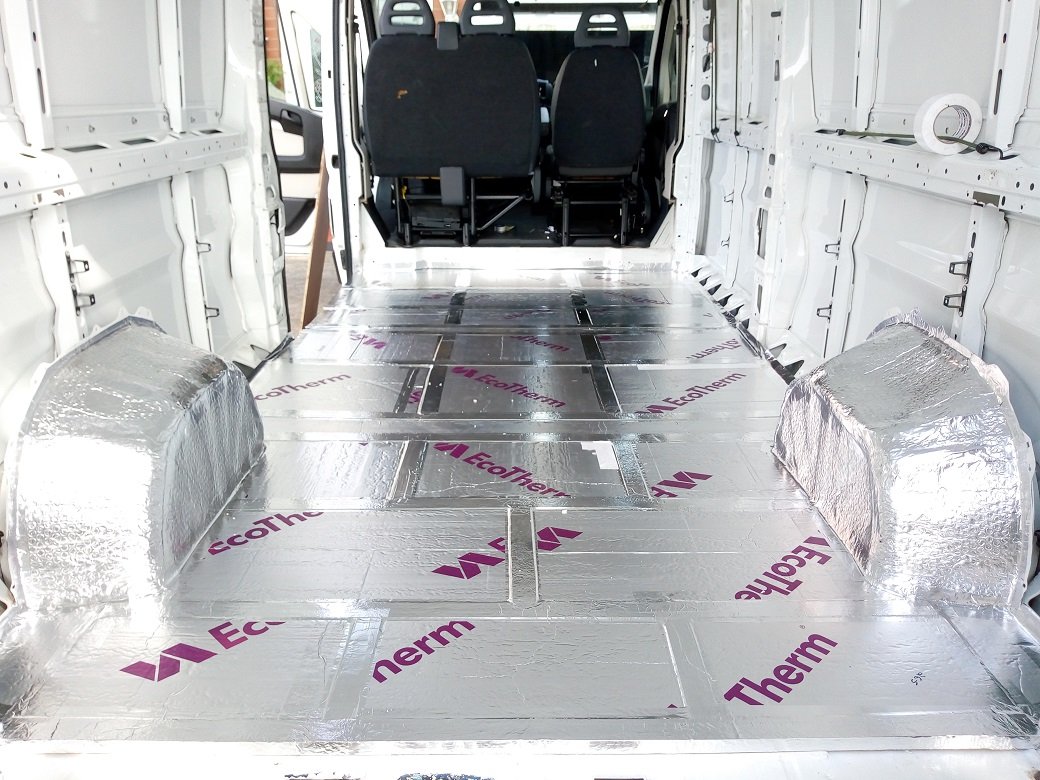

With sore knees / back and 50mtrs of foil tape used, I felt like I was building and becoming part of a space satellite!
INSULATION COMPLETE.jpg

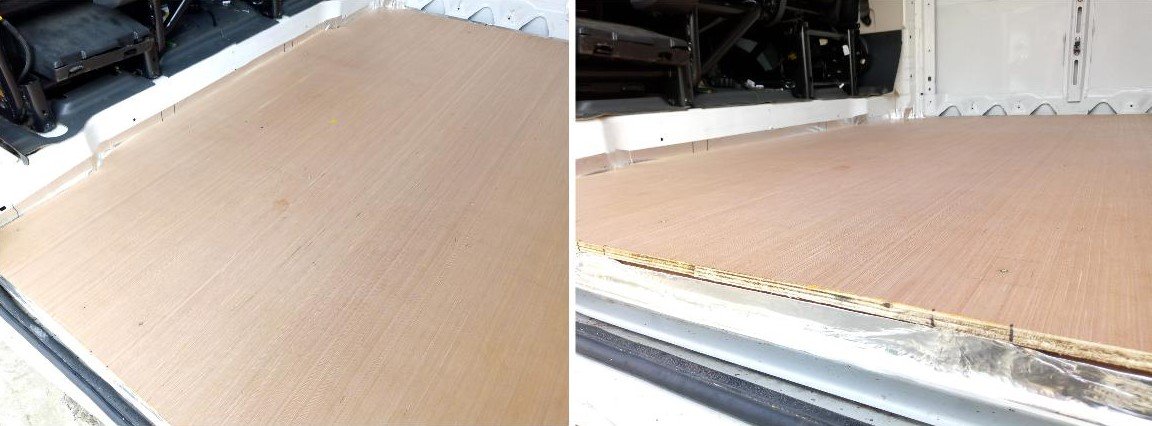

Back to Earth and the 12 mm plywood flooring was cut to size and applied, remembering of course to mark the edges and ensure you know where the floor batons are underneath!
VAN PLYWOOD  FLOOR SECURE.jpg

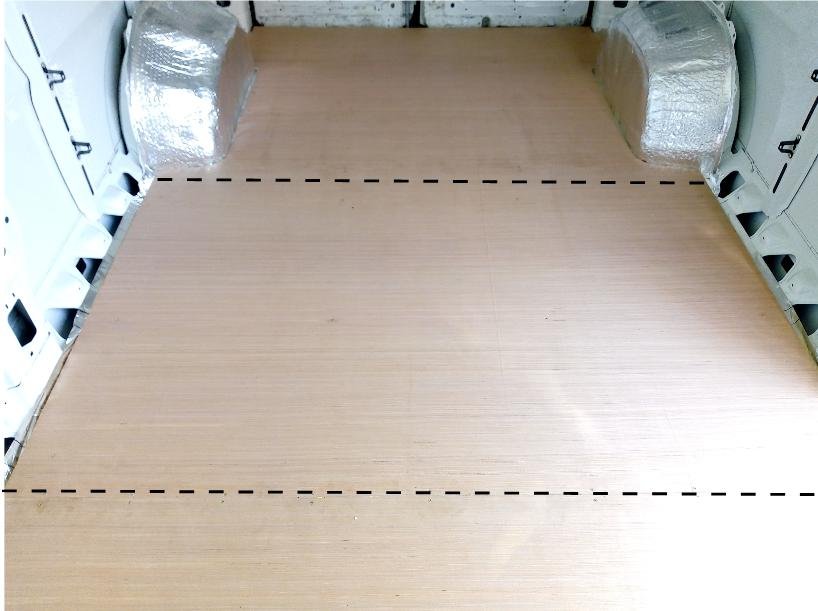

6ft across by 4ft wide! That enabled me to use only 3 strips and reduce the amount of floor joins.
PLYWOOD FLOOR SECURE.jpg
4 days of work, measuring and cutting, mostly by hand (less the plywood!) - With a good stable base and well worked out insulation, I know the job has been done to my standards, hopefully keeping me warm later on.
PREPPER VETERANs VAN.jpg

The Complete Project so far:
My Latest Brainwave & Project
Assessing The Task
The Strip Out
Floor Preparation & Rust Treatment
Hole Plugging & Lock mending
Finalising The Floor Foundations
The Insulation Begins

Authors get paid when people like you upvote their post.
If you enjoyed what you read here, create your account today and start earning FREE STEEM!
Sort Order:

You make this beaver proud with the quality of your work! This looks awesome and should last years!

·

I don't intent spending THAT much on this project. I think that the lifespan of the vehicle will be around 10 years, in my possession? Maybe.
So the fit should be pretty robust enough for that duration.

howdy sir preppervetuk! oh my gosh this thing is perfection! that had to be hard putting all the insulation down and then all the taping because you had to stay on the narrow wood slats right?
I'd have to wear knee pads.
You could do custom conversions for people if the profit was enough but I guess you just want t hit the road!
excellent post sir!

·

I used a 2 ft wide off-cut piece of plywood to move around so I didn't puncture the floor... It took a long time, but not doubt the insulation propterties should be worth it.

·
·

oh yes sir it was another perfect job and it's a beautiful thing to watch as it progresses!

You know I'm taking notes for future use, right? ( hee hee)

Excellent floor job! Good point about the foil tape. Is this your first conversion?

·

haa...
Yeah it's my first conversion for this type of vehicle, but I live in another type already.

·
·

Well you're doing this one like a PRO! It's going to be awesome. I can't wait to see what you came up with for a layout. Hidden storage spaces I bet!

Congratulations! This post has been upvoted from the communal account, @minnowsupport, by Prepper Veteran from the Minnow Support Project. It's a witness project run by aggroed, ausbitbank, teamsteem, someguy123, neoxian, followbtcnews, and netuoso. The goal is to help Steemit grow by supporting Minnows. Please find us at the Peace, Abundance, and Liberty Network (PALnet) Discord Channel. It's a completely public and open space to all members of the Steemit community who voluntarily choose to be there.

If you would like to delegate to the Minnow Support Project you can do so by clicking on the following links: 50SP, 100SP, 250SP, 500SP, 1000SP, 5000SP.
Be sure to leave at least 50SP undelegated on your account.

Keeping the condensation off the metal is a smart decision. What will you use to heat the living space?

·

At the moment i am looking at getting either diesel blown air heating, or a very small wood/multi-fuel stove burner.

·
·

In a space that small I think it would be hard to regulate the temperature manually, like with a wood stove. Anything with a thermostat would be better. Are you going to carry propane tanks? There are very compact catalytic propane heaters available. They need good ventilation for safety and humidity control.

Posted using Partiko Android

·
·
·

I have used similar heaters in such small spaces before and I found there was just too much condensation that accumilated. The gas has too much moisture content in it....
Whatever I decide, it will be a simple system.

i'd really like to do this, a van conversion, or perhaps buy something already converted so i can travel about. would love to see what else you do to this.

·

I scoped out the price of an already converted van, they were way too expensive.
Fitting out my own van, I am able to put things where I want and how I want. I also know what is behind the walls etc.
I cannot wait to get it into a finalised state, where i can get going, although projects like this are never finished lol.
