Beauty and the Beast Props - Windmill ~Teaser~
"Pray look better, Sir... those things yonder are no giants, but windmills."
- Miguel de Cervantes -
When I haven't posted on Steemit for more than a week,
there has to be a good reason. I've been intensely busy finishing up the props for Beauty and the Beast.
How busy have I been?
All the usual hack phrases apply. Busier than a one-armed paper hanger. Busier than a long-tailed cat in a room full of rocking chairs. Busy as a bee. Busy as a beaver. Too busy to breathe. Etc., etc.
Here's the latest (and final!) B&B prop "teaser."
This time, a sneak peek at progress on the Windmill prop for the upcoming production of Beauty and the Beast.
Have you seen Beauty and the Beast?
Image by Walt Disney Pictures, via Wikimedia Commons
The end of March is drawing near,
and the Windmill is one of three exotic props I must deliver in plenty of time for final rehearsals and for "Tech Week," the week of intense practice in the theater where the performances are publicly held.
In the 2017 Disney movie version of the story, Belle's father Maurice is seen in his workshop working on a Windmill Music Box. Although not in the Broadway theatrical version of the story, the director of this performance felt that it was important to include a version of that scene.

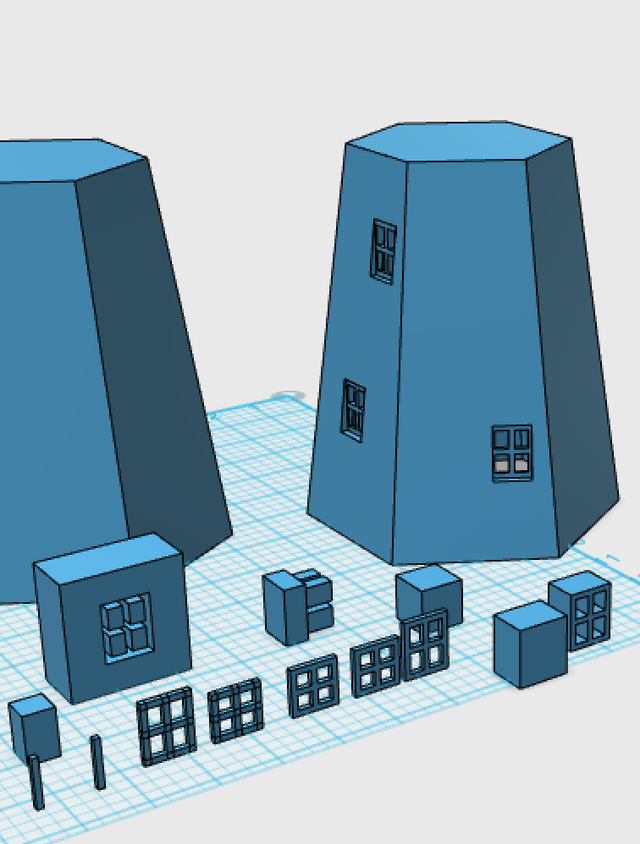

The Windmill Music Box - Early design work...
Original image by @creatr
Compared to the Enchanted Rose and the Magic mirror,
the Windmill prop has been relatively easy to create.
The design is a fairly straightforward combination of a battery, a geared-down motor, and some LED lighting. It's dressed up a little with some paint, hot melt glue, and finishing touches.

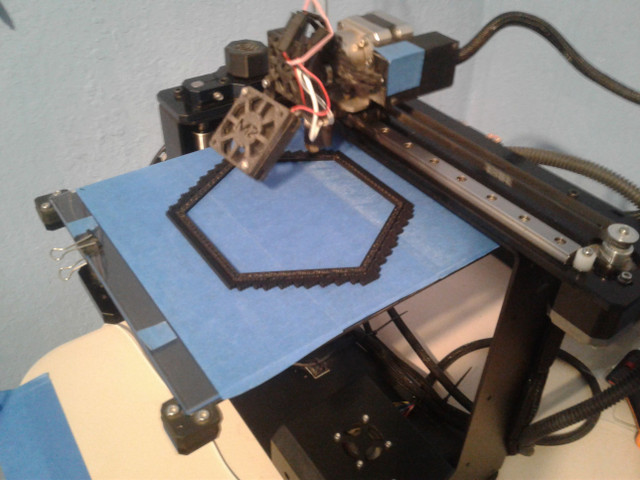

On the printer bed below,
you can see the hexagonal foundation being laid.
I modeled the windmill design loosely after the features I liked best taken from a wide array of photos of Dutch windmills.
Windmill foundation being printed.
Original image by @creatr

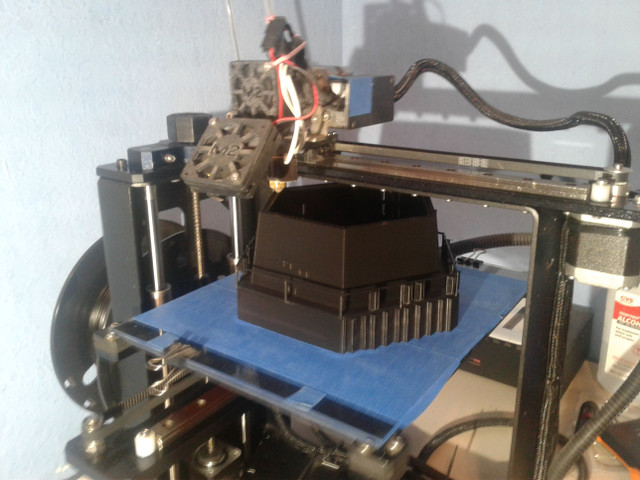

The main structure was printed in one piece.
I had originally considered printing six walls and gluing them together, but in the end went for a unibody construction.
Windmill Rising
Original image by @creatr
You can see a walkway and railing circling the base near the bottom. The "jaggies" near the bottom right are support structures being printed to temporarily hold up the walkway. That material is removed after printing.

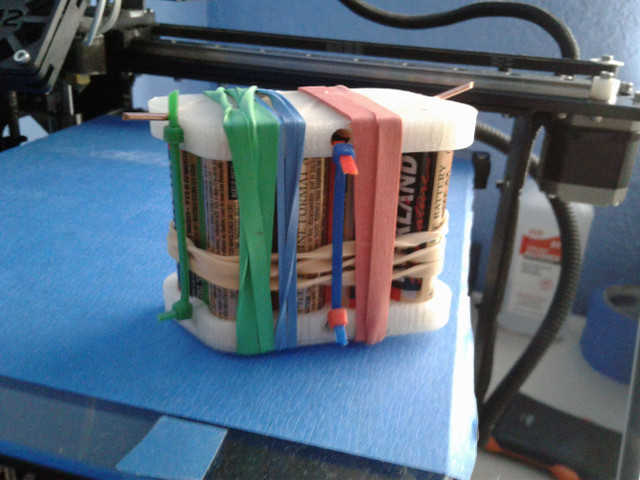

The Windmill prop is operated by a 12 volt battery.
The battery pack runs a motor with reduction gearing that turns the blades at about five RPM. It also powers some white LEDs that illuminate the Windmill's windows from within.
Custom printed, uber-compact 12v battery pack.
Original image by @creatr
To my special Theater Fans:
The end of the road is near. I hope to deliver all three props to the director and prop master next week. I'll be working with the theater lighting director to ensure that the Enchanted Rose is properly connected to the theater DMX lighting control system and that it functions compatibly.

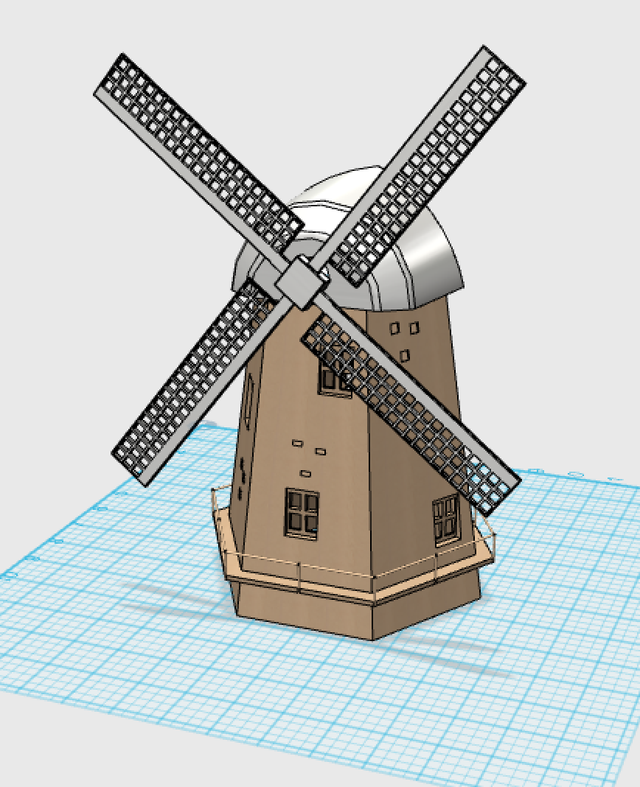

The Windmill Music Box - Design Complete...
Original image by @creatr
I expect I'll also be involved during Tech Week to be sure that the actors and actresses are properly trained in the use and handling of the props, and that the prop master is competent to set up and operate, and re-set the Enchanted Rose.
Stay tuned!
I plan to write more detailed posts about the design and development of each of the props, and also about any adventures that may occur as I do the "hand-off" to the theater people.
If you're just tuning in, here are previous entries in this series (including ruminations) about prop-making:
"The Ocean of Life" - A Haiku by Duncan Cary Palmer
"When Wandering Wizards Wonder..."
"Finally Out to Sea..." a Haiku by Duncan Cary Palmer
Beauty and the Beast Props - Enchanted Rose ~Teaser~
Beauty and the Beast Props - Magic Mirror ~Teaser~
Beauty and the Beast Props - Windmill ~Teaser~
~FIN~
