Devil Gundam: Inner Frame Prep Work [Leg Modification - Part 112]
Hi guys!
Today, I will finish the second batch of inner frame copies. So here are updates on Project Devil Gundam!
Today, I will finish the second batch of inner frame copies. So here are updates on Project Devil Gundam!

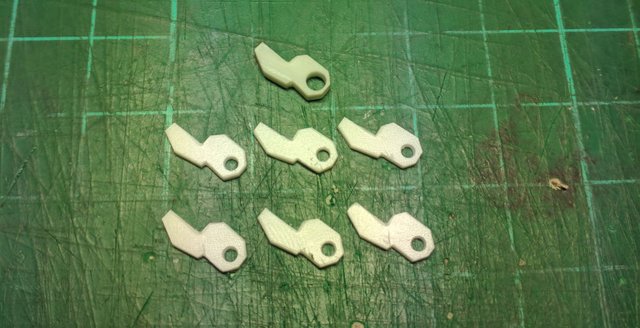

Prepping the Pla Plates
![](https://steemitimages.com/640x0/https://cdn.steemitimages.com/DQmaBjfvhYc6zjJ1Qac1epgRndeFo5bADbD2wXXvczA7tDv/IMG_20180522_140550.jpg)
![](https://steemitimages.com/640x0/https://cdn.steemitimages.com/DQmQkjEvTpqqx2Yxf5gCSw2WZXshS4d6wMNTaXjdzkPHWJj/IMG_20180522_140940.jpg)

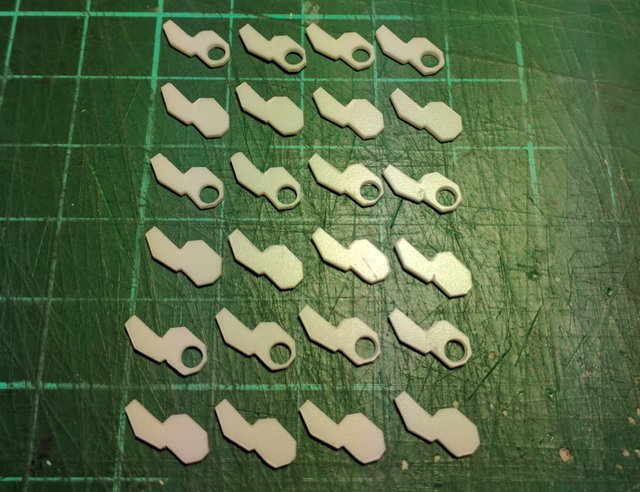

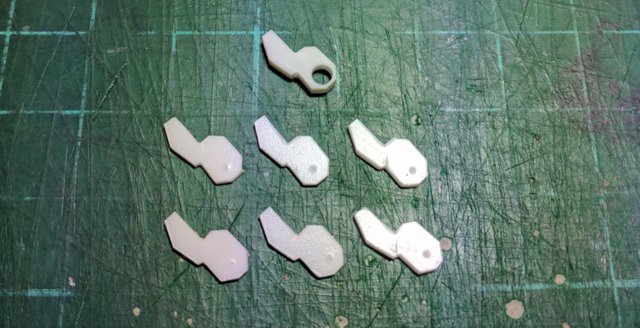

Now I will start prepping these pla plates and turn it into an inner frame for each toe. As always I start with marking the center with scribing pen. Then drill with the smallest drill bit I have.
Finishing the Prep Work
![](https://steemitimages.com/640x0/https://cdn.steemitimages.com/DQmRYjvhGwQH41aN5C8rHLVPKPLaX6iuPHr2YBW23a1teRb/IMG_20180522_141815.jpg)
I'm only going to drill holes on half of the pla plates. Because this will make things easier when I cement the second pla plate.
If I drill on both pla plates I might misalign some of them and fixing it will take some time.
I also prep the edges and surface with file and sanding stick.
If I drill on both pla plates I might misalign some of them and fixing it will take some time.
I also prep the edges and surface with file and sanding stick.

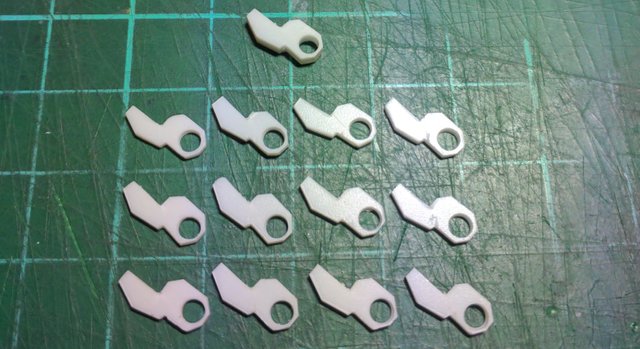

Inner Frames Ready to Go
![](https://steemitimages.com/640x0/https://cdn.steemitimages.com/DQmNW8gTmuFEqdubztiaoqnuiyVqjSqHHEgVCfUqCLrHqGK/IMG_20180522_142101.jpg)
You might notice that some of the holes are quite close to the edges of the pla plate.
<br. But later when I cement the second pla plate it should give them some more strength.
Later if some of them looks like they might break I will adjust the edges using scrap pla plates and some thin cement.
So these are my update on Project Devil Gundam for today.
Keep on steeming! Have a nice day!
<br. But later when I cement the second pla plate it should give them some more strength.
Later if some of them looks like they might break I will adjust the edges using scrap pla plates and some thin cement.
So these are my update on Project Devil Gundam for today.
Keep on steeming! Have a nice day!
Quick access tutorial:
- Fixing broken peg using gunpla runer and several tools.
- Fixing holes using cement and plastic scraps.
- Making C-Joints using pla plates.
