Learn Python Series (#32) - Data Science Part 3 - Pandas

in #utopian-io5 years ago

Learn Python Series (#32) - Data Science Part 3 - Pandas


Repository

What will I learn?

  • You will learn what "time series resampling" means;
  • how and why resampling provides essential insights looking at different time series windows / resolutions;
  • how to aggregate multiple columns of data and use column-specific resampling rules;
  • how to compute rolling (moving) window values.

Requirements

  • A working modern computer running macOS, Windows or Ubuntu;
  • An installed Python 3(.7) distribution, such as (for example) the Anaconda Distribution;
  • The ambition to learn Python programming.

Difficulty

  • Beginner, intermediate

Additional sample code files

The full - and working! - iPython tutorial sample code file is included for you to download and run for yourself right here:

https://github.com/realScipio/learn-python-series/blob/master/lps-032/learn-python-series-032-data-science-pt2-pandas.ipynb

The example CSV file that was used in the #31 episodes is copied to the lps-032 folder as well:

https://github.com/realScipio/learn-python-series/blob/master/lps-032/btcusdt_20190602_20190604_1min_hloc.csv

GitHub Account

https://github.com/realScipio

Learn Python Series (#32) - Data Science Part 3 - Pandas

Re-loading the actual BTCUSDT financial data using pandas

First, let's again read and open the file btcusdt_20190602_20190604_1min_hloc.csv found here on my GitHub account, (after having saved the file to your current working directory, from which you're also opening it using .read_csv()):

import pandas as pd
df = pd.read_csv('btcusdt_20190602_20190604_1min_hloc.csv',
                 parse_dates=['datetime'], index_col='datetime')
df.head()
open high low close volume
datetime
2019-06-02 00:00:00+00:00 8545.10 8548.55 8535.98 8537.67 17.349543
2019-06-02 00:01:00+00:00 8537.53 8543.49 8524.00 8534.66 31.599922
2019-06-02 00:02:00+00:00 8533.64 8540.13 8529.98 8534.97 7.011458
2019-06-02 00:03:00+00:00 8534.97 8551.76 8534.00 8551.76 5.992965
2019-06-02 00:04:00+00:00 8551.76 8554.76 8544.62 8549.30 15.771411

Let's again plot the opening prices of Bitcoin per minute, for a visual reference (to be compared shortly hereafter in the remainder of this tutorial episode):

%matplotlib inline
df['open'].plot()


<matplotlib.axes._subplots.AxesSubplot at 0x1182a3860>

Resampling time series using .resample()

A very interesting features the pandas library provides, is time series resampling. In essence this means grouping a number of small time span data rows into a larger time span.

For example, if you "resample" the current DataFrame consisting of 1-minute Binance ticks on the BTC_USDT trading pair into hourly intervals, that means you are grouping 60 1-minute ticks into 1 hourly tick.

To do this, you can use the .resample() method and pass in a so-called time span "offset alias" (= frequency) as the method argument.

For example, to resample the "open" column values (the BTCUSDT opening price data), using the mean values, and to assign those values to a new df_hourly DataFrame:

df_hourly = df['open'].resample('H').mean()
df_hourly.head()
datetime
2019-06-02 00:00:00+00:00    8562.740500
2019-06-02 01:00:00+00:00    8570.234667
2019-06-02 02:00:00+00:00    8565.278167
2019-06-02 03:00:00+00:00    8551.818333
2019-06-02 04:00:00+00:00    8553.886333
Freq: H, Name: open, dtype: float64

As you can see in the above .head() output, indeed the 1 minute ticks are precisely grouped into hourly values now.

It is also possible to achieve the same DataFrame output, by grouping by 60 minutes. This might seem trivial / just another way to achieve the same effect, but please note that it is also possible to prepend an integer value as a multiplier to the time span offset aliases (e.g. "5min", "15min", "60min", "4H", et cetera):

df_60min = df['open'].resample('60min').mean()
df_60min.head()
datetime
2019-06-02 00:00:00+00:00    8562.740500
2019-06-02 01:00:00+00:00    8570.234667
2019-06-02 02:00:00+00:00    8565.278167
2019-06-02 03:00:00+00:00    8551.818333
2019-06-02 04:00:00+00:00    8553.886333
Freq: 60T, Name: open, dtype: float64

Resampling time series data by aggregating (using .agg()) multiple columns each with a different operation

In the previous examples it was explained how to resample one column of data values (the 1-minute opening prices of BTCUSDT) into larger time spans. However, our current data set contains multiple columns of data ("open", "low", "high", "close", "volume") and ideally you want to resample each column differently.

For example:

  • the "opening prices" of 1-hour ticks should stay the first value of the first minute of data. Each hour of data still began with the first tick of data;
  • the "low prices" within 1 hour of data should be the minimum value recorded within that entire hour;
  • the "high prices" within 1 hour of data should be the maximum value recorded within that entire hour;
  • the "closing prices" should remain the last recorded value;
  • the "volume" data should be summed as a cumulative value within each hour.

To do this, you can resample by chaining the .resample() method with an agg() (short for "aggregate") method, and then pass in a dictionary containing key-value pairs reflected by "column": "how"). Like so:

df_complete_1h = df.resample('H').agg({
    'open': 'first',
    'high': 'max',
    'low': 'min',
    'close': 'max',
    'volume': 'sum'
})
df_complete_1h.head()
open high low close volume
datetime
2019-06-02 00:00:00+00:00 8545.10 8588.33 8524.00 8585.88 593.133892
2019-06-02 01:00:00+00:00 8564.97 8598.00 8550.89 8595.58 787.293606
2019-06-02 02:00:00+00:00 8570.35 8582.64 8540.00 8582.15 660.086969
2019-06-02 03:00:00+00:00 8549.23 8569.23 8525.97 8565.81 664.017888
2019-06-02 04:00:00+00:00 8545.93 8573.18 8540.40 8570.53 498.116310

Why multi-dimensional data-specific resampling and aggregation is very powerful and useful:

The techniques discussed just now are very powerful and useful, because - in case you (for example) want to perform technical analysis on OHLC&Volume data ticks on multiple time span resolutions / intervals -, when taking a close look at trading data (for example on an exchange such as Binance, or using visual charts provided via TradingView charting widgets), and "zooming in" on the 1-minute candles, price might appear to be in a short-term downtrend, but when zooming out to (for example) the 4H time span resolution then you suddenly notice price is still in an uptrend.

Visually inspecting time series (e.g. trading) data using just one specific time span resolution can therefore be deceiving and could lead you to forming the wrong conclusions (which can be very costly); when in a major (large time span) uptrend but focusing only on 1-minute (small time span) data, merely correcting in a short-term downtrend, you might be inclined to sell, only very shortly afterwards finding out the major (large time span) uptrend to continue. And vice versa, of course. Deriving insights by looking at "multiple time series zoom levels", is very important to be able to properly estimate the "intensity" of "change" and "direction".

Using the combined resample() and agg() data grouping methods, as explained above, the only data you need to fetch from source is the smallest time span resolution you are interested in. On Binance for example you can view the time span resolutions "1min", "3min", "5min", "15min", "30min", "1H", "2H", "4H", "6H", "12H", "1D", "1W" and "1M".
By fetching only the 1-min k-line tick data, you can resample and aggregate all time span resolution data, which can bring you better insights to come to better decision making: exactly the core objective of Data Science.

Rolling window calculations using .rolling()

Both in Data Science (in general) and financial technical analysis (specifically), keeping track of rolling / moving averages may yield powerful new insights. When you're active with crypto currencies, at some point (rather sooner than later, probably) you will come accross exchanges for trading tokens, which come with a multitude of "technical indicators". Again looking at the Binance exchange, in this example case at the BTCUSDT trading pair (Bitcoin against the USD-pegged Tether token), by default (viewing any time span resolution) in the same charts where the Open-Low-High-Close candles are plotted you'll also see two colored lines dubbed as "MA(25)" and "MA(99)".

In more financially versed circles, those two "technical indicators" are referred to as "Simple Moving Averages" (as opposed to for example "Exponential Moving Averages").
A Simple Moving Average is computed by looking (at any given tick) at N interval ticks backward in time, then computing the mean (average) value of those N ticks, and adding that SMA value to the current tick.

For example "(S)MA(25)" on Binance means: "let's use the previous 25 minute values, compute the mean value from those, and use that as a new value; the next minute we will shift upward 1 tick and re-compute the mean values for the next interval". In this case (at "MA(25)") N=25 and the "MA(99)" indicators uses N=99.

The mean values are "moving" or "rolling" as time goes by, and by storing those rolling averages as a new column in our DataFrame we get a much "smoother" representation of how price has been developing over time.

pandas provides a .rolling() method to compute the same data you see on a trading exchange such as Binance. In order to produce similar results, let's again use the original DataFrame (the non-resampled 1-minute ticks found in the provided CSV file), but this time only the 'open' price column data.

import pandas as pd
df = pd.read_csv('btcusdt_20190602_20190604_1min_hloc.csv',
                 parse_dates=['datetime'], index_col='datetime')

df['sma25'] = df['open'].rolling(window=25).mean()
df['sma99'] = df['open'].rolling(window=99).mean()
df[['open','sma25','sma99']].tail()
open sma25 sma99
datetime
2019-06-04 23:55:00+00:00 7676.54 7659.2484 7645.560404
2019-06-04 23:56:00+00:00 7689.76 7660.5348 7646.478081
2019-06-04 23:57:00+00:00 7696.69 7662.3408 7647.454747
2019-06-04 23:58:00+00:00 7697.66 7664.1404 7648.441212
2019-06-04 23:59:00+00:00 7690.97 7665.6016 7649.447677

The code line ...

df['sma25'] = df['open'].rolling(window=25).mean()

... means:

  • let's create a new DataFrame column named "sma25";
  • use a vectorised / column-based operation method on every row (cell) within that DataFrame column;
  • by using the data found in the "open" column;
  • use N=25 as the rolling window;
  • and compute & store its mean (average) value in the "sma25" column.

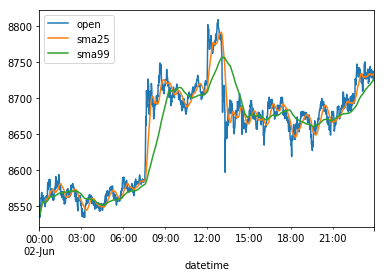

If we now plot the 1-minute data ticks found in columns 'open','sma25' and 'sma99', and for visualisation matters let's only plot the 1-minute ticks of June, 2, 2019 - otherwise the lines would be too close to visually distinguish -, we get the following visual overview:

%matplotlib inline
df[['open','sma25','sma99']]['2019-06-02'].plot()


<matplotlib.axes._subplots.AxesSubplot at 0x1193bc3c8>

Nota bene: on the "sma99" data, since we need 99 ticks of data before we're able to begin plotting, if you take a close look at the above plot, bottom-left, on the green sma99 line, you see that there's a "gap".

The same can be found when printing the first 5 values using .head() (instead of .tail()):

df[['open','sma25','sma99']].head()
open sma25 sma99
datetime
2019-06-02 00:00:00+00:00 8545.10 NaN NaN
2019-06-02 00:01:00+00:00 8537.53 NaN NaN
2019-06-02 00:02:00+00:00 8533.64 NaN NaN
2019-06-02 00:03:00+00:00 8534.97 NaN NaN
2019-06-02 00:04:00+00:00 8551.76 NaN NaN

The NaN values mean "Not a Number" (PS: in a forthcoming Data Science episode using pandas you'll learn about multiple ways on dealing with missing data, and dealing with "malformed" or even "incorrect" data points, and how to deal with those in a process called "Data Munging").

The .rolling() method comes with a parameter called min_periods=, which is by default set to the same number N as the window= parameter, in this case 25 and 99, respectively.

However, if we explicitly pass min_periods=0, then immeditely a "best-guess" value is computed based on < N values (meaning, at the first tick, the "sma25" value is identical to the "open" value, on the second tick "sma25" is the mean value of current and the previous ticks, until equal to or more than N ticks are present).

In code:

df['sma25'] = df['open'].rolling(window=25, min_periods=0).mean()
df['sma99'] = df['open'].rolling(window=99, min_periods=0).mean()
df[['open','sma25','sma99']].head()
open sma25 sma99
datetime
2019-06-02 00:00:00+00:00 8545.10 8545.100000 8545.100000
2019-06-02 00:01:00+00:00 8537.53 8541.315000 8541.315000
2019-06-02 00:02:00+00:00 8533.64 8538.756667 8538.756667
2019-06-02 00:03:00+00:00 8534.97 8537.810000 8537.810000
2019-06-02 00:04:00+00:00 8551.76 8540.600000 8540.600000

Visually plotted:

%matplotlib inline
df[['open','sma25','sma99']]['2019-06-02'].plot()


<matplotlib.axes._subplots.AxesSubplot at 0x106218a20>

And indeed, as you can see (while looking closely at the plot data bottom-left) now there's no missing gap, as there are no NaN values in the "sma25" and "sma99" columns.

What did we learn, hopefully?

Apart from how to (technically) use the pandas methods .resample(), .agg() and .rolling(), hopefully you've also learned why using those techniques provide essential insights while analysing time series data, such as crypto currency trading data.

Thank you for your time!
