Sukhoi SuperJet 100 further development for FlightGear
FlightGear (http://www.flightgear.org) is an open source flight simulator that is even used in flight schools to train basic maneuvers, radio communication and navigation tasks. It is available for windows, mac and linux.
In this article I want to introduce my ongoing development of the Sukhoi SuperJet 100 of the last week.
Bug Fixes
The FDM was further adjusted to the real values in nearly all values: wheels, wings, horizontal stabilizer, flaps, slats, speedbrakes, weights and flight characteristics for approach and cruise. In many hours of test flights they are adjusted, and controlled by the solver results:
From this values: YASim solution results:
- Iterations: 4226
- Drag Coefficient: 9.3852
- Lift Ratio: 215.519
- Cruise AoA: 2.12486
- Tail Incidence: -3.65922
- Approach Elevator: -0.746988
- CG: 12.958, 0.000, 0.150
To this values it is changed now: YASim solution results
- Iterations: 1425
- Drag Coefficient: 13.6869
- Lift Ratio: 90.6488
- Cruise AoA: -3.25881
- Tail Incidence: 1.84511
- Approach Elevator: -0.347858
- CG: 12.456, 0.000, -0.386
New Features
- Sound for reverser and engines now more realistic.
- Slats in the model, FDM and animations added.

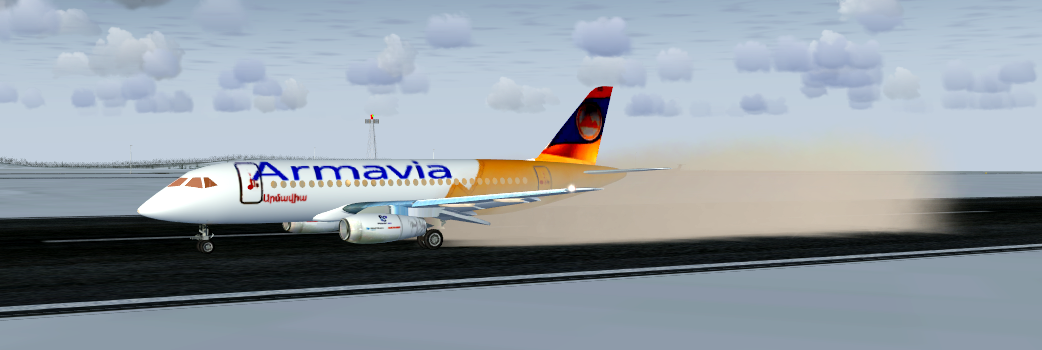

- Runway effect for touch down and emergency braking added, see the pictures above.
- Autopilot: more functions are now implemented and working fine, they had to be adjusted to the new FDM settings.
Roadmap
The panel has to be modified so that it looks more original. Research at http://superjet100.info/wiki:cabin shows the result. This will be done by adding the existing A320 panel with modifications.
How to contribute?
Pull request to my github repository or direct contact via Mumble FlightGear Chat.
Link to the latest commit
https://github.com/HerbyW/SSJ/commit/3bb3a8dac630721f782988480c24ca4be8068ac9
Link to the repository
Proof of work
In my profile on Utopian.io, the github repo SSJ is listed in my project page:
https://utopian.io/project/HerbyW/SSJ/github/118785013/all
The ReadMe.txt contains my real name, my git username, my steemit username and my callsign in the multiplayer.
