Learn how to use the read phaser to manipulate Wavetable sounds in Valley's Dexter module for VCV Rack.

What Will I Learn?

• You will learn the purpose wavetables in Dexter
• You will learn the function of the Read Phaser in Dexter
• You will learn the function of the Shape selector
• You will learn the characteristics of each of the 12 unique Shape Modes
• You will learn how to interpret each Shape Mode for sound production
• You will learn how using a stationary sound versus a moving line differs in interpreting sound

Lesson Files and Resources

• Dexter Manual
• Background on Algorithms
• Download Rack and many modules here - https://vcvrack.com/
• Download my VCV Rack patch for this tutorial from my Github repository https://github.com/buckydurddle/Valley-Modules

Requirements

To complete this tutorial learners will need to have the following:

• VCV Rack installed on a Mac, Windows or Linux computer
• Valley's module pack installed

Difficulty

This tutorial is at an advanced level.

Description

This tutorial explores how to manipulate the sound produced by Dexter's wavetable synthesis component by using changing the 'read phaser' tool.

Learn the purpose a wavetables in Dexter

Dexter allows you to create a variety of sound using frequency modulation and phase modulation. At the core of these synthesis processes is wavetable synthesis. To create sounds using frequency modulation and phase modulation you must start with a waveform. This is where wavetable comes in. Dexter provides 12 unique tables which can be used to create an extensive selection of sound. Understanding how this waveform function works will give you a better understanding of the results you will get when you start doing other forms of synthesis.

Learn the function of the read phaser in Dexter

In the second tutorial in this series we learned the basic function of wavetable synthesis and how it is presented in Dexter. We learned that a series of waves are presented in one table and a user can morph between these waves to produce a wide variety of sounds from the table. In this tutorial we learn how these waves are read.

Dexter has what is referred to as a read phaser which scans the wavetable at the precise point selected by the user. If the read phaser is scanning the way simply as it is presented in the table the the wave will simply be played as-is. The read phaser can be made to read the wave in a variety of waves in order to further interpret the wave form. For example, the read phaser can be made to read the first half of the table twice as fast as the second half. This will distort the waveform and create a different sounding wave.

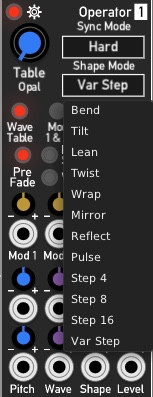

The way in which the read phaser interprets the table can be selected in the setting of each Operator under the Shape Mode pull-down menu.

Learn the function of the Shape selector

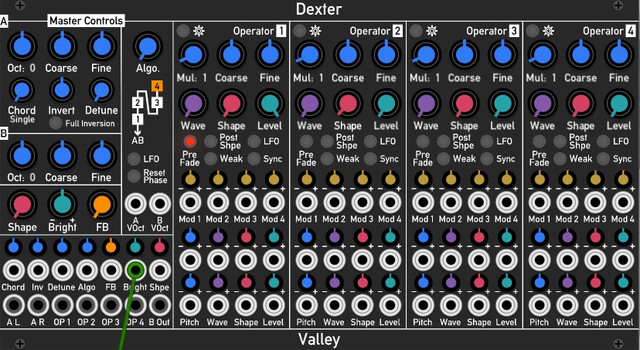

Each of the four Operators in Dexter has a Shape dial. This dial allows you to select how much you want the read phaser to apply the Shape Mode to the wavetable. By dialing all the way to the left the read phaser will interpret the wavetable as normal. The more you dial to the right the more of the Shape Mode will be applied to how the read phaser interprets the wavetable.

Learn the characteristics of each of the 12 unique Shape Modes

There are 12 unique Shape Modes available to us in Dexter. The following list and descriptions are taken from the Dexter manual found here - Dexter Manual

Bend

The phasor is dragged to one side from the middle so that the 1st half of the table is read faster than the last half.

Original Sine Wave

Changed

Tilt

The phasor reads the table faster and then waits at the end until a new cycle begins

Original Sine Wave

Changed

Lean

The phasor follows a curve, so the table is initial read faster then gradually slower towards the end of the cycle.

Original Sine Wave

Changed

Twist

Twists the middle third of the phasor around the centre, making it read the table forwards, backwards, then forwards again.

Original Sine Wave

Changed

Wrap

The end of the phasor is wrapped back to the beginning several times between 0 and 1, creating a hard sync like effect

Original Sine Wave

Changed

Mirror

Both the beginning and end of the phasor are mirrored when either reaches 0 or 1

Original Sine Wave

Changed

Reflect

At a given point, the phasor is switched from an upward ramp to a downward ramp.

Original Sine Wave

Changed

Pulse

The phasor is switched off and on at several positions, giving a type of PWM effect.

Original Sine Wave

Changed

Step 4

Blends the phasor into a 4-step staircase, creating a very lo-fi sound

Original Sine Wave

Changed

Step 8

Same as above but with an 8-step staircase

Original Sine Wave

Changed

Step 16

Same as above but with a 16-step staircase

Original Sine Wave

Changed

Var Step

Gradually makes the phasor increasingly stepped until it stops completely.

Original Sine Wave

Changed

Learn how to interpret each Shape Mode for sound production

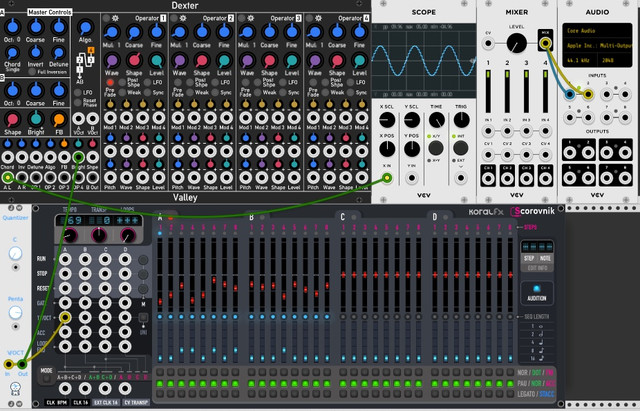

In this video tutorial I go through each of these Shape Modes. I show you how they look using Scope and how they sound.

Learn how using a stationary sound versus a moving line differs in interpreting sound

If you are planning to use the sounds you create for a stationary note versus a moving line (melody or baseline) then you will need to consider how the sound responds. For a moving line it is a good idea to set up a basic melody or baseline in a sequencer and let it run as you manipulate Dexter. In my Github repository I have an example patch using a sequencer and a simple moving line - https://github.com/buckydurddle/Valley-Modules

I hope you enjoy this tutorial. If you have any specific questions for me feel free to leave it in the comments of this post and I will do my best to get back to you with an answer.

Cheers,

@buckydurddle
