​Raspberry Pi Case for SteemPi (1)| SteemPi 專用樹莓派盒子 (一)

@techtek gave me a Raspberry Pi 3 case with Steemit logo as gift in our mini SteemPi meetup at ShamshuiPo. I thought it was my obligation to test it and let him know how is this case. I finally had time this Sunday to work on it. In order to make it works, that’s actually quite some works for me.

在深水埗的微型SteemPi聚會中，@techtek送了我一個連Steemit標誌的樹莓派 3 盒子. 我認為我應該為他測試一下它並讓他知道結果。這個星期天我終於kb時間這樣做了。不過要好好利用它，之前的準備卻是不少呀。

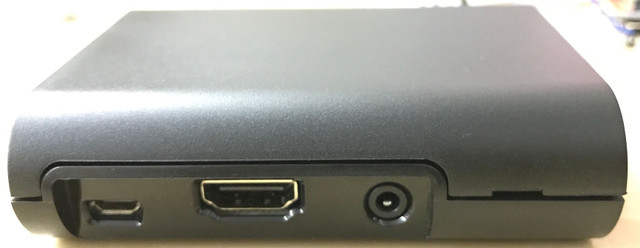

As you can see in above photos, there is no opening on this case for cables to go out from inside. Therefore, I first had to remove all the cables that were connected to external devices like the LCD and LED matrix, etc. The cables were connected like this:

從相片中可以得知，這個盒子並沒有位置讓入面的電線走出來。所以第一件要做的事就是把原本連接着不同配件的電線暫時拔掉。就好像這些：

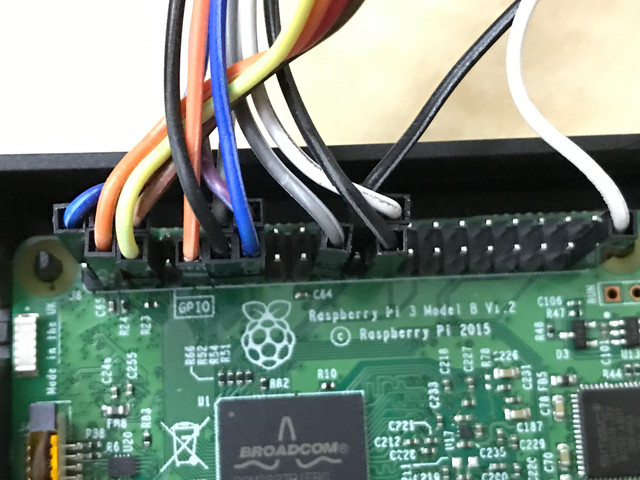

After removing all the cables, Raspberry Pi 3 became like this:

拔掉之後就是這個樣子：

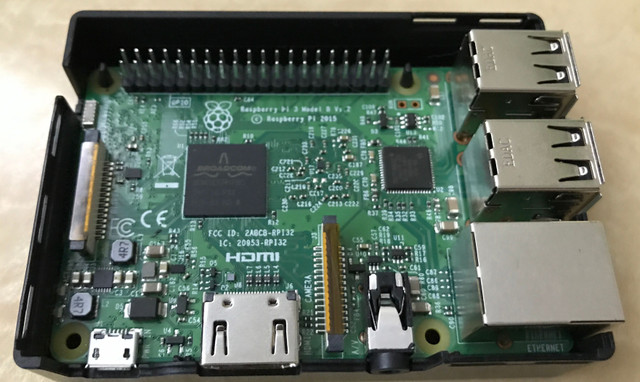

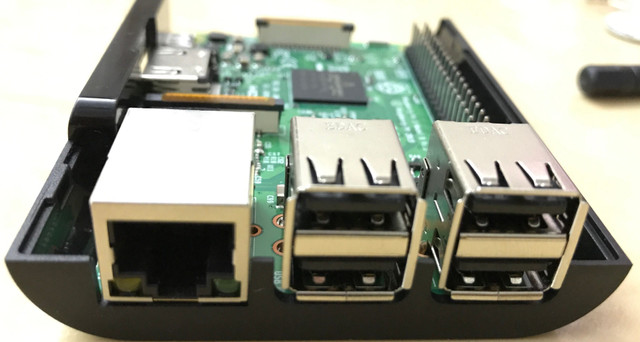

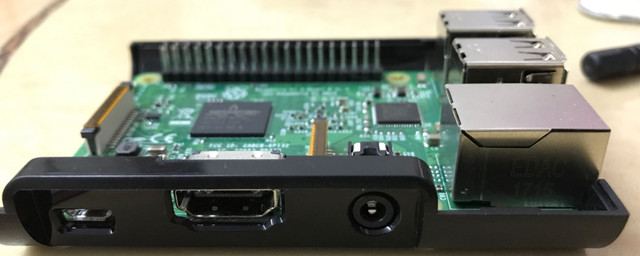

Then I removed the Pi 3 from the Lego case and put it in this case. No surprise, they fitted with each other very well.

接著就是把Pi 3從之前的樂高盒子中拿出來，放到新的盒子中。果然非常合身。

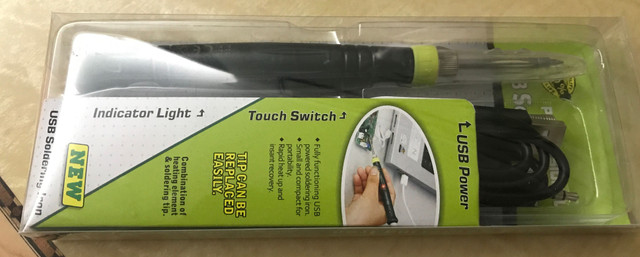

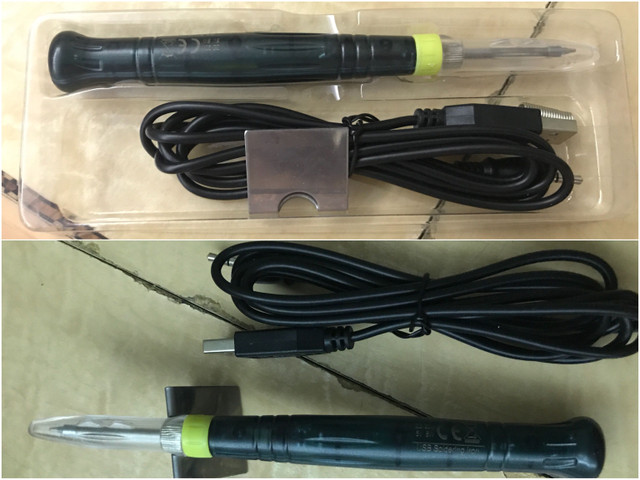

Next step was to prepare a dedicated LED as the notification LED of SteemPi v2. This was a difficult task for me as I need to do some soldering work and that was the first time in past 25 years after the last time I did the same thing, when I was still an undergraduate student. I didn’t even have the tool. That’s why I bought the tool from ShamShuiPo (yes, again).

之後就要準備SteemPi v2專用的通知用LED. 因為不能使用麵包板，所以要直接把電阻銲接到LED之上。這樣做對我來說直的不易呀。因為我對上一次這樣做已經是25年前我還是學士學生的時候了。連工具都沒有的我，唯有再到深水埗買一套工具。

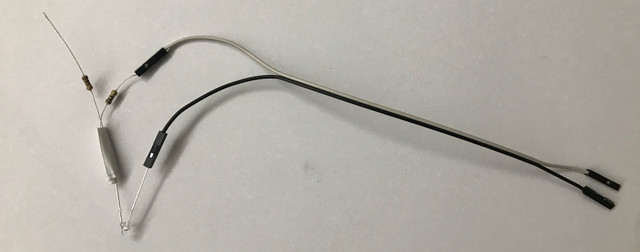

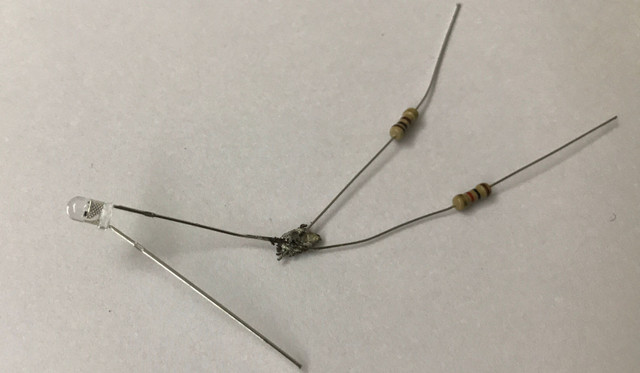

With the tool in hand, I soldered the multi-colour LED with 2 different resistors, so that there could be 2 different level of brightness to choose if necessary. For the time being, I connected the cable to resistor that gave higher brightness.

工具到手之後，我就要把電阻和那彩色LED焊接在一起。為了能選擇不同的光亮度，我把兩個不同數值的電阻焊接到LED上。不過為了方便示範，我把電線連到低一點的電阻以得到光一點的效果。

Then I connected the LED to PIN#9 and #11, which were GRD and GPIO0.

接下來我把這支LED接到第9和11針腳，亦即是GRD和GPIO0.

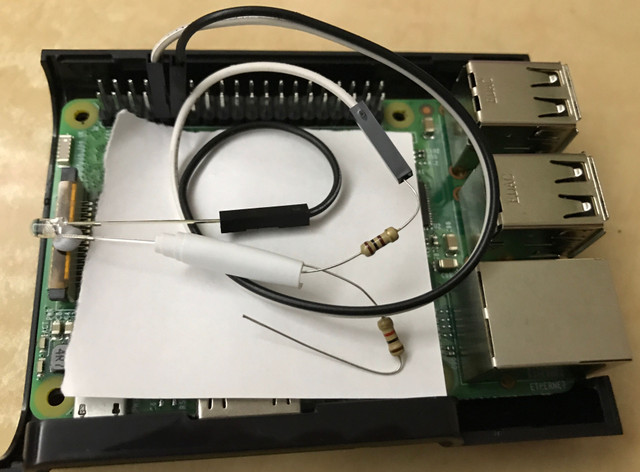

As there was some uncovered wires, to avoid accident (short circuit), I used a piece of paper to cover the Raspberry Pi before put the LED on it.

由於有暴露出來的電線，我就先放一張紙在樹莓派之上來隔開那LED,以防止短路。

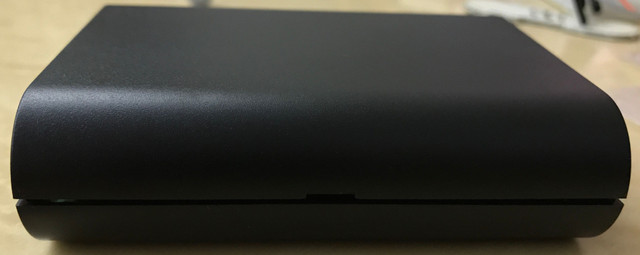

With the wires installed, the cover could not completely close. The screws helped a little bit thought.

因為插着電線的關係，盒子的蓋不能完全緊合，要靠螺絲釘來幫忙固定。

Let's see how it looked like in next post, stay tuned.

下回就讓大家看看效果如果，敬請留意！

---

請關注！點讚！轉發！

Please Follow! Upvote! Resteem!
