S19-Wk5: Rectifier circuit design
Welcome to the 5th week of our electronics lesson!
If you've been following us up to this point, you should now have a solid understanding of the various components we'll be using by the end of this program, as well as the ability to interpret circuit diagrams.
This week, we're excited to explore rectifier circuits and their applications.
Bridge Rectifier:
A bridge rectifier is an electronic circuit with four diodes that converts AC power into DC power.
Because four diodes are used, the output polarity does not change regardless of the polarity of the input current.
Working Procedure:
During +ve Half Cycle :
Forward Biased (FB): D1 & D3(On Condition)
Reversed Biased (RB): D2 & D4(Off Condition)
Output DC Voltage: Positive Half Cycle Volt
During -ve Half Cycle:
Forward Biased (FB): D2 & D4(On condition)
Reversed Biased (RB): D1 & D3(Off condition)
Output Voltage: Positive Half Cycle
Capacitor (C): Filter the output DC voltage

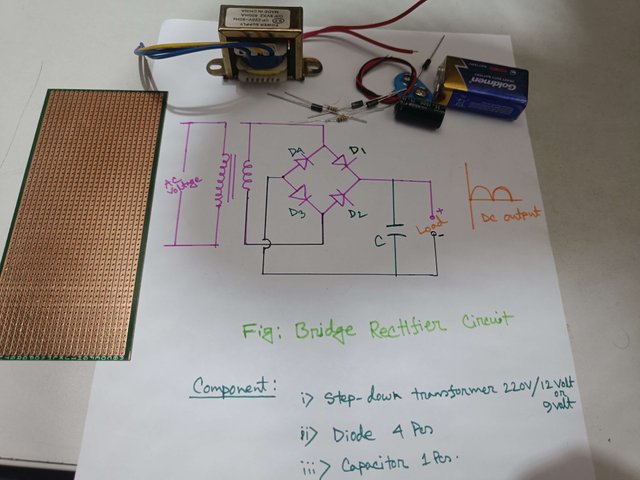

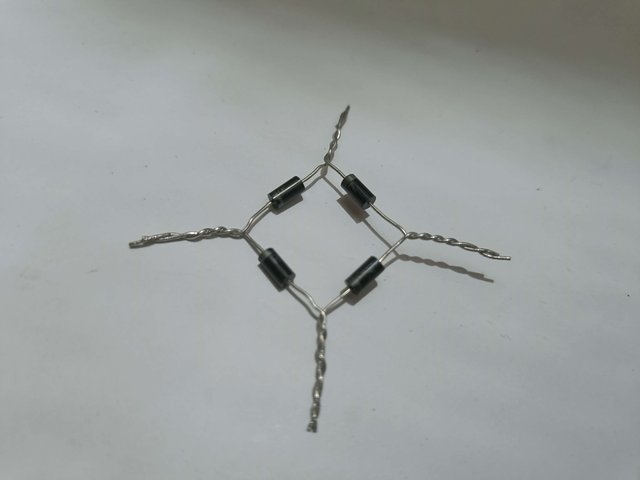

We first connect four rectifier diodes to make a bridge rectifier circuit.

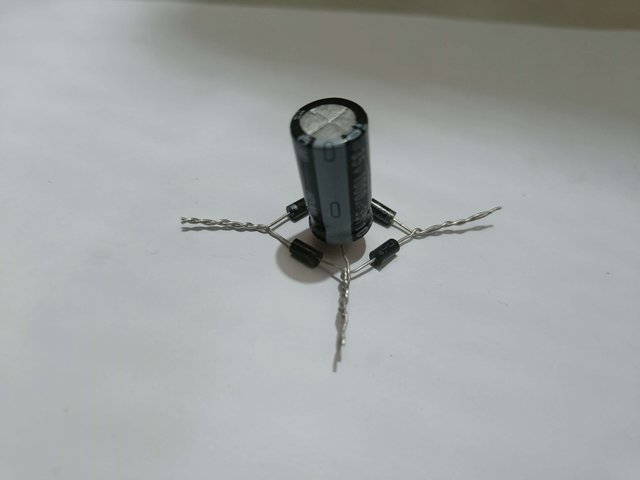

Then we connect a capacitor before the load to filter the output voltage.

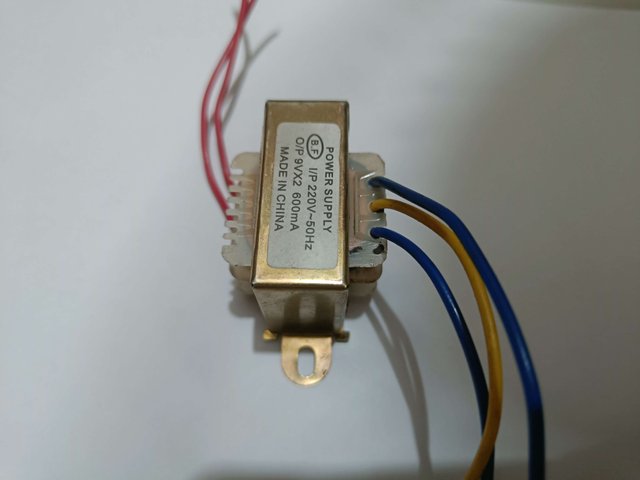

We can give the input voltage in two ways. A step down transformer with 220/9 volt

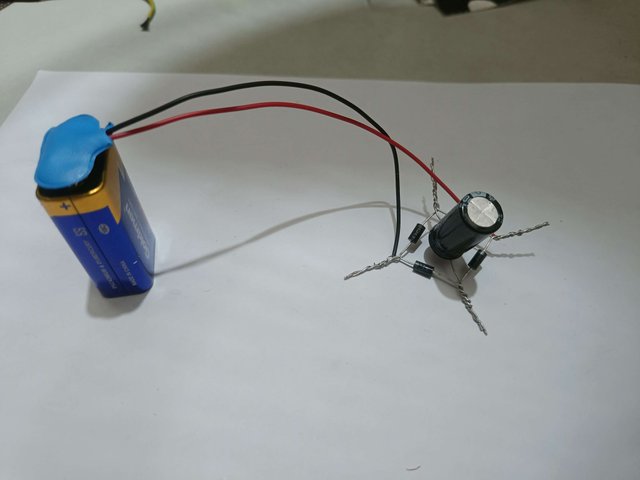

Or 9 volt battery connected to the rectifier diode as shown.

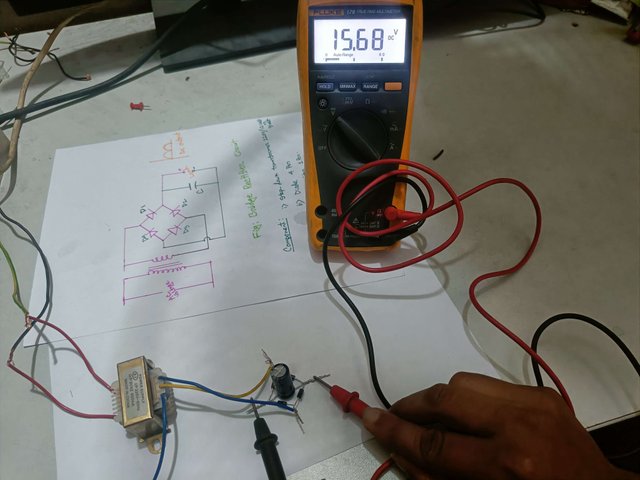

Measure the output voltage of the capacitor by placing a multimeter at the DC point. At the output we get 15.69 DC voltage as shown in the figure.

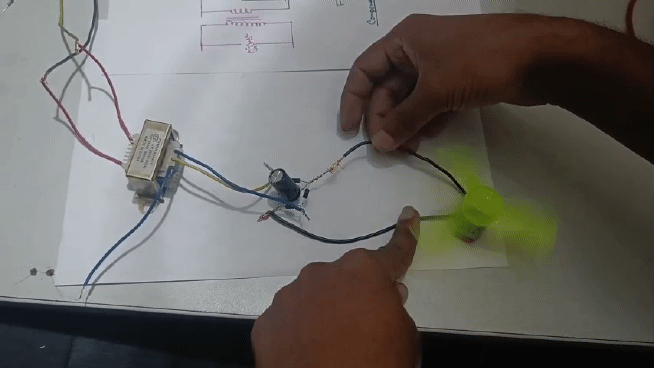

We put a DC fan on the output and load it. The AC input voltage is converted to DC voltage through the rectifier, and the pure DC voltage from the capacitor drives the DC fan.
Uses of Bridge Rectifier:
- Convert AC power to DC power
- DC battery charger (Mobile Charger, Laptop Charger etc)
- Powers DC lights and fans
Note that this can be used to power many other things..., can you think of some...?
Assignment
- Task 1: Build a full wave rectifier circuit like the one we have above, outline the steps you took to build. Measure and indicate the DC output.
- Task 2: Discuss 5 additional applications of the rectifier circuit, apart from the ones we previously mentioned.
- Task 3: What were your observations while building the full wave rectifier circuit, and what precautions did you take?
