Product lists are the final necessary part of your documentation.

Note: Since I come from a country where the citizens aren't free enough to own firearms I am lacking in practical knowledge and like to apologize for eventual errors. The AKM will still be used because it is a beautiful piece of technology.

Part Lists

While the engineering drawings show detailed how a part is shaped and produced, the part list gives information about all necessary parts needed for manufacturing. The normal part list lists each part with description, part number and other important information.

For a more visual example:

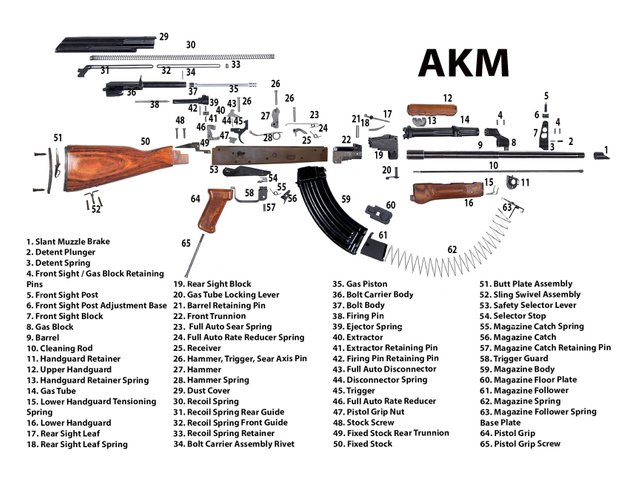

The AKM consists out of 65 different parts, according to this picture.

The part list has a head part with information about the project, responsible creator, date and further necessary info.
Below this is the table with a column for the row number, name, description and part number.

Project: AKM	Name: Engineercampus	Date: 26.9.2016	Page 1/2
Nr.	Name	Description	Part Number
1	Slant Muzzle Break	Screwed on barrel	AK001
2	Deter Plunger	Fixes front sight	AK002
3	Deter Spring	Fixes front sight	AK003

The table categories can be enhanced to build more detailed list, three of which are named in the following.

Quantity List

A list which also contains the quantity and unit of each part. It is optimized for purchase and logistics.

Project: AKM	Name: Engineercampus	Date: 26.9.2016			Page 1/2
Nr.	Name	Description	Quantity	Unit	Part Number
48	Stock Screw	Fixes part onto stock	4	Piece	AK048
49	Fixed Stock rear trunnion	Connects stock to receiver	1	Piece	AK049
50	Fixed Stock	Wood stock	1	Piece	AK050

While there is not much difference to the part list, it gives a good oversight over the amount of parts that will have to be handled. The number of norm parts can be ordered from a supplier.
The list could also be enhanced with a column for material, to give an overview over the necessary resources.

Structural List

The structural list is optimized for manufacturing. The parts are ordered in accordance to their position in the manufacturing timetable. It gives information about how many of which parts have to be made at what time.

This list can become cramped very fast and oversight be lost. At a glance, no real structure can be made out. This is because some parts are listed multiple times, since they are used in different processes.

The list needs information about the manufacturing speed of each piece, to give all relevant information to logistics. This makes it a valuable piece for planning a production for maximum performance, that is the time that is necessary to produce one product.

Modular List

This list gathers parts into modules. The use could be to assign a module to a group and thus organize work share. Bigger projects can also be separated into modules, to keep a better overview, even if multiple additional part lists are made.

The complete build is separated here into 5 modules

The modules 1 to 5 are subgroups of the AKM. Module 2 is additionally part of module 4. Some parts are also not part of a module, because they are added later to the product and are of low importance.

The resulting part tree diagram.

The tree could then be represented in a numeration system: The part number, consisting of 5 digits and the letters AK in the front.

AK 12345

• The AK is the short name for the product.
• The first digit would signify the first level module: here it would be 1,2,3, 5 or a 0 for a part without module.
• The second digit would be 4 for the module M4 or a 0 if no further separation of the parts on the second level.
• Digit 3, 4 and 5 are the place holders for the ongoing part numbers, as seen in the normal part list.

Example: The sling swivel assembly AK 50052 is for example found in the M5 module of the first level with the part number 52. Thus the first digit is 5 for module M5, second digit 0 because there is no further separation and the number 052 in the last three digits. While the part still has the number 52 in the list, it can be further defined in the construction with the part number.

Project: AKM	Name: Engineercampus	Date: 26.9.2016	Page 1/2
Nr.	Name	Description	Part Number
52	Sling swivel assembly	Enables attachment of a sling	AK 50052
53	Safety selector lever	Fire mode selector	AK 24053
54	Selector stop	Limits Safety selector movement	AK 24054

Conclusion

While the part list may look boring, after forging all the other important documents, it still carries a lot of important information for planning or production, manufacturing and logistics.

It also gives a last overview over all the work done as each part is added to the list. After finishing, all documents should be complete to form a comprehensive documentation of your product, ready for manufacturing.

Your product is now developed. Congratulations!

Thank you for reading the construction and development series!
With this article I close down the basic blueprint. Further articles will focus on pinpoints, during and after the development, that will help you getting your product on the market.
