Making a Wrench

in #diylast year (edited)

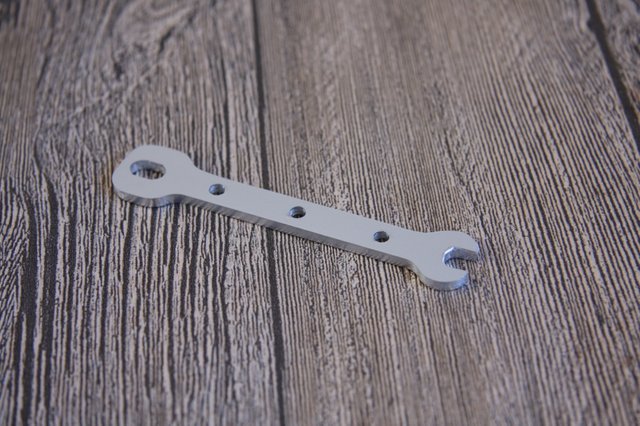

I was installing some upgrades for my 3D printer a few days ago. It was rather simple but tedious work involving unscrewing lots and lots of tiny metric M3 screws and nuts and then putting everything together again. A 5.5mm wrench is an essential tool for this kind of work. Unfortunately, I could not find my 5.5mm wrench anywhere. I looked for it in every place I could think of. In the end, I even started to think that my memory was playing tricks on me and I actually never had any 5.5mm wrenches, to begin with... So I went to the local hardware store to buy a new wrench. They had every kind of wrench ever invented: plain old wrenches, ratchet wrenches, socket wrenches, you name it! They had every flavor and every size...starting from 7mm! But they didn't have a single 5.5mm wrench! I remember at this point I had this crazy idea that maybe no one even makes 5.5mm wrenches. I knew a had to do something about that :) So I went home, started Fusion 360 and modeled my own wrench. I designed it so it could be cut out of a 3mm aluminum sheet on a CNC router with a 1/8 inch endmill. An aluminum wrench would not be as strong as a steel one, but it is plenty strong for holding tiny M3 nuts.

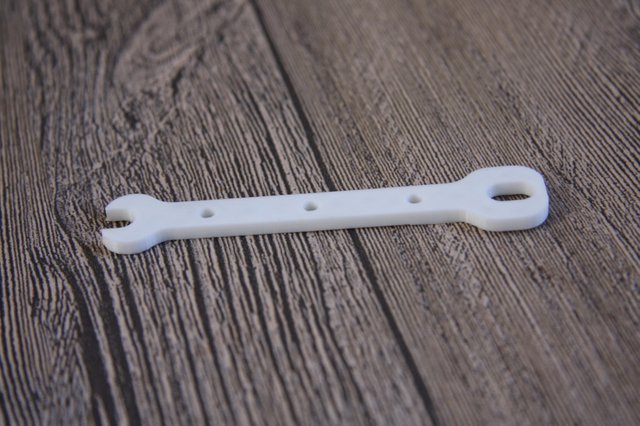

I completed my work on the 3D printer upgrades using this aluminum wrench and then decided to make a 3D printed version of the wrench just for fun. To my own surprise plastic wrench came out very robust. Of course, it is not as strong as the metal one, but it works just fine for me.

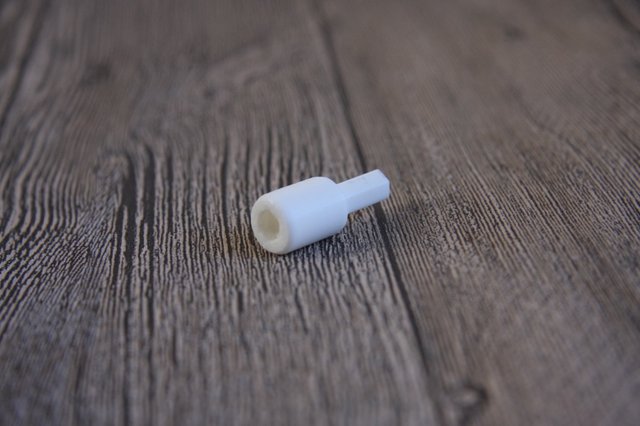

With that in mind, I also designed and printed a 5.5mm socket wrench head.
I proudly carried my new tools to the toolbox and...at the very bottom of the toolbox I found my old 5.5mm wrench. It was there all the time! How could I miss it the first time?!
You'll find all the STL and CAD files needed to make these wrenches on my Thingiverse page:
https://www.thingiverse.com/thing:3198791

Sort:

This 3D printer sounds wonderful to have. If you don’t see it, duplicate it.

How funny that it was hiding all along!

Thanks to @paradigmprospect, this post was resteemed and highlighted in today's edition of The Daily Sneak.

Thank you for your efforts to create quality content!

Dear frnd @beetlevc !your mind was not playing tricks with you but life is become so busy that it is very difficult to remember everything.

When everything fails just hack it yourself, I love it! Providing the cad files makes the post ultra valuable as well, not only for enabling easier reproduction but moreso for reminding others of our true power to tackle things ourselves when no ready-made solution is available.

Greetings! I am a minnow exclusive bot that gives a 4X upvote! I recommend this amazing guide on how to be a steemit rockstar! I was made by @EarthNation to make Steemit easier and more rewarding for minnows.

Requested by @josephsavage

YOU JUST GOT UPVOTED

Congratulations,
you just received a 13.30% upvote from @steemhq - Community Bot!

Wanna join and receive free upvotes yourself?
Vote for steemhq.witness on Steemit or directly on SteemConnect and join the Community Witness.

This service was brought to you by SteemHQ.com

3D printed?

Posted using Partiko Android

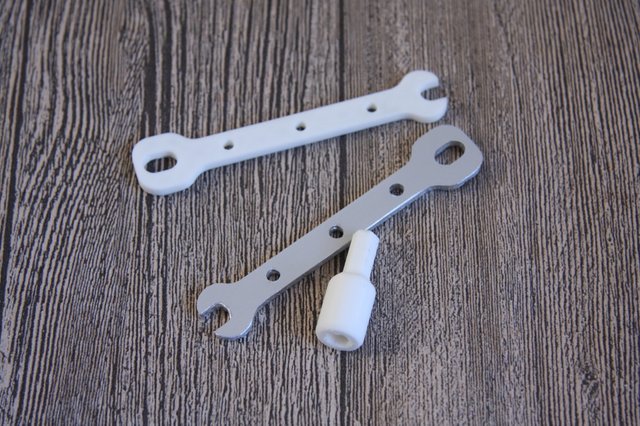

Yes, white plastic parts are 3D-printed. And the shiny metal one is CNC-cut.
