Flightsimulator - Ilyushin Il-76MD (my open source work)

in #aviation7 years ago (edited)

One of my latest aircraft developments in FlightGear is the Ilyushin Il-76MD. In this post I will show you the main features in pictures, have fun!

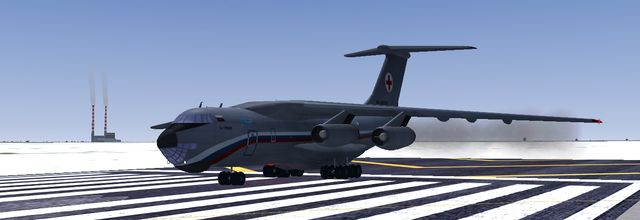

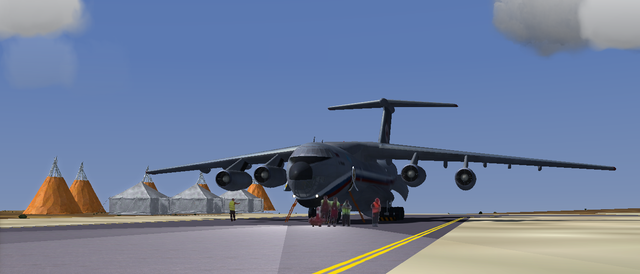

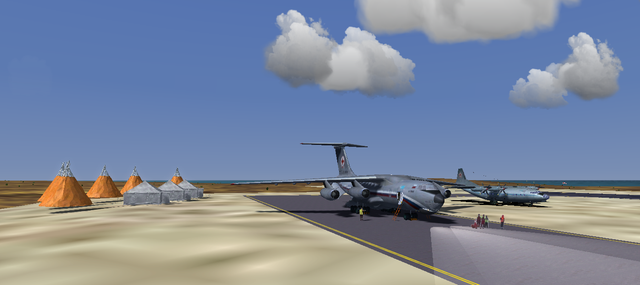

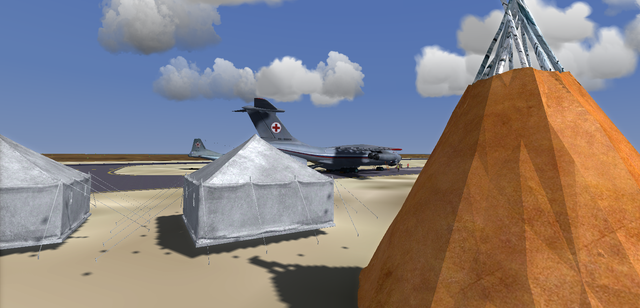

The Scalpel Version has a mobile hospital on board, its nickname is Flying Hospital




The Ilyushin Il-76MD is meant for parachute operations and landing of military personnel, military equipment, cargoes, fuel and containers. By reinforcing its main structural elements (airframe and landing gear), the maximum takeoff weight and commercial load have been increased.

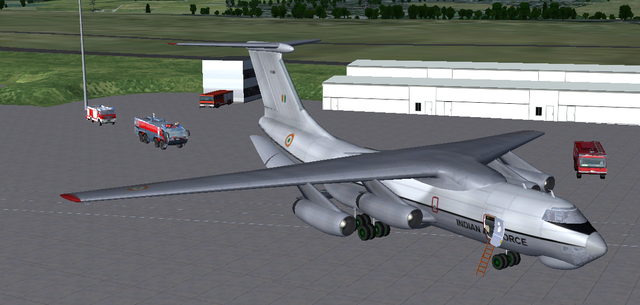

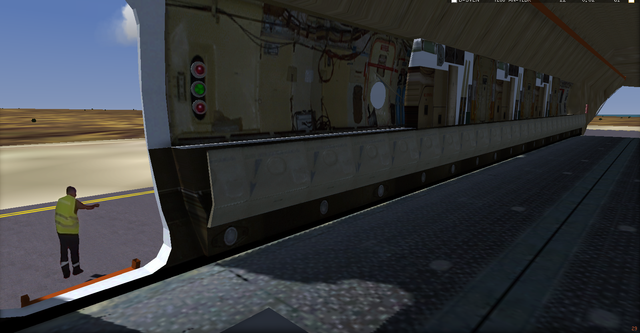

Loading 2 fire fighting trucks

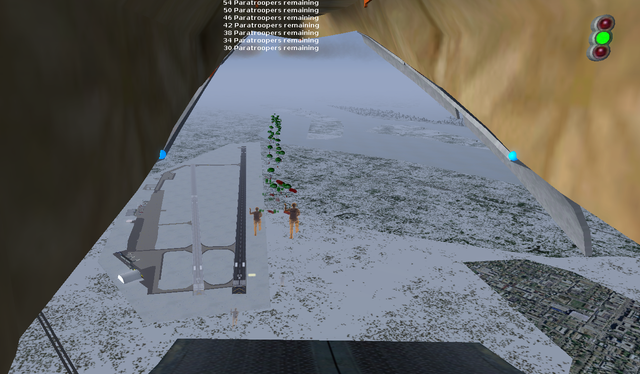

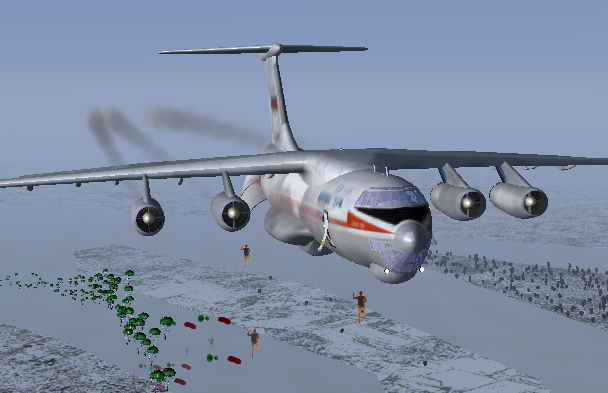

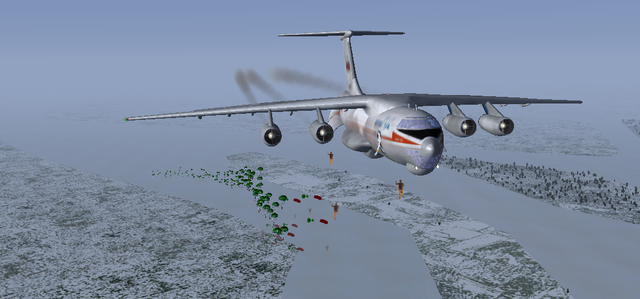

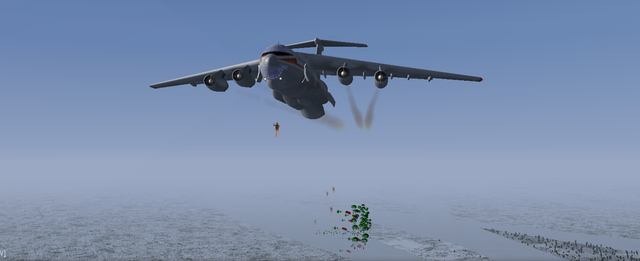

120 Paratroopers are dropping from the sides and from the main cargo door

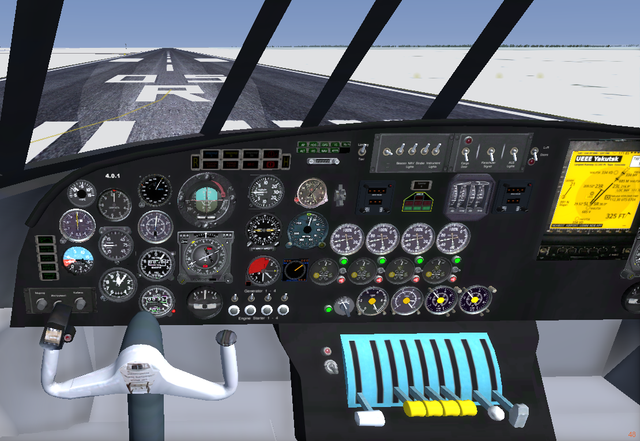

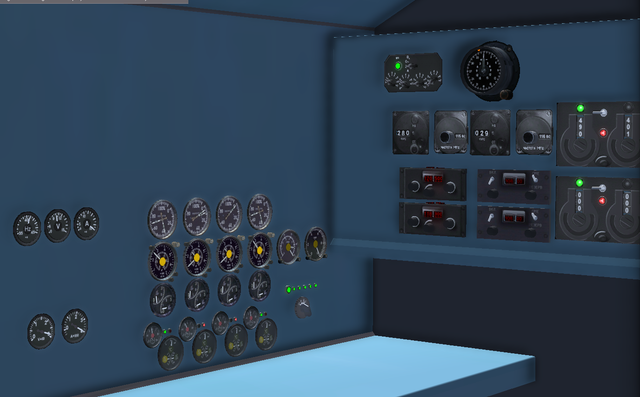

Inside there are 190 instruments, lamps and switches, all working and animated

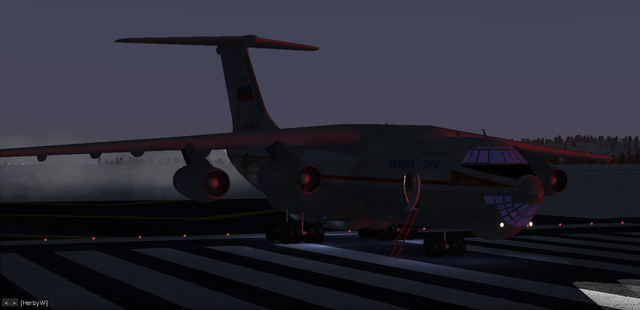

Ambient ground lights

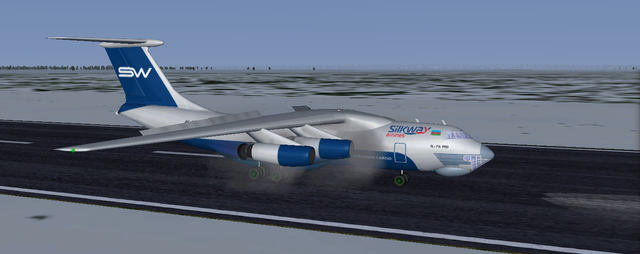

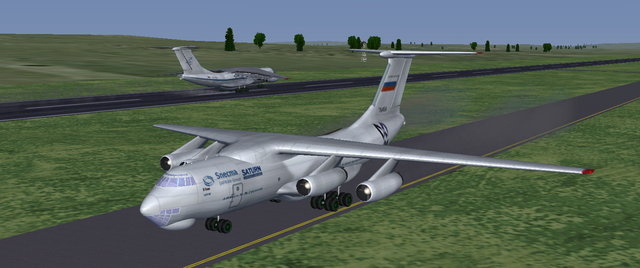

Lots of liveries




Different 3D-Sounds in different viewpoints



Main technical characteristics

Dimensional characteristics

Length, m 46,6
Height, m 14,76
Wingspan, m 50,5
Wing area, sq. m. 300
Wing loading: 129.72 lb/sqft
Fuselage diameter, m 4,8

Power plant parameters

Number x engine type 4 x turbojet engine
Engine model D-30KP series 2, 12 000 kgf each or: Aviadvigatel PS-90-76 turbofans, 142 kN (32,000 lbf) or 14,500 kgf each

Weight parameters

Empty weight: 92,500 kg
Max. takeoff weight: 195,000 kg
Maximum takeoff weight, tons 190 (210 t = 462970 lbs)
Maximum payload, tons 48 (- 60)
Fuel tank capacity, l 109 500

Aircraft performance

Maximum speed: 900 km/h (490 kt, 560 mph) Mach 0.82 depending on altitude
Cruising speed, km/h 750 - 780
Service ceiling: 13,000 m (42,700 ft)
Flight altitude, m 9 100 - 12 100
Flight range with payload of 40 tons, 4 400 km
Takeoff distance, m 1 700
Landing distance, m 930
minimal landing run: 450 m with thrust reversal

Number of seats

Crew, persons 7 (6)
Passengers, persons single-deck version:
126 paratroopers
145 military personnel
114 wounded

Double-deck version:

225 military personnel

Freight compartment parameters

Length x Width x Height, m 24,54x3,45x3,4
Volume, cubic meters 321

Specified life

Calendar operating life, years 45
Number of flights 8 000
Number of flight hours, hr. 12 000

My posts on FlightGear so far:

Roziere Balloon
Hot Air Balloon Series
Tupolev Tu-95 Tu-160
Antonov An-12 An-22 An-225
Mil-Mi-6PS fire fighting Video
Mil-Mi-6PS water loading Video
Mil-Mi-6PS fuel truck and ice systems Video
Mil-Mi-6PS startup and ILS landing Video
Mil-Mi-6PS autorotation Video
HowTo make aircrafts

You may download all models for free from my github
The simulator is also free for win, mac and linux: http://www.flightgear.org

Until next time!

Thank you for your attention!

Original content by @schamangerbert
