Ilyushin Il-76MD Development for FlightGear

Introduction

FlightGear (http://www.flightgear.org) is an open source flight simulator that is even used in flight schools to train basic maneuvers, radio communication and navigation tasks. It is available for windows, mac and linux.

In this article I want to introduce my development of Ilyushin Il-76MD.

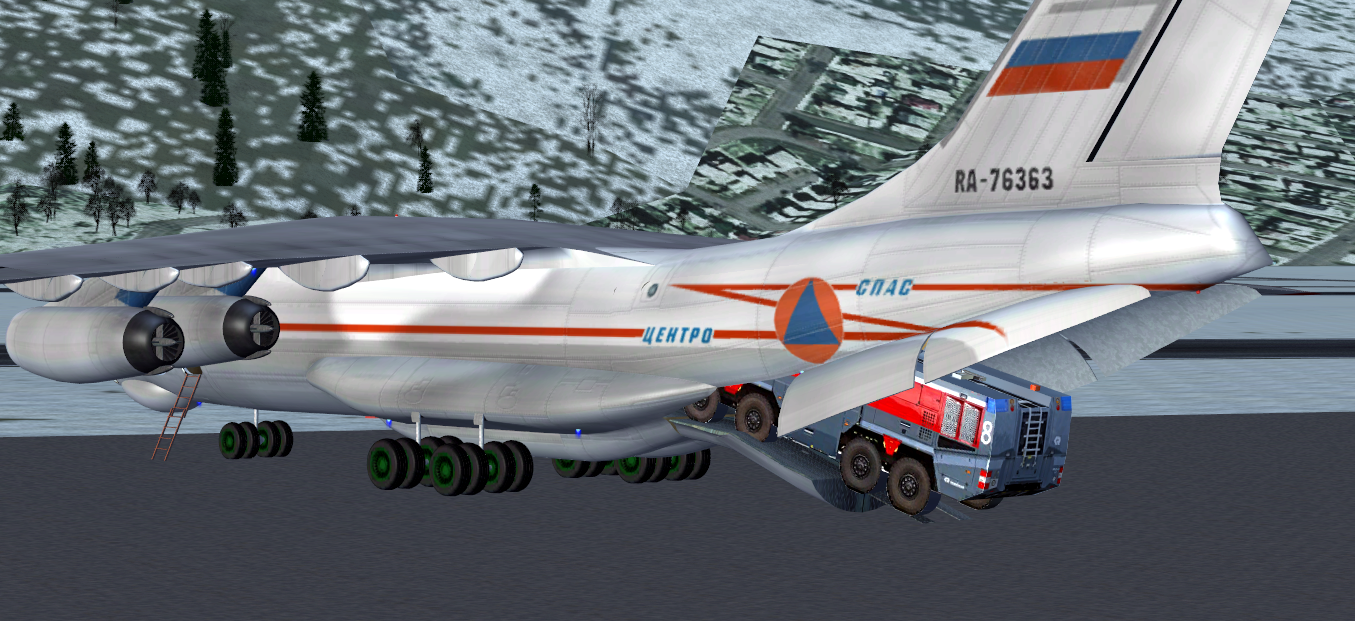

Fire trucks loading



Variant Flying Hospital with rescue tents

Cockpit with battery off.

Some different liveries

Characteristics

• Wikipedia: https://en.wikipedia.org/wiki/Ilyushin_Il-76
• Length, m 46,6
• Height, m 14,76
• Wingspan, m 50,5
• Empty weight: 92,500 kg
• Max. takeoff weight: 195,000 kg
• Maximum takeoff weight, tons 190 (210 t = 462970 lbs)
• Maximum payload, tons 48 (- 60)
• Maximum speed: 900 km/h (490 kt, 560 mph) Mach 0.82 depending on altitude
• Cruising speed, km/h 750 - 780

Development steps

I impoved this aircraft from the official version to a new variant MD. With full instrumentation, animations, 3D-model and FDM it is now a beauty on the sky.

My last commit improved the cockpit on 5 instruments, so that the lamps are now off if the battery is off. The engine smoke is modified to a more realistic one too. New version number 4.0.2.

Link to the repository

https://github.com/HerbyW/IL-76MD

Latest commit

https://github.com/HerbyW/IL-76MD/commit/ff389ed12ada1bbb8d87a5c0632a8951629c8959

Update for installing: https://github.com/HerbyW/IL-76MD/commit/544f0bbf2b23cddd8a28edf756474c9052805bd8

Proof of work

In my profile on Utopian.io, the github repo Il-76MD is listed in my project
page, which is show in the screenshot as follows:

The login page on github.com is shown in the following screenshot:

---
