[Steemconnect + Php] Withdraw Vesting Routes Changing System build by PHP & STEEMCONNECT - part 3

Repository

https://github.com/nawab69/steemtools

What will you learn-

• You will learn how to use SteemConnect

• You will learn about Steemconnect

• You will learn how to check withdraw routes

• You will learn how to create a php application

Requirements

• Web Hosting
• Text Editor
• knowledge on php, JSON & html

Difficulty

• Intermediate

Description

Hello everybody, I am Nawab. A full stack web developer in opensource community. Currently I am working on a project. My project is teaching everybody about app development. I am not good in English Language. I am living in UK from five years. Please forgive me if I write any grammatical errors.

In my previous tutorial you have learned how to check withdraw Routes using Php + SteemJs

Today I will teach you 2nd part of these tutorial.

If someone want to power down his steem power to another steemit account, he/she should use this system. This is not visible to steemit.com . You can use the system by SteemJS API & STEEMCONNECT.

• You can check your current withdraw vesting route by SteemJS API
• You can change your current withdraw vesting route by STEEMCONNECT API

Tutorial

First create change.php file. Use any HTML & CSS template in your page to look better. I use basic bootstrap template.

First, Include the header and the navigation bar template file.

<?php

/* Include header file */

include ('include/header.php');

/* Include navigation bar file */

include ('include/nav.php');
?>

If you want to change your withdraw route, you have to input 4 data. These are-

• From Account
• To Account
• Percentage
• Auto Vest

So Create a Form with "post" methood.

<form action="" method="post" >

</form>

Inside the form create 4 form input box.

Sn No	Input	Type	Name
1	FROM ACCOUNT	text	user
2	TO ACCOUNT	text	to
3	PERCRNTAGE	range	percent
4	AUTO VEST	select	auto

FROM ACCOUNT

This input box for input own username. Write down this code inside form tag.

<div class="form-group">
        <div class="input-group mb-2 mr-sm-2">
          <div class="input-group-prepend">
           <div class="input-group-text">@</div>
           </div>
      <input type="text" class="form-control" name="user" id="inlineFormInputGroupUsername2" placeholder="Username"> </div> </div>

TO ACCOUNT

This input box for input own username. Write down this code after "FROM ACCOUNT" input text box.

<div class="form-group">


      <div class="input-group mb-2 mr-sm-2">
      <div class="input-group-prepend"> <div class="input-group-text">@</div> </div>
      <input type="text" class="form-control" name="to" id="inlineFormInputGroupUsername2" placeholder="Withdraw To"> </div> </div>

PERCENTAGE

It is a range input type. It use for changing percentage of withdraw route.
Write down this code after "TO ACCOUNT" input box.

<label for="customRange3">Percentage </label> <input name="percent" type="range" class="custom-range" min="0" max="10000" step="500" id="customRange3">

AUTO VEST

It is a select input type. It use for select any option from popup. I use here true & false option. Write down this code after "Percentage" Range input box.

<label class="my-1 mr-2" for="inlineFormCustomSelectPref">Auto Vest</label> <select name="auto" class="custom-select my-1 mr-sm-2" id="inlineFormCustomSelectPref"> <option selected>Choose...</option> <option value="true">True</option> <option value="false">False</option>  </select>

Now the form building has completed. But it won't work. We need to create some php function to run this form.

Submit button

Create Php function

<?php

if($_POST)

{

$from = $_POST["user"];   // store username from Form using post method

$to = $_POST["to"];     // store withdraw to username from Form using post method

$percent = $_POST["percent"];  // store percentage from Form using post method

$auto = $_POST["auto"]; //   store auto vest boolean from Form using post method
}
?>

Write this code after the form close tag.
I used here "if" condition statement. If anyone post using the form, all the function inside the "{}" will run. I have created 4 variables, they will store input data from form.

Now write the bellow code,

$api = "https://steemconnect.com/sign/set_withdraw_vesting_route?from_account=$from&to_account=$to&percent=$percent&auto_vest=$auto";   // steemconnect Api for changing withdraw routes

header("Location: $api");   // redirect to steemconnect

Here we create a variable named "$api " and write the api.
For changing Withdraw Route, STEEMCONNECT API is, https://steemconnect.com/sign/set_withdraw_vesting_route. This API has four parameters. These are -

• from_account
• to_account
• percent
• auto_vest

I have written their value in variables.
When a user insert data in form and submit. These data will store in variables. These variables will use as different parameter's value.

Finally redirect users to STEEMCONNECT by this line header("Location: $api");

Now insert footer and save the file.

How to work

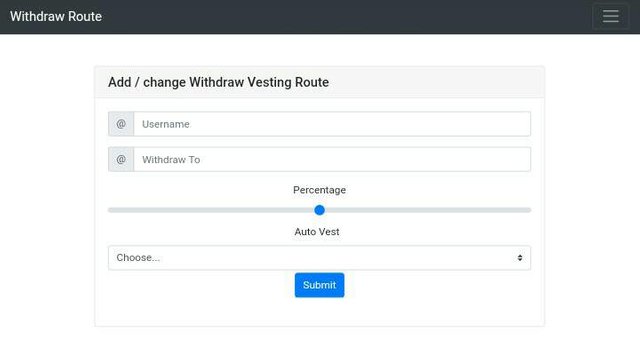

First browse the file from server. This window will open.

Insert all data. For example, I use

username = @nawab69
withdraw to = @utopian-io
percentage = max(10000)
auto vest = false

Then press the submit button.

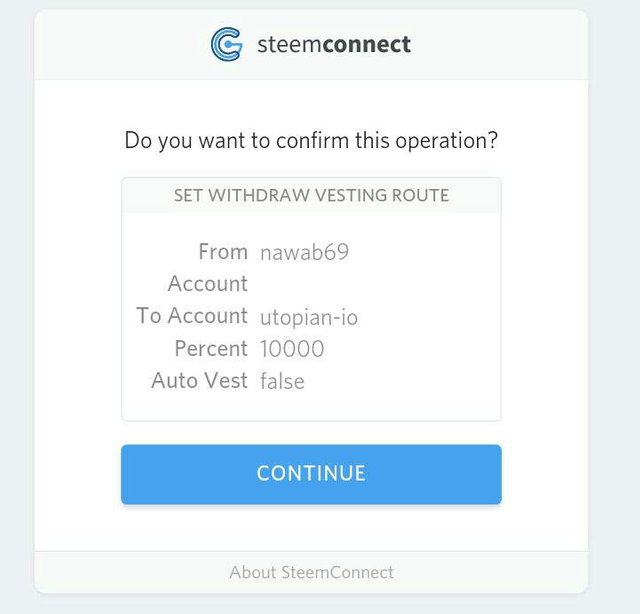

Site will redirect to steemconnect. Check your input data. If its correct, press the submit button.

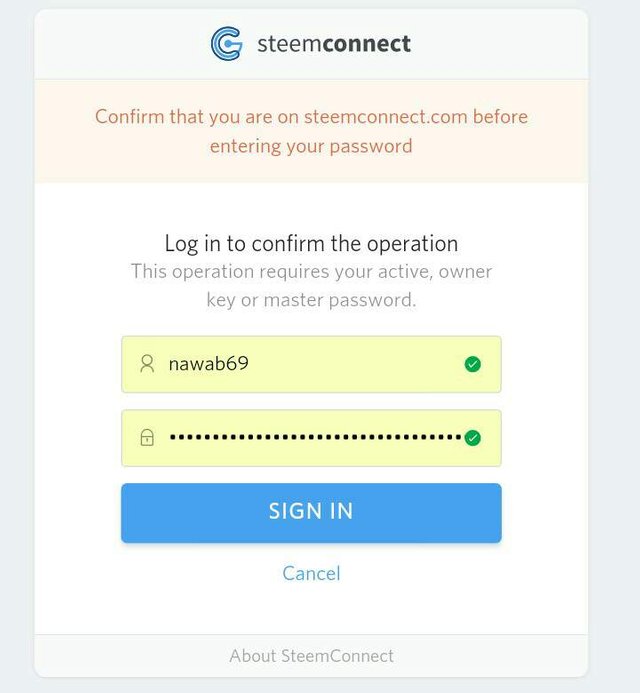

Steemconnect ask you username & password. Fill them and Sign in. The withdraw vesting routes will change.

Here is the full codes of my tutorial

<?php

/* Include header file */

include ('include/header.php');

/* Include navigation bar file */

include ('include/nav.php');

?>

<div class="container">
<br>
<br>

<div class="card">

<h5 class="card-header">Add / change Withdraw Vesting Route</h5>

<div class="card-body">
<center>

(html comment removed:  Form start Here )

      <form action="" method="post" >

(html comment removed:  Username Input box )

      <div class="form-group">
        <div class="input-group mb-2 mr-sm-2">
          <div class="input-group-prepend">
           <div class="input-group-text">@</div>
           </div>
      <input type="text" class="form-control" name="user" id="inlineFormInputGroupUsername2" placeholder="Username"> </div> </div>

(html comment removed:  Withdraw To input box )

<div class="form-group">


      <div class="input-group mb-2 mr-sm-2">
      <div class="input-group-prepend"> <div class="input-group-text">@</div> </div>
      <input type="text" class="form-control" name="to" id="inlineFormInputGroupUsername2" placeholder="Withdraw To"> </div> </div>


(html comment removed:  Parcentage Range Input box )

<label for="customRange3">Percentage </label> <input name="percent" type="range" class="custom-range" min="0" max="10000" step="500" id="customRange3">

(html comment removed:  Auto Vesting Withdraw select box )

<label class="my-1 mr-2" for="inlineFormCustomSelectPref">Auto Vest</label> <select name="auto" class="custom-select my-1 mr-sm-2" id="inlineFormCustomSelectPref"> <option selected>Choose...</option> <option value="true">True</option> <option value="false">False</option>  </select>

<br>

(html comment removed:  Submit Button )

<div class="form-group">
<button align="center" name="submit" class="btn btn-primary mb-2">Submit</button>
</div>
</form>

(html comment removed:  End form )


</div> </center></div>

(html comment removed:  Php function start Here )

<?php

if($_POST)

{

$from = $_POST["user"];   // store username from Form using post method

$to = $_POST["to"];     // store withdraw to username from Form using post method

$percent = $_POST["percent"];  // store percentage from Form using post method

$auto = $_POST["auto"]; //   store auto vest boolian from Form using post method

$api = "https://steemconnect.com/sign/set_withdraw_vesting_route?from_account=$from&to_account=$to&percent=$percent&auto_vest=$auto";   // steemconnect Api for changing withdraw routes

header("Location: $api");   // redirect to steemconnect

}
?>

</div>
<nav class="navbar fixed-bottom navbar-dark bg-dark"> <p align="center" style="color:#fff;"> This tools created by <b>@nawab69 </b></p> </nav>

<?php

include ('include/footer.php');
?>

Curriculum

[ Php + SteemJs Api ] Steembased Web Application Building Tutorial - Part-1 (steem stats)

[Php + SteemJs API] Withdraw Routes Check Application building Tutorial - Part-2

Prove of work done

https://github.com/nawab69/steemtools/blob/master/change.php

http://steemtools.html-5.me/change.php
