Repository

https://github.com/Vheissu/SteemEngineQL

Steem Engine QL

If you're familiar with Steem Engine, it is a Steem blockchain sidechain that allows the creation of custom tokens. While Steem Engine itself provides an official library for working with Steem Engine in the form of sscjs and a few other non-official options, admittedly it gets quite chatty when you start making requests.

This GraphQL layer aims to make it easier to request Steem Engine data in bulk without the need for constant requests causing a chatty application.

Even if you're not familiar with GraphQL, it offers an alternative means of interacting with the Steem Engine platform, querying information about tokens and orders. At present, it only allows read-only operations, in future additional mutations support will be added. If you're curious, the GraphQL website offers a great explainer and examples of what GraphQL is.

If you're an application developer and you're not a fan of having to dig into the codebase to see how SSCJS calls can be made and prefer a more natural object-like query language which results in faster requests, this is the package for you.

Under the hood

The codebase is simplistic and easy to extend. If you have your own custom smart contracts, you can easily add in resolvers, schemas and other types of GraphQL construct in to support them.

Steem Engine QL is actually comprised of quite a few libraries all put together to create a cohesive GraphQL solution for working with Steem Engine.

Steem Engine QL under-the-hood utilises some of these popular libraries:

• Apollo Server for the main GraphQL server functionality
• GraphQL
• Merge GraphQL Schemas for schema stitching
• Dataloader eventually for request batching
• Axios for making API calls outside of the Steem Engine sidechain
• Sscjs for Steem Engine API requests
• Steemjs for interacting with the Steem blockchain

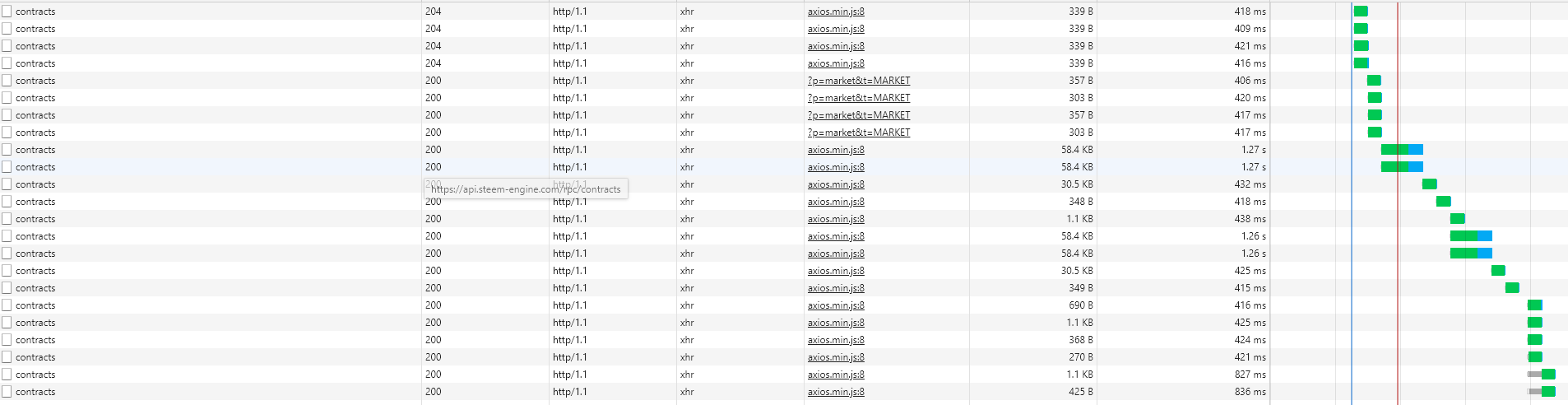

The primary motivation behind creating this was seeing how "chatty" Steem Engine applications can get, especially if you're making more than a couple of calls. If you go to the market page on Steem Engine, you might have noticed it takes upwards of 7-10 seconds to load the page.

The reason for this is because this page specifically requires a lot of information, it needs the buy and sell books, it needs user specific pieces of information and more. Compounded by the fact these requests are HTTP/1.1 instead of HTTP/2 and you get bottlenecks.

In the process of writing this post, I actually discovered there is a bug in Steem Engine's UI itself and it is doubling the same request in some cases. However, of those requests, there are twelve unique requests for data to populate this view.

• sscstore params
• tokens params
• tokens (limit 1000 and offset 0)
• market metrics (limit 1000 and offset 0)
• steem-peg balance call
• balances for logged in user (limit 1000 and offset 0)
• buy book (symbol "MARKET", limit 200 and offset 0)
• sell book (symbol "MARKET", limit 200 and offset 0)
• trades history (symbol "market", limit 30 and offset 0)
• user buy book (symbol "MARKET", account "beggars", limit 100 and offset 0)
• user sell book (symbol "MARKET", account "beggars", limit 100 and offset 0)
• user token balances (symbol "MARKET", account "beggars", limit 2 and offset 0)

To get that same amount of information, you could run the following queries (in the playground linked below) and it's much faster, it's also one network request. I apologise for the wall of text you're about to see. There are ways you could make this smaller using fragments and other GraphQL features.

{
  sscstore {
    priceSBD,
    priceSteem,
    quantity,
    disabled
  },

  tokenParams {
    tokenCreationFee
  },

  tokens(limit: 1000, offset: 0) {
    issuer,
    symbol,
    name,
    metadata {
        url,
      icon,
      desc
    },
    precision,
    maxSupply,
    supply,
    circulatingSupply
  },

  metrics(limit: 1000, offset: 0) {
    symbol,
    volume,
    volumeExpiration,
    lastPrice,
    lowestAsk,
    highestBid,
    lastDayPrice,
    lastDayPriceExpiration,
    priceChangeSteem,
    priceChangePercent
  },

  steempBalance {
    account,
    symbol,
    balance
  },

  balances(account: "beggars", limit: 1000, offset: 0) {
    account,
    symbol,
    balance
  },

  buyBook(symbol: "MARKET", limit: 200, offset: 0) {
    txId,
    timestamp,
    account,
    symbol,
    quantity,
    price,
    tokensLocked,
    expiration
  },

  sellBook(symbol: "MARKET", limit: 200, offset: 0) {
    txId,
    timestamp,
    account,
    symbol,
    quantity,
    price,
    expiration
  },

  tradesHistory(symbol: "MARKET", limit: 30, offset: 0) {
    type,
    symbol,
    quantity,
    price,
    timestamp
  },

  userBuyBook: buyBook(symbol: "MARKET", account: "beggars", limit: 100, offset: 0) {
    txId,
    timestamp,
    account,
    symbol,
    quantity,
    price,
    tokensLocked,
    expiration
  },

  userSellBook: sellBook(symbol: "MARKET", account: "beggars", limit: 100, offset: 0) {
    txId,
    timestamp,
    account,
    symbol,
    quantity,
    price,
    expiration
  },

  tokenBalance(symbol: "MARKET", account: "beggars") {
    account,
    symbol,
    balance
  }
}

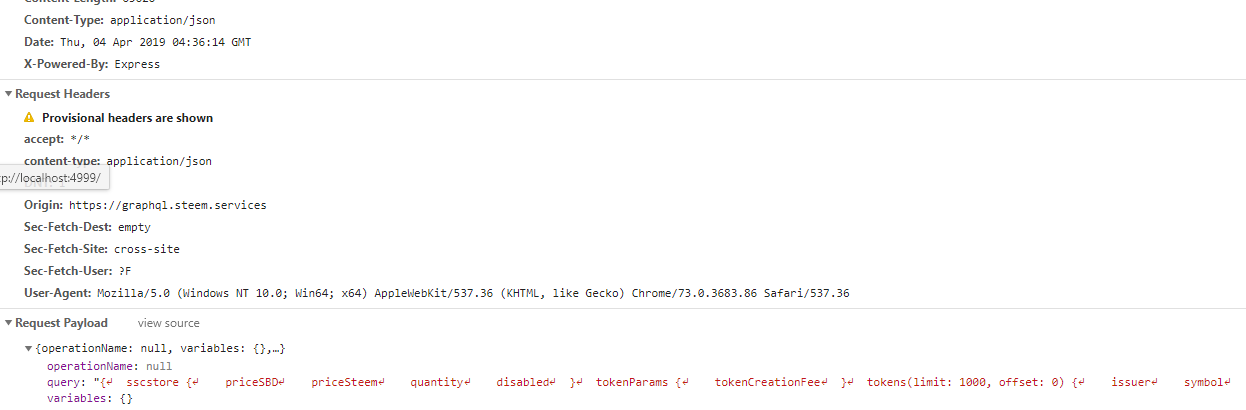

The above queries which replace all 12 of those market page requests result in just one single request which returns all of the data for me in under 2 seconds. Combined with caching and other strategies, you could theoretically make this number a lot faster. Right now, calls are just being mapped behind-the-scenes to the SSC SDK itself.

Demo and Playground

The linked GitHub repository has all available GraphQL query methods documented, which you can try out in the playground here: https://graphql.steem.services - all you need to do is simply copy and paste one of the example queries in the GitHub repository into the query environment to see real data come back.

All queries are operating on the Steem Engine mainnet. The source code is on GitHub here.

Roadmap

I plan on adding in support for Steem itself as well, and the ability to perform specific market actions like buying and selling through the GraphQL layer. Mutations have security considerations, so the initial release you see does not have them, but they are eventually planned.

Another planned feature is to add in support for caching and batching resolver calls to SSC. At present, if you make a lot of calls, it can still take a while for them to resolve. Some of the calls being made can be cached for a short period of time to reduce network latency.

Issues/Bugs/Feedback

As always, if you encounter any issues or have feedback, please create an issue on the repository https://github.com/Vheissu/SteemEngineQL/issues and it will be looked at. Forks and contributions to make this library even better are also greatly appreciated and welcomed.

GitHub Account

https://github.com/Vheissu
