PC in a Desk Build - Part 4 - Final Design Render and Hardware Selection.

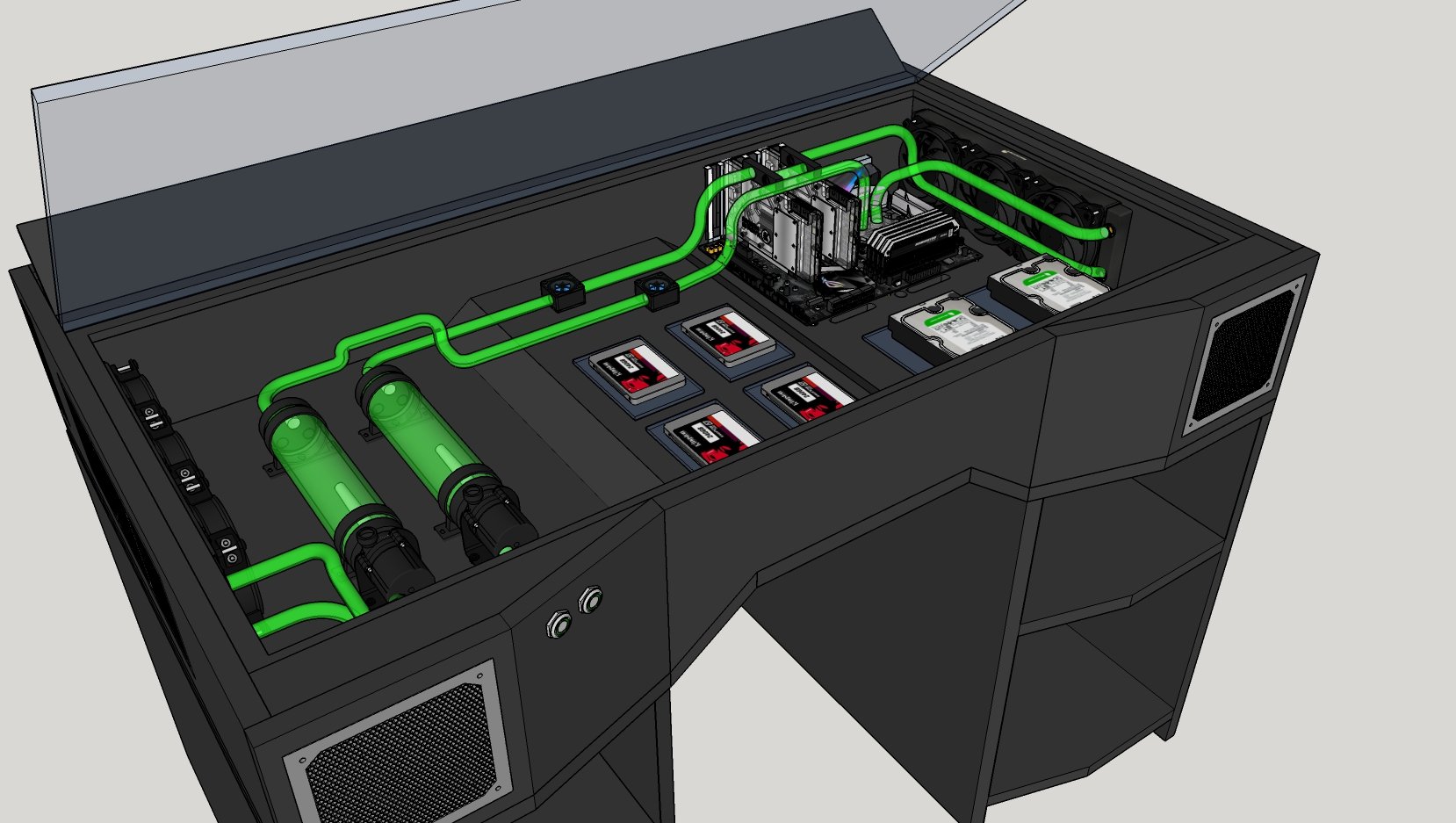

This is the final 3d render of the planned PC in a Desk Build I have been planning.
If you have been keeping up with my Blog, you will know i want to shove a PC inside a desk with a glass top. The idea is to make more desktop space for me to do my thing, if that be working, gaming or letting the bearded dragons chill next to the keyboard. and if i have the ability to make such a thing. why the hell not, Plus i already have the glass top ready n waiting in my garage.
Image Source - Tech Mojo
Continuing with my digital designs, and after speaking to the better half about moving the room around so i can have a slightly larger desk, Oh and several different concepts later from last time, i think i am now happy with the design i came up with. to that end, here is a video time laps of that design process.
As you can see, i have improved the air flow, i now have duel 140mm fans pushing cold air into the system, and now have the dual radiators pushing the worm air out. the dual radiators are so my CPU isn't fed warm liquid from the Graphics cards and vice versa, it serves to keep everything cold and stable, which means i can give the system i want a healthy overclock while remaining safe in the knowledge i wont kill anything like i did to my poor R9 GPU that died a week or so ago.
The extra size on the sides compared to the last design i posted is so that i can comfortably fit the hardware inside without any fitting/size issues, something i noticed when designing the last one. That extra size also lets me have a greater airflow into the case/desk to keep things from getting to toasty. This was the main reason i had to talk the other half around into letting me move the room around where the computer will be going. lets put it this way, she isn't best to pleased and i had to agree to make her a smaller version in the future.
Here is a rundown of the Hardware that I am hoping to be putting in it.
| Processor | AMD Ryzen R7 1800x, 3.8Ghz |
|---|---|
| Motherboard | Asus ROG Crosshair Vi Extreme X370 |
| Memory | Corsair DDR4 Vengeance RGB 64Gb |
| Graphics | Asus ROG Strix RXVega 64 8Gb HBM2 (x2) |
| Storage HDD | 3 X WD Black 3.5" 6TB HDD's |
| Storage SSD | 4 X WD Blue 3D 2.5" 2TB SSD's |
| Storage M.2 | 1 X Corsair Force MP500 1TB M.2 |
| Power Supply | 2 X Corsair RM850x 80+ Gold 850watts |
| Cooling Air | 4 x Corsair LL140 RGB 140mm Fans 6 X Corsair LL120 RGB 120mm Fans |
| Cooling Water | EK Radiators, Pumps, Reservoirs and Blocks with custom Hardline Water loop |
| Display | Dell P4317Q 43" 4K UHD Monitor |
| Total | More than I have. |
The numbers do stack up high for what i want, so there may well be changes to the hardware down the road. I am confident however I can raise the cash to do this. So be generous, Upvote and resteem this post as much as possible if you would like to help... i may even start a crowd funding thing to see if that works, if not, I may have to sell Myself on a street corner.... Hopefully it wont come to that.
Image Source - Tech Mojo
Thanks for reading.
Stu @TechMojo
