I normally post every day but this one took me a few days to write the programs and to work out what the results meant. It was fun little mathematical journey in which I try to generalize the Collatz conjecture and fail (but that's life). I hope you enjoy the post.

The Collatz conjecture is a deceptively simple sequence:

  • Start with any positive whole number, n > 1.
  • If the number is odd then multiply it by 3 and add 1.
  • If the number is even then divide it by 2.
  • Use the result as a new number and apply the above rules again.
  • Keep going until it ends up at one or it diverges.

The conjecture is that for any number n, the sequence will always end up at one. This is also called the 3n + 1 conjecture and it is apparently unprovable.

Paul Erdős (a scary smart mathematician) said about the Collatz conjecture: "Mathematics may not be ready for such problems." If Paul Erdős thinks it's a hard problem then, yep, it is likely a very hard problem.

In this post we will explore the Collatz conjecture 3n + 1 using a python program and then later check out its generalized form:

(an + b)mod m

where for Collatz a = 3, b = 1, m = 2 and n is some number that you start the sequence at.

In the program below the there are three loops:

  • an outer loop for the modulus 'm',
  • an intermediate loop for the addition term 'b'
  • an inner loop for the multiplier 'a'
  • the term 'i' is just the whole number that starts off the sequence. It will iterate from 2 to 25000 to check out the first 25000 sequence starters to see if they collapse to 1
  • the inner loop checks if the sequence has collapsed to 1 and prints out all the parameters when this happens
  • the term 'maxcount' just tracks the maximum iteration of all the numbers checked so far.
  • the inner loop has a fail safe, it bails out if the iteration number exceeds 10,000 (i.e. the conjecture is false and the sequence might be diverging). If the iteration count gets this high then I will assume failure, or just check that sequence in more detail later to see if it really was a failure in the conjecture.
import math
import time
import datetime

# **********************************************************************************
#
# This code released under CC BY-SA 4.0 license by Procrastilearner
#
# Collatz conjecture: n_i+1 = 3*n_i + 1 if odd, n_i+1 = n_i/2 if mod(n_i,2) == 0
# Reference: https://en.wikipedia.org/wiki/Collatz_conjecture
# Generalized Collatz conjecture: n_i+1 = an_i + b if odd, n_i+1 = n_i /m if mod(n_i,m) == 0
# a, b, m belong to the set of positive integers
#
# **********************************************************************************

DT = datetime.datetime.now()
print(DT)

a = 3 # multiplication term 'a'
b = 1 # addition term 'b'
m = 2 # modulus 'm'

print("a, b, m, starting number, #cycles to reach n = 1")

while(m <= 2):
    while(b <= 1):
        while(a <= 3):
            i = 2
            count = 0
            while(i <= 25000 and count < 10001):
                count = 0
                num = i
                while(num > 1 and count < 10000):
                    if(num % m) == 0:
                        num = num / m
                        if num == 1:
                            break
                    else:
                        num = a * num + b
                    count += 1
                i += 1
                print(str(a) + "," + str(b) + "," + str(m) + "," + str(i) + "," + str(count))
                if count >= 10000:
                    break
            a += 1
        b += 1
        a = 3
    m += 1
    a = 3
    b = 1

DT = datetime.datetime.now()
print(DT)

The Results

The screenshots below show the output for at the start of the program run and the end of the run.

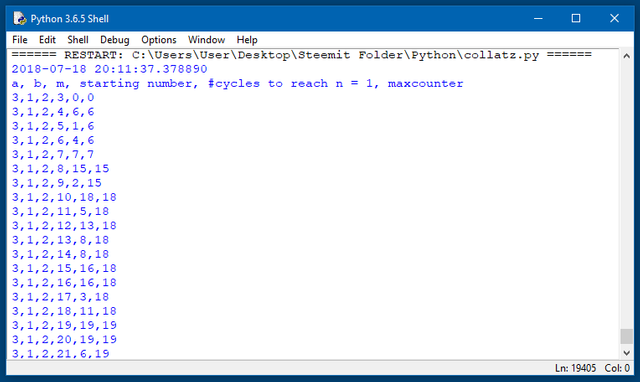

Starting number n from 3 to 21:

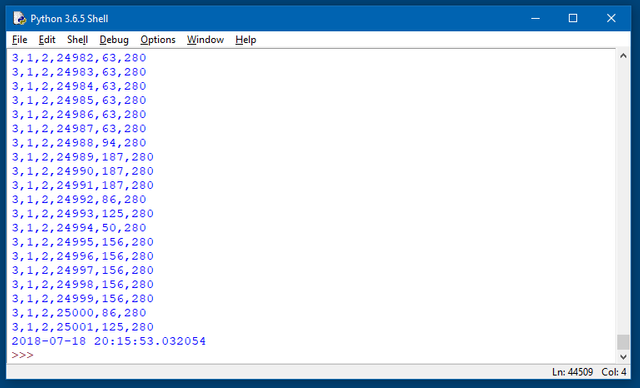

Starting number n from 24982 to 25001:

It looks like from the numbers 3 to 25,001 the maximum number of iterations in the sequence before it collapses to 1 is 280.

This is not proof that the Collatz conjecture is true, not by a long shot. It just gives you confidence that there is something there. As mentioned above, actually providing a proof might be something that is outside of the realm of current mathematical knowledge.

The Generalized Collatz Conjecture

The original Collatz conjecture is (3n + 1)mod 2 and it appears that the sequence always collapses to 1 no matter what whole number you start with.

We can make the sequence more general: (an + b)mod m where 'a' replaces the mulitplier '3', 'b' replaces the addition term '1' and 'm' replaces the modulus 2.

For fun we can ask, are there other combinations of a, b, and m that also always collapse to 1?

Let's modify the above program to find out.

The modifications made are to:

  • increase the limits on the loop to search a larger number space.
  • only check out values of a, b and m that are prime. An early attempt found that non-prime values of a, b and m produced uninteresting degenerate solutions (i.e. sequences collapsed to 1 only because a, b and m were not coprime).
  • changed the print functions to create a markdown table.
# **********************************************************************************
# This code released under CC BY-SA 4.0 license by Procrastilearner
# **********************************************************************************
import math
import time
import datetime
import sys
import os

# Collatz conjecture: n_i+1 = 3n_i + 1 if odd, n_i /2 if mod(n_i,2) == 0
# https://en.wikipedia.org/wiki/Collatz_conjecture
# Generalized Collatz conjecture: n_i+1 = an_i + b if odd, n_i /m if mod(n_i,m) == 0
# a, b, m set of positive integers

# Check if number is a prime
def isprime(n):
    #source of this function is from:
    #https://www.daniweb.com/programming/software-development/code/216880/check-if-a-number-is-a-prime-number-python
    #check if integer n is a prime
    # make sure n is a positive integer
    n = abs(int(n))
    # 0 and 1 are not primes
    if n < 2:
        return False
    # 2 is the only even prime number
    if n == 2:
        return True
    # all other even numbers are not primes
    if not n & 1:
        return False
    # range starts with 3 and only needs to go up the squareroot of n
    # for all odd numbers
    for x in range(3, int(n**0.5)+1, 2):
        if n % x == 0:
            return False
    return True

DT = datetime.datetime.now()
print(DT)

a_start = 3
a = a_start
b_start = 1
b = b_start
m_start = 2
m = m_start

#print out the markdown table header
print("a|b|m")
print("---|---|---")

while(m <= 9999):
    while(b <= 9999):
        while(a <= 9999):
            i = 2
            count = 0
            while(i <= 1000 and count < 10001):
                count = 0
                num = i
                while(num > 1 and count < 10000):
                    if(num % m) == 0:
                        num = num / m
                    else:
                        num = a * num + b
                    count += 1
                i += 1
                if count >= 10000:
                    break
            if count < 10000:
                print(str(a) + "|" + str(b) + "|" + str(m))
            #get next prime for a
            while True:
                a += 1
                if isprime(a):
                    break
        a = 3
        while True:
            b += 1
            if isprime(b):
                break
    a = 3
    b = 1
    while True:
        m += 1
        if isprime(m):
            break

f1.close
f2.close

DT = datetime.datetime.now()
print(DT)

The Result

The table below shows the output of the program after running it for about 14 hours. There appears to be a number of other combinations of a, b and m that also obey Collatz conjecture.

abm
312
313072
317872
319872
323112
326092
332712
334992
338232
341592
343972
345192
350112
353332
354372
354772
356932
360892
362692
369172
375292
376212
398292

Verification

Let's use the first version of the program to check some of these sequences out to see if they hold up.

a = 3, b = 1307, m = 2: sequence diverges for starting n = 1308
a = 3, b = 1787, m = 2: sequence diverges for starting n = 1788
a = 3, b = 1987, m = 2: sequence diverges for starting n = 1988
... and so on and so forth.

So no, the deeper verification shows that it looks like the combinations found by the first program do not obey Collatz conjecture after all. The sequences diverge.

The second, modified program only checked the whole number starting sequence for the first 1000 starting numbers and so it missed the sequence failure at the higher numbers. Oh well.

This is why it is always good to double verify your program results to confirm that they are true.

Closing Words

Collatz conjecture, that the sequence generated by (3n + 1) mod 2 always collapses to 1, seems to be unique.

Making it general and checking the first several thousand combinations of a, b and m does not seem to produce any other sequences that always collapse to 1 for every starting n. They always seem to only produce diverging sequences.

This is an interesting mathematical conjecture and maybe in the future I will revise the above programs to be more robust, more automatic and to explore larger number spaces to see if there exists a companion sequence to the Collatz conjecture.

Thank you for reading my post.

Post Sources

[1] UNCRACKABLE? The Collatz Conjecture - Numberphile
[2] Collatz Conjecture - Wikipedia
