Introduction to Cryptography I: Encryption (Pt. 3 - Salsa20 Stream Cipher)

in #steemstem2 years ago (edited)

Hello there! @lemony-cricket here. Last week in Encryption Pt. 2, we learned what stream ciphers were. This time, we're going to take a closer look at a specific algorithm called Salsa20 in order to understand how the keystream is generated from the key.

Rocket graphic extracted from this CC0 image from OpenClipart-Vectors on Pixabay.


Unfortunately, participation was down last week. Thank you to @eonwarped for participating in the interactive activity! I'm not sure if the message was particularly malicious, but hey, Bob sure is really freakin' confused right now.

In an attempt to increase participation, this post will be the last in the series published on a Monday. From now on, I will be trying to post these on Friday or Saturday.

Also, it has come to my attention that my fancy lettering for newly-defined terms isn't showing up on some devices (particularly mobile phones with terrible Unicode support). That's unfortunate... so I'll be switching to bold italics, which are not nearly as fun. But enough about the series, let's talk about the crypto!

The Salsa20 quarter-round

"rounds?" you mean like in boxing?

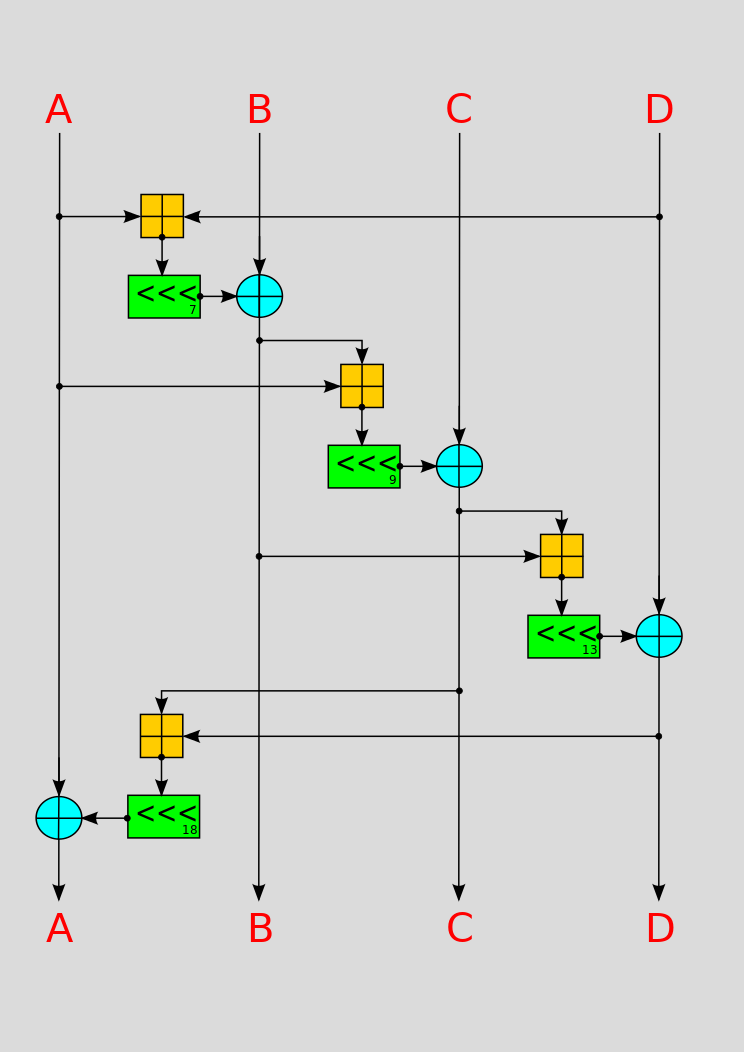

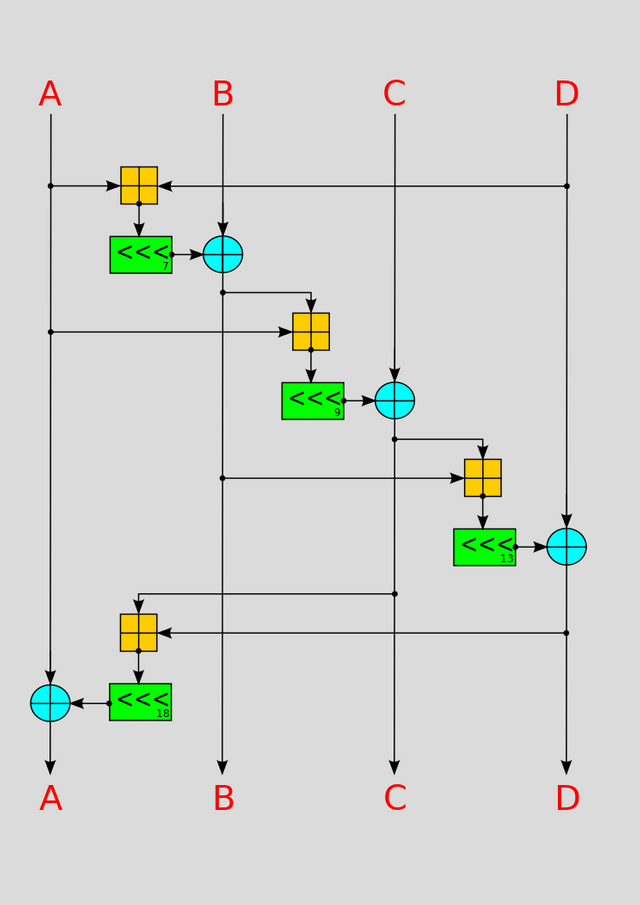

At the heart of many cryptographic algorithms lies the concept of the roundd1. A round is like an algorithm within the algorithm; a sub-routine which is run many times to arrive at a final result. Salsa20's round function is actually itself made up of four quarter-rounds; the diagram to the right is a visualisation of the Salsa20 quarter-round function.

Huh? What are all those symbols? Well, there are three main operations in play. The orange crossed square represents addition modulod2 232. The blue crossed circle represents the bitwised3 exclusive-OR (XOR) operation (we learned the definition of XOR in the previous installment. Finally, the orange boxes with the <<< symbol inside indicate a leftward circular shiftd4 of the specified number of bits (either 7, 9, 13, or 18 as shown in the diagram, from top to bottom).

The lines represent input and output.. The quarter-round function operates on four 32-bit values at a time; A, B, C, and D. These inputs are taken from the cipher's current stated5.

Salsa20's internal state

hopefully, this will all start to make some sense soon.

The quarter-rounds need data to operate on. That data is the current state of the cipher. For Salsa20, the state is a 4x4 grid of 32-bit values. Every time a quarter-round is executed, the existing data is overwritten with the newly generated output data. By now you're probably wondering... where is my key in all of this? We're about to find out.

key3nd 3nonce0nonce1
key5key6key7te k

To the left is a representation of the initial state of the ChaCha20 cipher. The subscript numbers indicate the N+1th 32 bits of that value. For example, "key0" indicates the first 32 bits of the key. The parameters used for the four quarter-rounds alternates from one round to another.

Specifically, there are two possible distributions of the quarter-rounds:


A | D | C | B
  |   |   |
B | A | D | C
  |   |   |
C | B | A | D
  |   |   |
D | C | B | A

For odd-numbered rounds (including the first one, since the round numbering starts at 1), the four quarter-rounds each manipulate one of the state's columns.


 A B C D
- - - - -
 D A B C
- - - - -
 C D A B
- - - - -
 B C D A

For even-numbered rounds, the above ordering is used instead, with the rows being manipulated rather than the columns.

Generating the keystream

tying it all together

Salsa20's keystream is generated 512 bits at a time. These 512-bit segments are called blocks. In Salsa20, each block starts out as the initial state shown above, then 20 rounds are performed on that state. The initial state has three variable parameters: a 256-bit key, a 64-bit nonced6, and a 64-bit position counter (always starts at zero with the first block, and counts upward with each block).

After the initial state is built from the key and nonce, 20 rounds are run, one after another, on the state. At the end, what you have left in the state after those 20 rounds is 512 bits of your keystream.

Interactive exercise

You should have paper and something to write with for this portion.

Let's run through a single round of a modified version of Salsa20. The rules of our modified version are as follows:

  • All 32-bit values are 4-bit values instead
  • Addition is modulo 24 instead of 232
  • All circular shift operations are removed.
  • All rounds are "odd-numbered."

The first person(s) to respond may use the following initial state. If you get here and someone else has already participated, you should use their output instead of this one, and reply directly to their comment. Let's have some fun with this!

1000 1101 1011 1011
0011 1110 0101 1001
0110 1010 0100 1111
0011 1101 1010 0100

Make sure to ask questions if you get stuck! 🍋
