Value in Potential: The Hydro-power Application
Potential
The word potential is often used in the world of Personal Development and Physics. While potential means two different things in both cases, it connotes the state of having a prospective, likely, impending, possible, budding, probable ability to become, develop, grow or simply manifest something greater than its former, visible, tangible, measurable condition or state would suggest.

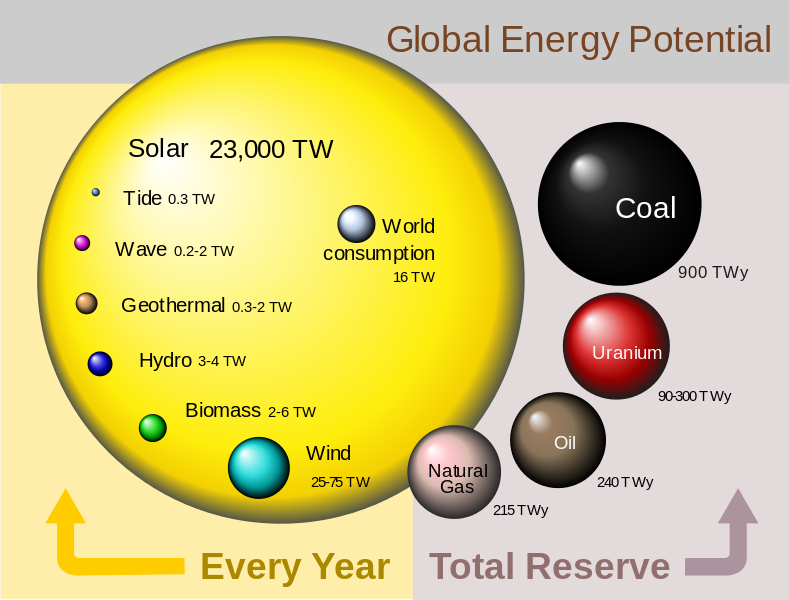

The image of Figure 1.1 shows the global energy potential obtainable from renewable and non-renewable sources. In other words, the image is about how much energy we can get from the different sources of energy. However, we are not done with discussing potential and potential energy. I just could not resist using the image because it captures the use of the word "potential" and touches on one application of potential energy (Hydroelectric Power)

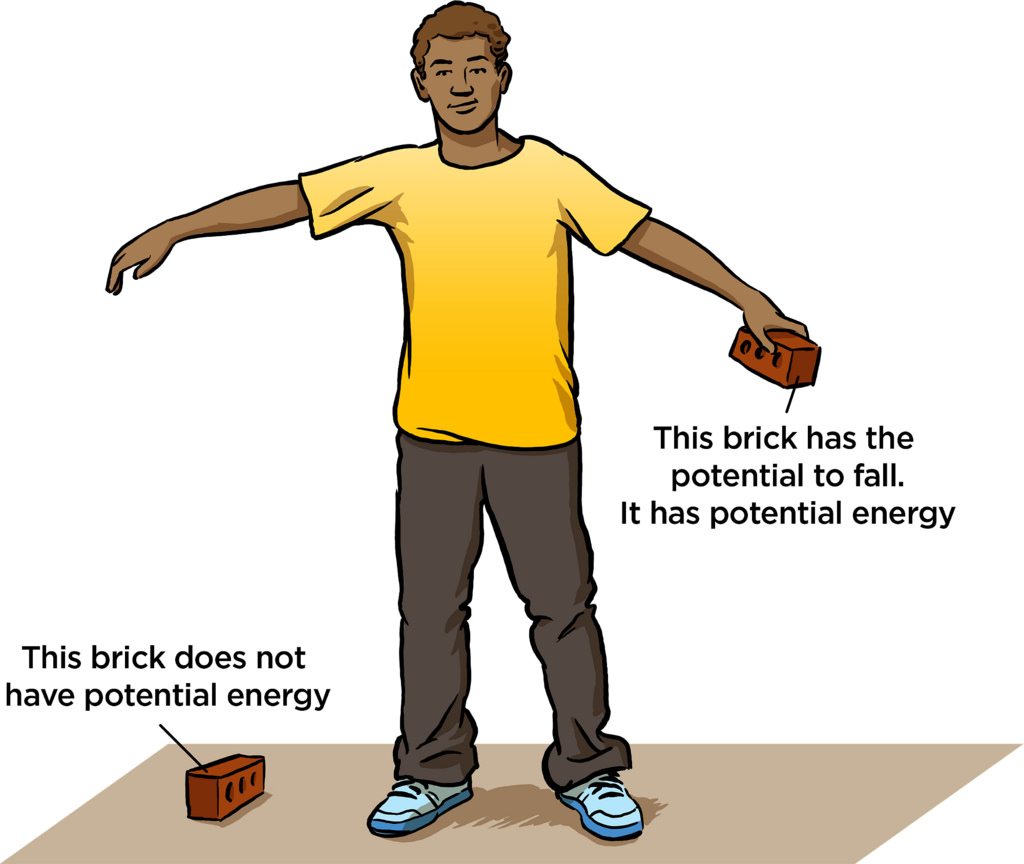

Potential Energy is the energy an object has because its position above the earth. This definition of potential energy on its own is confusing to the rookie physicist because it just does not make sense that an object should have energy because of the position of the object.
This is similar to seeing a wealthy king who does nothing but enjoys life or at least so it would seem to his subjects. Like the high-hanging heavy ball of a demolition machine, the influence of the wealthy king and his wealth come from the position he has attained above the ordinary people. It is not significant that the king may have inherited the throne.
The problem with understanding potential energy comes from the fact that we focus on the position of the object and not what happened before the object got to that position. If we go back long enough in time, we would be able to see what the royal family did that earned them the throne and if we pay close attention to them, we shall find that they did not just remain on the throne because they took it sometime in the past. No. They usually work very hard and make many sacrifices to keep the throne within the royal family. In this case, the crane holding the demolition ball must have enough force to hold the ball in position, else it will fall and lose its potential energy. The ongoing is very apparent in The Game of Thrones and other real-life kingdoms. This is precisely what happens in the potential energy of an object. For an object to have potential energy, work must be done against a force that would ordinarily prevent every other object from attaining that same potential energy. And for the object to remain in that position, a force is required to keep it.
A rolling stone does not roll on its own: someone pushed it.

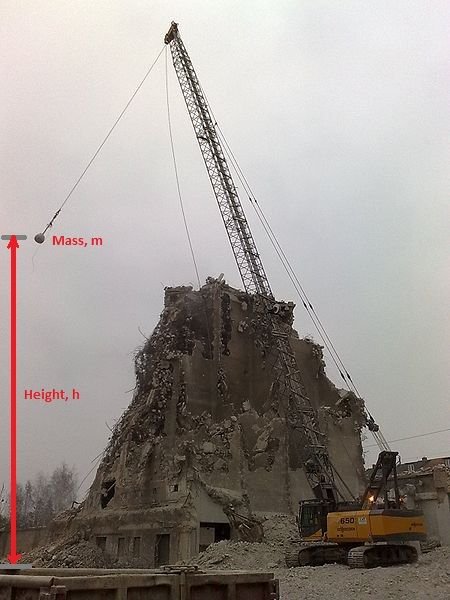

I have already mentioned one object that demonstrates potential energy: the demolition ball of a demolition machine, another one is the arrow in a stretched bow.
The potential energy stored in the demolition ball mentioned above is gravitational potential energy. There are other forms of potential energy like Elastic Potential Energy, but for this purposes of this post, I shall discuss only gravitational potential energy. The gravitational potential energy is the energy stored in an object due to its height above the earth. Evidently, the object acquired this energy due to work that was done against gravity in raising the body of mass, m through the height, h.
It is also obvious that the greater the mass of the object, the greater the work that would be required to move it to any height and the higher the object has to be raised the more work needed to be done to raise it to that height, isn't it? Of course, work is required to move the object from the earth to the height, h only because we are moving the object against the force of gravity, g pulling the object down. Therefore, we have a direct relationship between the mass of the object, the force of gravity and the height of the object.
Gravity, g here is the gravitational field strength which measures as 9.8 N/kg most parts of the earth, also called acceleration due to gravity in which case its value can be written as 9.8m/s2. We may also rewrite the relationship as PEgrav = m. g. h where h is the height of the object above the ground such the surface of the earth is regarded as height, h = zero.
If a man decides to work against the forces of nature, he would achieve nothing. But, by taking advantage of of those forces or at least understanding them and working according to their laws, man is able to achieve great things such as flying or making electricity out of water.

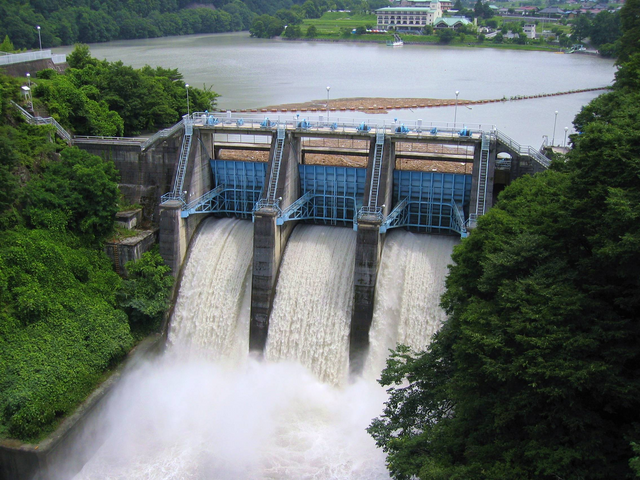

Taking advantage of gravity, the potential energy of water at a height above the ground and the water cycle, we create hydroelectric energy which is the most significant source of electric power in the world which is emission-free[2]. In terms of potential, according to Figure 1.1, hydro can provide the world of up to 25% of the world energy consumption. However, it must be mentioned that even though hydropower is emission-less, the process of achieving it, namely blocking rivers to build dams could hurt aquatic and riparian habitat and displace local population communities of animals.

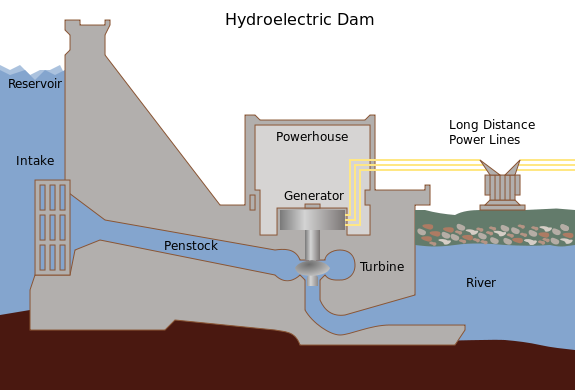

Electricity is generated from the kinetic energy in moving water when the water is moving with enough speed and has sufficient mass (or volume). The water would fall on a device called turbine. A turbine is like a mechanical device built with propeller-like blades which spin to generate electricity when water falls on it. Four litres per second falling from about 30 meters could generate as much as one kilowatt (that is, 1000 Watts) of electricity. But wait, we said it was the potential energy that represents energy at a height. So, how come, it is the kinetic energy of the water which is now converted to electric power?
Well, kinetic energy is the energy of an object due to its motion. According to the Law of Conservation of Energy, energy can neither be created nor destroyed, in other words, it can only be transformed from one form to another. So the potential energy of water above the dam is converted to kinetic energy when the dam is opened, and this kinetic energy is converted to electric energy by the water turbine below.
- The Physics Classroom
- UCS USA | Hydroelectric Energy
- Wikipedia | Kinetic Energy
- Wikipedia | Conservation of Energy
- Phils Chatz | Conservation of Energy
- MPOWERUK | Hydro Power
