Apples, Damn Apples and Statistics - Data Reading

in #science4 years ago (edited)

Correct Interpretation of data is easier if the data is important to us.

r. Stephen J. Gould wrote one of the best pieces on how statistics in the right hands can be a source of relief.[1] He was an American paleontologist, evolutionary biologist and historian of science. He also was one of the most influential and widely read writers of popular science of his generation.

Stephen J. Gould. featured in The Simpsons, Episode 186

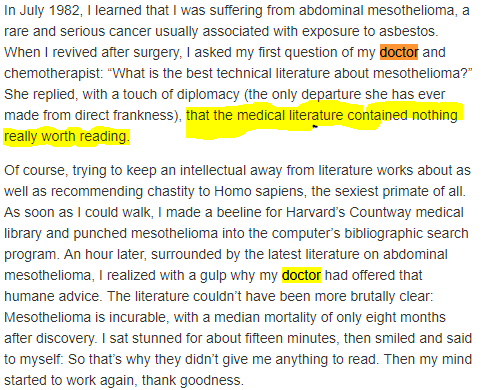

Diagnosed with abdominal mesothelioma. Almost certainly due to exposure to asbestos. Had a prognosis of 8 months to live and yet outlived that sentence by 20 years.

At the time, the median mortality for mesothelioma was 8 months - with current treatments the survival is 5 years for 50% of patients that are treated[2], [3] - a death sentence. Yet his brain kept working and after he found on his own how to interpret such a thing. He felt a lot better.

His doctor didn't give him the literature to read on its own. Not out of authoritarianism, but perhaps due to how much attitude and mood do influence mortality in cancer. Given the same conditions (age, race, sex, socioeconomic status) the person with the same diagnosis but a positive attitude survives the longest.[4] Immune system mood feedback, so doctors make a small hedging of the bet in ones favor by gating the information.

The psychology of positive attitude is mostly overhyped and unproven[5] yet depression makes the outcomes worst and is routinely screened for[6]. Everything you tell a person based on data requires knowledge from both parties or otherwise, misunderstanding gets out of control. After all knowledge of statistics is not as good as we would like in the general population.

In this case, 8 months median mortality didn't mean "I'll be dead in 8 months". It was just a tendency in the data. Like most data is a discrete representation of a continuum. Continua and variation are nature itself.

  • What are your chances of being in the half that survives beyond 8 months?

This chart is a useful yet incomplete illustration.
Notice how there are no values in the X and Y axis.

Like a gambler, when presented with the median, you would expect that half will be dead after 8 months and some will be dead before that until you see the data.

Immediately you realize the median is right-skewed. Most medical data distribution is[7]. In a normal distribution, you would expect the left and right side divided by the median to be symmetrical. In this case, since we have to start from zero (as the diagnosis has to start with death or before 8 months) Then you would find that the biggest part of the chart is on the left, but he is only a visual effect.

Also, in this case as shown by the image, as the median and the mean are close to each other you would expect a long tail that extends, far and long.

If you are on the side of the right side of the distribution your chances improve dramatically. It can be that you die from causes different to the present diagnostic before your "turn" comes. There are many factors that influence on which side of the distribution you are - Your age, stage of diagnosis, type of treatment undertaken - and the patients will to live.

It is a beautiful thing when your knowledge of statistics gives you hope. Like it usualy does as it gives you a better perspective to fight according to reality.

There's no excuse for poor knowledge of statistics. One can use it in any field one is part of. Dr. Gould gained this knowledge by applying it to the evolution of land snails. As a result, he was able to get the most out of statistics.

Due to the widespread ignorance of statistics in the general population, some people hide the data. This is lying by omission. Yet one's gotta remember that - as Mark Twain used to say - there are three sources of mendacity each one worse than the one before: lies, damned lies, and statistics.

Lying with statistics

Ein Fachmann ist ein Mann, der einige der gröbsten
Fehler kennt, die man in dem betreffenden Fach machen
kann, und der sie deshalb zu vermeiden versteht

Werner Heisenberg

Darrell Huff, (1954) How to Lie with Statistics, Norton, New York.

Recognizing the worst pitfalls in one's field of interest before they occur is a skill that experts don't take for granted. Can't or won't are important distinctions. Usually, mathematicians are the gatekeepers of the bad use in statistics but they live in a world of Platonic idealism, where contact with the real world is a mere bother.

Sometimes experts may come from different fields to state the simple yet obviated.

Back in the 1950's Darrell Huff was a freelance writer. He was interested in debunking bad data, despite not being an expert himself. His book, the most popular book on statistics in history, has introduced his audience to an exposure to the biggest pitfalls in interpreting data. In a reliable yet simple way without losing comprehensiveness. Unfortunately, not even him was free from data sin.[8] Be it for problems in the original studies of the date, mistake or active lying he was involved in discrediting smoke as a source of disease. Called as an expert witness to mock the idea of smoking as bad.

Despite this, is a good book. A sign of the madman from that age. Out of the most interesting examples of common lies are.

Pie Charts

One should almost never use pie charts. They are bad at almost everything it means conveying mathematical information. We are not good at comparing curved areas without transformations or references. Its uses are restricted to:

This is a trick done by magicians called Forcing [9]

  • The percentages add up to 100%

  • Represents a set

  • Not more than 3 cuts

  • Intentionally the cutting points are ambiguous

  • Without 3D, fragmentation or perspective effects

Its widespread adoption and misleading nature is the reason it should probably never be used. It's not only a problem exclusive to pie charts. It's a manipulation of our poor skill at estimating areas, since we overestimate them.[10]

Tufte's Forum. Good 'ol Chart junk by Apple

I'll go with E) all of the above


Infographics are a powerful way to convey little to no information in a beautiful graph.

Take for instance the report of Tim Cook on Apple's iPhone sells in 2013. By taking advantage of the way we overestimate curves, the original presentation didn't contain 2 key elements.[11]

  1. A value in the Y-axis (if there were one it would need to be well delimited).
  2. The linear representation fo the statistic.

Apple has a long record as a reincident offender. Subtle difference, not as impresive, right?

So if I were to graph just how much I've eaten since this year started, the graph would look similar to that one and someone would maybe imagine that I'm at only days of turning into Jabba de Hutt or going supernova. The scale is important, leading us to unnecessary assumptions when no references in the axis are provided.

Correlation Doesn't Imply Causation.

Spurious correlations are a source of comedy and great misunderstandings.[12] The logical truth values for implication don't bode well for looking at two events and determining one of them causes the other. In fact, a lot more is needed.

"Maybe" sounds about right. Good job, probably.

While the use of causation in physics and philosophy of science any type of causality must avoid Cum Hoc Ergo Propter Hoc - with this, therefore because of this- a logical fallacy that attaches two events that are strongly correlated without them sharing a mechanism of origin, a model with predictive power or falsifiable temporal effect.[13]

XKCD: Apple probably has a cancer factory

Expressions like two factors being "associated with" is preferred to using A "causes" B. Such expression would require a lot and quite strong evidence. Is not that we are correlation snobs. Indeed one could infer probable cause from strong correlation, again with really strong evidence. In a sense, is really good to include the word correlation inside your writing. It keeps the reader vigilant of your mistakes. If one uses the word correlation, legend says a physicist will jump at your jugular veins.

A good resource for learning about how to identify causality is the series of lecutres Judea Pearl on "The Art and Science of Cause and Effect"[14]. I can't encourage you more to check it out.

In reality, the truthness of one event is highly dependent on both parties trying their best to act in good faith with regards to experimentation.

An interesting read for laughs is Tyler Vyge's website "spurious correlations". A compilation of correlated data that one can easily argue a most likely cause-effect associated. One example is the one below of the number of iPhone sales and people who die falling from stairs.

Doesn't feel good when is done to you, right Apple? From Tyler Vyge's site

One must keep always in mind the type of causality one is checking for. Is it common cause? or common effect? maybe chain causality or perhaps loop causality?

The first step is checking by induction, abduction, and retroduction.

While there are many tools to check the strength of a cause-effect relationship one set of heuristics that have been widely accepted as good[15] is the Brad ford Hill Criteria:

  • Strength (effect size): A small association does not mean that there is not a causal effect, though the larger the association, the more likely that it is causal.
  • Consistency (reproducibility): Consistent findings observed by different persons in different places with different samples strengthens the likelihood of an effect.
  • Specificity: Causation is likely if there is a very specific population at a specific site and disease with no other likely explanation. The more specific an association between a factor and an effect is, the bigger the probability of a causal relationship.
  • Temporality: The effect has to occur after the cause (and if there is an expected delay between the cause and expected effect, then the effect must occur after that delay).
  • Biological gradient: Greater exposure should generally lead to greater incidence of the effect. However, in some cases, the mere presence of the factor can trigger the effect. In other cases, an inverse proportion is observed: greater exposure leads to lower incidence.
  • Plausibility: A plausible mechanism between cause and effect is helpful (but Hill noted that knowledge of the mechanism is limited by current knowledge).
  • Coherence: Coherence between epidemiological and laboratory findings increases the likelihood of an effect. However, Hill noted that "... lack of such evidence cannot nullify the epidemiological effect on associations".
  • Experiment: "Occasionally it is possible to appeal to experimental evidence".
  • Analogy: The effect of similar factors may be considered.

They are like a cheat sheet. There are many reasons to think that while good to keep in mind they are outdated.[16] Unfortunately or fortunately, there are no clear-cut criteria one can rely on and any causality must be checked by deductive reasoning. Fruit of experimenting in one's field of interest by getting to know the worst mistakes possibles when reding inferences.

Nothing replaces education and active engagement in the treatment of data that affects your life.

I wanna thank you all. This is a small landmark. Today I complete my 100th post on steemit. By "you" I really mean all of the people who give their time, money, attention to this platform. Yes, even to you, the person that spams the comments section in hopes of an upvote. To all of you in the past, present and future to this platform. So many people to be grateful for, but I will address each one of you in the near future if I have not done already.


[1] Gould SJ.. The median isn't the message. Ceylon Med J. 2004 Dec;49(4):139-40.

[2] Rusch, V. W., Giroux, D., Kennedy, C., Ruffini, E., Cangir, A. K., Rice, D., … van Meerbeeck, J. P. (2012). Initial Analysis of the International Association For the Study of Lung Cancer Mesothelioma Database. Journal of Thoracic Oncology, 7(11), 1631–1639.

[3] Magge, D., Zenati, M. S., Austin, F., Mavanur, A., Sathaiah, M., Ramalingam, L., … Choudry, H. A. (2013). Malignant Peritoneal Mesothelioma: Prognostic Factors and Oncologic Outcome Analysis. Annals of Surgical Oncology, 21(4), 1159–1165.

[4] D’Acquisto, F. (2017). Affective immunology: where emotions and the immune response converge. Dialogues in Clinical Neuroscience, 19(1), 9–19.

[5] Coyne, J. C., & Tennen, H. (2010). Positive Psychology in Cancer Care: Bad Science, Exaggerated Claims, and Unproven Medicine. Annals of Behavioral Medicine, 39(1), 16–26.

[6] Pinquart, M., & Duberstein, P. R. (2010). Depression and cancer mortality: a meta-analysis. Psychological Medicine, 40(11), 1797–1810.

[7] Sedgwick, P. (2012). Skewed distributions. BMJ, 345(nov08 1), e7534–e7534.

[8] Proctor, Robert (2011). Golden Holocaust. Origins of the Cigarette Catastrophe and the Case for Abolition. Berkeley, Los Angeles, London: University of California Press. p. 437. ISBN 978-0-520-27016-9.

Foot note
: p.436-437 “Enriching Statistics”
“Darrell Huff, author of the wildly popular (and aptly named) How to Lie With Statistics, was paid to testify before Congress in the 1950s and then again in the 1960s, with the assigned task of ridiculing any notion of a cigarette-disease link. On March 22, 1965, Huff testified at hearings on cigarette labeling and advertising, accusing the recent Surgeon General’s report of myriad failures and “fallacies.” Huff peppered his attack with with amusing asides and anecdotes, lampooning spurious correlations like that between the size of Dutch families and the number of storks nesting on rooftops–which proves not that storks bring babies but rather that people with large families tend to have larger houses (which therefore attract more storks.)”
