C++ Network Programming(part 15):: The ACE Process Manager Class

Complex networked applications often require groups of processes to coordinate
to provide a particular service. For example, a multistage workflow
automation application may spawn multiple processes to work on different
parts of a large problem. One master process may wait for the entire
group of worker processes to exit before proceeding with the next stage
in the workflow. This is such a common paradigm that ACE provides the
ACE_Process_Manager class.
process_table_
current_count_
: ACE_Process
: size_t

• open (start_size : size_t) : int
• close () : int
• spawn (proc : ACE_Process *, opt : ACE_Process_Options) : pid_t
• spawn_n (n : size_t, opts : ACE_Process_Options, pids : pid_t [])
  : int
• wait (timeout : ACE_Time_Value) : int
• wait (pid : pid_t, status : ACE_exitcode *) : pid_t
• instance () : ACE Process Manager *
  Figure 8.4: The ACE_ProcessJXIanager Class Diagram
  Class Capabilities
  The ACE_Process_Manager class uses the Wrapper Facade pattern to combine
  the portability and power of ACE__Process with the ability to manage
  groups of processes as a unit. This class has the following capabilities:
  • It provides internal record keeping to manage and monitor groups of
  processes that are spawned by the ACE_Process class.
  • It allows one process to spawn a group of process and wait for them
  to exit before proceeding with its own processing.
  The interface of the ACE_Process_Manager class is shown in Figure 8.4
  and its key methods are outlined in the following table:

  • By instantiating one or more instances. This capability can be used
  to support multiple process groups within a process.
  Example
  The example in Section 7.4 illustrated the design and implementation of a
  reactive logging server that alleviated the drawbacks of a purely iterative
  server design. Yet another server model for handling client requests is to
  spawn a new process to handle each client. Process-based concurrency
  models are often useful when multithreaded solutions are either:
  • Not possible, for example, on older UNIX systems that lack efficient
  thread implementations or that lack threading support altogether, or
  • Not desired, for example, due to nonreentrant third-party library restrictions
  or due to reliability requirements for hardware-supported
  time and space partitioning.
  Section 5.2 describes other pros and cons of implementing servers with
  multiple processes rather than multiple threads.

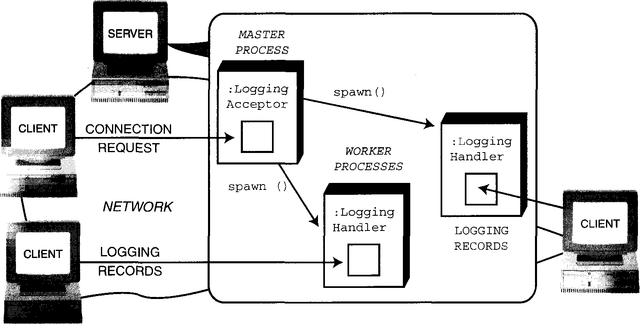

  The structure of our multiprocess-based logging server is shown in Figure
  8.5. This revision of the logging server uses a process-per-connection
  concurrency model. It's similar in many ways to the first version in Section
  4.4.3 that used an iterative server design. The main difference here
  is that a master process spawns a new worker process for each accepted
  connection to the logging service port. The master process then continues
  to accept new connections. Each worker process handles all logging requests
  sent by a client across one connection; the process exits when this
  connection closes.
  A process-per-connection approach has two primary benefits:

1. It "ruggedizes" the logging server against problems where one service
   instance corrupts others. This could happen, for example, because of
   internal bugs or by a malicious client finding a way to exploit a buffer
   overrun vulnerability.
2. It's a straightforward next step to extend the logging server to allow
   each process to verify or control per-user or per-session security
   and authentication information. For example, the start of each userspecific
   logging session could include a user/password exchange. By
   using a process-based server, rather than a reactive or multithreaded
   server, handling of user-specific information in each process would
   not be accidentally (or maliciously!) confused with another user's
   since each process has its own address space and access privileges.
   The process-per-connection server shown below works correctly on both
   POSIX and Win32 platforms. Given the platform differences explained in
   Section 8.2 and Sidebar 16 on page 164, this is an impressive achievement.
   Due to the clean separation of concerns in our example logging server's design
   and ACE's intelligent use of wrapper facades, the differences required
   for the server code are minimal and well contained. In particular, there's a
   conspicuous lack of conditionally compiled application code.
   Due to differing process creation models, however, we must first decide
   how to run the POSIX process. Win32 forces a program image to run in a
   new process, where as POSIX does not. On Win32, we keep all of the server
   logic localized in one program and execute this program image in both the
   worker and master processes using different command-line arguments. On
   POSIX platforms, we can either:
   • Use the same model as Win32 and run a new program image or
   • Enhance performance by not invoking an exec* ( ) function call after
   fork () returns.
