C++ Network Programming(part 14)::The ACE SOCK IO and ACE SOCK Stream Classes

to detect socket misuse at compile-time. As described in Section 3.1,
connection management involves three roles: active connection role, passive
connection role, and communication role. The Socket API, however,
defines only two socket modes: data mode and passive mode. Developers
can therefore misuse sockets in ways that can't be detected during
compilation. The ACE_SOCK_Connector class took the first step toward resolving
this area of complexity; the ACE_SOCK_Stream class takes the next
step. ACE_SOCK_Stream defines a data-mode "transfer-only" object. An
ACE_SOCK_Stream object can't be used in any role other than data transfer
without intentionally violating its interface.

Class Capabilities
The ACE_sOGK_Stream class encapsulates the data transfer mechanisms
supported by data-mode sockets. This class provides the following capabilities:
• Support for sending and receiving up to n bytes or exactly n bytes
• Support for "scatter-read" operations, which populate multiple callersupplied
buffers instead of a single contiguous buffer
• Support for "gather-write" operations, which transmit the contents of
multiple noncontiguous data buffers in a single operation
• Support for blocking, nonblocking, and timed I/O operations and
• Support for generic programming techniques [AleOl] that enable the
wholesale replacement of functionality via C++ parameterized types,
as described in Sidebar 5 on page 57

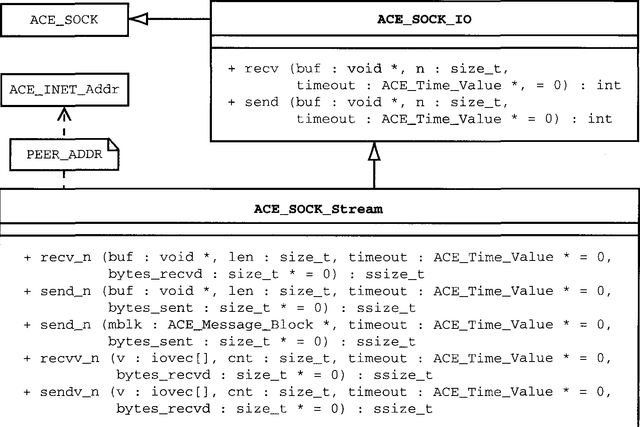

ACE_SOCK_Stream instances are initialized by the ACE_SOCK_Acceptor
or ACE SOCK Connector factories. The interface of the ACE SOCK Stream
Stream derives from ACE_SOCK_IO, which itself derives from ACE_SOCK and
defines basic data transfer methods that are reused by the ACE UDP wrapper
facades.
The key methods exported through ACE_SOCK_Stream are outlined in
the following table:
Method Description
send ( ) Transmit and receive buffers of data. They may write or read less
recv() than the number of bytes requested due to buffering in the OS
and flow control in the transport protocol.
send_n()
recv n ( )
Transmit and receive data buffers of exactly n bytes to simplify
application handling of "short-writes" and "short-reads."
recvv n ( ) Receives multiple buffers of data efficiently and completely using
an OS "scatter-read" system function.
sendv n ( ) Sends multiple buffers of data efficiently and completely using an
OS "gather-write" system function.
The ACE_SOCK_Stream class supports blocking, timed, and nonblocking
I/O, where blocking I/O is the default. Timed I/O is useful when communicating
with peers that can hang or block indefinitely. Two types of
ACE_Time_Value values can be passed to the ACE_SOCK_Stream I/O methods
to control their time-out behavior:
Value
NULL ACE
pointer
Time Value
Behavior
Indicates that an I/O method should block until data
are transferred or until an error occurs.
A non-NULL
ACE_Time_Value
pointer
Indicates that the I/O method should wait a relative
amount of time to transfer the data. If the time-out
expires before the data is sent or received a -1 is
returned with errno set to ETIME.
Nonblocking I/O is useful for applications that can't afford to block
when data isn't sent or received immediately. Blocking versus nonblocking
I/O can be controlled via the enable ( ) and disable ( ) methods inherited
from ACE_IPC_SAP:
peer.enable (ACE_NONBLOCK); // Enable nonblocking I/O.
peer.disable (ACE_NONBLOCK); // Disable nonblocking I/O.
If an I/O method is invoked on an instance of ACE_SOCK_Stream that's in
nonblocking mode and the call would block, a —1 is returned and errno is
Set to EWOULDBLOCK.
Example
Now that we've examined the capabilities of ACE_SOCK_Stream, we can
show the data transfer portion of our Web client example begun on page 59
in Section 3.5. This code sends an HTTP GET request for a particular URL
path name and then prints out the contents of the file that's downloaded
from the Web server.
// ...Connection code from example in Section 3.5 omitted...
char buf[BUFSIZ];
iovec iov [3] ;
iov[0].iov_base = "GET ";
iov[0] .iov_len = 4 ; // Length of "GET ".
iov[l].iov_base = pathname;
iov[l].iov_len = strlen (pathname);
iov[2] .iov_base = " HTTP/1.0\r\n\r\n" ,•
iov[2].iov_len = 13; // Length of " HTTP/1.0\r\n\r\n";
if (peer.sendv_n (iov, 3) == -1)
return 1;
for (ssize_t n; (n = peer.recv (buf, sizeof b u f ) ) > 0; )
ACE::write_n (ACE_STDOUT, buf, n ) ;
return peer, close () ,- ;
We use an array of iovec structures to transmit the HTTP GET request
to the Web server efficiently using the ACE_SOCK_Stream: :sendv_
n ( ) gather-write method. This avoids performance issues with Nagle's algorithm
[Ste93] described in Sidebar 6. On UNIX/POSIX platforms this
method is implemented via writev ( ) and on WinSock2 platforms it's implemented
via WSASend () .
The I/O methods in the client_download_f ile ( ) function will block
if they encounter TCP flow control or if the Web server misbehaves. To
prevent the client from hanging indefinitely, we can add time-outs to these
method calls. In the following code, for instance, if the server doesn't receive
the data in 10 seconds, a -1 will be returned with errno set to ETIME:
// Wait no more than 10 seconds to send or receive data.
ACE_Time_Value timeout (10);
peer.sendv_n (iov, 3, &timeout);
while (peer.recv (buf, sizeof buf, ktimeout) > 0)
// ... process the contents of the downloaded file.
