How To Make A Simple Robot Of Used Goods Without A Program For Beginners

Roboters buddy who started to like the world of robotics may still often confused how to start making a robot well though it is still very simple that is important there is experience and knowledge. This time I want to share how to Make Robot Simple From Used Goods Without Program For Beginner. But if you want to make a more simple robot without PCB you can see this article How To Make A Simple Robot Beetlebot + Video Making.

Simple robot in question is the robot avoider or robot obstacle, the way it works is if the sensor (limit switch) in front of the robot touching the wall or other objects then the motor will rotate in accordance with the state of the relay, can turn right turn left even can also back off when both Limit switch touches the wall.

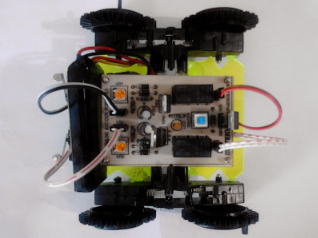

Form of simple robot that has been so.

Utilizing used goods

Maybe for those of you who have younger siblings or nephews have toys used cars can be utilized motor and wheels, for bodynya we can make with plywood, board, or if have the capital can buy acrylic.

Here's an example picture of a toy car that we can use:

Simple Robot Series Image

For the circuit or PCB it has been my previous post you live dilat articlenya How to make a simple avoider robot so you can make pcbnya easily.

Here is a list of the main components:

1. Triplek / acrylic size 20x20 cm
2. Mobilan used 2 units (cut aside) 1 robot need 2 mobilan
3. Relays 5 volts 8 pins 2 units
4. Limit switch 2 units
5. IC Regulator 7805 1 unit
6. Transistor TIP31 or can use other transistors 2 units
7. Variable resistor 2 units
8. PCB Polos size 8x5 cm
9. Species / bolts 4 units
10. Black pin header
11. Resistors and capacitors
12. Cable, lead, battery (can be 3xAA) or Lippo 7.4 V

Here is a picture how to make that already live raft:

How To Make Simple Robot From Used Goods Without Program For Beginners, this could be our brother's toys to introduce the world of robotics from an early age so that later they become creative children and sensitive to the progress of science and technology.

Thank you for reading my article hopefully useful.
