How to Fix a Leaking Sunroof
Howdy Friends!!
Welcome To
A Step by Step Tutorial
On How To Fix a Leaking Sunroof
Just because I am stupid and too cheap to go to the dealer does not mean you should be. May I say Do Not Try This At Home!!! Take your vehicle to a dealer instead of setting off an airbag!!
So some people may be thinking the Old Guy has really weirded out. Why would he post about a leaking sunroof on a Hummer H3. Well I know not too many people on Steemit may have a H3, but let me tell you this is a huge issue for Hummer owners. I have talked to many that are tired of taking the H3 to the dealer and spending $300 a pop to get the sunroof drains cleaned, only to have to go back in six months or a year! I really hope that some will google this post and see that they too could put up content on Steemit and make a little bit for their time!

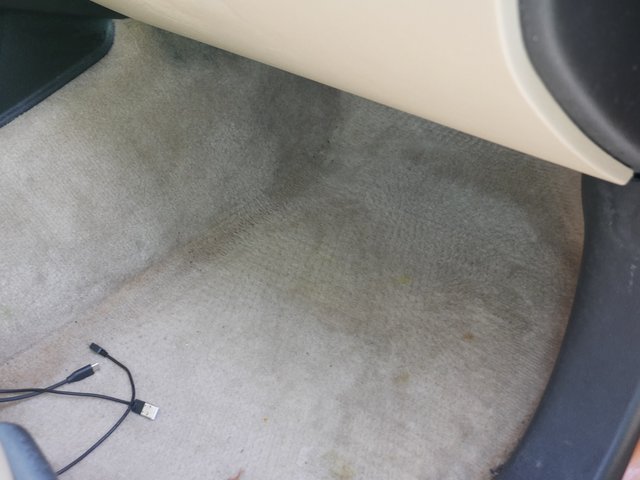

Opened up the door to a couple of inches of water on the floor.
Few things in live are as off putting as opening the car door and getting hit by the waft of mildew. It has been a common problem, and I was past my limit for dealing with it. I figured there had to be a fix.
My video explaining the process.
The easiest way to fix this problem is to watch along as I work on it :)

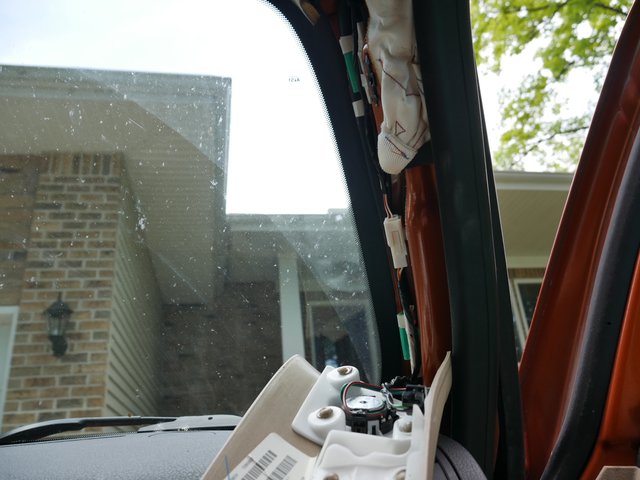

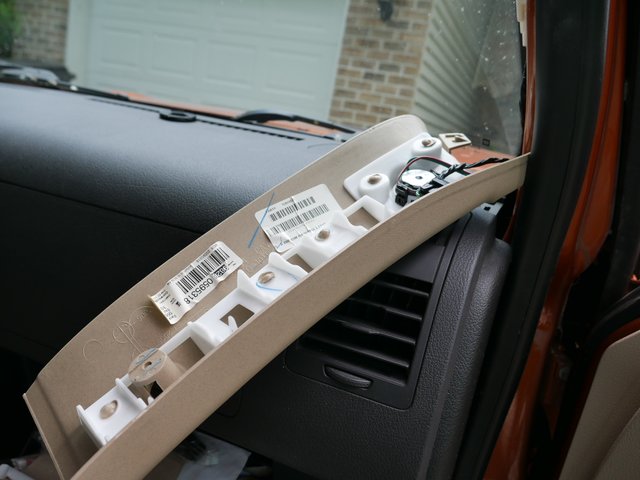

My first order of business was to find the drain tube. You need to remove the pillar cover. To do this, I removed the plate that says "Airbag". Yeah, AIRBAG! I am messing around the airbag!
I could see the drain tube and where it snakes behind the dash to the firewall.

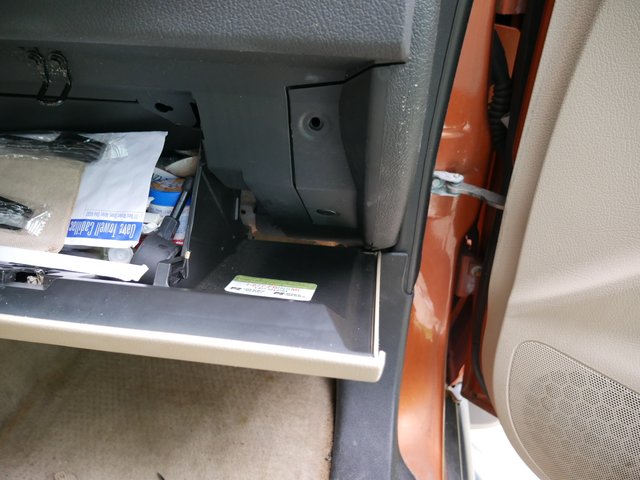

I removed the side panel from the glove box, so I could reach in and remove the grommet from the firewall. The grommet or plug gets, well, plugged. Look at how some genius designed the plug to get plugged LOL!!

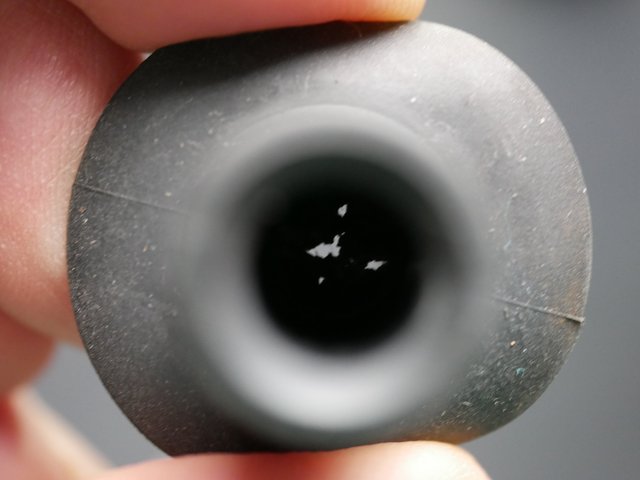

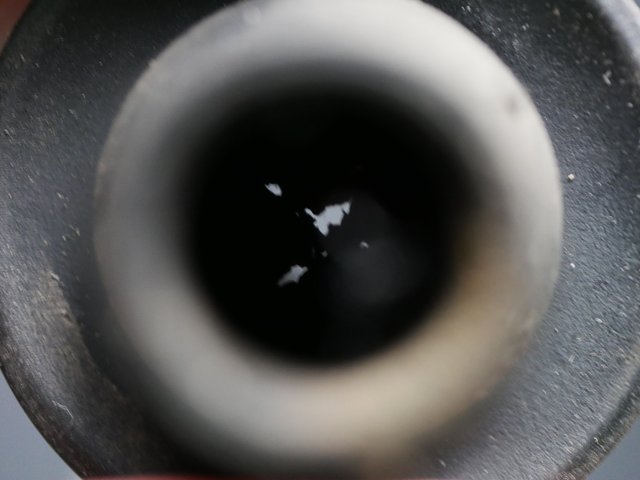

There is normally an x cut into the rubber that should allow the water to seep out, but as you can see it gets filled with gunk and blocks the water from seeping, which naturally forces it to seep inside the cabin!!

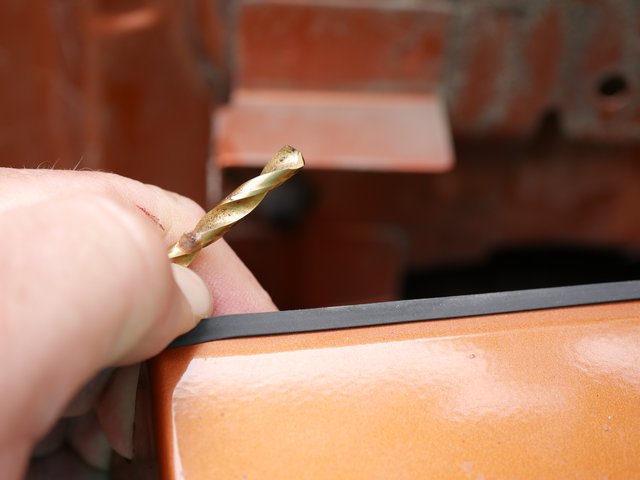

Because of the rubber flaps being so soft and supple, a drill would not get mine reamed out. I used a propane torch to heat a good sized bit that melted the rubber flaps out of the way.

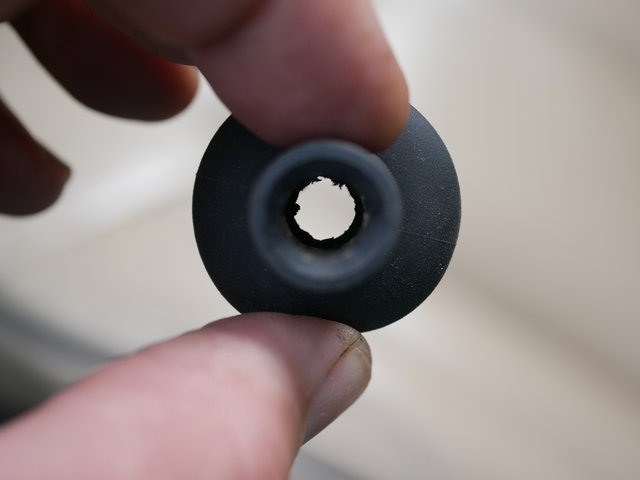

This should allow water to easily travel out of the line.

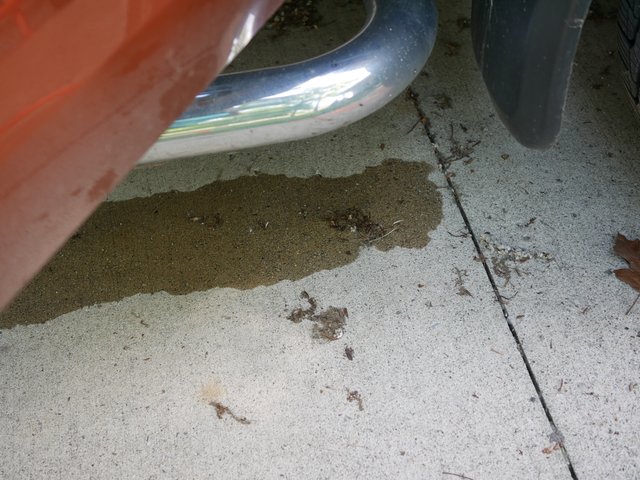

Well it works, water flows freely out the two front holes, one on each side in the firewall. . I am happy to not have to worry about having a stinky car!!!
Thanks for stopping by!
