[Python] レイアウト
こんにちは、@yasuです。
今回はレイアウトについて学習してみたいと思います。
いくつかのレイアウトのテンプレートみたいなものを作ってみました。
実行環境
今回は、https://repl.it/ ではなく Visual Studio Codeで行います。
コード
from tkinter import *
root = Tk()
root.title("Python Test")
root.geometry("640x400")
#
# 上下左右は固定、中央は可変
#
def layout1():
btn_n = Button(root, text="上",height=2)
btn_n.pack(side="top",fill="x")
btn_s = Button(root, text="下",height=2)
btn_s.pack(side="bottom",fill="x")
btn_e = Button(root, text="右",width=10)
btn_e.pack(side="right",fill="y")
btn_w = Button(root, text="左",width=10)
btn_w.pack(side="left",fill="y")
btn_center = Button(root, text="中央")
btn_center.pack(fill="both",expand = True)
layout1()
root.mainloop()

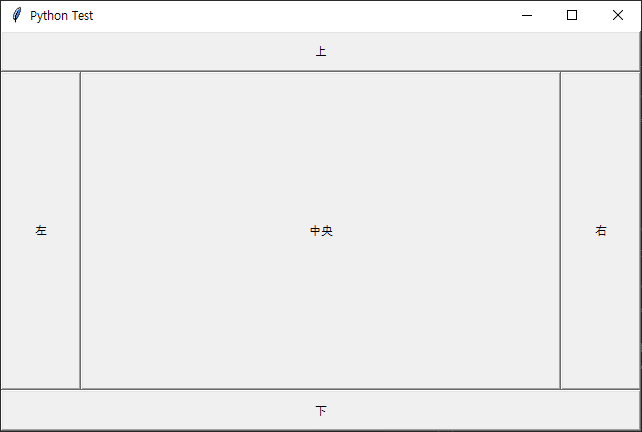

実行結果
そのほかのレイアウト例
#

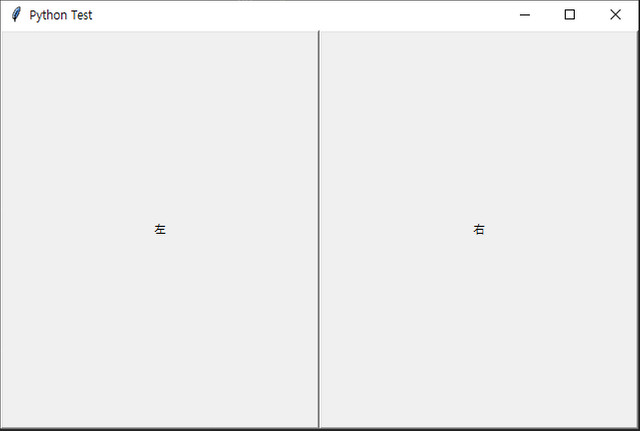

# 左50%、右に50%
#
def layout2():
btn_e = Button(root, text="右")
btn_e.pack(side="right",fill="both",expand = True)
btn_w = Button(root, text="左")
btn_w.pack(side="left",fill="both",expand = True)
#

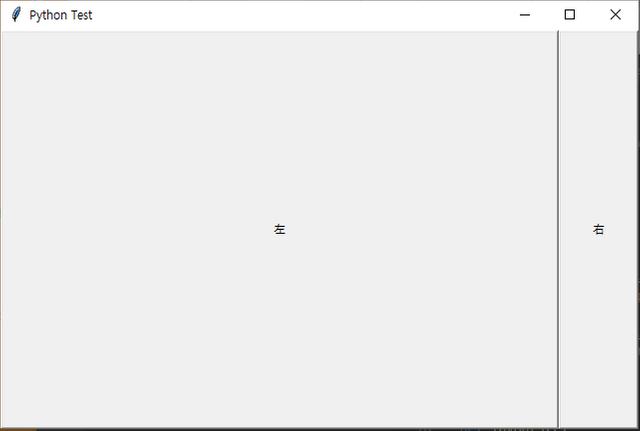

# 左は固定、右は可変
#
def layout21():
btn_e = Button(root, text="右",width=10)
btn_e.pack(side="right",fill="both",anchor="w")
btn_w = Button(root, text="左")
btn_w.pack(side="left",fill="both",anchor="e",expand = True)
#

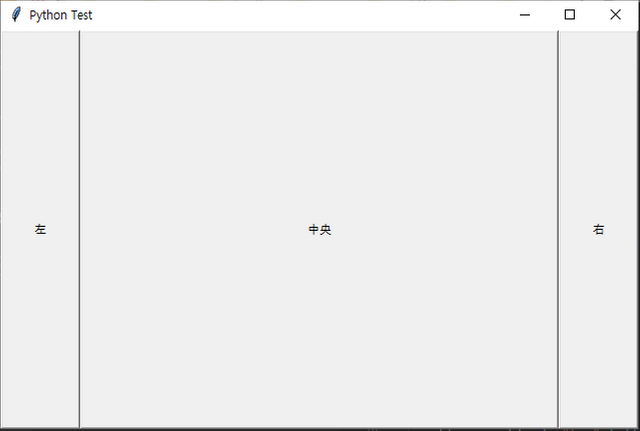

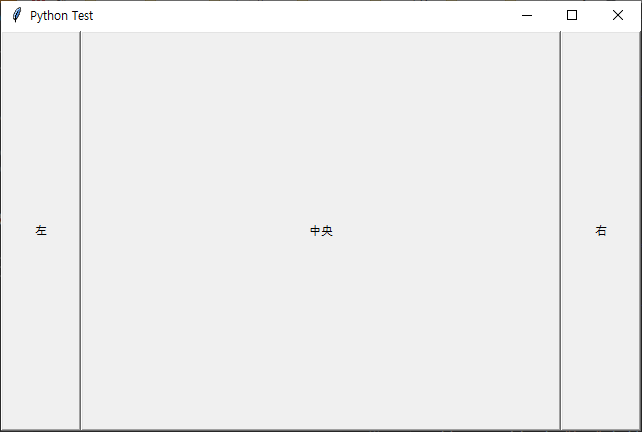

# 左右は固定、中央は可変
#
def layout22():
btn_e = Button(root, text="右",width=10)
btn_e.pack(side="right",fill="both",anchor="w")
btn_w = Button(root, text="左",width=10)
btn_w.pack(side="left",fill="both",anchor="e")
btn_center = Button(root, text="中央")
btn_center.pack(fill="both",expand = True)
#

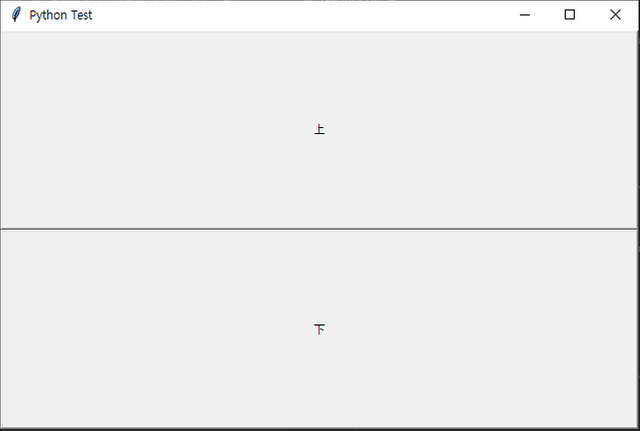

# 上50%、下に50%
#
def layout3():
btn_n = Button(root, text="上",height=2)
btn_n.pack(side="top",fill="both",expand = True)
btn_s = Button(root, text="下",height=2)
btn_s.pack(side="bottom",fill="both",expand = True)
#

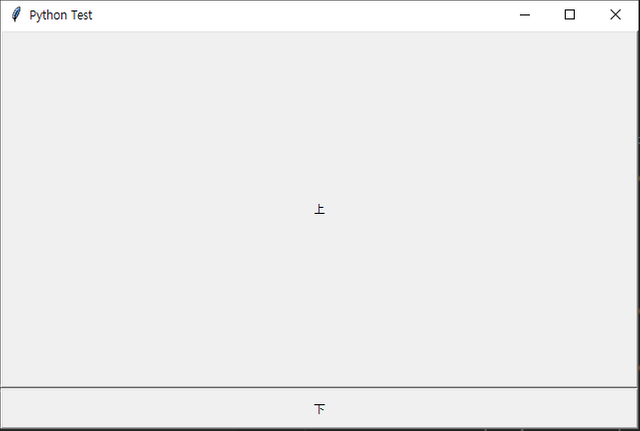

# 上は可変、下は固定
#
def layout31():
btn_n = Button(root, text="上")
btn_n.pack(side="top",fill="both",expand = True)
btn_s = Button(root, text="下",height=2)
btn_s.pack(side="bottom",fill="both")
#

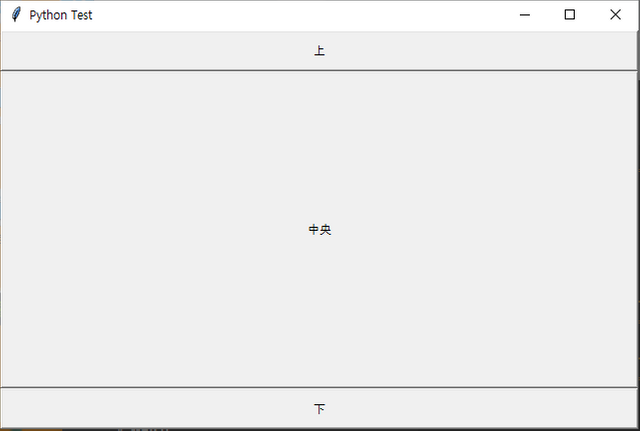

# 上下は固定、中央は可変
#
def layout32():
btn_n = Button(root, text="上",height=2)
btn_n.pack(side="top",fill="both")
btn_s = Button(root, text="下",height=2)
btn_s.pack(side="bottom",fill="both")
btn_center = Button(root, text="中央")
btn_center.pack(fill="both",expand = True)
