Project: Casemod - Hardware@Wall - GPU mount

Habedere everyone,

today I show you the mount for the GPU.

If you missed the 9th part (New squared profiles); here it is:
Project: Casemod - Hardware@Wall - New squared profiles

In this mod I’m not using a riser cable. So I need a mount for the GPU.

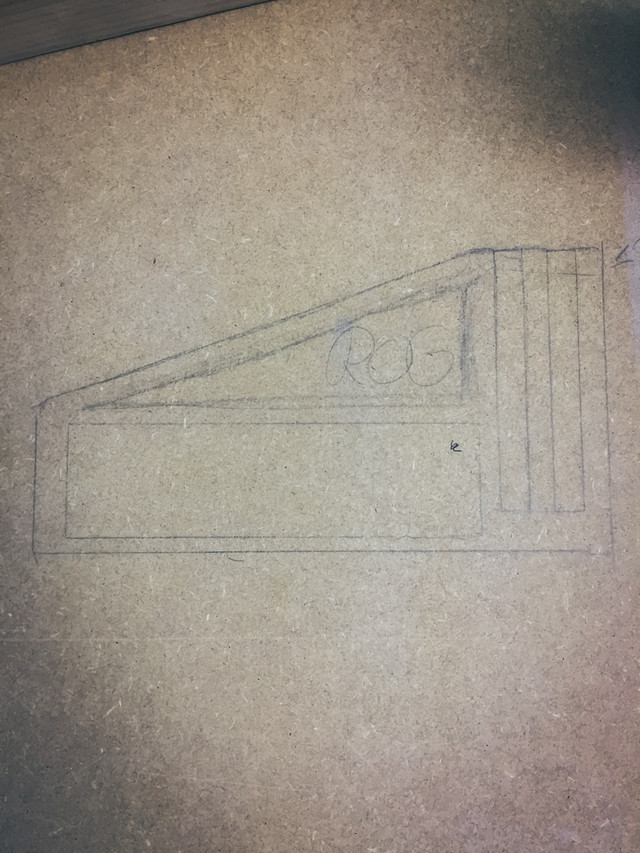

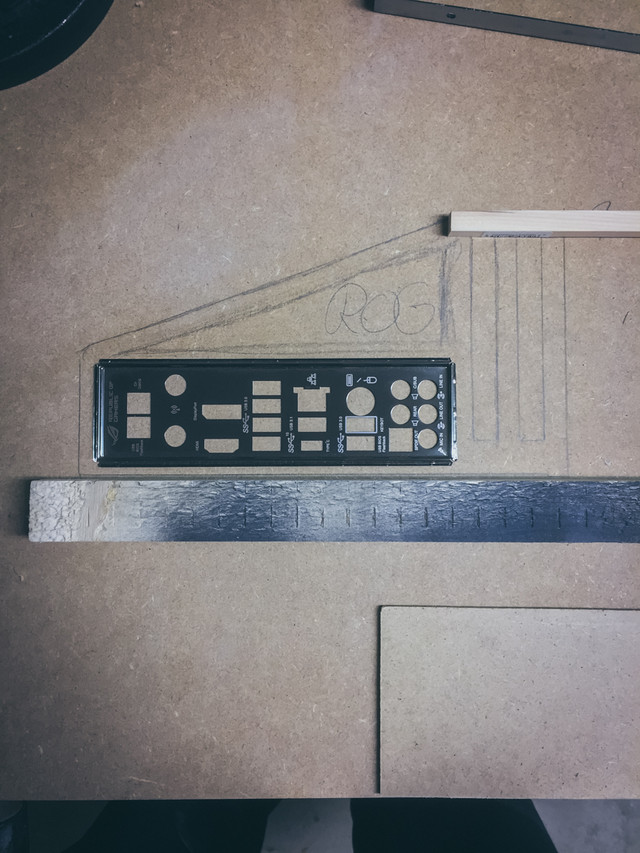

I created a simple drawing on my workbench.

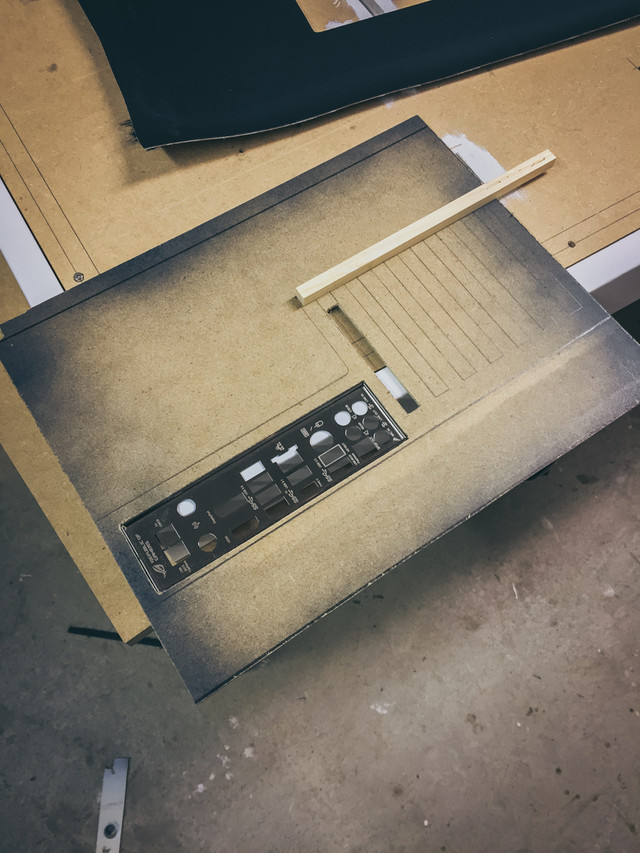

I used 3mm MDF and a small piece of spruce and started with some first thoughts.

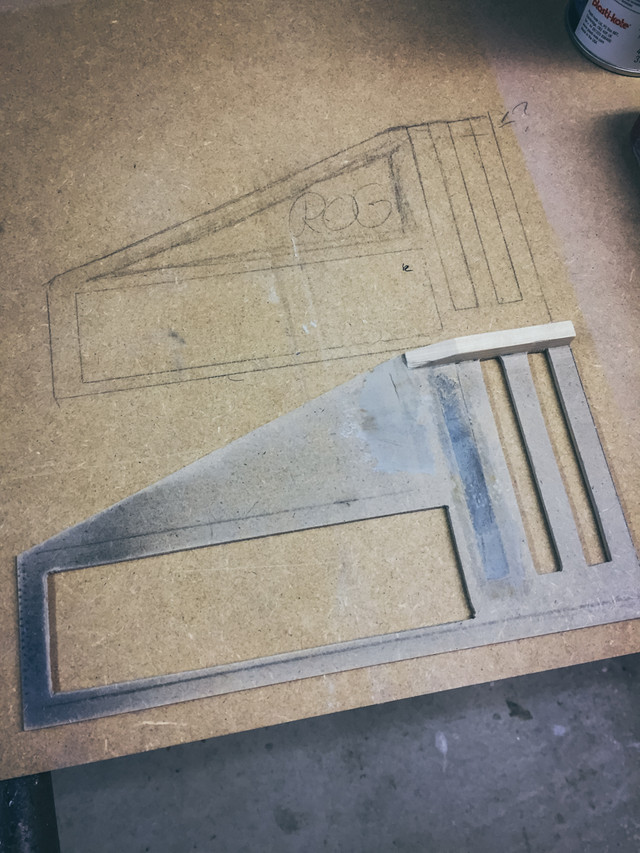

Here a comparison between drawing and prototype.

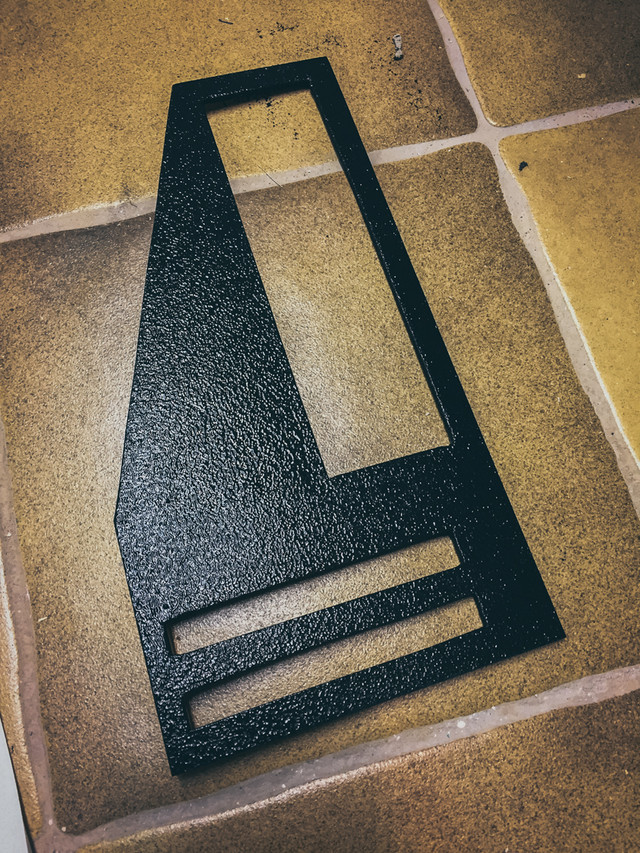

I painted the backside with black color and

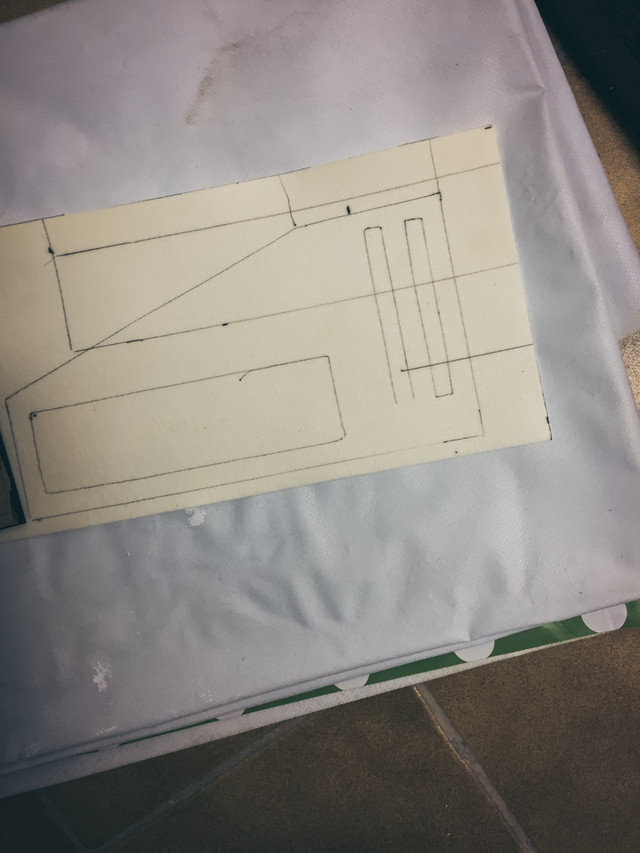

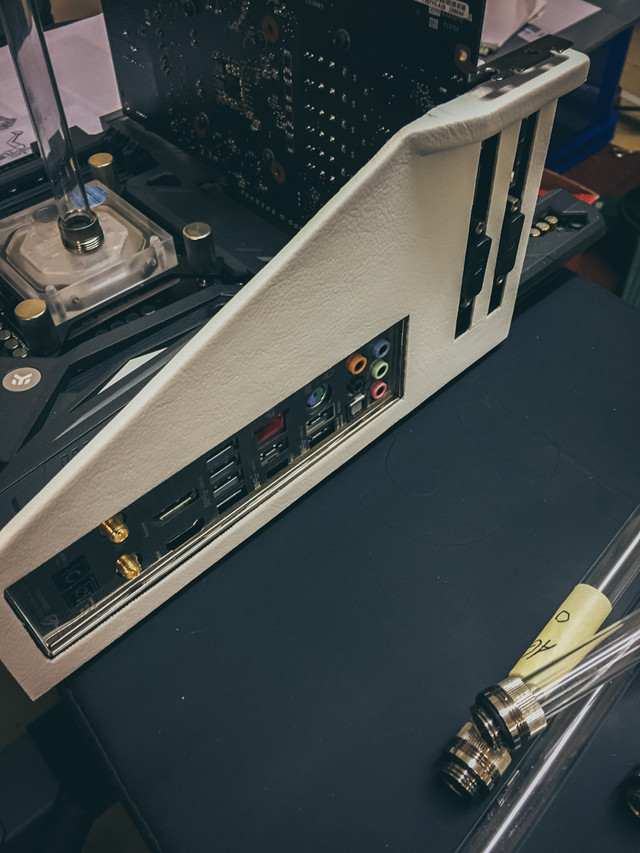

finished the front with white leather.



What's next?

I'm going to continue with the piping.
Servus and cu next time.
