Project: Casemod - Hardware@Wall - New squared profiles
Habedere,
today an update of the piping.
If you missed the 8th part (Leather); here it is:
Project: Casemod - Hardware@Wall - Leather

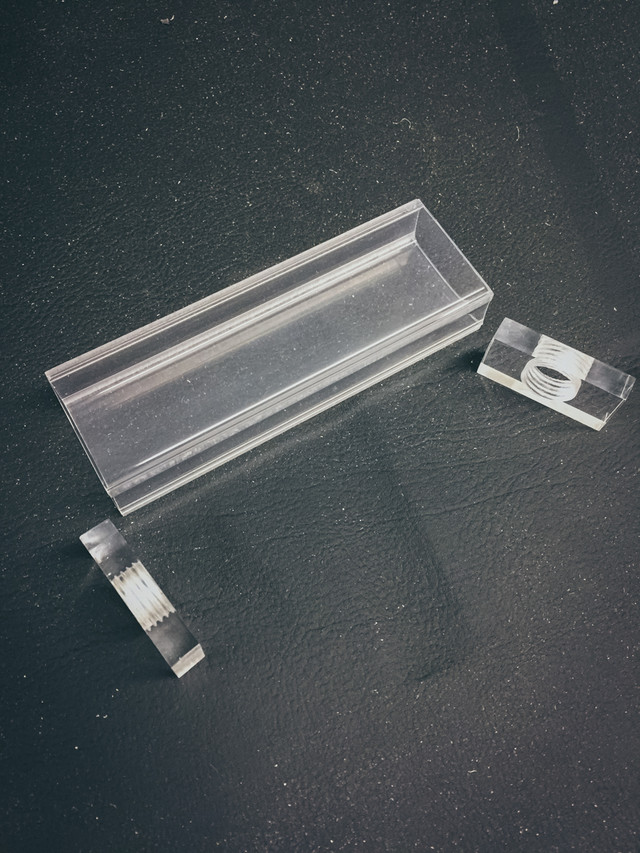

This was my first version of the square profile tubes.
I disassembled them and used it for version 2.
Version 2 has the focus on the side covers.

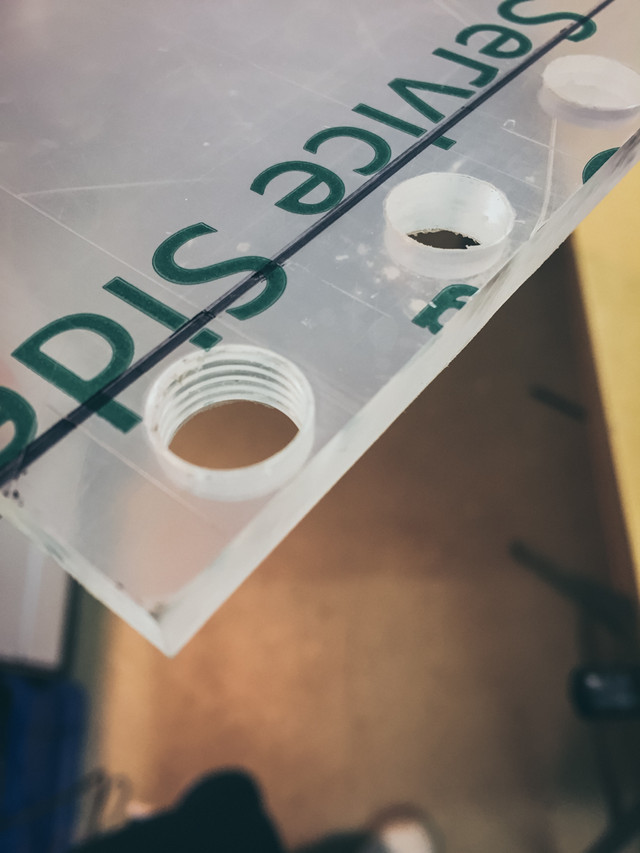

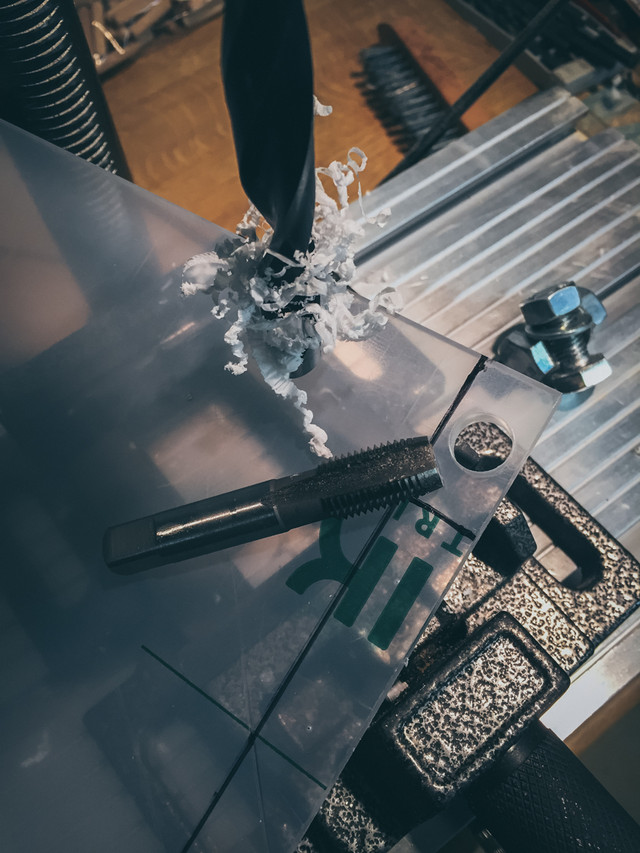

I used 6mm plexiglass in which I drilled a 12mm hole.

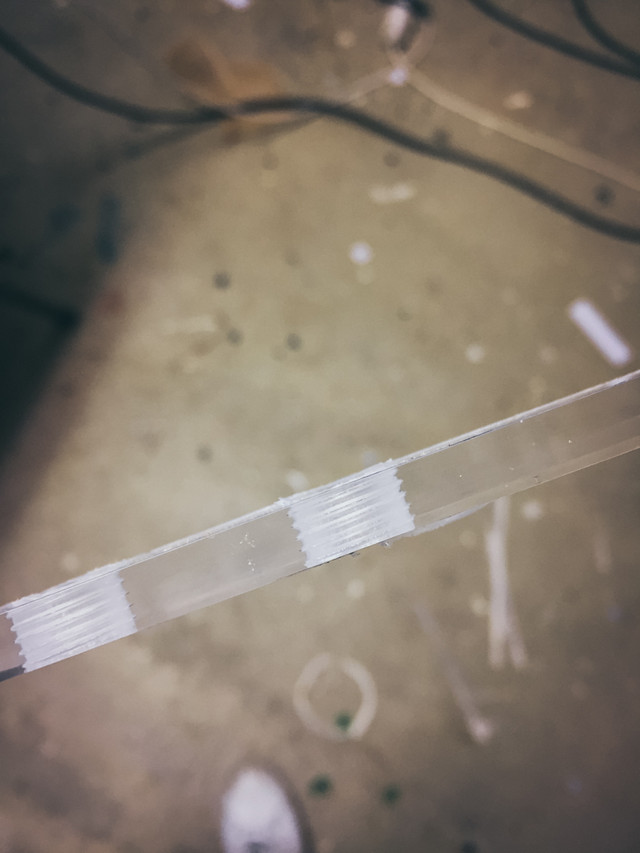

After that I cut a 1/4 thread into the workpiece.

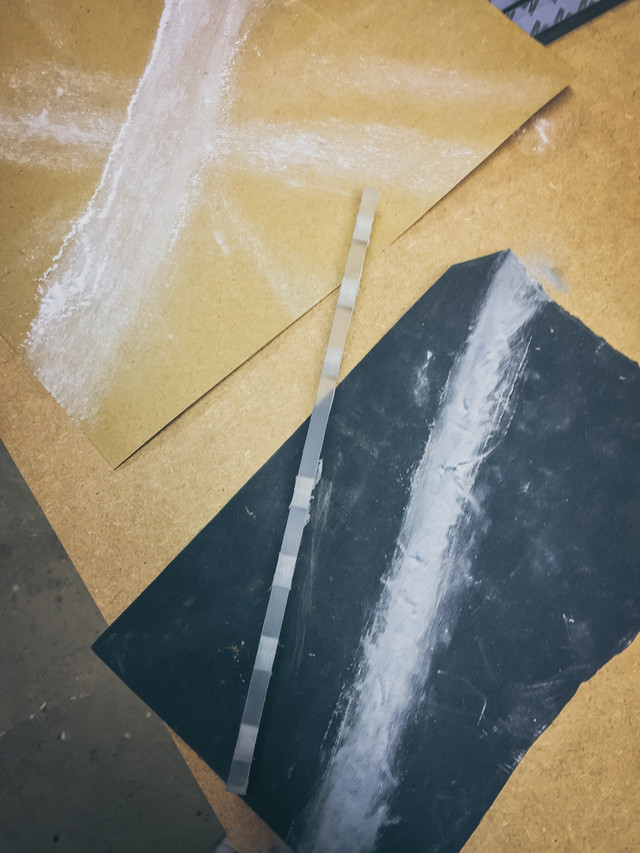

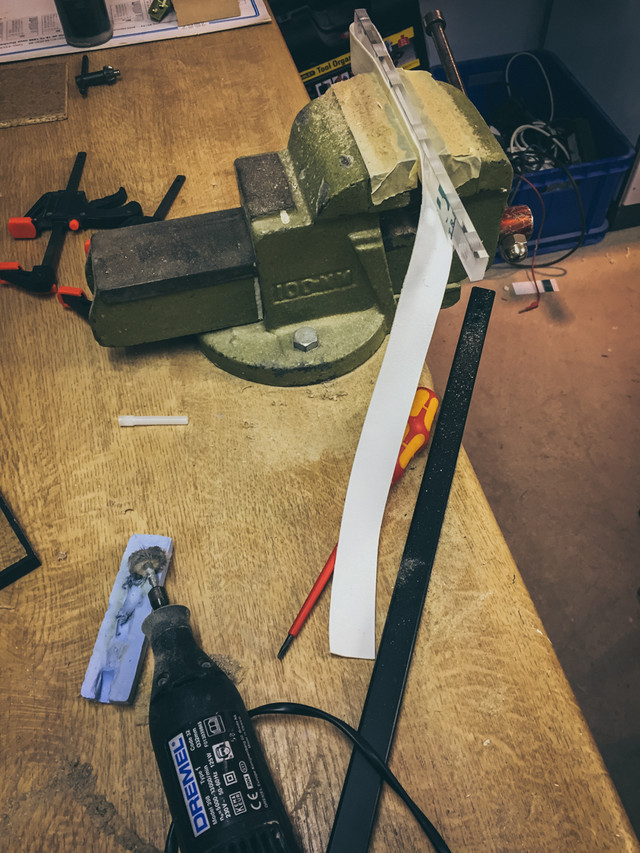

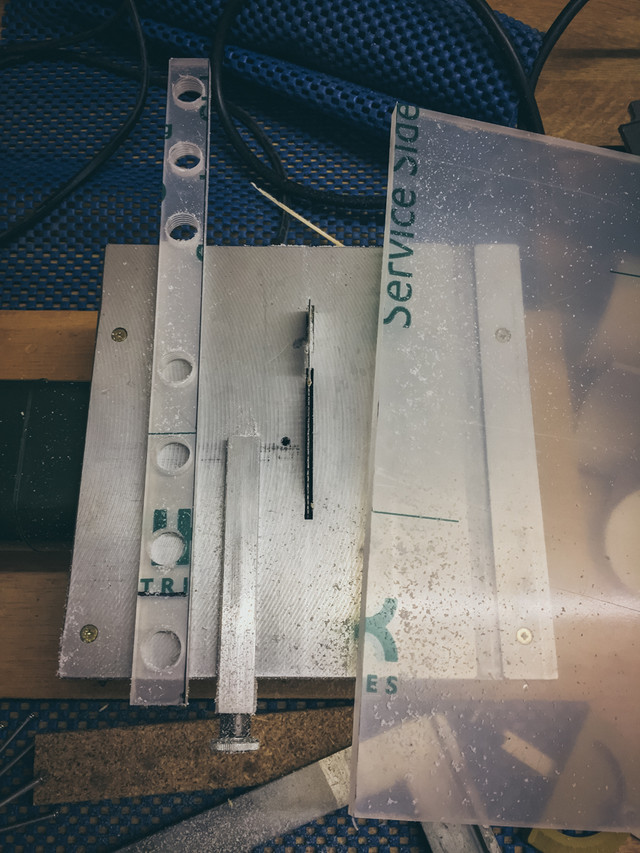

Sawed, sanded and polished.

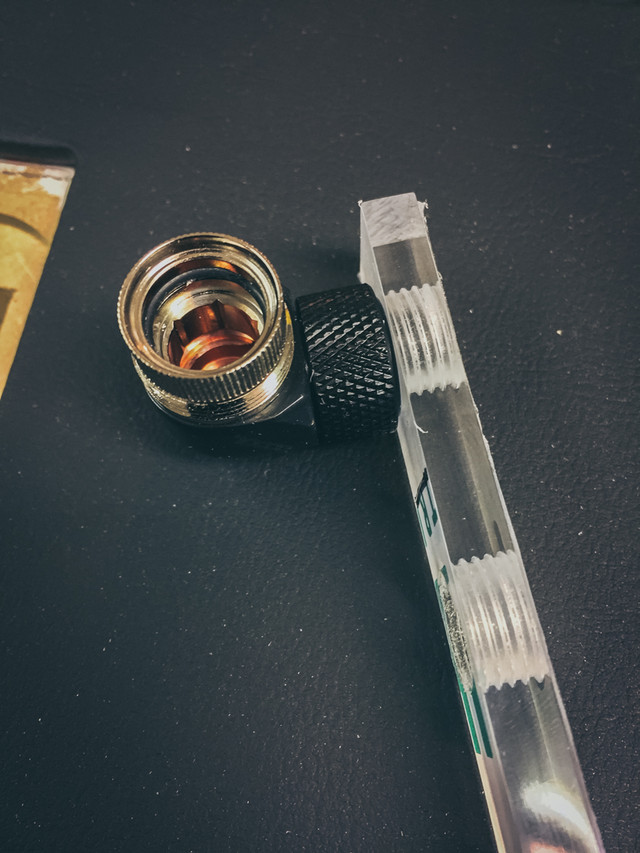

Version 2 was not connected from the top. I used 90 degrees Fittings on the side.

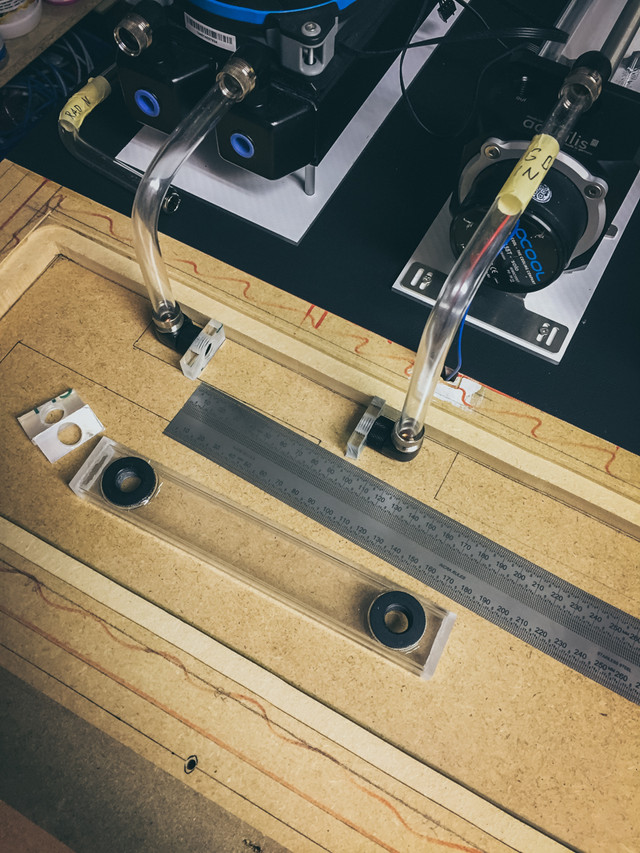

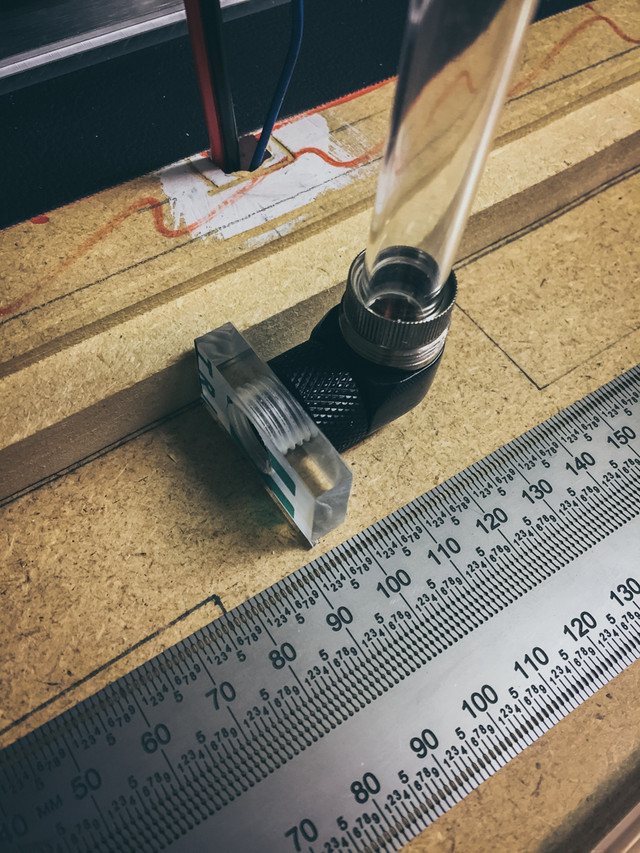

I mounted them and so I could easier measure the length of the profile.

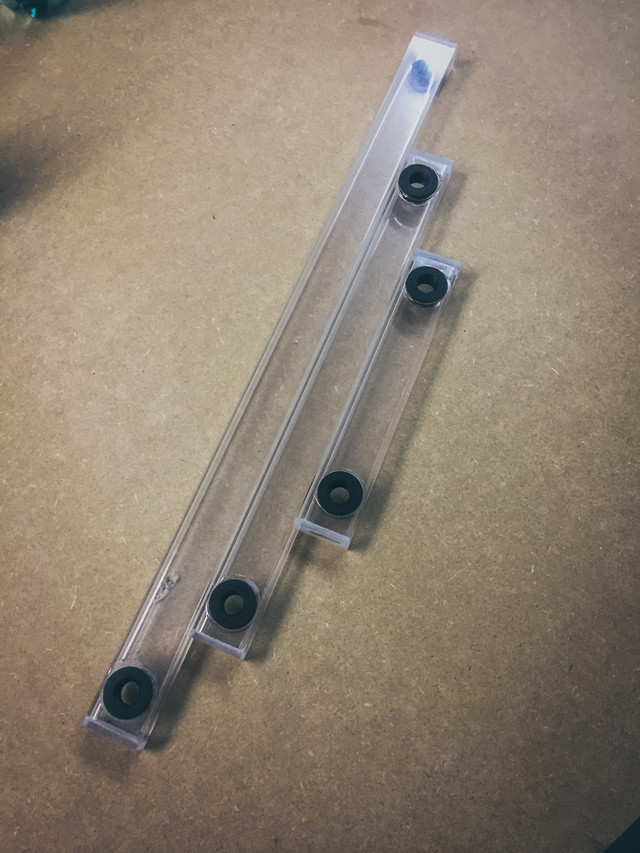

And this is version 2.
Now gluing and hoping.
What's next?
I'm going to continue with the multi-skin sheets
Servus and cu next time.
