[How To] Change Inline Skate (Rollerblade) Wheels

in #blog7 years ago

It's been over 10 years that I've owned these rollerblades, but have not used them a lot until recent years. I've never changed the wheels since I didn't really need to. But I decided it was time to probably get new wheels. Maybe my older wheels still had some use left in them, but they were still decently worn out and I was ready to change them.

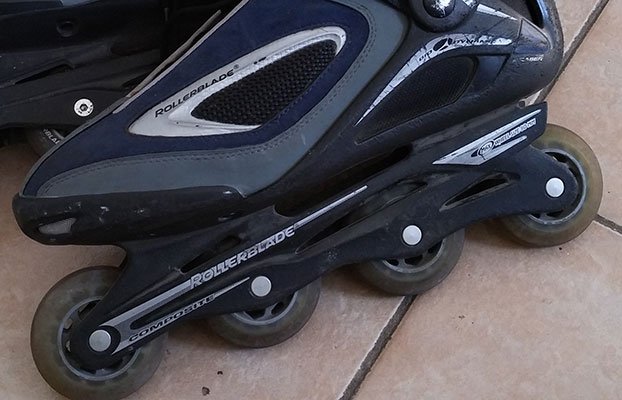

These are my old pair of rollerblades, Rollerblade Composite Bio Dynamic Shock Eraser is what I think they are called:

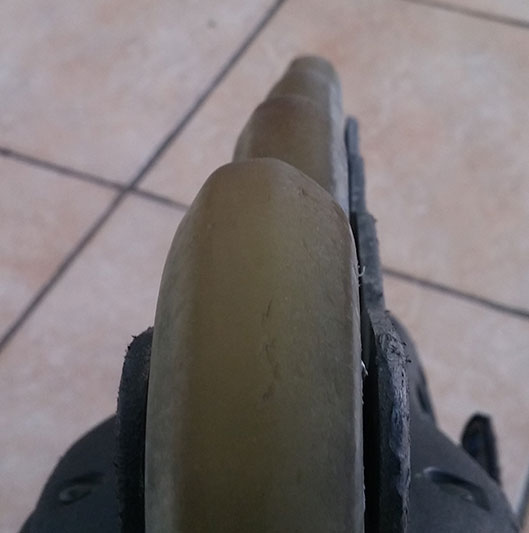

Here is what my old wheels on the left skate look like:



1) Taking the Old Wheels Off

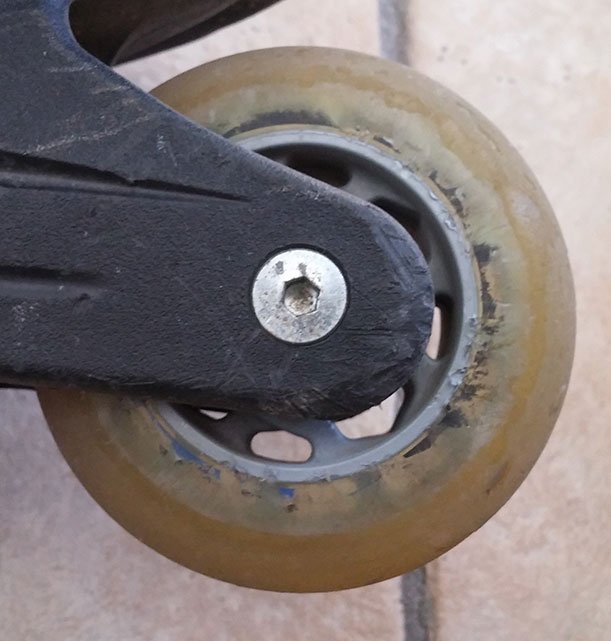

On one side of each skate is the Allen key or hex key access to remove each wheel:


b) Axle Removal with Hex Key

In the box with my original rollerblades, there was a hex key provided, along with a spare axle. If you don't have a hex key provided by your rollerblade or in-line skate manufacturer, all you need is your own hex key that fits the wheel axle. Any standard set of hex keys will have the size you need.

Fit the hex key into the hall of the axle, and turn counterclockwise until the screw comes out. You might need to use the screw or the hex key to push out the bolt part of the axle.

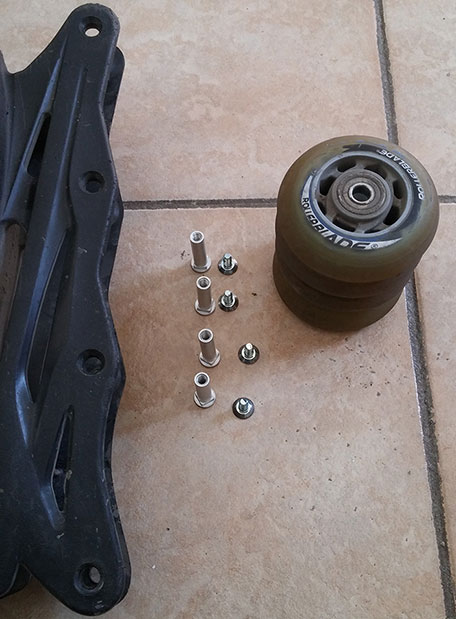

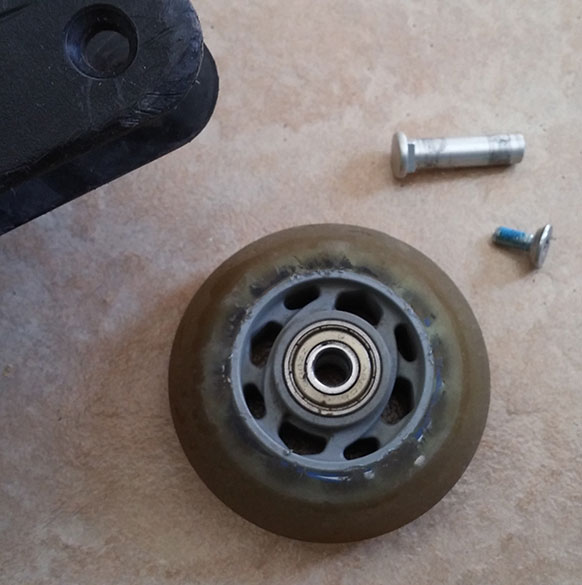

After taking out the axle completely, you can pop the wheel out as well. Then you're left with the axle, the screw, the wheel and an empty spot in your rollerblade plate:


c) Clean the Axles

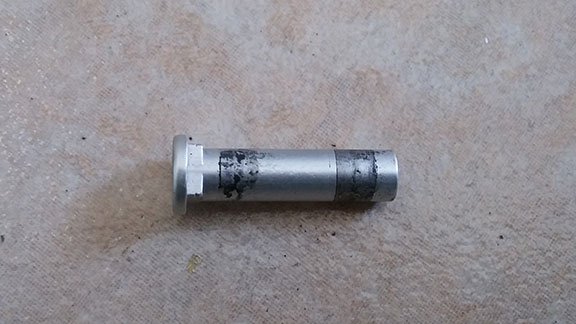

When you remove each wheel, the axle will probably be dirty. Take a paper towel and clean each axle before you use them again with the new wheels. Here you can see how dirty one of mine were:


After you get all four wheels removed, and cleaned all four axles, were almost ready to start putting the new wheels in:


d) Clean Under the Skate

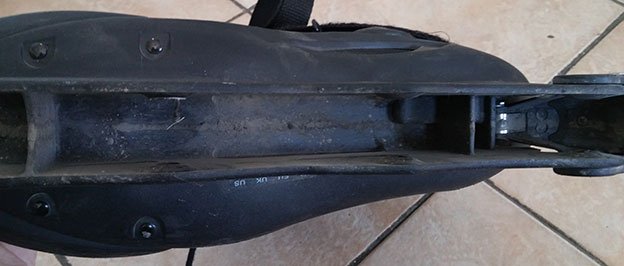

But first we should really clean inside the plate that holds the wheels. Since my skates are black you can't see the dark dirt very well, but there is plenty of stock on dirt and grime to clean off.


Just clean that up with an old cloth and warm water, then dry it with a dry cloth or leave it out in the sun. I enjoyed most of it with a cloth and then put it out in the sun to dry fully while I worked on the other skate.


2) Putting on the New Wheels

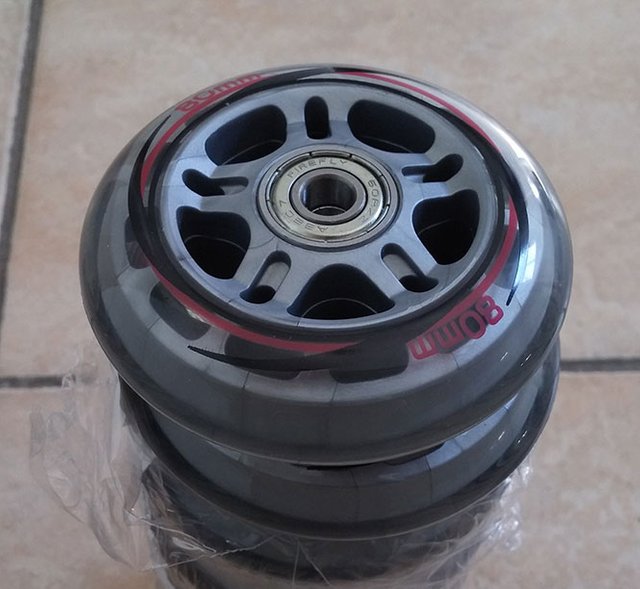

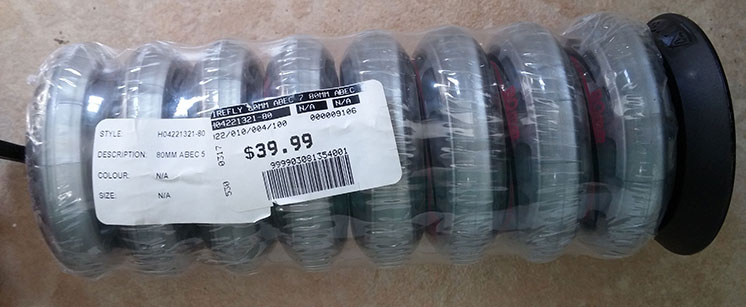

My new wheels are called Firefly, and are the same size 80mm, with a hardness rating of 80A, and ball bearing quality of ABEC 7. Eight wheels cost $40 plus taxes.


Look at how clean and shiny they are compared to my browned out old wheels:


Axel Installation with Hex Key

When you take off the old wheels, you will notice that the hex key opening in the axle is on the inside of the skate. When you put on the new wheels, put the axle in the same way.

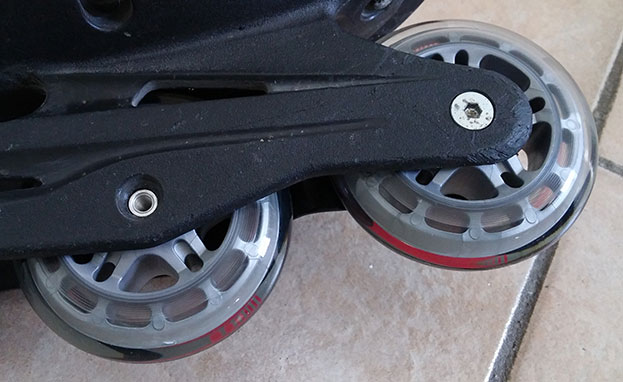

You can see the right wheel is completely secure, while the left one only has the axle pushed through the bearing and ready to be screwed in.

At first I couldn't get the axle through as it was hitting the inside of the bearing, while trying to put it in the opposite way went in without much fuss. I thought I was doing it wrong, but you just have to turn the key and wiggle it in to make it get past the different layers of the bearing.

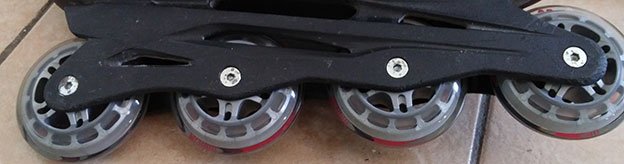

In no time at all, you will have the four new wheels mounted on your old pair of rollerblades.



3) Completed

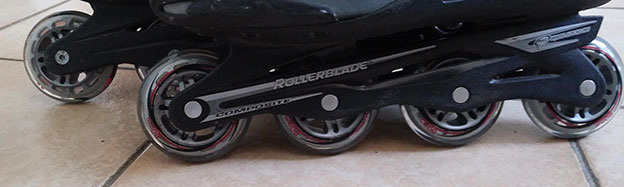

Do the same thing for your other skate, and then you're ready to get back on the road:


One thing I want to add, is that it's a good idea to carry the hex key with you when you go rollerblading. The reason I say this is because the day that I went to get new wheels, I ended up getting a aluminum glass bottle Stuck in the back right wheel where the break is. When I tried to use the break to slow down my wheel wasn't turning and I was being jerked forward from the inability of my wheel to turn anymore.

I didn't have the hex key with me which could have screwed me over. I took out my keys and started to drag at the jammed bottlecap stuck in the back of the wheel under the break. Luckily I was able to get it out and continue rollerblading to the store. But it's just a lesson that having the tools to remove your wheel is handy to have on you, as you never know when you might need it.

Old vs. New Wheel Difference

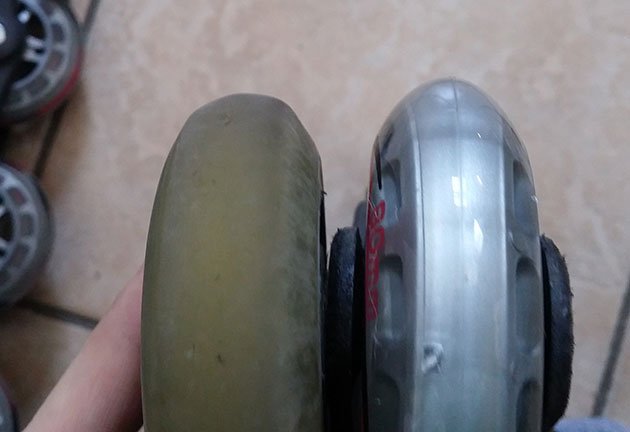

I took a final picture to compare the old one out wheel with the fresh new wheel, just to see the difference. Like I said my wheels might've been decent for a while still, but the new wheels have a definite advantage on smaller surface area contact for potentially slightly better speeds.



Well that's it!

I've used the new wheels and they work well. I can't really tell if I skate easier, but I can tell I'm not on as flat a surface like my old wheels. I can feel the more pointy aspect of the new wheels.

Thank you for your time and attention! I appreciate the knowledge reaching more people. Take care. Peace.
