DIY Bitcoin Crypto Mining including Hydroponic Tent

in #bitcoin6 years ago (edited)

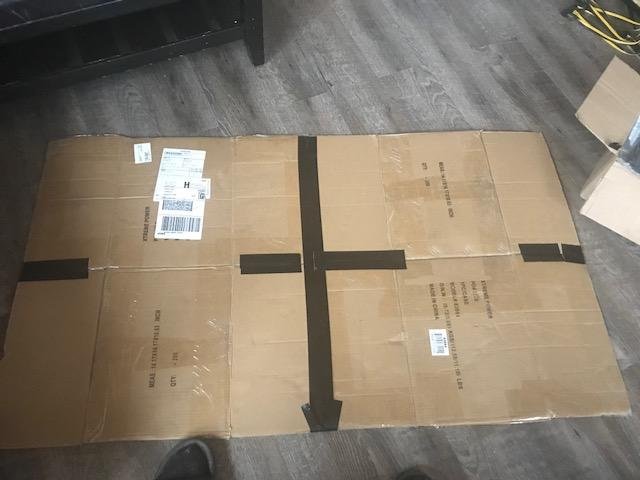

This is my DIY crypto mining project been working on it for 2 weeks now and finally up and running consistently for the last 3 days. I had no experience in mining before I did this project I did everything but the IT work I had someone come in and set everything up and give me a how too. Its been running smoothly for 3 days, except 1 card being defective and returned I've had no problems with the equipment. We had some IT issues but my IT guy got them resolved. I'm still working on the cooling system I was running 10 degrees hotter with ducting pulling in from room temp into the bottom of the tent. It's now running 10 degrees cooler after I built the funnel from simple cardboard which you can see in the pics. I basically created what I call a updraft system where cool air flows in from the bottom to the top where its collected and sucked out by the fan and ducting at the top. I also unstacked the rigs and put them side by side to allow better airflow and changed the position of the card from the top of the rig to the bottom so they would receive the coolest air. I have ducting running from the tent to the a vent in the window where the hot air escapes the house. My house temp has been the normal 70 degrees inside unless the tent is open for maintenance. Any constructive improvement comments appreciated.

10k Budget

List of Products

  1. 7 Nvidia 1080Ti Strix OC
  2. 7 Nvidia GTX 1080ti SC Edition
  3. 2 400-Watt Evga power supply
  4. 1 P3 International P4460 Kill A Watt EZ Electricity Usage Monitor

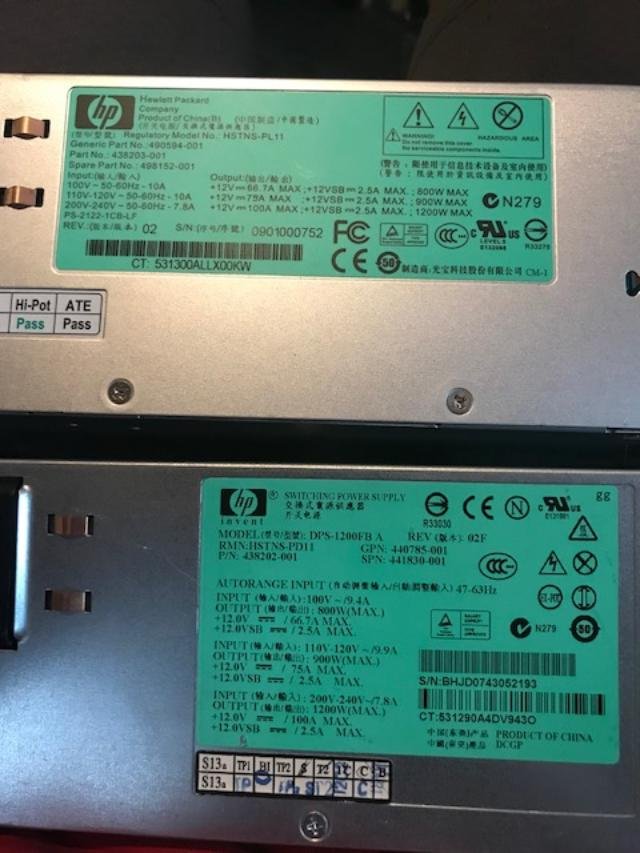

  5. 6 1200W 498152-001 Power Supply for GPU 9 x 6-Pin 1 x 4-Pin
  6. 14 6-pin PCIe to 6+2-pin power cables
  7. Intel BX80662G4400 Pentium Processor G4400 3.3 GHz FCLGA1151
  8. 2 Used Computer monitors from computer store
  9. 2 Wireless keyboard mouse combos
  10. 2 Gigabyte GA-B250-FinTech LGA1151
  11. 14 Ubit 6 Pack Latest PCI-E Riser Express Cable 16X TO 1X
  12. 2 Corsair Vengeance LPX 8GB (1 x 8GB) DDR4 DRAM 2400MHz C16 Memory Kit – Red
  13. 2 Scan Disk SSD Plus 120GB
  14. Hydroponic tent
  15. 2 High flow 700 scfm fans
  16. 2 Rig Racks
  17. Electrician Costs (installed 4 20 outlets)
  18. 1 roll of 25ft 8” insulated ducting
  19. 1 Arctic Silver 5 Thermal Compound Paste 3.5g Grams w/ ArctiClean 60 ML Kit
  20. 6 PSU Break Out Boards
  21. 1 Dryer Vent
  22. 6 Surge Protectors
  23. 14 Rig Fans

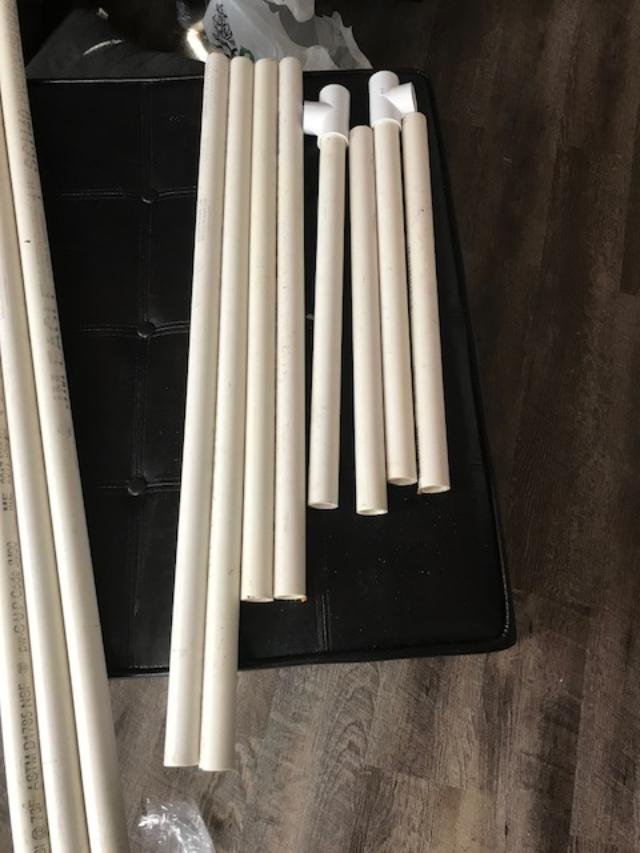

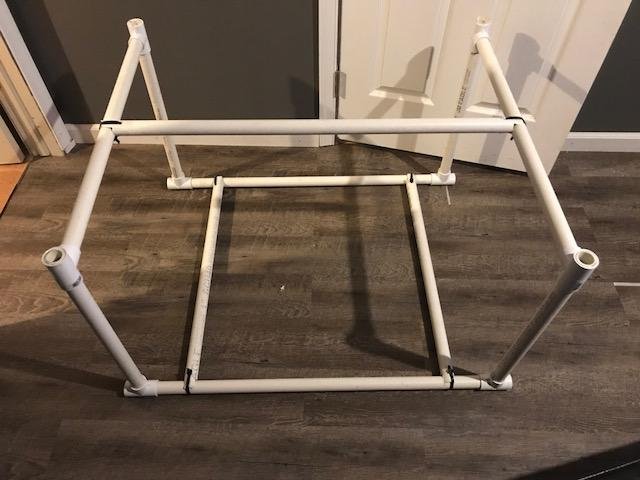

  24. PVC Piping

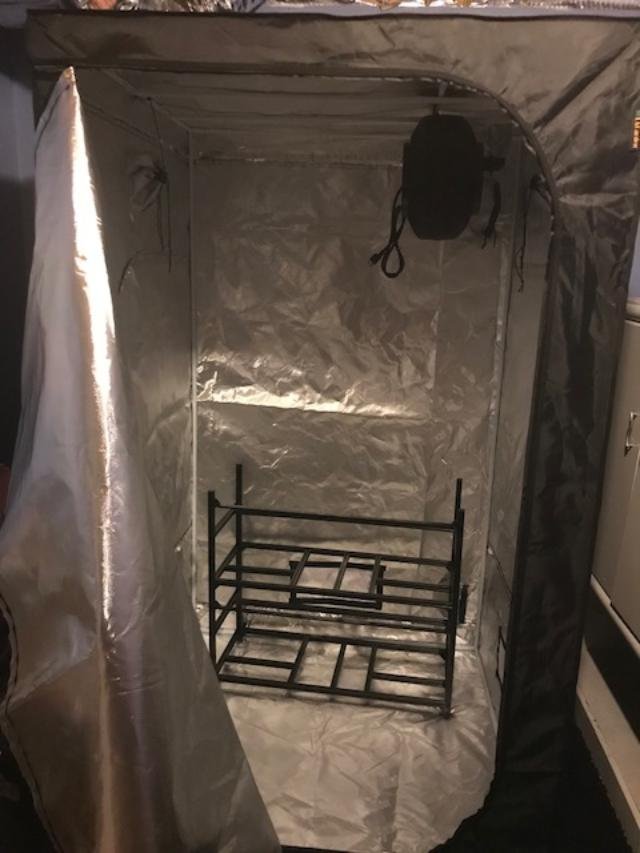

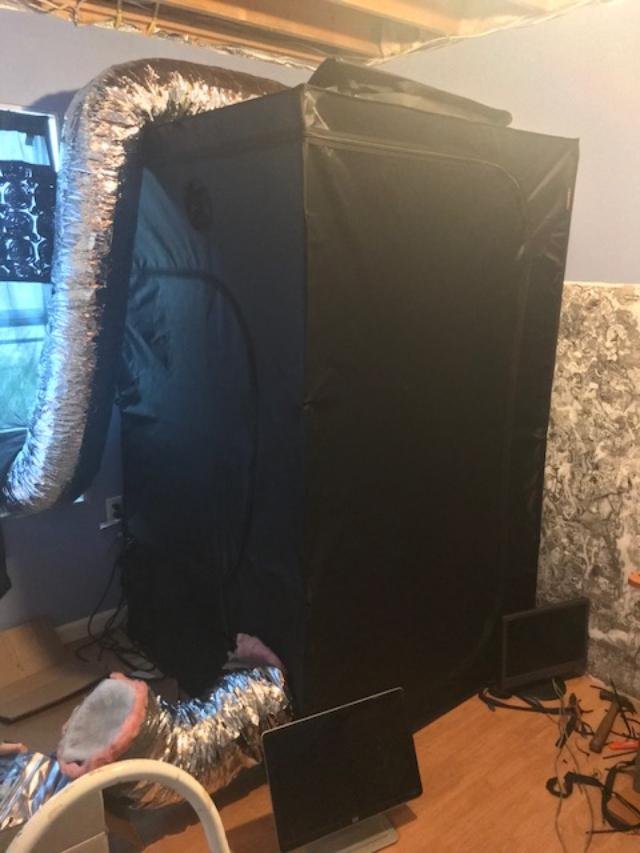

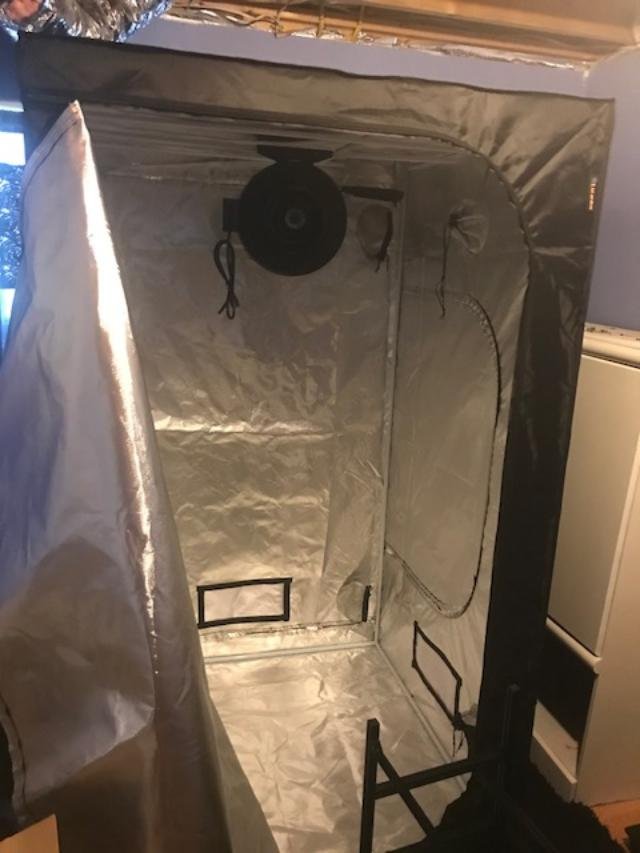

tent 2.jpg!

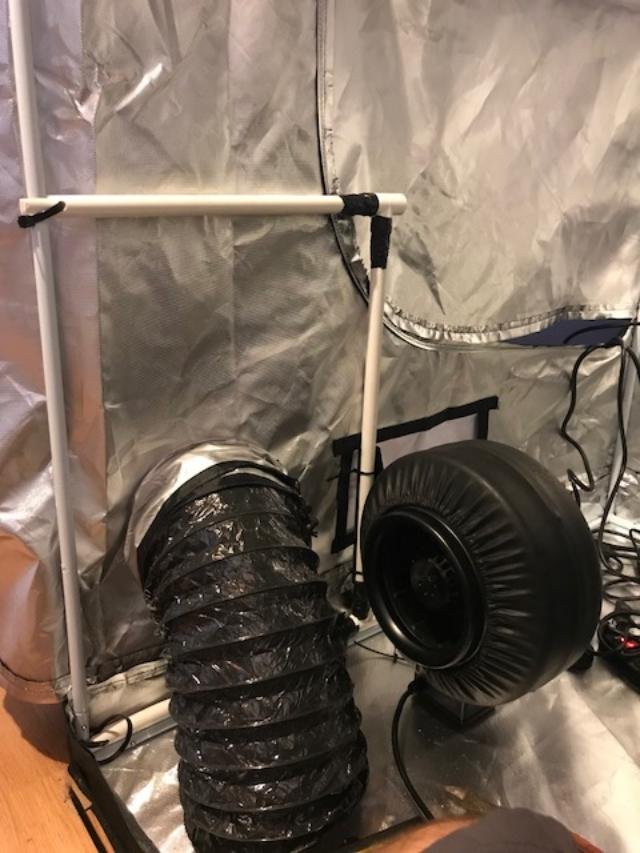

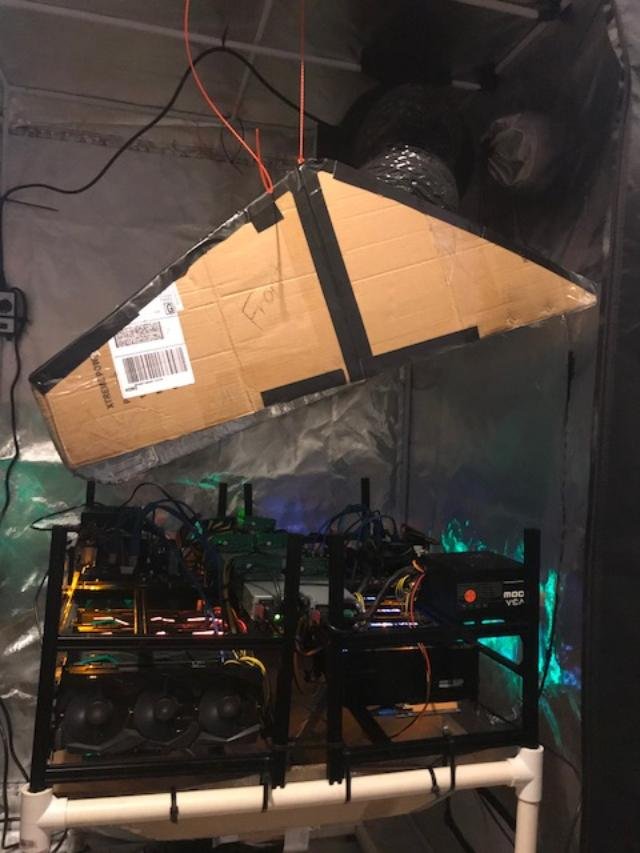

Now the top Cooling Set up(will be redesigned)







fan 7.jpg

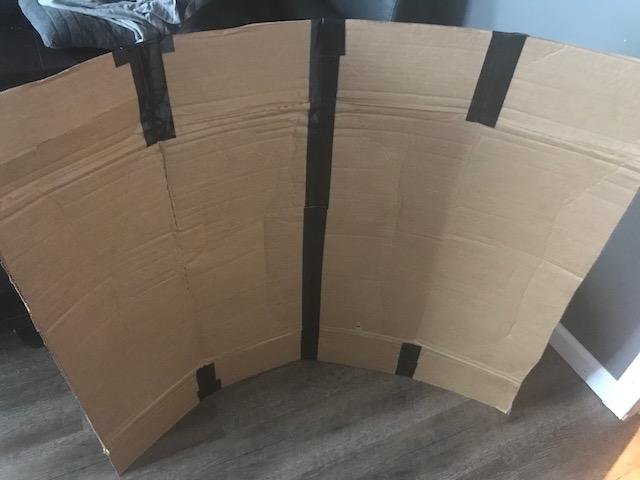

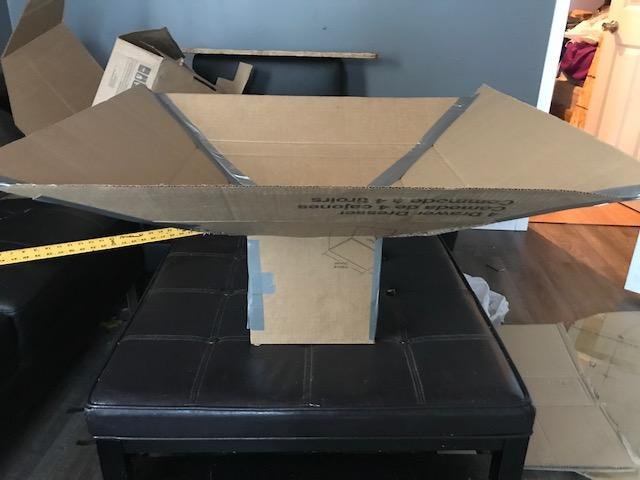

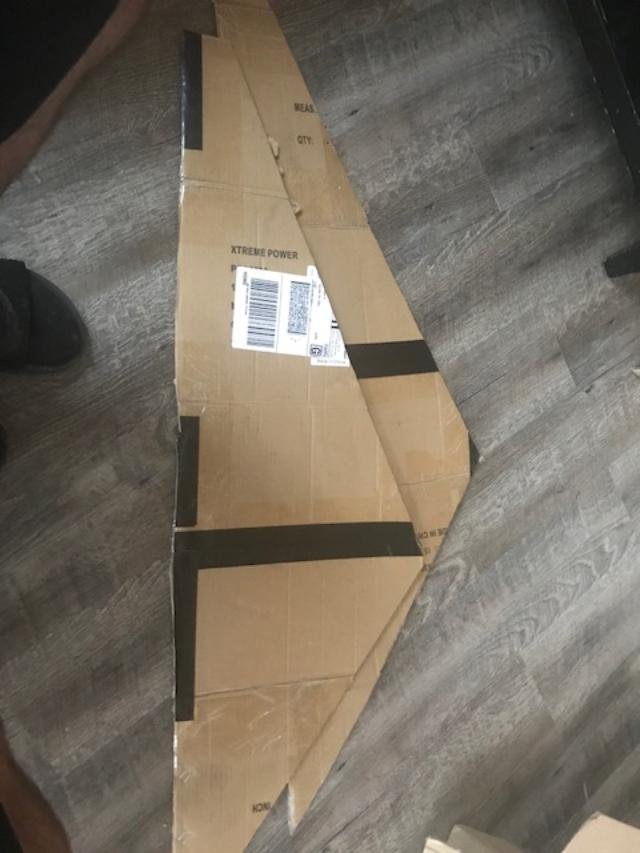

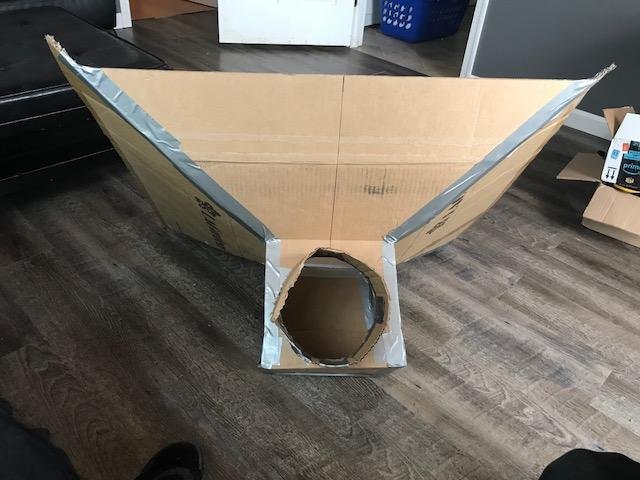

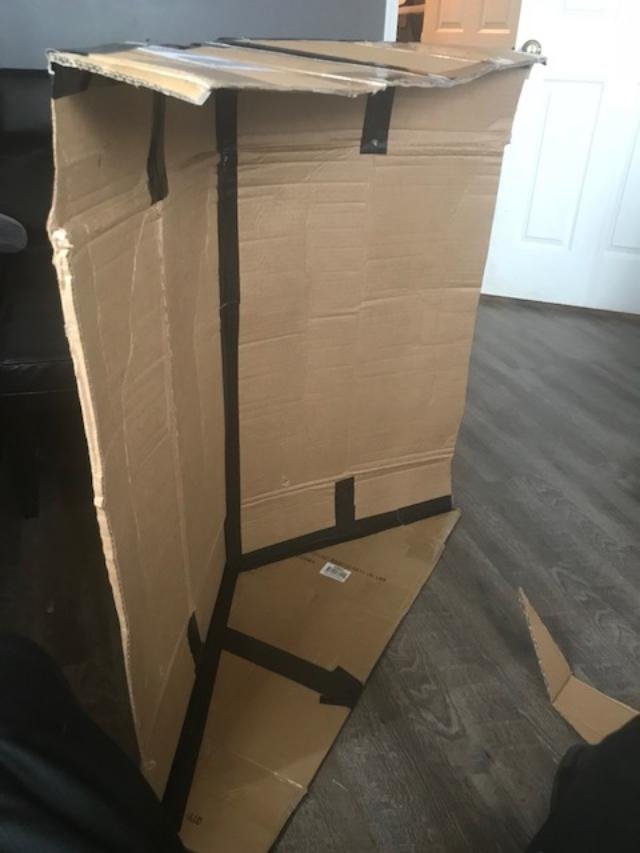

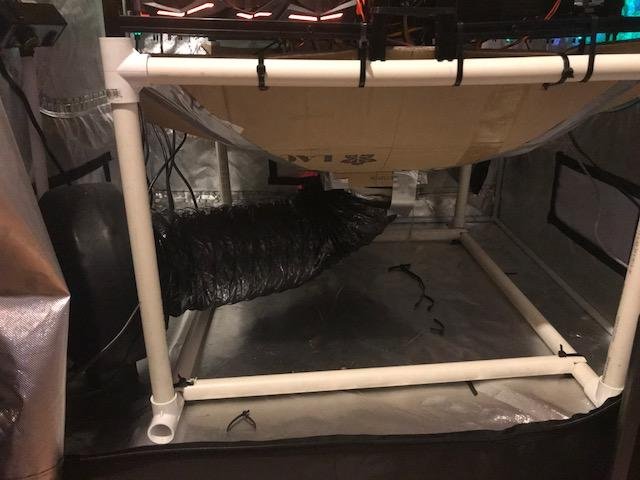

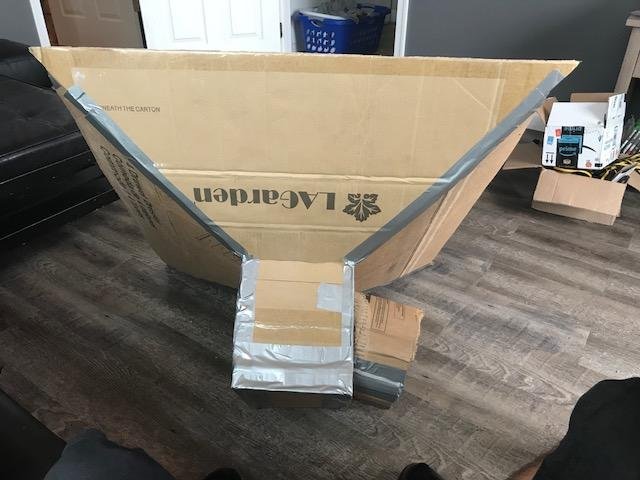

Bottom air flow funnel (will be redesigned)

bottom 1.jpg

bottom 2.jpg

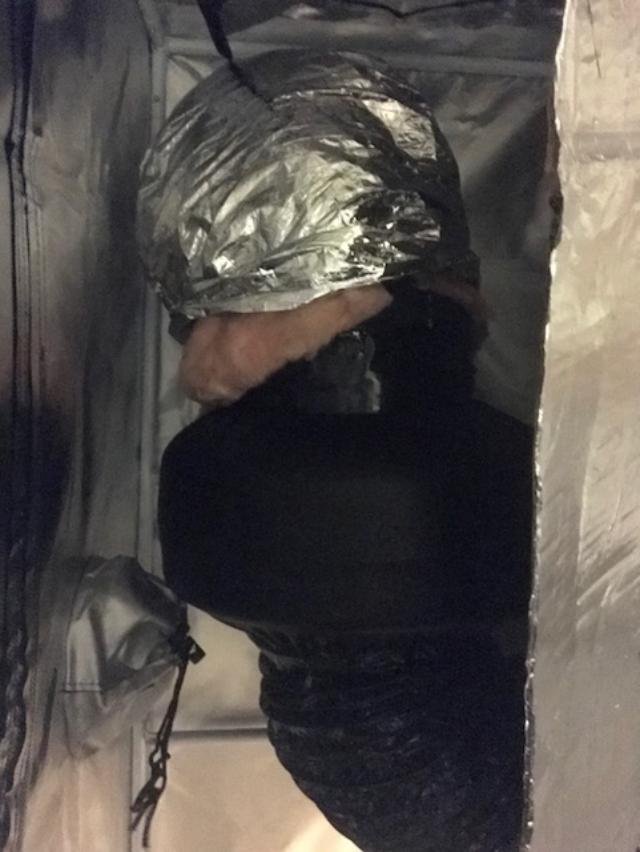

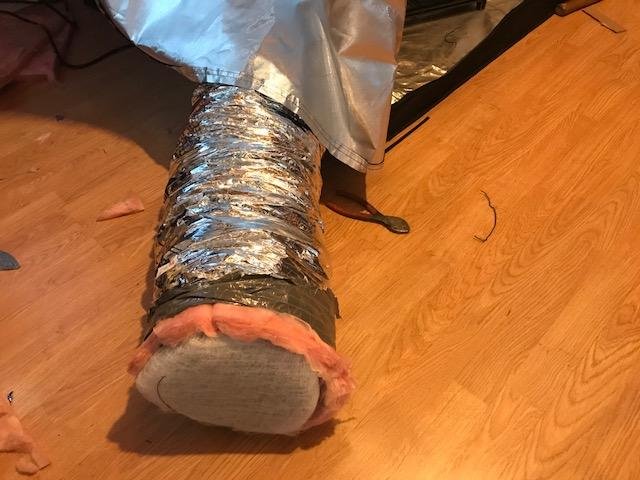

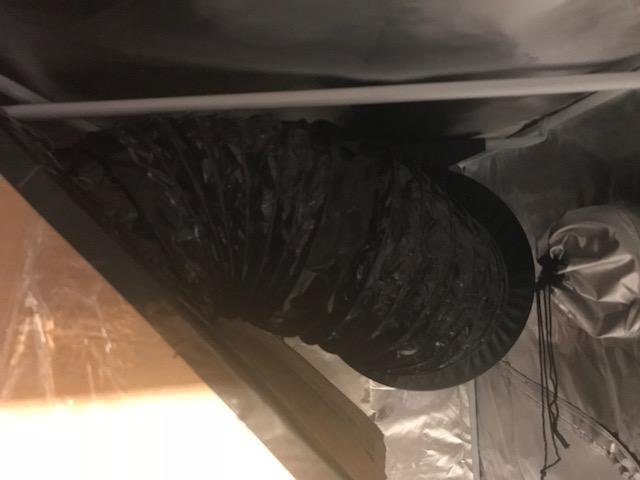

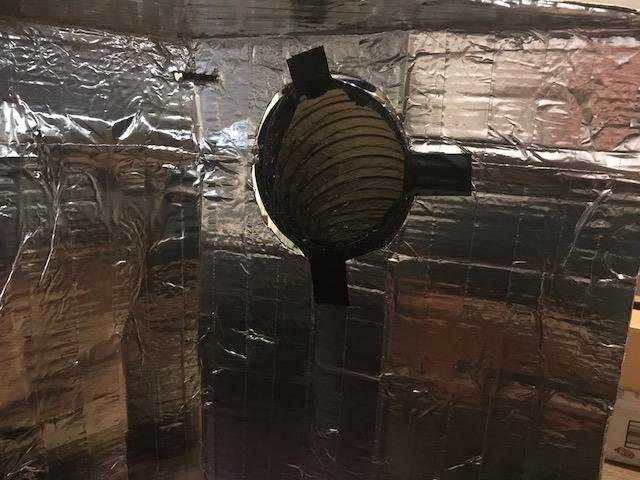

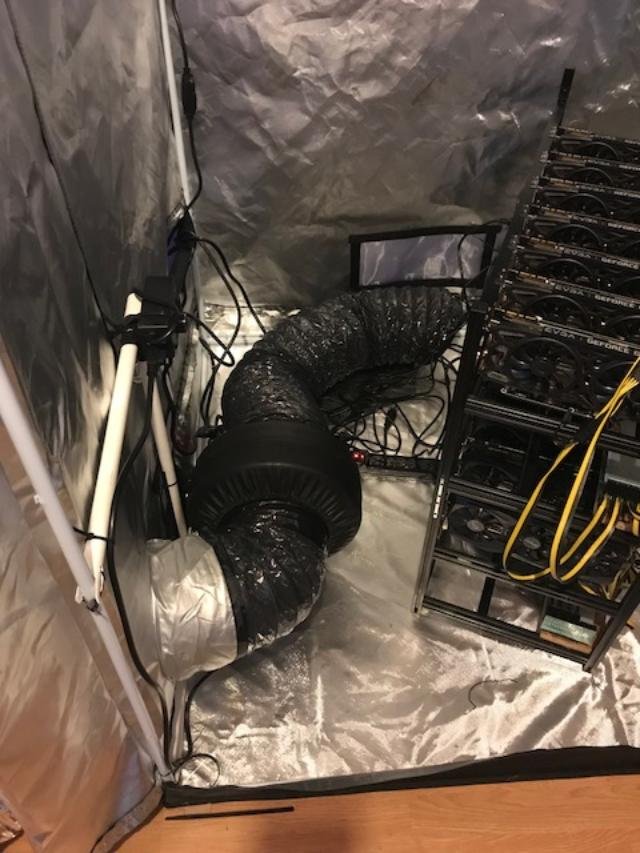

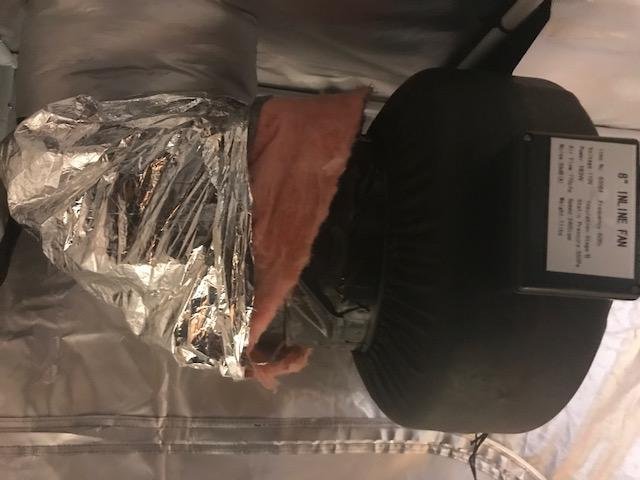

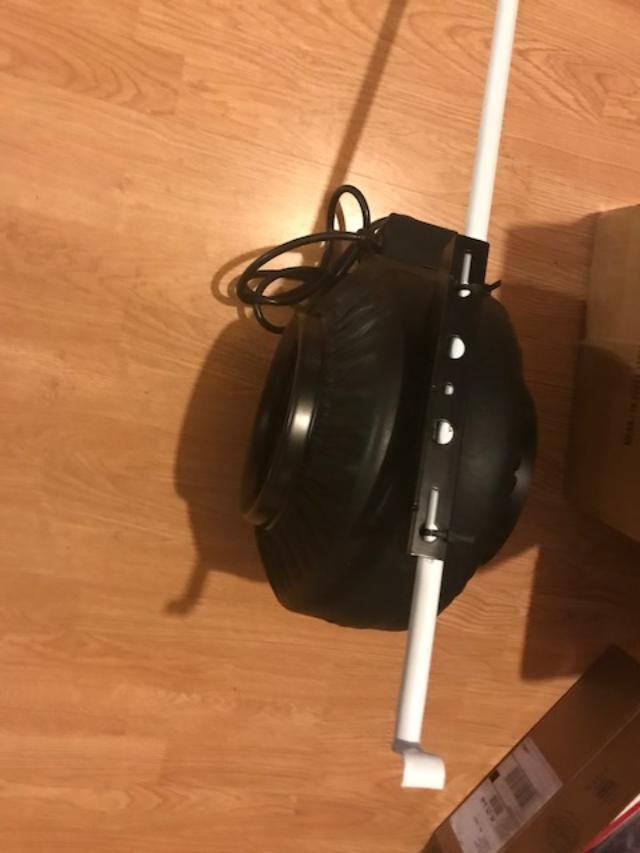

Inline fan ventilation inflow/outflow

Inflow
air intake.jpg

air intake 1.jpg

air intake2.jpg

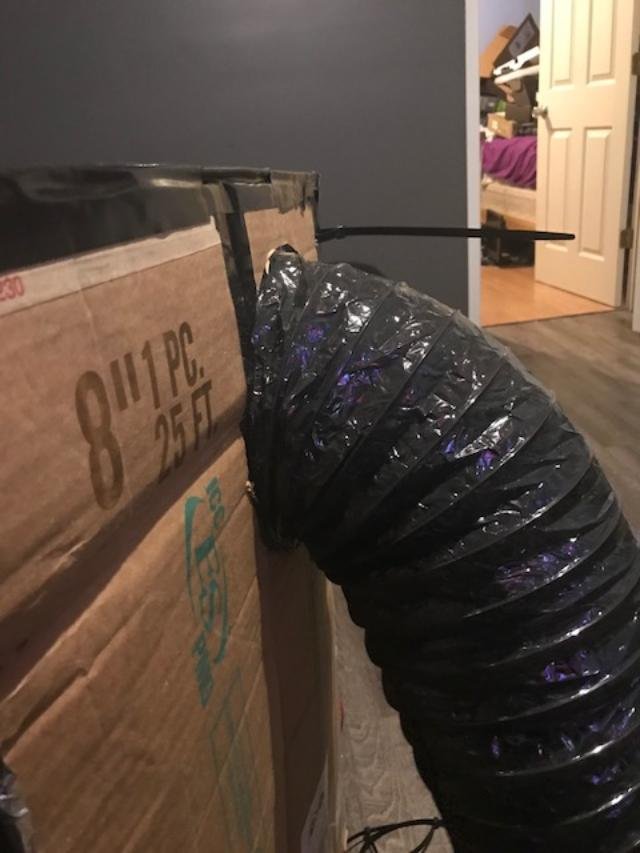

Outflow

air outake 1.jpg

air outake2.jpg

airout take3.jpg

airoutake 4.jpg

top vent.jpg

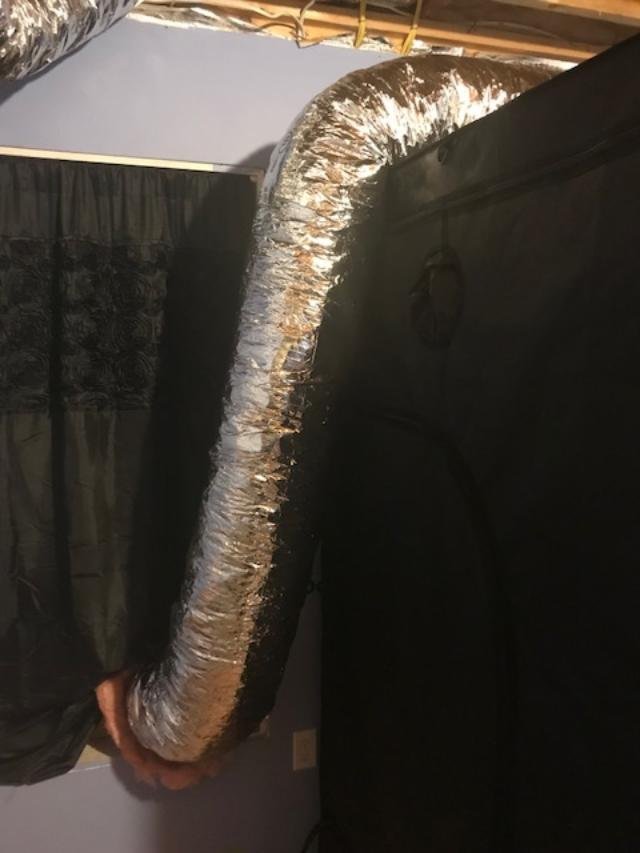

Exterior air ventilation and ducting

vent duct.jpg

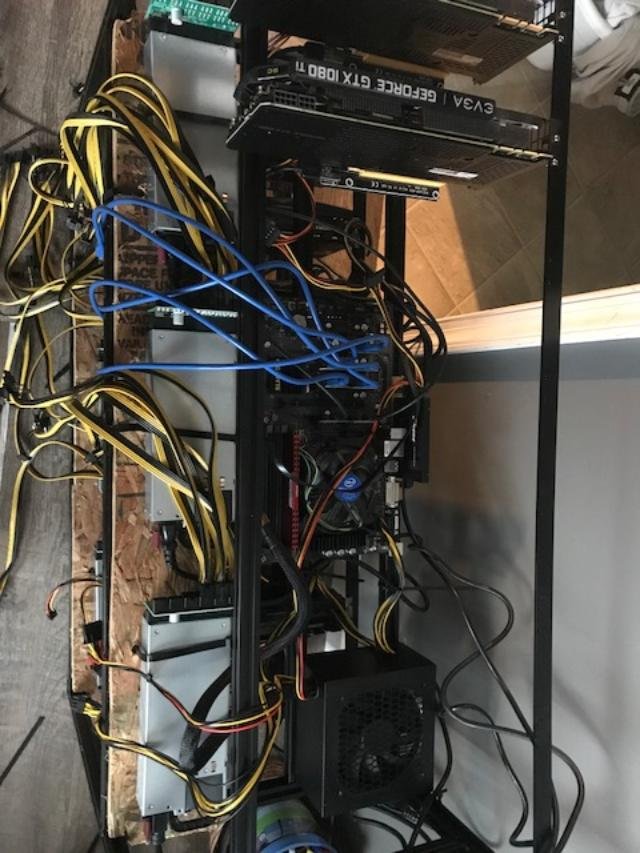

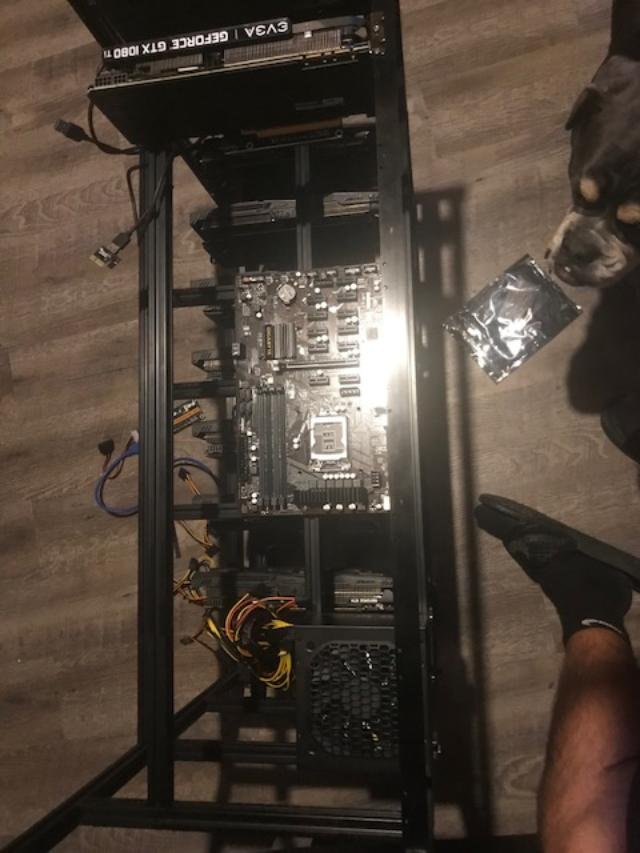

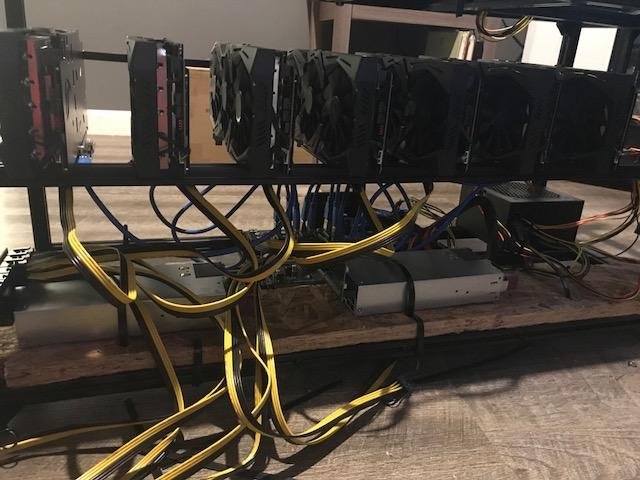

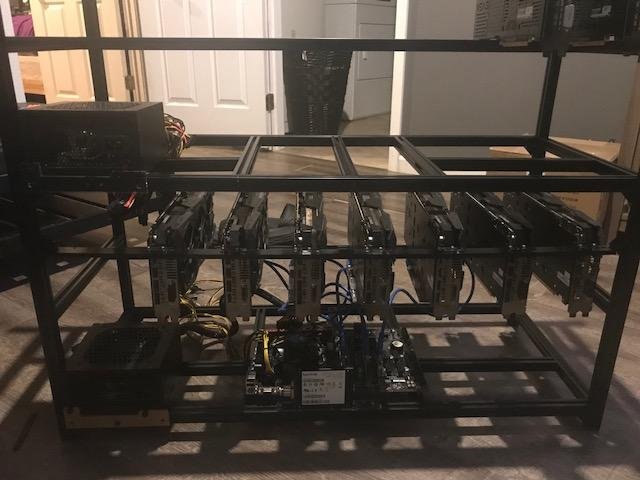

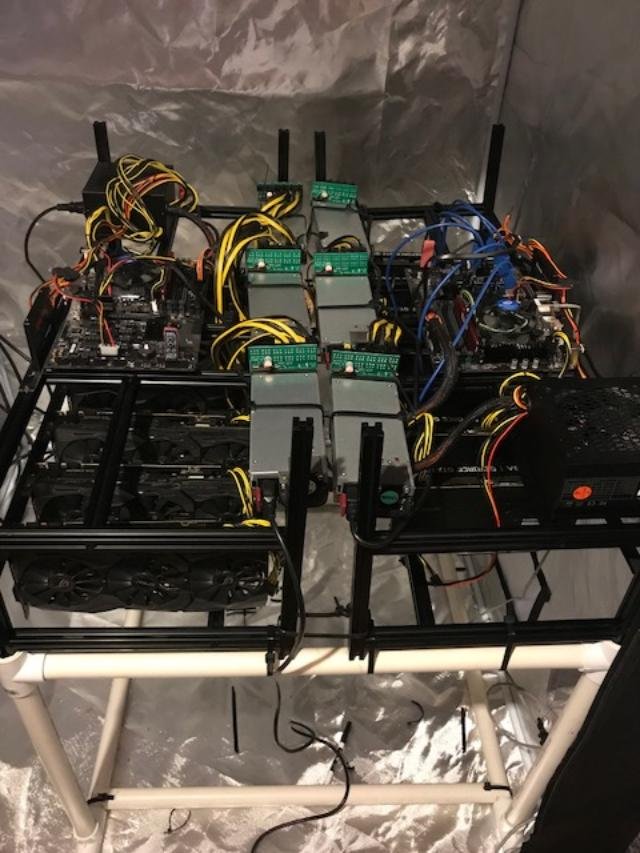

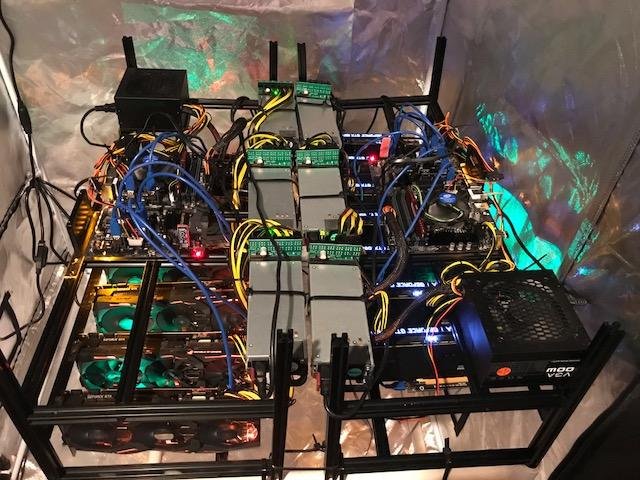

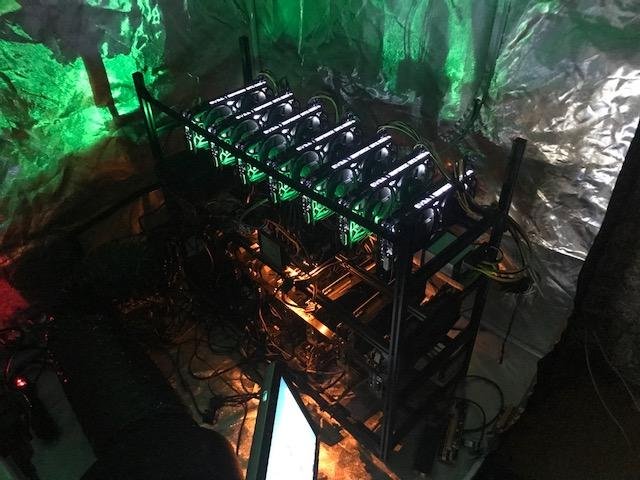

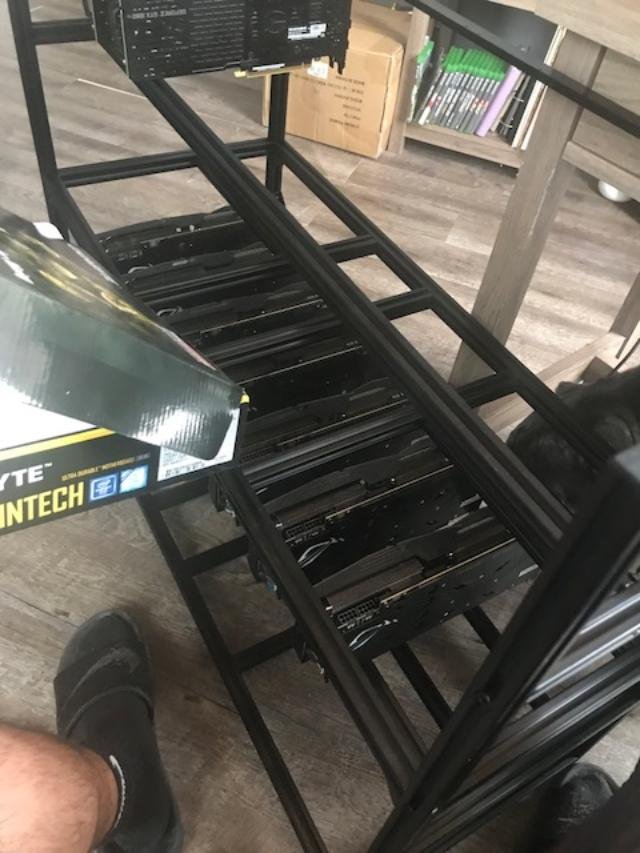

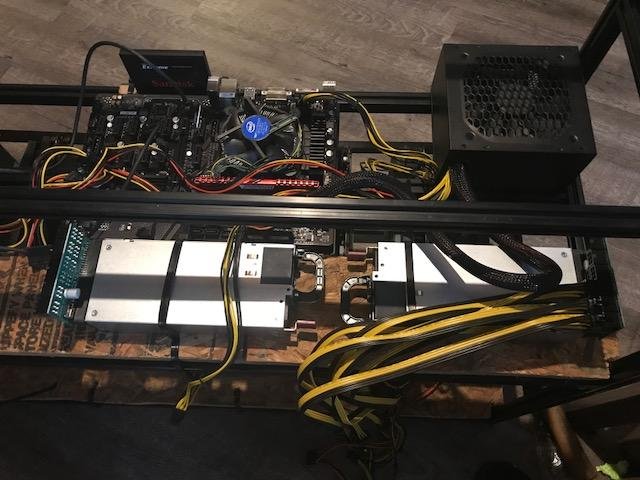

Redesigned rig set up

new rig.jpg

new rig1.jpg

new rig2.jpg

new rig 3.jpg

top vent.jpg

bootom new.jpg
