Tenon Jig

in woodworking •  10 months ago

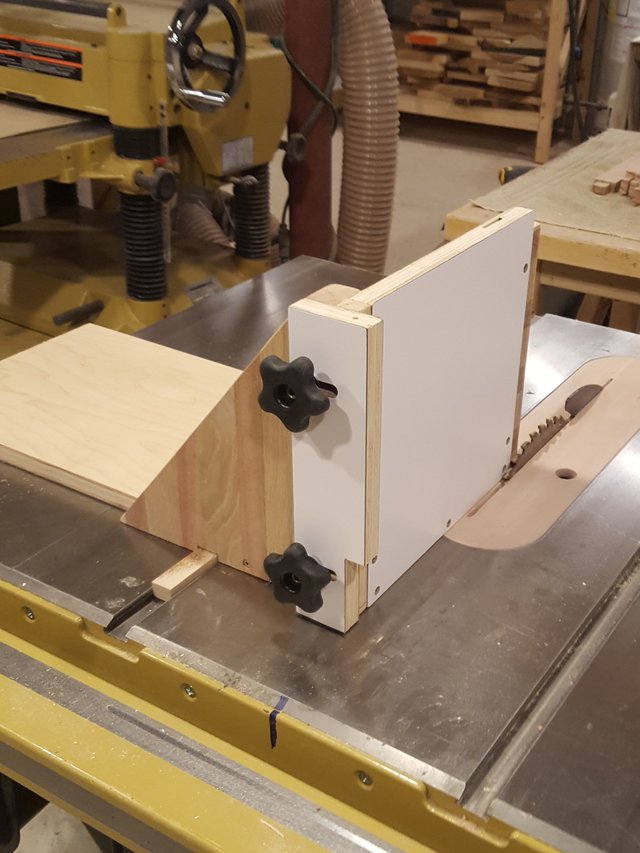

Tenon Jig.jpg

I'm waiting on some table brackets to come in so I spent the day tweaking my tenon jig. I made the side pieces and laminated the face and bottom. I made this nifty little sliding retainer piece to hold the tenon square. I've got about 20 years experience making tooling for the forging industry so this job brought back some great memories. Man I love making stuff.

Authors get paid when people like you upvote their post.
If you enjoyed what you read here, create your account today and start earning FREE STEEM!
Sort Order:

Thats a nice jig. I like making jigs when I get the chance, the engineeering side is almost as much fun as the woodwork sometimes.


Yep. It goes quick and accurate with the CNC too. Hope all is well Mr. Jist. Thanks for the vote.
