A Beginners Guide to Dart - Inheritance, Abstract Classes, Interfaces, Mixins and Casting - Part Five

in #utopian-io2 years ago


Repository

https://github.com/dart-lang/sdk

What Will I Learn?

  • You will learn about Abstract Classes
  • You will learn about Class Inheritance
  • You will learn about Class Interfaces
  • You will learn about Type Casting
  • You will learn about Mixins

Requirements

System Requirements:
OS Support for Dart:
  • Windows
  • macOS
  • Linux

Required Knowledge

  • The Dart SDK
  • A Dart supported text editor (Dart Pad can be used)
  • A little time to sit and watch a video and some patience to learn the language

Resources for Dart:

Sources:

Dart Logo (Google): https://www.dartlang.org/

Difficulty

  • Beginner

Description

In this video tutorial, we continue to look at Object Oriented and Class based Programming in the Dart programming language. To fully understand why Classes and Objects are useful in a programming context, we need to understand inheritance and the Dart single inheritance model. This includes looking at Abstract Classes, Class Interfaces, Mixins and Type Casting. Along the way, we also look at importing libraries and the logical switch statement.

Abstract Classes and Interfaces

An abstract class is a type of class that doesn't allow for object instantiation. This tool exists so that developers may further generalize their class blueprints into interfaces. As such, abstract classes are used to define methods and properties without including implementation details. These methods, properties and other details make up the interface of the Class. Dart makes use of these class interfaces to create a description of the complex relationships between classes. This enables Inheritance, Implementations and Mixins despite the language only allowing a single inheritance model.

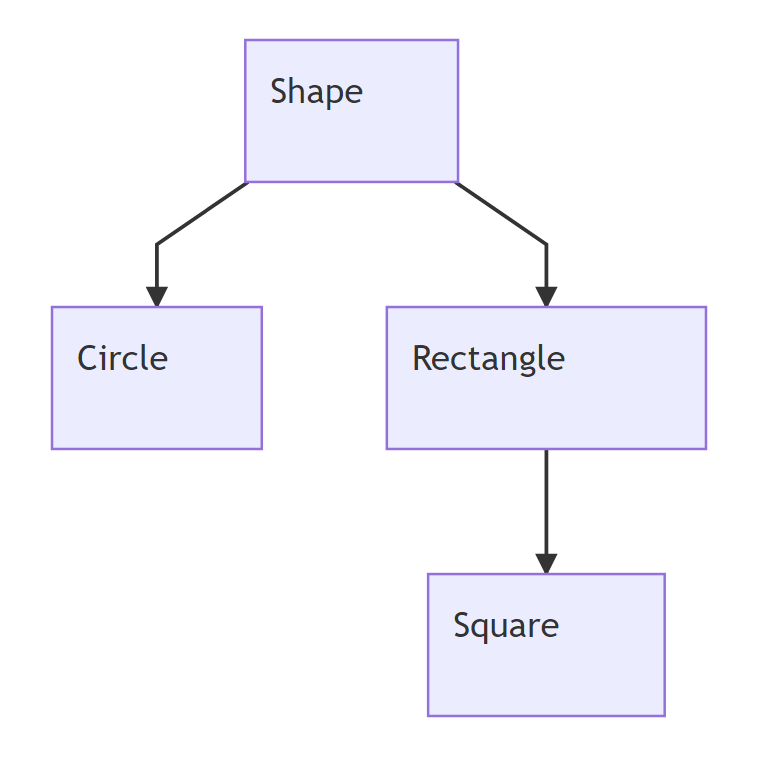

In the example, we take a look at direct inheritance using an abstract Shape class. The Shape class allows us to define the interface for any other Shape objects in our program. To be a Shape type, an object must implement three getter methods; a name method, a area method and a perimeter method. This graph shows the flow of inheritance between the three main classes that we created in the example. Circle and Rectangle directly inherit from Shape and therefore must have their own implementations of the Shape getters. Square on the other hand inherits from Rectangle which allows us to save writing a new implementation of the Shape Interface. While Square's direct parent class is the Rectangle Class, it still is a Shape type because both implement the Shape interface.

Adding Properties and Methods Without Using Inheritance

Dart's single inheritance model may seem restrictive when compared to multiple inheritance models from other programming languages. Dart provides us with several ways to include attributes from multiple other classes outside of inheritance. Every Dart class automatically exposes its interface and a class can implement multiple interfaces which allows us to build composite classes.

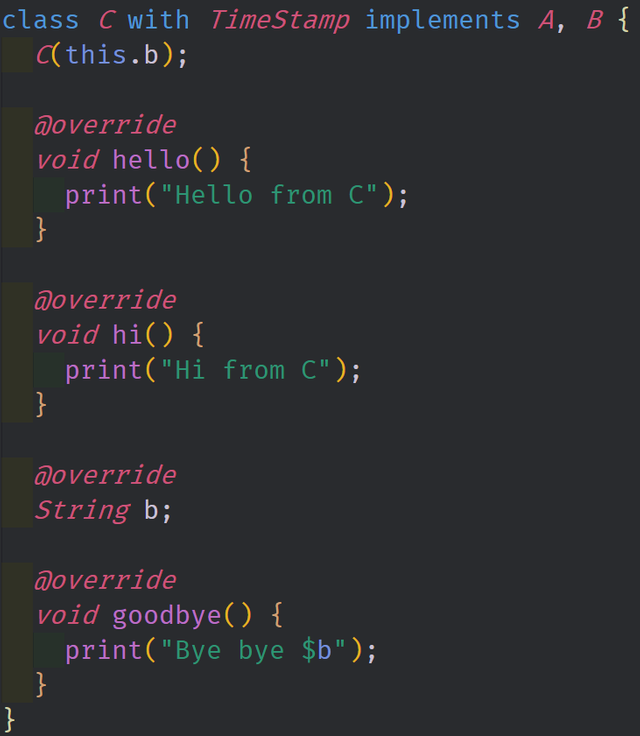

In this image, we have an example of a complex class. This C class implements the interfaces for class A and class B by way of the implements keyword. C must contain the full interface for both A and B to satisfy this call. C also adds a third class called TimeStamp through the use of a Mixin. For a class to be used as a Mixin, it must follow three specific rules. The class must not have a declared constructor, it also can not be a subclass to another class and it must not have any calls to the super keyword. When the class fits these rules, its behavior can be mixed directly into another class using the with keyword.

The Source Code for this video may be found here: https://github.com/tensor-programming/dart_for_beginners/tree/tensor-programming-patch-4

Video Tutorial

Curriculum
