Tu-134LK Version: 2.1 (Development for Flightgear)

Repository

https://github.com/HerbyW/Tu-134LK

Introduction

FlightGear (http://www.flightgear.org) is an open source flight simulator that is even used in flight schools to train basic maneuvers, radio communication and navigation tasks. It is available for windows, mac and linux.

In this article I want to go through my latest commit (https://github.com/HerbyW/Tu-134LK/commit/5445e38c3768fa035a9075bec708785f76f89c43) to further improve the development of the Tupolev 134-LK, the Cosmonaut training version of this aircraft.

New Features

New taxi and landing lights

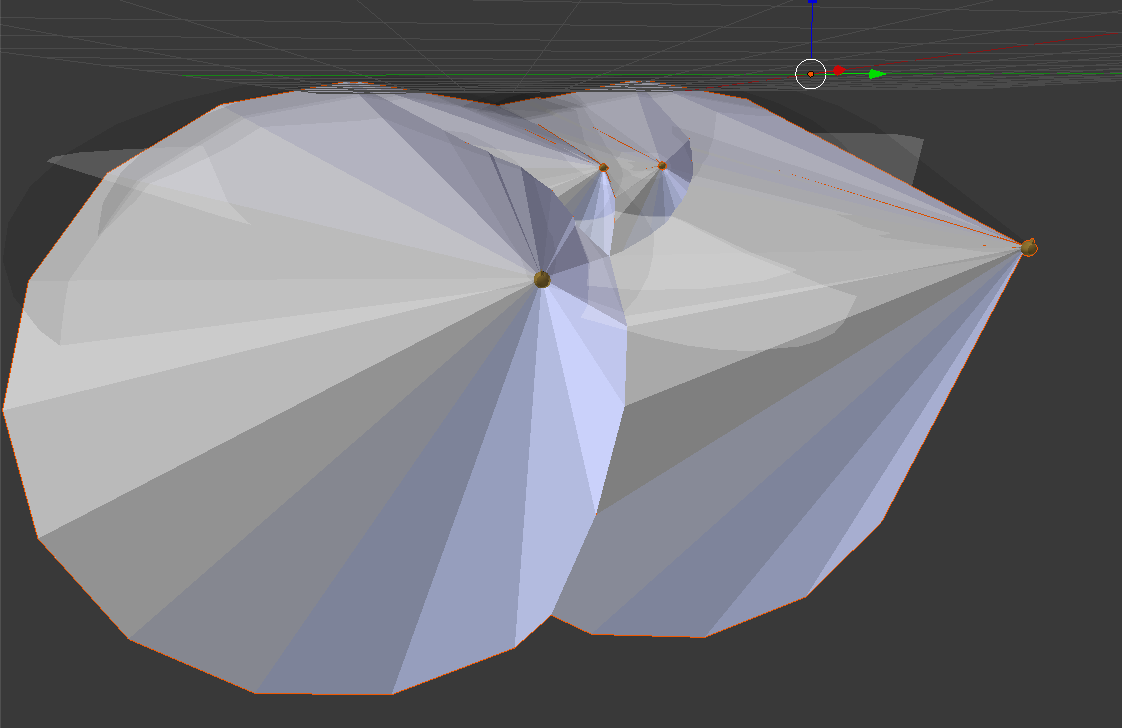

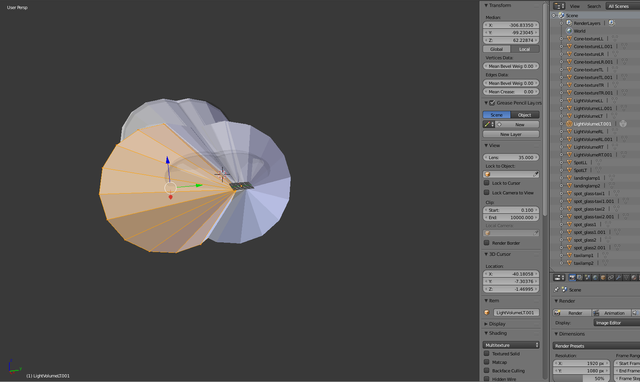

FlightGear has two different light systems and therefore it is important to implement both in the model. In Blender I made the cones and textures for each of the 4 lamps. On the right side you see all elements which then are animated in a xml-file (https://github.com/HerbyW/Tu-134LK/commit/5445e38c3768fa035a9075bec708785f76f89c43#diff-336dc874ed8fc34a4cd8977b7341b619).

Conditions are used to select the elements in the right way:

<condition>
    <and>
      <not>
        <property>/sim/rendering/rembrandt/enabled</property>
      </not>
      <property>sim/multiplay/generic/int[9]</property>
      <less-than>
        <property>sim/multiplay/generic/float[2]</property>
        <value>5</value>
      </less-than>
      <greater-than>
        <property>sim/multiplay/generic/float[2]</property>
        <value>-0.1</value>
      </greater-than>
    </and>
</condition>

Rotate and translate animations are used to extend the lamps, this animation moves one lamp 38 cm to the right:

<animation>
      <type>translate</type>
      <object-name>landinglamp1</object-name>
      <object-name>spot_glass1</object-name>
      <object-name>spot_glass1.001</object-name>
        <property>sim/multiplay/generic/int[10]</property>
      <factor> 0.38 </factor>
      <axis>
          <x> 0 </x>
          <y> 1 </y>
          <z> 0 </z>
      </axis>
  </animation>

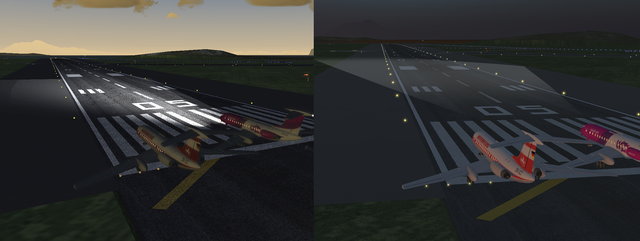

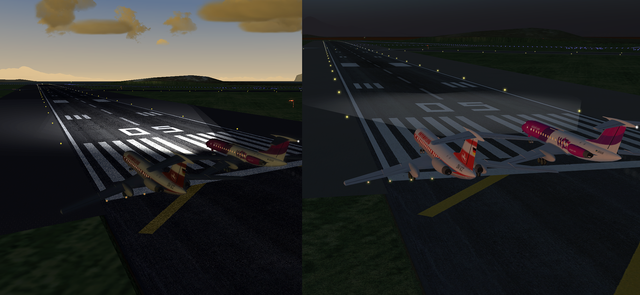

Here the landing and taxi lamps are in action. Left: rembrandt, right: normal

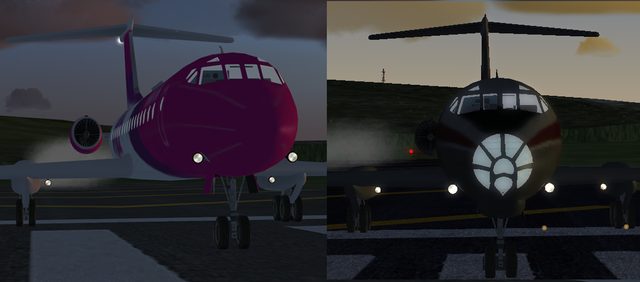

Four lamps are mounted to the body. Left: normal, right: rembrandt

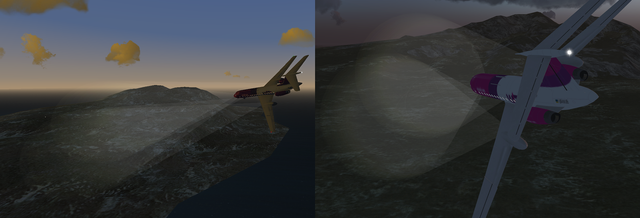

In flight the lamps even shine to the ground. Left: rembrandt, right: normal

Ground-effect for landing and emergency breaking

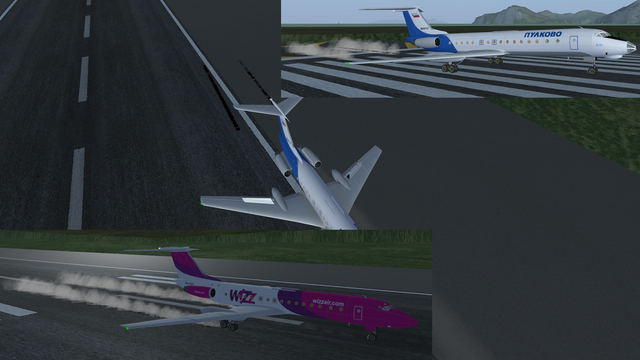

The next step was to implement the touch down effect on the runway. Smoke and black stripes as in real life. (https://github.com/HerbyW/Tu-134LK/commit/5445e38c3768fa035a9075bec708785f76f89c43#diff-d2d55d176b76435214fffdc0caf0cf74 and following).

The property: sim/multiplay/generic/float[18] is calculated in nasal/setprop.nas and checks if the aircraft is in the moment of landing. In this case it is set to 1 for 0.3 seconds and then changes to 0 in 0.3 seconds.

interpolate("/controls/gear/runway", 1 , 0.3, 0 , 0.3);

The animation is active only in a small window form 0.45 to 1:

<condition>
      <greater-than>
      <property>sim/multiplay/generic/float[18]</property>
      <value>0.45</value>
      </greater-than>
</condition>

A very soft landing will not trigger it!

Flightrecorder update

All of the new functions are also recorded now. (https://github.com/HerbyW/Tu-134LK/commit/5445e38c3768fa035a9075bec708785f76f89c43#diff-68668c93f977a9942b00e0ef4f574c60)

Some smaller updates

The engine smoke, navigation lights and electrical systems got some small adjustments to make it more realistic.

New version number

The new number is 2.1, it is transmitted over the multiplayer layout, so that I know what version my colleges are flying. It is set as generic property in Tu-134LK-base.xml:

<string n="1" type="string" alias="/sim/model/tu134/version"/>

Roadmap

Next will be the further improvement of the interior in the glass nose, and the implementation of an system to make the zero gravity flights possible.

How to contribute?

Pull request to my github repository or direct contact via Mumble FlightGear Chat.

GitHub Account

https://github.com/HerbyW
It contains my real name, my git username, my steemit username and my callsign in the multiplayer.
