使用Typora添加数学公式\ Typora tutorial :mathematical formula

in #utopian-io6 years ago (edited)


Summary:
Typora is a very good markdown editor, and today I'll show you how to use typora to add a mathematical formula,Example is as follow.

1.打开typora 选择数学模块

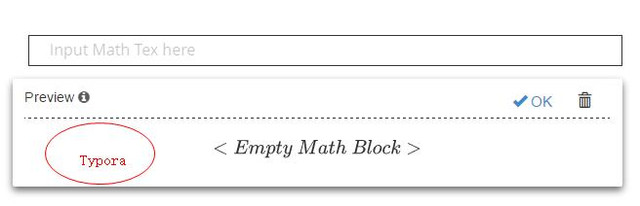

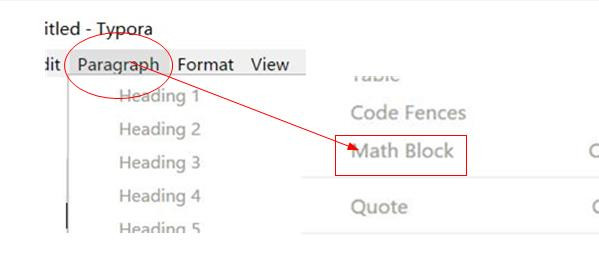

点击paragraph,然后选择math block 打开,或者使用快捷键ctrl+shift+M 打开。打开之后界面如下,此时数学模块是空的。

2.添加数学公式
想要输出数学公式,首先要记得格式和一些代码。如下:

分数,平方

算式markdown
7x+51+y2\frac{7x+5}{1+y^2}

下标

算式markdown
z=zlz=z_l

省略号

省略号markdown
\cdots

行间公式(使用两个$包含公式可以独立一行)

行间公式markdown
ddxeax=aeax∑i=1n(Xi−X¯¯¯)2\frac{d}{dx}e^{ax}=ae^{ax}\quad \sum_{i=1}^{n}{(X_i - \overline{X})^2}

开根号

算式markdown
2√;3√n\sqrt{2};\sqrt[n]{3}

矢量

算式markdown
a⃗ ⋅b⃗ =0\vec{a} \cdot \vec{b}=0

积分

算式markdown
∫23x2dx\int ^2_3 x^2 {\rm d}x

极限

算式markdown
limn→+∞n\lim_{n\rightarrow+\infty} n

累加

算式markdown
∑1i2\sum \frac{1}{i^2}

累乘

算式markdown
∏1i2\prod \frac{1}{i^2}

希腊字母

大写markdown小写markdown
AAα\alpha
BBβ\beta
Γ\Gammaγ\gamma
Δ\Deltaδ\delta
EEϵ\epsilon
ε\varepsilon
ZZζ\zeta
HHη\eta
Θ\Thetaθ\theta
IIι\iota
KKκ\kappa
Λ\Lambdaλ\lambda
MMμ\mu
NNν\nu
Ξ\Xiξ\xi
OOο\omicron
Π\Piπ\pi
PPρ\rho
Σ\Sigmaσ\sigma
大写markdown小写markdown
TTτ\tau
Υ\Upsilonυ\upsilon
Φ\Phiϕ\phi
φ\varphi
XXχ\chi
Ψ\Psiψ\psi
Ω\Omegaω\omega

三角函数

三角函数markdown
sin\sin

对数函数

算式markdown
ln15\ln15
log210\log_2 10
lg7\lg7

关系运算符

运算符markdown
±\pm
×\times
÷\div
\sum
\prod
\neq
\leq
\geq

记住如上的格式之后,只要根据要输出的数学公式,输入相应的格式代码就可以了。比如:

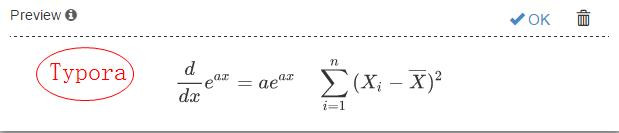

\frac{d}{dx}e^{ax}=ae^{ax}\quad \sum_{i=1}^{n}{(X_i - \overline{X})^2} 输出的内容就是:

3.输出单独的数学公式

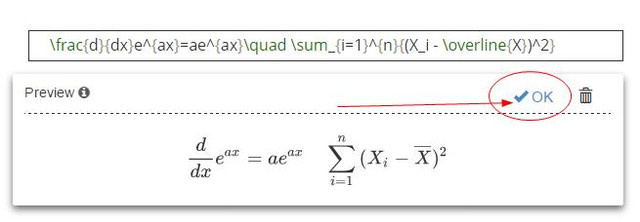

在输入格式代码之后,下方就会显示输出的数学公式,如果想单独显示,就点OK,这样就直接显示在编辑器里面了。

最重要的是记住代码格式,以及一些特定符号。其实也可以说这是markdown语法,但是在steem不支持这类语法,如果想在steemit插入数学公式,只能截图,然后插入图片。
