How to Build a Program for PC Screen Recording(Video) with Java - part 1

Repository

https://github.com/jcodec/jcodec


What Will I Learn?

• How to make a screen recording program using java
• How to capture a PC Screen with Java
• How to Encode the image frames to a video file

Requirements

• System Requirements: Java JDK, Eclipse IDE or Netbeans IDE
• OS Support for Java:Windows, macOS, Linux
• Required Knowledge A fair knowlege of java

Resources for Java and this tutorial:

• Oracle Website: https://www.oracle.com/index.html
• Java Docs:http://www.oracle.com/technetwork/java/javase/documentation/api-jsp-136079.html
• JCodec Library : http://jcodec.org/

Difficulty

• Intermediate

Tutorial Duration 25- 30 Minutes

TUTORIAL CONTENT

In this Tutorial, we are going to learn how to create a simple program to implement screen recording with Java programming language. To achieve this functionality, we are going to make use of JCodec Library.

What is JCodec ?

JCodec is a pure java implementation of video/audio codecs. JCodec is a library implementing a set of popular video and audio codecs. source. To get Started, we are going to download the libraries then dive straight into NetBeans or Eclipes, depending on your preference.

STEP 1 : Download JCodec libraries

Download the two libraries (.JAR) found on JCodec site or alternatively from the direct links below

• JCodec 0.2.2 JAR
• JCodec JavaSE 0.2.2 JAR

STEP 2 : Create a New Java Project

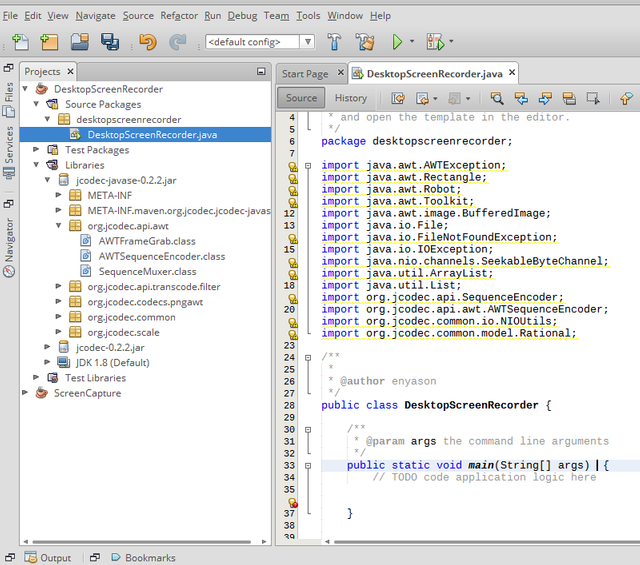

After Creating a new project (with your preferred project name) in Java, you should have something like this;

STEP 3 : Add the JAR files to your project

To add these JAR files to our project, we will follow these steps

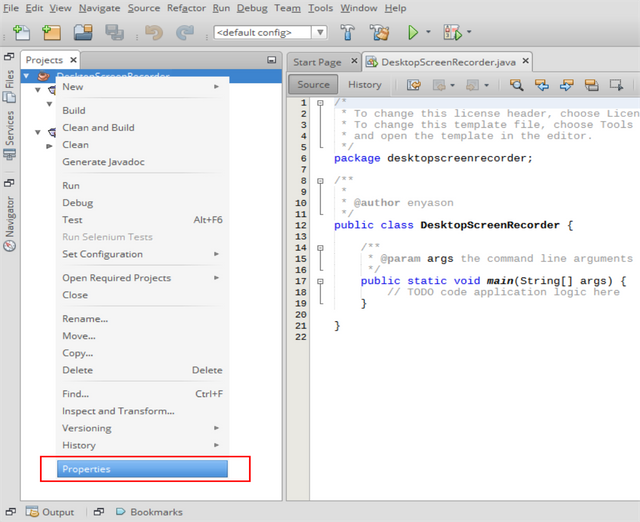

• On the left panel of the editor, right click on the project created and select properties

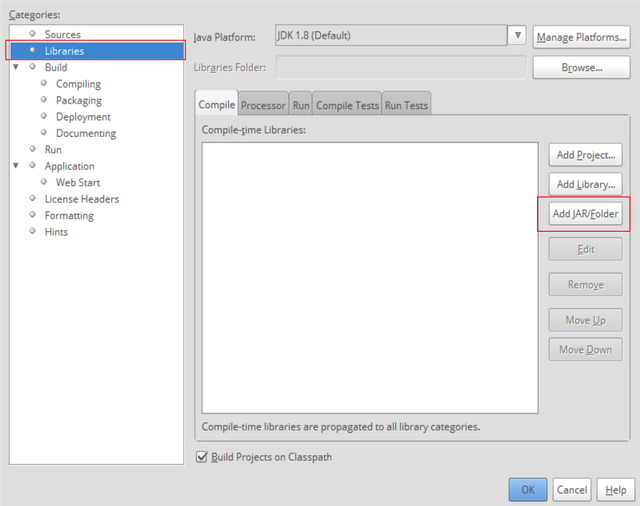

• From the pop up window, click on Libraries under Categories
• Then Click on Add JAR/Folder

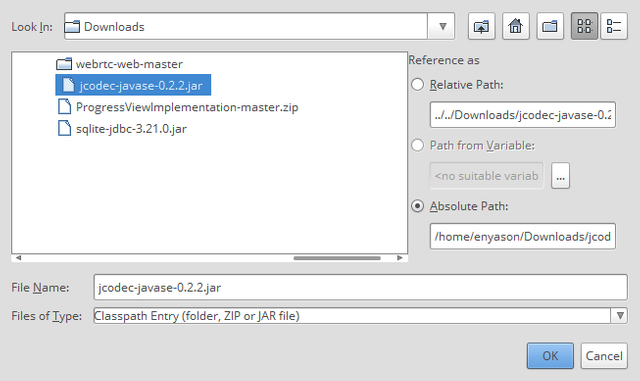

• Browse to the folder you saved the JAR files to and then add it to the project

STEP 4 : Capture PC Screen

To capture the PC Screen, we are going to use the Java Robot class. Add the code block below to  to your main method of your class

public static void main(String[] args) throws AWTException, IOException {

List<BufferedImage> imageList = new ArrayList<>();

Rectangle screenRect = new Rectangle(Toolkit.getDefaultToolkit().getScreenSize());
Robot robot = new Robot();

File file = new File("outputVideo.mp4");

System.out.println("getting screen images...");

 int count = 0;

        while (count < 100) {

            BufferedImage image = robot.createScreenCapture(screenRect);
            imageList.add(image);

            count++;

        }

        makeVideoFromImages(imageList,file);

    }

complete source code

Code explanation

• First we declare a List of Type BufferedImage. The generic type of the list is set to  BufferedImage because the captured images will be buffered images. The List will hold the images in run time.
• The Rectangle is used to get the dimension of the screen to be recorded.
• Next we create the Robot object that will assist us capture our screen.
• We create a  File of MP4 format which the images will be encoded into.
• Since we want to record the PC screen, we make  a while loop that constantly gets screen capture till count > 100 . This was done for simplicity sake.
• While the condition is true, the BufferedImage is stored in the List

STEP 5 : Generate a Video File From  The Images(Frames)

At this step, what we will do is take the lists of frames and encode it into the video file we created in Step 4 ."outputVideo.mp4"

Now our imported libraries becomes useful. Lets create a method that handles the conversion. See the code block below;

public static void makeVideoFromImages(List<BufferedImage> imageList, File file) throws IOException {

        AWTSequenceEncoder sequenceEncoder = AWTSequenceEncoder.createSequenceEncoder(file, 25);
        for (int i = 0; i < imageList.size(); i++) {
           sequenceEncoder.encodeImage(imageList.get(i));
            System.out.println("list encode " + i);

        }
     sequenceEncoder.finish();

}

complete source code

Code explanation

• Our method takes two parameters which are the image list and the output file that was created in Step 4
• We initialize the AWTSequenceEncoder object with the static method createSequenceEncoder which takes two parameters, that is the file output and frames per second in integer. AWTSequenceEncoder extends(inherit) the sequence encoder class. This class takes the sequence of images and convert them into a video file.
• We loop through the List of BufferedImages and then encode it into the output file withe the sequenceEncoder object.
• finish() method is called to clear the buffers thus finalize the recording.

STEP 6 : Test The Java Program

With Steps 1 to 5 completed, our screen recording program is now ready for use. Below is a video showing the program output.

Proof of Work

The complete source code can be found on gitHub

https://github.com/enyason/DesktopScreenRecorder
