What Will I Learn?

• How to create a ToDo Listing Application using Room database.

Requirements

• Java knowledge
• IDE for developing android applications(Android Studio or IntelliJ)
• An Android Emulator or device for testing

Other Resource Materials

1. Software Design Patterns
2. The Singleton Pattern
3. Google Room CodeLabs: https://codelabs.developers.google.com/codelabs/android-room-with-a-view/#11
4. Datatypes in SQLite
5. https://guides.codepath.com/android/Room-Guide

Difficulty

• Intermediate

Tutorial Duration

30 - 35 Minutes

TUTORIAL CONTENTS

In this tutorial, we are going to be creating a ToDo Listing application using the Android Architecture Components.  According to developer.android.com  Android Architecture Components is a collection of libraries that help you design robust, testable, and maintainable applications. Start with classes for managing your UI component lifecycle and handling data persistence.

The purpose of Architecture Components is to provide guidance on app architecture, with libraries for common tasks like lifecycle management and data persistence. Architecture components help you structure your app in a way that is  robust, testable, and maintainable with less boilerplate code.  Architecture Components provide a simple, flexible, and practical  approach that frees you from some common problems so you can focus on  building great experiences.

Since this Tutorial is in parts, of which this is the first part, we are going to be considering the Room Database for data persistence. Our Todo task will be saved locally to phone using Room.

Why Room

The Room persistence library provides an abstraction layer over SQLite to allow fluent database access while harnessing the full power of SQLite. The library helps you create a cache of your app's data on a device that's running your app. This cache, which serves as your app's single source of truth, allows users to view a consistent copy of key information within your app, regardless of whether users have an Internet connection.

Step 1 : Create a New Project

Open Android Studio and create a new project with an Empty activity.

Step 2 : Update Gradle Files

You have to add the component libraries to your gradle files.  Add the following code to your build.gradle (Module: app) file, below the dependencies block.

implementation "android.arch.persistence.room:runtime:1.0.0"

annotationProcessor "android.arch.persistence.room:compiler:1.0.0"

Step 3 : Create the MainActivity Layout

layout source code here github

Step 4 : Create the Add Task Layout

layout source code here github

Step 5 : Create the Custom Row View Layout

layout source code here github

Step 6 : Create An Entity

Create a class called Task that describes a task Entity.

Here is the code

@Entity(tableName = "task")
public class Task {

    @PrimaryKey(autoGenerate = true)
    private int id;

    private String description;

    private int priority;

    @ColumnInfo(name = "updated_at")
    private Date updatedAt;

    public Task(String description, int priority, Date updatedAt) {

        this.description = description;

        this.priority = priority;

        this.updatedAt = updatedAt;

    }

    public int getId() {

        return id;

    }

    public String getDescription() {

        return description;

    }

    public int getPriority() {

        return priority;

    }

    public Date getUpdatedAt() {

        return updatedAt;

    }

    public void setId(int id) {

        this.id = id;

    }

    public void setDescription(String description) {

       this.description = description;

  }

    public void setPriority(int priority) {

        this.priority = priority;

    }

    public void setUpdatedAt(Date updatedAt) {

        this.updatedAt = updatedAt;

    }

}

To make the Task class meaningful to a Room database,  you need to annotate it. Annotations identify how each part of this  class relates to an entry in the database. Room uses this information to  generate code.

• Entity(tableName = "task")
  Each Entity  class represents an entity in a table. Annotate your class declaration  to indicate that it's an entity. Specify the name of the table if you  want it to be different from the name of the class.
• PrimaryKey
  Every entity needs a primary key. To keep things simple, each Task acts as its own primary key.
• ColumnInfo(name = "updated_at")
  Specify the name of the column in the table if you want it to be different from the name of the member variable.

Step 6 : Create The DAO

What is the DAO?

In the DAO  (data access object), you specify SQL queries and associate them with  method calls. The compiler checks the SQL and generates queries from  convenience annotations for common queries, such as Insert. The DAO must be an interface or abstract class. By default, all queries must be executed on a separate thread. Room uses the DAO to create a clean API for your code.

Implement the DAO

The DAO for this tutorial provides queries for getting all the task, inserting a task, and deleting a task.

1. Create a new Interface and call it TaskDataAccessObject.
2. Annotate the class with DAO to identify it as a DAO class for Room.
3. Declare a method to insert one task: void insertTask(Task task);
4. Annotate the method with Insert. You don't have to provide any SQL! (There are also Delete and Update annotations for deleting and updating a row)
5. Declare a method to delete a task: void deleteTask(Task task);
6. Create a method to get all the task: loadAllTask();.
   Have the method return a List of Task.
   List<Task> loadAllTask();
7. Annotate the method with the SQL query:
   Query("SELECT * FROM task ORDER BY priority")

here is the code

@Dao
public interface TaskDataAccessObject {

    @Query("SELECT * FROM task ORDER BY priority")
    List<Task> loadAllTask(); // returns a list of task object

    @Insert
    void insertTask(Task task);

    @Update(onConflict = OnConflictStrategy.REPLACE)
    void updateTask(Task task);

    @Delete
    void deleteTask(Task task);

}

Step 7 : Add a Room Database

What is a Room database?

Room is a database layer on top of an SQLite database. Room takes care of mundane tasks that you used to handle with an SQLiteOpenHelper

• Room uses the DAO to issue queries to its database.
• By default, to avoid poor UI performance, Room doesn't allow you to issue database queries on the main thread.
• Room provides compile-time checks of SQLite statements.
• Your Room class must be abstract and extend RoomDatabase.

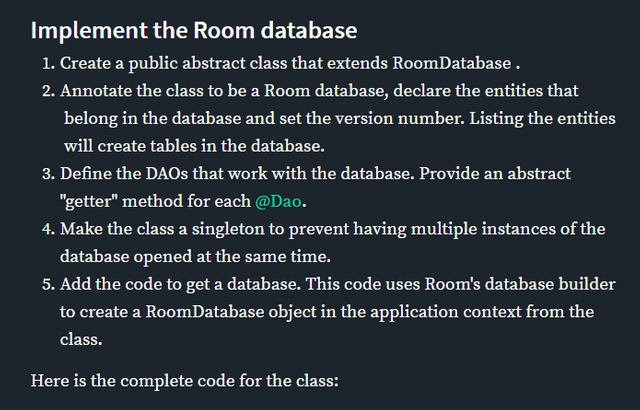

Implement the Room database

1. Create a public abstract class that extends RoomDatabase .
2. Annotate the class to be a Room database, declare the entities that  belong in the database and set the version number. Listing the entities  will create tables in the database.
3. Define the DAOs that work with the database. Provide an abstract "getter" method for each Dao.
4. Make the class a singleton to prevent having multiple instances of the database opened at the same time.
5. Add the code to get a database. This code uses Room's database builder to create a RoomDatabase object in the application context from the class.

Here is the complete code for the class:

@Database(entities = {Task.class},version = 1,exportSchema = false)
@TypeConverters(DateConverter.class)
public abstract class AppDataBase extends RoomDatabase {

    public static final String LOG_TAG = AppDataBase.class.getSimpleName();
    public static final Object LOCK = new Object();
    public static final String DATABASE_NAME = "todo_list";
    private static AppDataBase sInstance;

    public static AppDataBase getsInstance(Context context){
        if (sInstance== null) {
            synchronized (LOCK){
                Log.d(LOG_TAG,"creating new database");

                sInstance = Room.databaseBuilder(context.getApplicationContext(),
                      AppDataBase.class,AppDataBase.DATABASE_NAME)
                        .allowMainThreadQueries()
                       .build();
            }
        }

        Log.d(LOG_TAG,"getting the database instance");

        return sInstance;

   }

   public abstract TaskDataAccessObject taskDao();

}

Note:

The annotation TypeConverters(DateConverter.class) is used to provide room with a converter of the  Date Type. This is beacause the Date DataType is not supported by SQlite. A class DateConverter is created to implement this conversion.

here is the code:

public class DateConverter {

    @TypeConverter
    public static Date toDate(Long timeStamp) {
        return timeStamp == null ? null : new Date(timeStamp);
    }

    @TypeConverter
    public static Long toTimeStamp(Date date) {
        return date == null ? null : date.getTime();
    }
}

Step 8 : Add A List using a RecyclerView

Add a TodoListAdapter that extends RecyclerView.Adapter.

public class ToDoListAdapter extends RecyclerView.Adapter<ToDoListAdapter.TaskViewHolder> {

    // Constant for date format<
    private static final String DATE_FORMAT = "dd/MM/yyy";

    // Class variables for the List that holds task data and the Context
    private List<Task> mTaskEntries;

    private Context mContext;

    // Date formatter
    private SimpleDateFormat dateFormat = new SimpleDateFormat(DATE_FORMAT, Locale.getDefault());

// the adapter constructor
    public ToDoListAdapter(Context context) {

        mContext = context;

    }

    @Override
    public TaskViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
        // Inflate the task_layout to a view

        View view = LayoutInflater.from(mContext)
               .inflate(R.layout.layout_row_item, parent, false);

        return new TaskViewHolder(view);

    }

    @Override
    public void onBindViewHolder(TaskViewHolder holder, int position) {

       // Determine the values of the wanted data

        Task taskEntry = mTaskEntries.get(position);
        String description = taskEntry.getDescription();
        int priority = taskEntry.getPriority();
        String updatedAt = dateFormat.format(taskEntry.getUpdatedAt());
//        Toast.makeText(mContext,description,Toast.LENGTH_LONG).show();
        //Set values
        holder.taskDescriptionView.setText(description);
        holder.updatedAtView.setText(updatedAt);
        // Programmatically set the text and color for the priority //TextView
        String priorityString = "" + priority; // converts int to String
        holder.priorityView.setText(priorityString);
        GradientDrawable priorityCircle = (GradientDrawable) holder.priorityView.getBackground();
        // Get the appropriate background color based on the priority
        int priorityColor = getPriorityColor(priority);
        priorityCircle.setColor(priorityColor);

    }
    private int getPriorityColor(int priority) {

        int priorityColor = 0;
        switch (priority) {
            case 1:
               priorityColor = ContextCompat.getColor(mContext, R.color.materialRed);
                break;
            case 2:               priorityColor = ContextCompat.getColor(mContext, R.color.materialOrange);
                break;
            case 3:
               priorityColor = ContextCompat.getColor(mContext, R.color.materialYellow);
                break;
            default:
                break;
       }
        return priorityColor;
    }
    @Override
    public int getItemCount() {
        if (mTaskEntries == null) {
          return 0;
        }

        return mTaskEntries.size();
    }
    /**

    * When data changes, this method updates the list of taskEntries
     * and notifies the adapter to use the new values on it
     */
    public void setTasks(List<Task> taskEntries) {
        mTaskEntries = taskEntries;
     notifyDataSetChanged();
    }
    // Inner class for creating ViewHolders
    class TaskViewHolder extends RecyclerView.ViewHolder {
       // Class variables for the task description and priority TextViews
        TextView taskDescriptionView;
        TextView updatedAtView;
        TextView priorityView;
        public TaskViewHolder(View itemView) {
          super(itemView);
          taskDescriptionView = itemView.findViewById(R.id.taskDescription);
           updatedAtView = itemView.findViewById(R.id.taskUpdatedAt);
            priorityView = itemView.findViewById(R.id.priorityTextView);
      }
   }
}

Code Explanation

• The TodoListAdapter is a custom adapter that populates the RecyclerView with the data model from the database.
• The Adapter class Constructor takes a Context as a paramenter. This context is to enabled the adapter determine the class where the adpter Object is being created. E.g The TodoListAdapter is instantiated in the MainActivity.
• In the OncreateViewHolder Method, we inflate the custom row view item layout we are using to display each entity and then return a new viewHolder object with this view as its parameter.
• In the OnbindViewHolder, we get each entity an set the atrributes to text the getPriority method is to return a color based on the task priority
• getCount method returns the size of the list
• the setTask methods provides the adapter wwith data from the database and then notify adapter for change

Add the RecyclerView in the onCreate() method of MainActivity.

recyclerView = findViewById(R.id.recycler_view_main);

layoutManager = new LinearLayoutManager(this);

recyclerView.setLayoutManager(layoutManager);

toDoListAdapter = new ToDoListAdapter(this);

recyclerView.setAdapter(toDoListAdapter);

Step 9 : Add a Task to the DataBase

In the Editor activity, set an onClick listener to the button add then include the following code:

buttonAdd.setOnClickListener(new View.OnClickListener() {
    @Override
    public void onClick(View v) {
      String text =  etTask.getTet().toString().trim();
       int priority = getPriorityFromViews();
       Date date = new Date();
     Task task  = new Task(text,priority,date);
       mdb.taskDao().insertTask(task);
     finish();
    }

});

NOTE: Remember we said Room does not allow DB operations on the UI thread, but for simplicity of this first part, we allowed operations on the UI thread  to allow Db operations without having to create a separate thread. To disable this restriction, include this line:

In later part of this tutorial series, we will execute our db operations on a separate thread.

.allowMainThreadQueries()

Step 10 : Display Task in MainActivity

@Override
protected void onResume() {
    super.onResume();
    toDoListAdapter.setTasks(appDataBase.taskDao().loadAllTask());
}

Code Explanation

In android activity life cycle, onResume method is called when an inactive activity becomes active. So in order to update our UI after adding a new task we have to call .loadAllTask from the OnResume method of the main ativity then notify the adapter to refresh the UI.

Proof of Work Done

The Complete code can be found here github

https://github.com/enyason/TodoApp_Android_Architecture_Components

Apllication Demo
