How to create a good network # Part 1

Hello friends all ...
of course we've heard with a computer network or the so-called local network (local area network).
well, this time I will share a little about starting a local network, will be before that, of course we must first understand by way of mengrimping LAN cable.

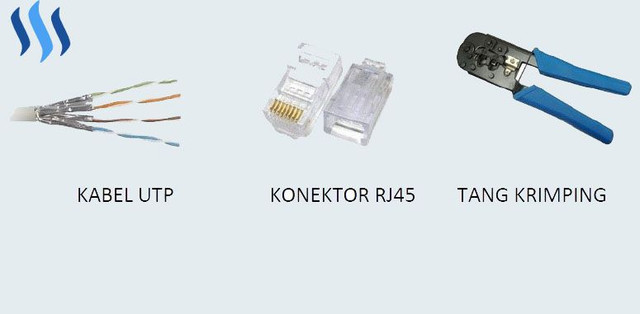

what things must be prepared:

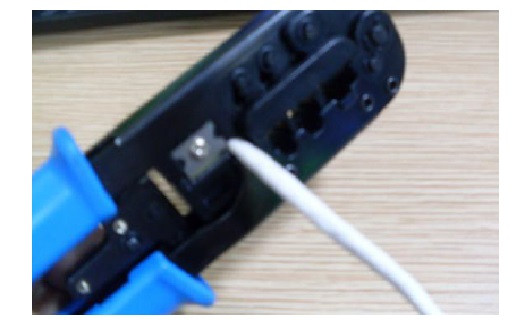

#Peel the skin of UTP cable with Tang Krimping, be careful peel it not to
about the cable in the skin of the cable.

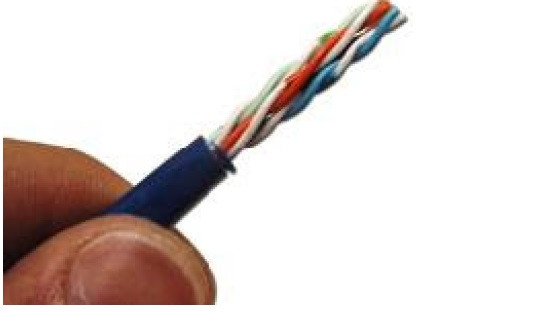

#After the Leather cables are peeled the result will be like the picture below.

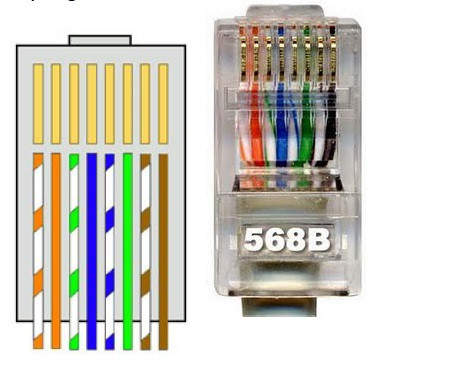

#Arrange the color of the cable as shown below
White Orange, orange, White Green, Blue, White Blue, Green, White brown, brown

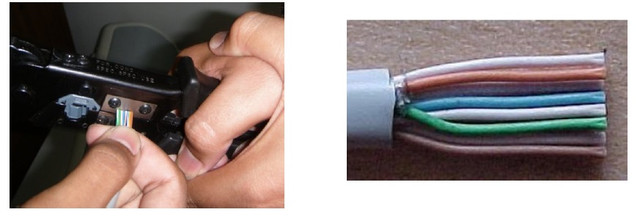

#if the color is to fit the image straighten the cord and flatten the tip
by cutting it using creampot pliers.

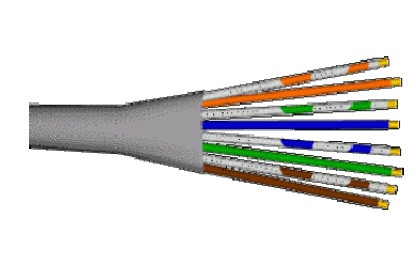

#If the end of the cable has been flattened like the picture above, then plug it in
connectors.

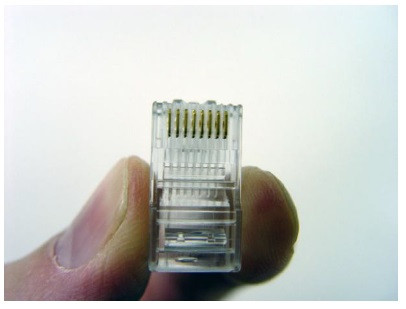

grab the RJ-45 connector, see the picture below holding the connector

Note the connector, the connector latch is on the back.
when the lock of the connector is in front immediately adjust as shown above

#Insert the cable into the connector and press for the end of the cable to touch with
pin that is in the connector

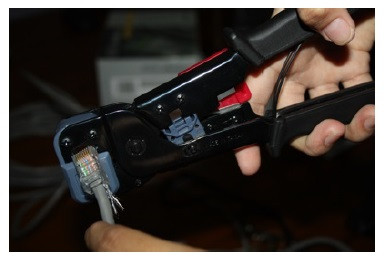

#When the connector is mounted on the cable, press the connector using the pliers
cream, press until the sound clicks and the installation is complete.

#Repeat the steps above for the installation of the other end of the cable connector.

Good luck, good luck always accompany you all.
