Part 1: Tutorial on Illustrator CS5

Hellow Steemains;

I Teach you the second part of may tutorial in Illustrator CS5.

Now wee start:

To Hide the or show all panels and tool bar: SHIFT - TAB

Source

DEFAULT ILLUSTRATOR WORKSPACE:

A. Tabbed Document windows
B. Application bar
C. Workspace switcher
D. Panel title bar
E. Control panel
F. Tools panel
G. Collapse to icons button
H. Four panel froups invertical window

---

DOCK AND UNDOCK PANELS

• A DOCK – is a collection of panels or panel groups displayed together, generally in a vertical orientation, If you DOCK and UNDOCK panels by moving them into and out of a dock

  • To dock a panel, Drag its tab into the dock at the top, bottom or in between other panels
  • To dock a panel group drag the title bar into the dock
  • To remove a panel or panel group drag it out of the dock by tab or title bar.

Source

---

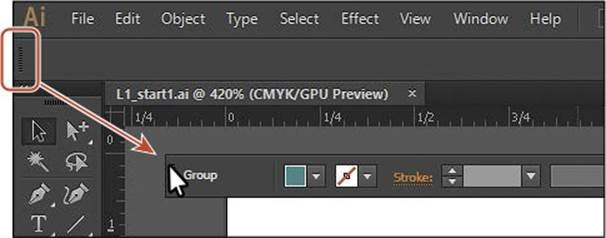

MOVE PANELS

• MOVE PANELS – you see blue highlighted drop zone areas where you can move the panels. If you drag to an area that is not a drop zone the panel floats freely in the workspace

  • To Move a panel Drag it by ist tabs
  • To move a panel group drag the title bat

  Source
  A. Title bar B. Tab C. Drop zone

---

STACK FLOATING PANELS

• When you drag a panel out of its dock but not into a drop zone the panel floats freely. The floating panel allows you to position in anywhere in the workspace and can you stack floating panel or group panel so that they move as a unit when drag the topmost title bar

Source

 >• To stack floating panels drag a panel by its tab to the drop zone at the bottom of another panel
 >• To change the stacking order drag a panel up or down by its tab
 >• To remove a panel or panel group from the sack so that its floats by itself

---

MANIPULATE PANEL GROUPS

• To move a panel into a group, drag the panels tab to the highlight drop one in the group

  • To rearrange panel in a group drag a panel tab to new location in the group
  • To remove a panel from a group so that its floats freely drag the panel by its tab outside the group
  • To move a group drag the title bar

  Source

---

COLLAPSE AND EXPAND PANEL ICONS

• You can collapse panel to icons to reduce clutter on the workspace. In some cases panels are collapsed to icons in the default workspace

Source

Source

 >• To collapse or expand all panel icons ina column , click the double arrow at the top of the dock
 >• To expand a single panel icon click it
 >• To resize  panel icons so that you see only the icons adjust the wisth of the dock until the text disappears
 >• To collapse an expanded panel back to its icon. Click its tab its icon or double arrow in the panel title bar
 >• To add floating panel or panel group to an icon dock drag it in by its tab or title bat
 >• To move a panel icon drag the icon . you can drag panel icons up and down in the dock into other docks

---

DSPLAY OR SWITCH WORKSPACES

   •    Select a workspace from the workspace switcher in the application bar

DELETE a CUSTOM WORKSPACE

  • Select manage workspace from the workspace switcher in the application bar select the workspace and then click delete
  • Select delete workspace from the workspace switcher (Photoshop, Indesign)
  • Choose window -> Workspace -> Delete workspace , select the workspace and click delete

RESTORE THE DEFAULT WORKSPACE

  • Selcet the default Essentials workspace form the workspace switcher in the application bar
  • Selcet window -> Workspace -> Reset (Photoshop Indiesign)

Rename or duplicate a workspace

  • Choose window ->Workspace ->Manage Workspace
  • Do any of the Fllowing and then click ok
         o  To Rename a workspace select it and edit the next
         o  To duplicate a workspace select it and click the next button

SAVE and SWITCH WORKSPACE

By saving current size and position of panels as a named workspace you can restore that workspace even if you move or close a panel.

SAV A CUSTOM WORKSPACE

1.  With the workspace in the configuration you want to save  do one of the following
        a.  (illustrator) chose Window ->workspace ->Save Workspace
        b.  (Photoshop, indesign) choose window ->workspace -.New Workspace
        c.  (Dreamweaver) Choose Window ->Workspace Layout -> New Workspace
2.  Type the name of workspace
3.  (Photoshop and Indesign) under capture select one or more Option.

Panel Location Save the current panel location (Indesign Only)

---

Part 3 Topic is learn in Illustrator Work space… Coming

To Learn More about adobe Illustrator CS5 Please Follow me @ranielbrianulan and upvoted and resteem may post..

---

---
