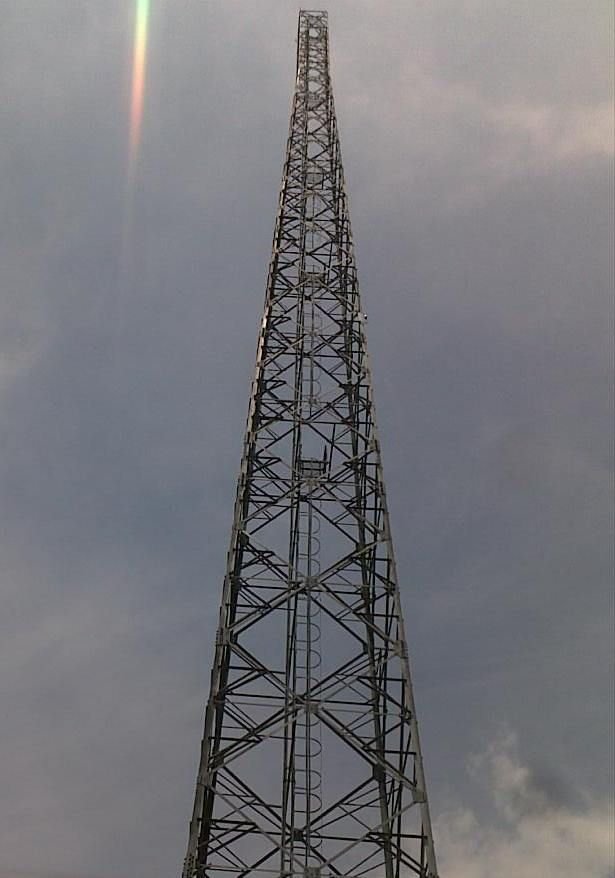

To check a tower vertically by using a theodolite
Greetings, how are you steemit friends?

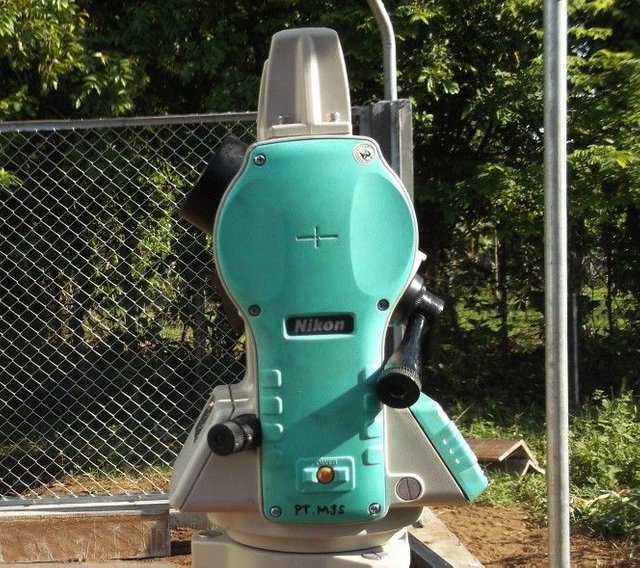

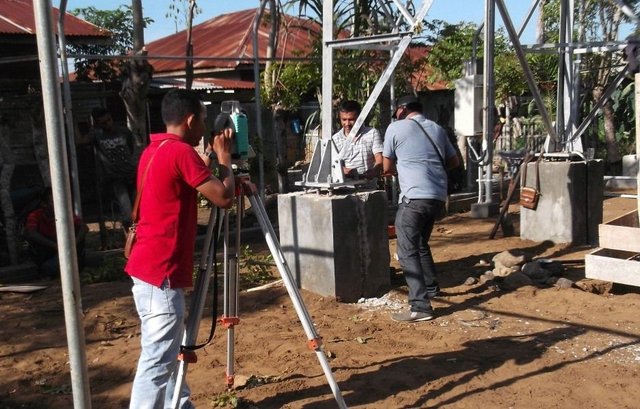

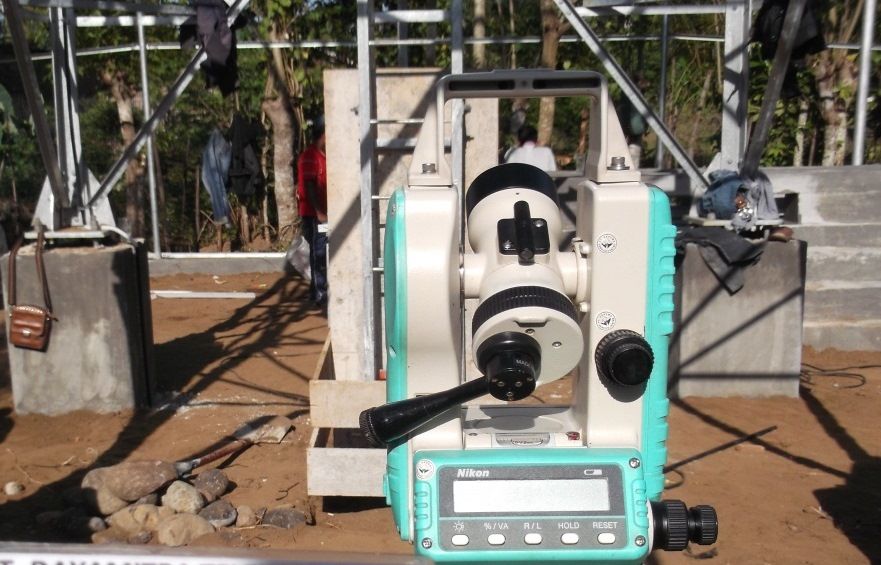

Many ways we can use to know the slope of a four foot tower. On this occasion I use the theodolite tool, we can get the value of the slope of a tower, of course, by using theodolite tool in the upright position and straightening the field. After theodolite device is correctly positioned with the distance to the tower of approximately two meters to get maximum results, the first step point theodolite binoculars to the topmost position in the middle bolt of the plat section, after getting the midpoint of the top bolt it must be locked on theodolite then the locked binoculars are lowered in the first section in the horizontal direction and navigate to the bottom section in the middle bolt of the plat section, this is where we know if there is a slope of the tower.
It performs at least twice in different directions where the theodolite is positioned.

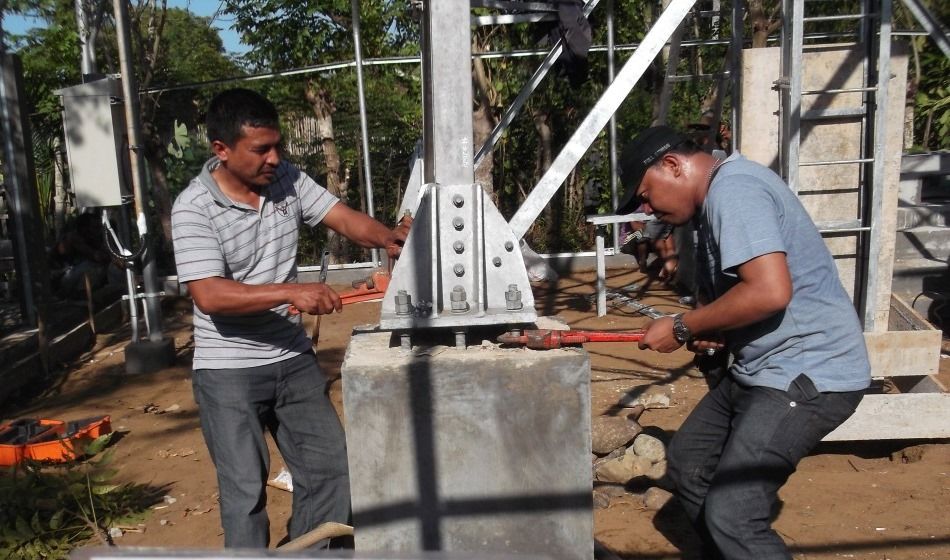

After all the measurement is done to get the position perpendicular to a tower by raising or decreasing baseplat according to the needs of the field, from the results of measurement analysis with slope tolerance in a tower building is 1/20000 mm multiplied by the height of the tower.
Thanks to the friends who have been willing to visit my blog.
