how to make gauss meter using hall effect sensor module
Introduction
This tutorial is an open source arduino project that teaches how to make a Gauss meter using KY-003 hall effect sensor and 16X2 lcd display, the possible main purpose of this project is you can make an diy gausmeter experimental using hall effect sensor, good for school and indoor activity I built a hand-held Gaussmeter for measuring the polarity and strength of a magnetic field using this components.
What Will I Learn?
HARDWARE
- Step 1: Gather all the Requirements
Requirements
Difficulty
Either choose between the following options:
- Basic Arduino Project
Tutorial Contents
- Information about the 3 main components

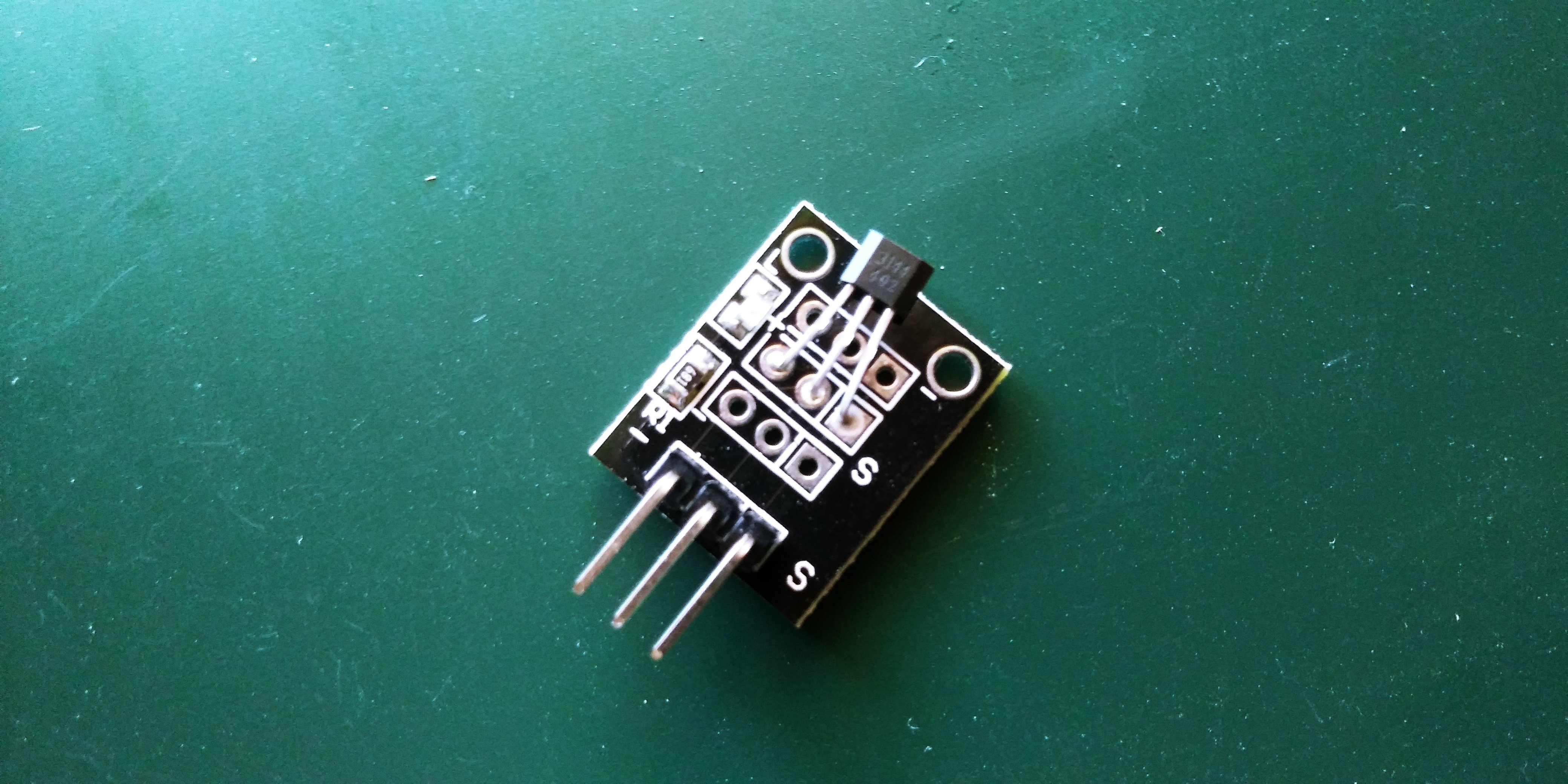

The KY-003 Hall Magnetic Sensor consists of a 3144EUA-S sensitive Hall-effect switch for high-temperature operation, a 680Ω resistor and a LED buit in pcb. this sensor is a switch that will turn on/off in the presence of a magnetic field. placing the magnet near the sensor the led will autmatically turn on, The polarity of the magnetic field is of influence to the switching action.
The 16x 2 LCD with I2C module you will be able to connect the LCD with Arduino board with only two Data cables! The i2c module has a built in potentiometer bakpack for contrast adjustment. The 16x2 display is the set up LCD number of columns and rows ( 16 columns, 2 rows Display ).
The arduino UNO R3
has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. 32k Flash Memory,source
codes and programs can be uploaded on to it from the easy Arduino computer program. which makes it a very easy way to get started working with embedded electronics. The name R3 is the third, and latest version of Arduino Uno Board
Experimental Procedures
- Step 2: Build the circuit
The Hall effect sensor has a build in 680Ω resistor and a LED in the board, The front side of the sensor needs the opposite polarity as the back of the sensor to switch on. it has 3 pin output the (1) VCC pin it is normally +5V meaning the devices VCC input is connected to +5V or 3.3V as the main power input pin, (2) GND GND the zero or common pin it help to complete the current flow of the circuit in path lower then vcc. (3) S or the sensor this is the data pin that can connect to any of the Digital pin outputs of the arduino board.
- Connecting to the Arduino
- Pin - = GND, connect to GND of the Arduino
- Pin (middle pin) +5 v, connect to Arduino +5
- Pin S signal, connect to Arduino pin 10
The 16X2 LCD display interfaces has 4 build in backpack pins (1) VCC it refers to the power signal of the LCD typically connected to 5volts, (2)GND or sometimes zero voltage, It is also the common connection of the LCD must connect to in one way or another path in order to complete the circuit. (3) SDA and (4) SCL is the i2c serial bus pin it is used to synchronize all data transfers over the I2C bus from the 16 pin of the normal LCD, Both SCL and SDA are connected to analog pin ouputs of the arduino beacasue i2c lines are open drain drivers, means is that the chip can drive its output low.
- Connecting to the Arduino
- VCC - 5V
- GND - GND
- SCL - A4
- SDA -A5
- Step 3: Connect all components in one circuit with potentiometer for magnetometer calibration
SOFTWARE
- Step 4: Dowload the Software and Libraries
If you’re ready to get started, click on the link below then select the version with your operating system.
Dowload the arduino Desktop IDE: https://www.arduino.cc/en/Main/Software
When the download is finished, un-zip it and open up the Arduino folder to confirm that click yes, there are some files and sub-folders inside. The file structure is important so don’t be moving any files around unless you really know what you’re doing.
Download the liquidcrystal LCD library : https://github.com/fdebrabander/Arduino-LiquidCrystal-I2C-library This library is a modified version of the H. Mario LiquidCrystal_I2C V.2.0 lib.
- Step 5: Include libraries to arduino IDE
Once installed the Arduino desktop IDE. open the software then locate the SKETCH tab at the top of the software, navigate ADD ZIP LIBRARY >> then look for the downloaded libraries in the download folder. SELECT the zip file then wait for the process. include all the libraries fo liquidcrystal display.
- Step 6: Programming
Add Libraries at the first line of the code define the components library for the liquidcrytal i2c library, the wire h file is build in config on the IDE.
#include <Wire.h>
#include <LiquidCrystal_I2C.h>include the type of LCD for 16X2 LCD with i2c backpack address is 0x27;
LiquidCrystal_I2C lcd(0x27, 2, 1, 0, 4, 5, 6, 7, 3, POSITIVE);Define the pin output of the components sensor pin to arduino
#define sensorPin 10
#define calibrationPin 1At the void setup() function write the command that starts serial connection this method is ran once at the just after the Arduino is powered up. The lcd.begin(16,2) command set up the LCD number of columns and rows. For example, if you have an LCD with 20 columns and 4 rows (20x4) you will have to change this to lcd.begin(20,4).
void setup() {
lcd.begin(16, 2);
lcd.print("Hall effect");
lcd.setCursor(1,1);
lcd.print("Gauss!");
delay (500);
}At the he void loop() function this method you want to run the code over and over again. The lcd.print("--message--") command print a message to first column and row of lcd display. The lcd.setCursor(0,1) command will set cursor to first column of second row, change delay time of counter to (1000) equal to 1 second, the 1023 is the resolution of the ADC, The 1.3 is just a constant needed to change from input voltage to gauss.
void loop() {
sensorRead = analogRead(sensorPin);
calibrationRead = analogRead(calibrationPin);
if (sensorRead >= 1020 || sensorRead <= 3){
lcd.clear();
lcd.print ("INTENSIT"),
lcd.setCursor(1,1);
lcd.print("Y ERROR!");
}
else{
sensorPinVoltage = ((5 * sensorRead) / 1023);
calibrationPinVoltage = ((5 * calibrationRead) / 1023);
gauss = ((1000 * (calibrationPinVoltage - sensorPinVoltage)) / 1.3);
lcd.clear();
lcd.print (gauss, DEC),
lcd.setCursor(1,1);
lcd.print("gauss");
}
delay(500);
}A hall effect sensor that can measure at least 1500 gauss N or S, if you want to get accurately to within a few gauss then need to buy a calibrated certified device for that accuracy.
- Step 7: Upload the code to arduino board
Connect the arduino board to type B usb cable on your computer make sure you choose the correct port and board type on the tools section of the software.
SOURCE CODE
#include <Wire.h>
#include <LiquidCrystal_I2C.h>
LiquidCrystal_I2C lcd(0x27, 2, 1, 0, 4, 5, 6, 7, 3, POSITIVE);
#define sensorPin 10
#define calibrationPin 1
float sensorRead;
float calibrationRead;
float sensorPinVoltage;
float calibrationPinVoltage;
float gauss;
void setup() {
lcd.begin(16, 2);
lcd.print("Hall effect");
lcd.setCursor(1,1);
lcd.print("Gauss!");
delay (500);
}
void loop() {
sensorRead = analogRead(sensorPin);
calibrationRead = analogRead(calibrationPin);
if (sensorRead >= 1020 || sensorRead <= 3){
lcd.clear();
lcd.print ("INTENSIT"),
lcd.setCursor(1,1);
lcd.print("Y ERROR!");
}
else{
sensorPinVoltage = ((5 * sensorRead) / 1023);
calibrationPinVoltage = ((5 * calibrationRead) / 1023);
gauss = ((1000 * (calibrationPinVoltage - sensorPinVoltage)) / 1.3);
lcd.clear();
lcd.print (gauss, DEC),
lcd.setCursor(1,1);
lcd.print("gauss");
}
delay(500);
}- Now, you can see the value of current gauss meter using LCD and KY-003 hall effect sensor.
I hope this Tutorial might help you on your future activity, if you want t buy arduino components ansd learn how to use it, this website might help all images in this post is mine, i appreciate your time reading my post. if you have questions about this tutorial you can drop it below in the comment. thanks you. 22/02/2018
