Good morning to the entire steemit community: D, I hope you have had a good and happy weekend, Today I bring you a little about the DDR SDRAM technology because not many know the different nomenclatures that exist or existed in the past years .

Source

Before you start to understand what the topic is, the DDR standard refers to what we currently call RAM that are carried by technological devices such as: Computers, Telephones, Smart TV and Satellites. It is the one that is in charge that these can have of an operating system and programs for their control correctly, in if the acronyms DDR make reference to the type of standard and technology.

Now that we know what the DDR is, let's start.

STANDARD DDR SDRAM (Main model.)

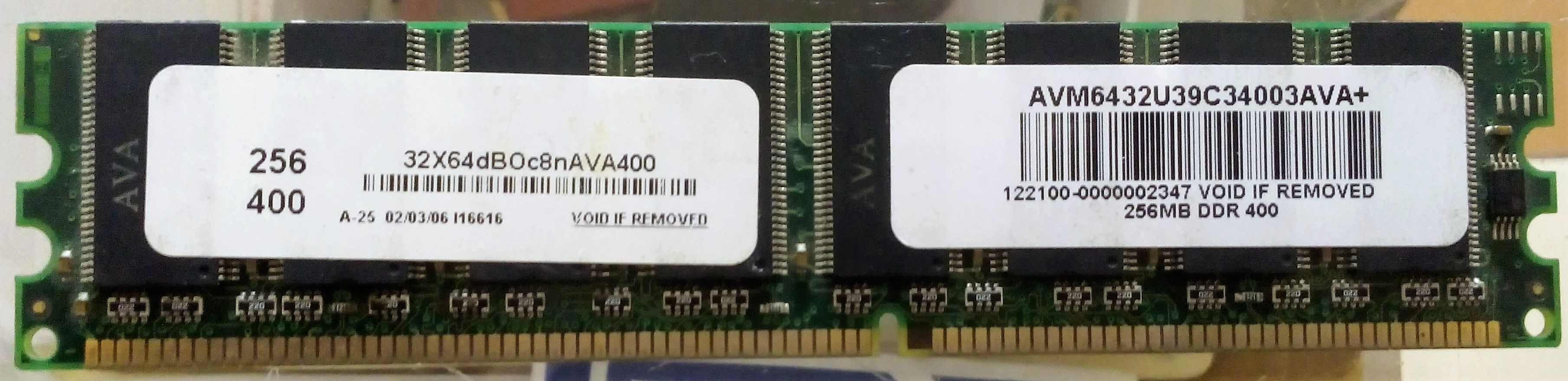

Photo taken by me

• The DDR standard is one of the most advanced since 1990, where companies like INTEL and AMD decided to opt for this technology because of the high RAMBUS memory costs. They also had a large demand and their equipment had to be faster and more efficient.

Thanks to the fact that today this type of RAM memory has been implemented to date with the current DDR4, it is that we have fast equipment such as smartphones, high quality TV, ultra fast computers and especially the videogame consoles like the XBOX and PS4.

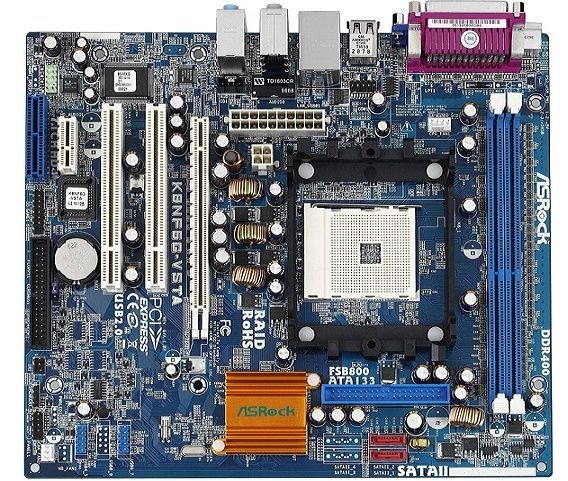

Source Asrock

• They were the first to go out to the market assembled for Intel and amd

It should be noted that each motherboard on one side where the memories are inserted, say that standard use, In this case the ddr, implements different models which are:
DDR-200
DDR-256
DDR-333
DDR-400

Each one with different speed and efficiency.
_________________________________________________

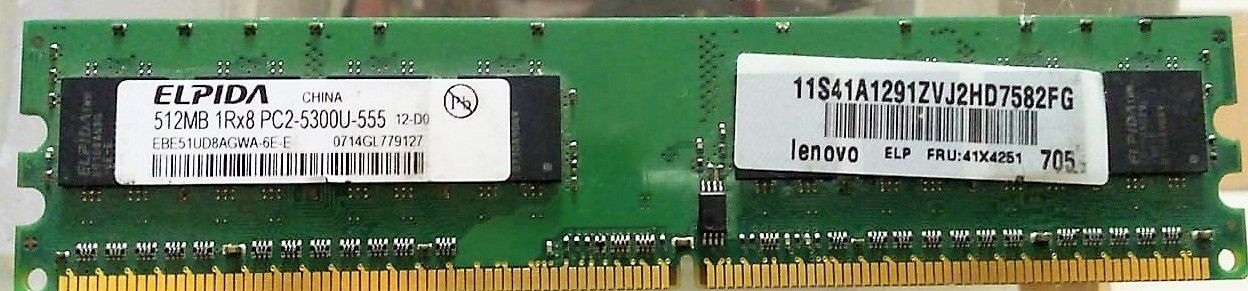

STANDARD DDR2 SDRAM (Improvement of the main DDR standard)

• The DDR2 was an improvement of the DDR standard, the changes were good since it allowed a double transfer and a higher clock speed, in which the ddr2 was a great start to start with 64bit systems since they needed more speed and the longest possible duration. They also consumed less electrical energy.

When they were launched on the market for those times, they were amazing. The programs, systems and games for the date worked correctly without slowing down.

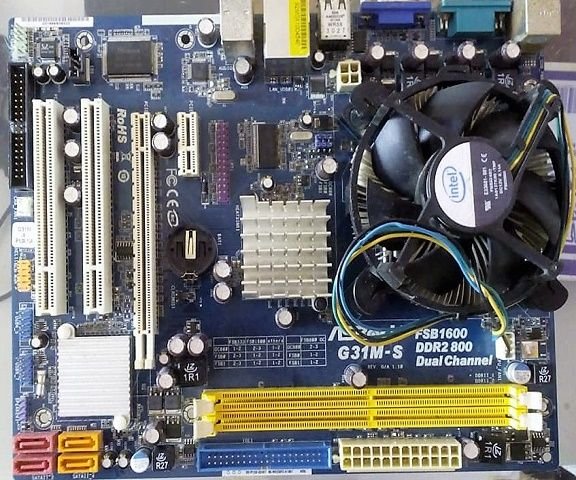

Photo taken by me to one of my old motherboards that I own (ASROCK)

• As DDR motherboards have a different nomenclature and have much more capacity:

STANDARDS:
DDR2-333
DDR2-400
DDR2-533
DDR2-600
DDR2-667
DDR2-800
DDR2-1000

_________________________________________________

STANDARD DDR3 SDRAM (Used since 2010)

Photo taken by me

• The DDR3 enters the world of technology as one of the best since 2010, This allowed the creation of systems, chips and memories with a tremendous speed of processing, this allowed the entry of the processors: Dual-Core, Quad-core , Hexa-core of the companies Intel and Amd implementing up to a capacity of 1GB up to 8GB making it possible to have in a PC up to 16GB per module.

The memory modules are inserted into the RAM, both are dual channel or dual channel technology that allows one to have 8GB and another 8GB depending on the motherboard having a total of 16GB of power.

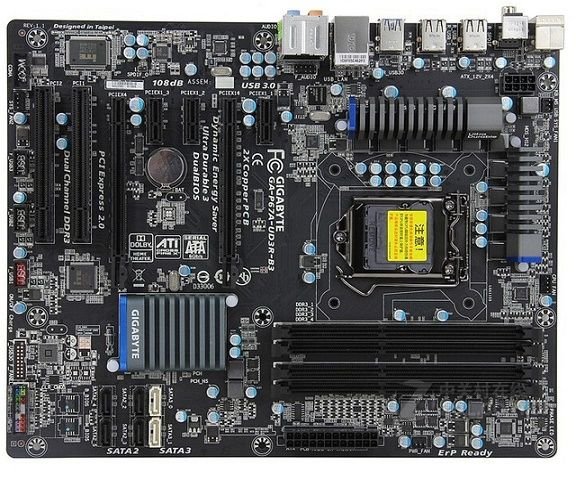

Board with DDR3 standard

Source

• Most DDR3 motherboards are high powered by companies such as: gigabyte, asrock, asus and biostar with speeds ranging from 1066 to 2200 in megahertz, with the advantage of faster data transfer and reduced consumption level.

Types of standard

DDR3-1066
DDR3-1200
DDR3-1333
DDR3-1375
DDR3-1466
DDR3-1600
DDR3-1866
DDR3-2000
DDR3-2200

So that they do not get confused, the standards are the speeds at which the memories work. (MHZ)
_________________________________________________

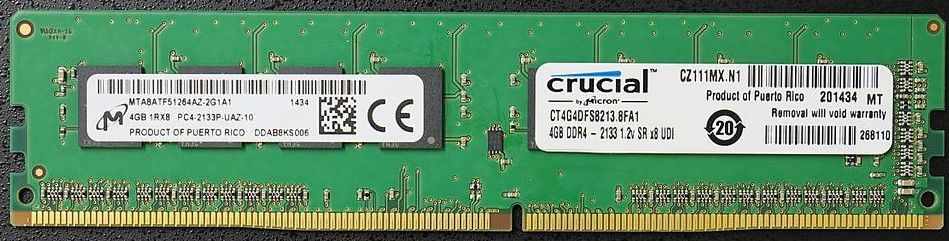

STANDARD DDR4 SDRAM THE MOST POWERFUL OF THE CURRENT MARKET

Source

• Last we have the DDR4 standard, it is currently the most powerful in the market, manufactured mainly by companies such as Asus, gigabyte, corsair and Samsung, companies with high technological prestige.

• DDR4 memories require plates prepared for such power, which are gaming or computers design that need a large processing power, which is its main feature when playing or editing professional video.

A ddr4 RAM can have a capacity from 4GB to 16GB per memory.

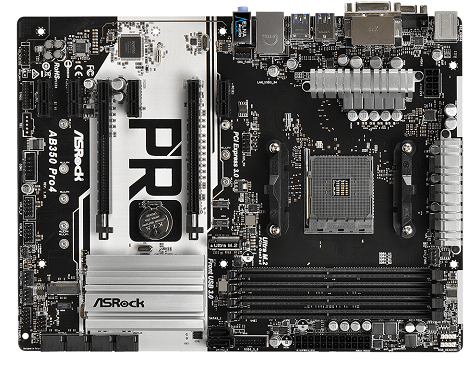

PLATE FOR DDR4

Source

Types of Standard

DDR4-1600
DDR4-1866
DDR4-2133
DDR4-2400
DDR4-2666

_________________________________________________

Good friends steemit, this is a brief review about the different memories that existed or exist today, I can say that actually thanks to the DDR was introduced today what are computers, graphics cards, videogame consoles have advanced a lot opening us a lot of possibilities in terms of performance and work.

Post made with intention for you to learn about technology: D
