Sorry for the delay in posting. I just completed a move from Boston to Upstate New York and I’ve been way too busy rearranging my life contribute much to SteemSTEM. However, my new job in NY is exposing me to a ton of new scientific concepts so I’ve got a bunch of cool things to talk about. The first is inspired by a project I’m working on that will attempt to detect tumors by looking for cancerous DNA in the bloodstream. This DNA is known is circulating tumor DNA (ctDNA) and I wanted to cover some of the research in this field.

How does tumor DNA get in the bloodstream?

All humans (and most creatures with a circulatory system) have DNA floating around their blood. When cells die within or nearby blood vessels, they often release their DNA into the circulatory system and it can persist for some time before nucleases degrade it. This type of DNA is known as cell free DNA (cfDNA) and is usually present at low and stable levels.

When a cancer grows inside the body, the levels of free DNA in the blood can dramatically increase (1). This occurs for two main reasons. For one, tumors usually grow adjacent to blood vessels because they need the nutrients from blood to maintain a high rate of growth. The rapidly growing tumor cells die quickly as well, either through apoptosis or because the fast growth stresses them to the point of death. When these cells die, they release their DNA and much of it migrates into blood vessels. It’s called circulating tumor DNA because it is essentially DNA from tumor cells that circulate through the body.

^{Diagram explaining how ctDNA gets in the blood. DNA is released from cells by apoptosis, necrosis, or secretion and migrates to blood vessels. From (2)}

Why do we care about this DNA?

Scientists have theorized about the benefits of circulating tumor DNA for a long time. The initially discovery of ctDNA was in 1977 (3) when scientists showed that cell free DNA levels were elevated in cancer patients, and these levels decreased after radiation therapy. Even back then it was obvious that simply analyzing blood samples for elevated free DNA levels could be used to detect cancer. It wasn’t a perfect method as cancer won’t always release DNA into the blood, but the fact that all that was needed was a simple blood sample was critical. Drawing blood is a non-invasive technique. It doesn’t pose much risk and, most importantly, it won’t physically disrupt a tumor which could cause it to spread further (2). In addition, multiple blood samples can be taken over time to track a cancer’s progression or regression.

Circulating tumor DNA has rapidly grown in importance over the past 10 years as our DNA detection methods have improved. Instead of just looking at total DNA levels, scientists could begin to read the sequences of the DNA released into the blood (4). They could begin to detect cancer biomarkers, a catch-all term that can be used to refer to DNA sequences indicative of cancer.

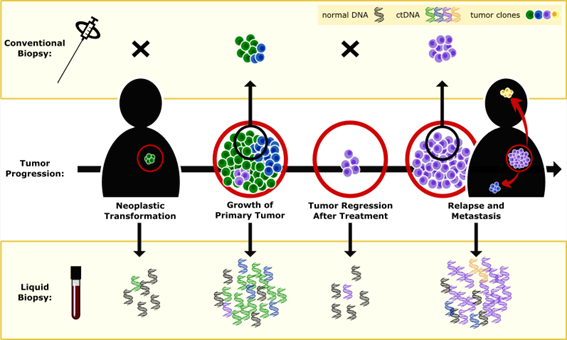

^{Liquid biopsies (aka blood samples) can be analyzed to detect a tumor’s ctDNA. Analysis of a patient after treatment can show whether the tumor comes back and also help identify any new mutations the tumor has accrued (2).}

Not only does this improve the accuracy of using ctDNA to detect cancer, but it can help doctors determine the exact type of cancer affecting the patient. As our knowledge of cancer biomarkers becomes more robust and our next generation sequencing methods improve, we can more accurately identify the cancer affecting a patient and tailor treatment specific to that cancer. This is often referred to as precision medicine and is one of the most sought after goals of modern medical research.

What have we accomplished so far?

OK now for the exciting part where I do a deep dive into a current paper. Well… this is exciting for me at least. If you aren’t titillated by graphs and charts, feel free to skim.

Most of the exciting applications for ctDNA have yet to be put into practice. Some clinical tests do focus on detecting this DNA and a few tests that will begin to leverage next generation sequencing to detect cancer in ctDNA are expected to be available soon (5). However, the major advancements in this field are still done in laboratories rather than hospital rooms. These studies are often longitudinal as well, since researcher’s need to chart the development of a cancer alongside the changes in ctDNA over time. Although this means progress is slow, most research is done directly on human patients since the blood analysis is non-invasive.

A great example of this kind of research is described in the Nature paper “Next-generation sequencing of circulating tumor DNA to predict recurrence in triple-negative breast cancer patients with residual disease after neoadjuvant chemotherapy” (6). In this study, researchers focused on a group of patients treated for Triple-negative breast cancer. This type of breast cancer is uncommon, but particularly malignant and has a high likelihood of relapse. The researches wanted to determine if they could analyze circulating tumor DNA to detect a relapse before conventional methods were able to do so.

To do this, the researchers took tumor samples from 38 patients that had received chemotherapy, surgery, and radiotherapy designed to eliminate the disease. They were able to detect cancer-specific mutations in 33 of these tumor samples. They then looked at blood samples and attempted to find circulating tumor DNA matching the mutations in the tumor. They found a match in 4 of the 33 patient samples. What’s interesting is that all four of these patients had rapid recurrence of the cancer and died within a year. In the patients without any detected circulating tumor DNA, the rate of recurrence was 28%. In other words, the presence of ctDNA guaranteed cancer resurgence, but even patients without detected ctDNA could experience a relapse.

It’s a bit depressing that this major nature paper only showed that it might be able to predict a patient’s death ahead of time, but its implications are huge. Having another tool that can help predict the success or failure of a cancer treatment more rapidly can dramatically increase survival rates and can hasten treatment. It’s also important to note that the current limitations of genome sequencing technology and cancer bioinformatics were two of the biggest factors holding back studies like these. These two factors are constantly improving which should make analysis of ctDNA much easier in the near future.

Studies similar to the one described above are ubiquitous the field at the moment. Paper titles like “Mutation tracking in circulating tumor DNA predicts relapse in early breast cancer” (7), and “Personalized circulating tumor DNA biomarkers dynamically predict treatment response and survival in gynecologic cancers” (8) are common. Although these studies have yet to transfer to routine clinical application (9), the success of them suggests that We may expect analysis of ctDNA to be one of the first widely available tools for personalized medicine.

Images

All images were taken either directly from the publication referenced, from Wikipedia Commons, or by myself. If any image owner has an issue with this article, please contact me and I will address the issue.

References

(1) https://www.sciencedirect.com/science/article/pii/S0092867417301150
(2) https://en.wikipedia.org/wiki/Circulating_tumor_DNA
(3) https://www.scopus.com/record/display.uri?eid=2-s2.0-0017360626&origin=inward&txGid=f75a328d97809828b73f844d1d546f5f
(4) http://cancerdiscovery.aacrjournals.org/content/6/5/479
(5) https://www.sciencedirect.com/science/article/pii/S1672022917300487
(6) https://www.nature.com/articles/s41523-017-0028-4
(7) http://stm.sciencemag.org/content/7/302/302ra133.short
(8) http://www.gynecologiconcology-online.net/article/S0090-8258(16)30170-6/abstract
(9) http://cancerdiscovery.aacrjournals.org/content/6/5/479.short
