THE IONOSPHERE AND HOW RADIO COMMUNICATION IS POSSIBLE

obamike (52)in #steemstem • 6 years ago (edited)

Hi, stemians. It feels awesome to be back writing STEM after a while. It is a new dawn for me as I will begin to write on topics related to my research area, and link it up with my findings eventually. I am working on the perturbation introduced by eclipse event in the dynamics and composition of the ionosphere. I seek to reveal the dynamical complexixity, as well as to model the behavior of the ionosphere before, during and after eclipse events. I will start building from the basics and gradually painting the bigger picture. Let’s get right to it, shall we?

RADIO COMMUNICATION
Many people wonder why radio communications, especially over long distances, is possible. I remember at the very advent of GSM network in my country, some people were of the opinion that it is witchcraft and some even try to distance themselves from using the technology.

Is it really witchcraft?

As it is said information is power, what you refuse to find out you will remain a slave to. To answer the above question, it is important to know that whatever you seek, you will find. This applies to anything and is also the case with radio communication that men eventually invented. It is not in any way witchcraft (witchcraft is simply an unexplained science) and it is made possible primarily by the layer of the atmosphere called the ionosphere.

^{Image credit: Wikimedia, Public Domain}
A LITTLE OF HISTORY
It was James Clark Maxwell who first points the attention of the world to the possibility of using electromagnetic wave in space for radio communication. In his electromagnetic field theory stated in 1873, Maxwell explains that electromagnetic waves also have properties of light i.e. they can be reflected, refracted or even absorbed. Most importantly also is the fact that light itself is an electromagnetic wave.
It was Sir Edward Appleton who first discovered that radio waves were transmitted around the world after being reflected back from the ionosphere[1]. This is made possible by the large concentrations of charged particles (ions) and free electrons present in this region of the atmosphere.

However, it would be Guglielmo Marconi that would first send a signal to a location a few km away through wireless telegraph [2]. The big question then was, can telegraph provide an effective means of sending signals over longer distances and across the continent? So, researcher began the development of radio communication and gradually Morse code was developed and in time we are where we are today in radio communication.

THE IONOSPHERE
The Earth’s atmosphere has five primary layers which are the troposphere (0-12km), the stratosphere (12-50km), the mesosphere (50-80km), and the thermosphere (80-700km).
The ionosphere falls in the upper part of the Earth’s atmosphere which is rich in ions (charged particles). Other parts of the atmosphere also contain charged particles but not as much as the ionosphere. This layer can be found between the thermosphere, the exosphere and it eventually merged with the magnetosphere (outer space region).

The ions and free electrons present in the ionosphere aids radio communication and they are made available majorly by solar radiation. So, it will be right to say that the ionosphere owes its existence to the Sun and once the Sun is no more, it will be the end of many things including our whole planet.

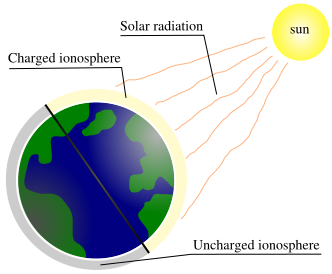

_{[image credits: wikipedia commons under the Creative Commons Attribution-Share Alike 3.0 Unported license]}

Solar radiation getting to the ionosphere hits the atoms/molecules present there through the process called photoionization and plasma is being produced. The distribution and dynamics of this plasma depend on, among many other factors such as the coupling between the neutral atmospheric winds, solar irradiation, photoionization, electrical conductivity, and interactions with the magnetic field of the Earth etc.

During the day, the solar corona produces a constant stream of UV and X-ray which travels to the earth causing ionization in the ionosphere. Simultaneously, a process called recombination occur which entails electron capturing by positive ions. The balance between these two processes determines the level of ionization present in the ionosphere at any given time. If photoionization is more than recombination, then you can be sure to have more ions present for radio communication.

Also, the amount of ionization depends on the amount of solar radiation received. The solar radiation received depends on the sunspot cycle. The more the sunspot, the more the level of ionization in the ionosphere. Thus, there is diurnal effect and seasonal effect. Also, ionization varies with geographical locations i.e. polar regions, aural region, equatorial region, zones, mid-latitude where the intensity of sunlight received varies. This implies that only part of the ionosphere is being ionized by the Sun at any given time.

WHAT IONIZES THE IONOSPHERE AT NIGHT?

When the Sun is no longer in the night skies, the duties of ionization falls to cosmic rays emanating from various sources throughout our galaxy and the universe. It can be from rotating neutron stars, or supernovae, or radio galaxies, or even quasars and black holes. Even though the ionization produced by cosmic rays is not as strong as that from solar UV and X-ray, it is just sufficient to ensures the continuous reflection of radio signals at night.

LAYERS OF THE IONOSPHERE

_{[image credits: Wikimedia, Public Domain]}

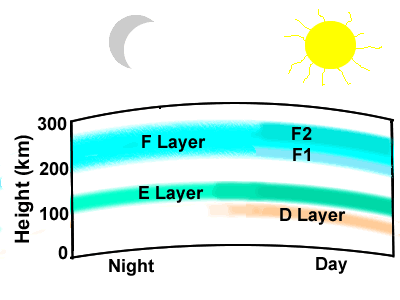

The ionosphere is sub-divided into four layers. These are D layer (50km to 90km), E layer (90km to 140km), F1 layer (140to 210km) and F2 layer (210km and beyond up to 1000km).The process of ionization and recombination is higher in the lower region i.e. regions closer to the ground. Each layer of the ionosphere has different refractive indices. Hence, the propagation speed of radio waves varies as they travels through the ionosphere due to the variation in refractive index corresponding to the plasma density and the radio wave frequency.

IMPORTANCE OF THE IONOSPHERE TO MAN

_{[image credits: wikipedia commons under the Creative Commons Attribution-Share Alike 2.5 Generic license]}

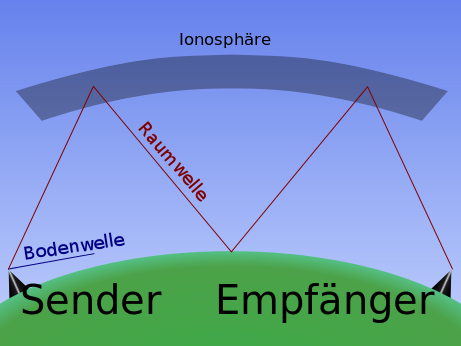

The Earth’s atmosphere is thin such that free electrons are really only free for just a short period before being recaptured by positive ions. However, it is these free electrons that are important for high-frequency radio propagation. These free electrons are responsible for refracting (bending) and eventually reflection of HF radio waves back to the Earth. When a radio signal is sent from the Earth, it travels to the ionosphere where it interacts with free electrons. These free electrons restructure and send the radio signal back to the Earth (to the receiving end).

The more the number of free electrons available (density), the higher the frequencies that can be reflected. At any time, the number of free electrons present in the ionosphere is sufficient to influence radio propagation between locations on the Earth. For VLF (Very Low Frequency) signals, the ionosphere in conjunction with the ground produces a waveguide through which the signal can bounce and curve, making its way around the Earth. The ionosphere does not allow the use of the same frequency throughout the year or even 24hours due to its instability. That is why radio communication signals that travel to the ionosphere are varied by the communication gadgets.

The ionosphere enables radio wave propagation (radio signal) that is used in broadcasting, ship and aircraft communication, telecommunication and navigation by ensuring that signals are reflected back to the receivers, though, its efficiency depends on the frequency of the transmitted signal. This is a critical point as the performance of the ionosphere is markedly different during the day and at night.

However, these variations are somewhat regular, which may also be predicted. (I believe there are some non-linearity embedded which is why I am undergoing a research to reveal the non-linearity in the dynamics of the ionosphere revealed possibly during eclipse events). These predictions have enhanced the planning of radio services over the decades.

When radio signals travels from the Earth or satellite into the ionosphere, some amount of energy carried by the radio wave is transferred to the free electrons and ions of the ionosphere, causing the oscillation of these free electrons and ions at the same frequency as that of the radio signal. This, in turn, leads to the attenuation of the radio wave signal when passing through the ionosphere.

This attenuation is more in the lower regions especially the D region where neutral particle density is more as compared with upper regions characterized by more free electrons. Furthermore, the collision frequency of the electrons with the neutral particles is inversely proportional to the square of the frequency of the radio waves.

In effect, attenuation is greater as the frequency is lower or wavelength is longer. Consequently, when radio signals pass through upper regions of the ionosphere, the signals undergo little loss of strength.

RADIO WAVE

_{[image credits: Wikimedia, Public Domain]}

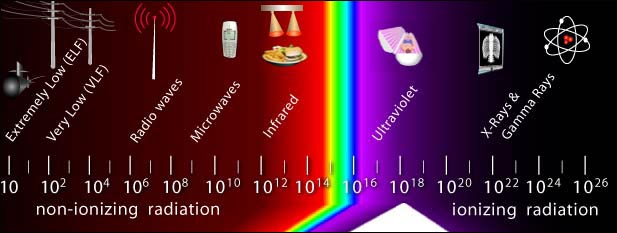

The spectrum of electromagnetic wave begins from as low as 1Hz to high up cosmic rays frequency. Radio communication is made possible by transmitting at a frequency within the electromagnetic spectrum. Radio communication systems can be classified into four different groups according to the frequency of the electromagnetic wave. They are:

Low frequency/Medium frequency (LF/MF)
High frequency (HF)
Very high frequency/Ultra high frequency (VHF/UHF)
Super high frequency (SHF)

Radio wave travels at the speed of light (300, 000,000m/s) given by the relation ∁=fλ Where C is the speed, f is the frequency and λ is the wavelength. So high frequency implies low wavelength and vice versa. Electromagnetic waves within a range of 30 MHz can return to Earth after being bent (reflected) by the ionosphere. Thus, apart from times when solar eruptions are strong, radio waves that are over 30 MHz frequency is not reflected and can penetrate the atmosphere (ionosphere) and reach outer space, hence making communication between outer space and the Earth achievable.

Therefore, radio waves of over 30 MHz are used for intercontinental communications via communication satellites.
Artificial satellites are built to reproduce the effects experienced in the ionosphere, their natural brother, and they, therefore, act the same way (as a reflector), as the ionosphere for frequency above 30MHz.

Radio waves originating from the Earth are reflected by these satellites if they fall within their range (coverage area).despite being produced with the highest technology existing, manmade satellite faced a limitation in their coverage area. Another notable disadvantage is that they are very expensive to produce and can last only for approximately 25 years.

Thanks to the wide coverage of the ionosphere (covering the entire planet), radio frequency lower than 30 MHz can be transmitted across the globe. Due to the natural occurrence of the ionosphere, it requires no maintenance, no supply of energy or gases and is a permanent region of the atmosphere.
