Steemit Wheel Container

in steemit •  2 years ago

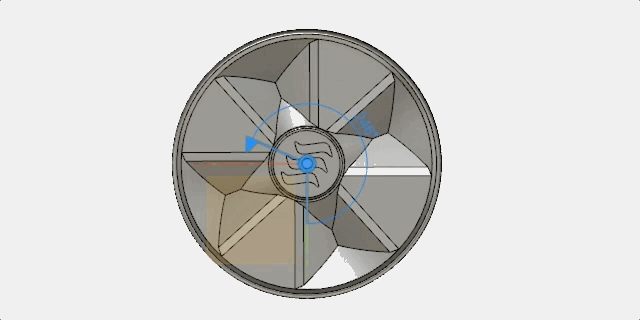

Wheel 1.gif

Today I made a Steemit wheel container with Fusion 360. I wanted to make a container for my next homemade body butter for men and I was thinking what design would match that show some masculinity. In this post I will show and explain how I made this wheel container. In my next post I will show you the printed wheel container and its content, the homemade body butter for men with recipe included.

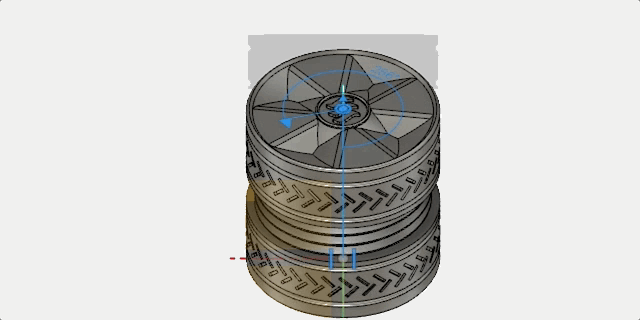

Wheel 2.gif

Tutorial

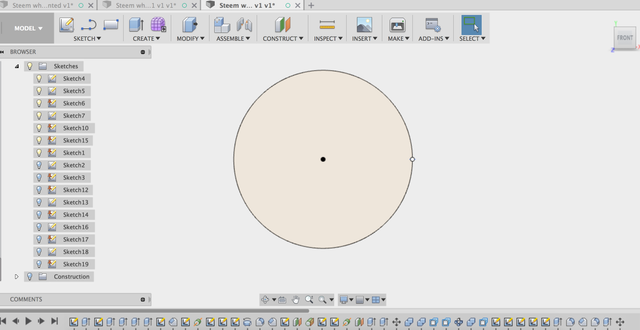

I started making a circle, the size of the container. (Sketch > Circle > Centre Diameter Circle).

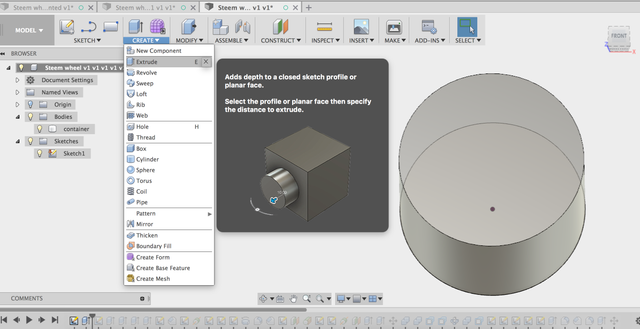

I extruded the circle creating the height of the container.

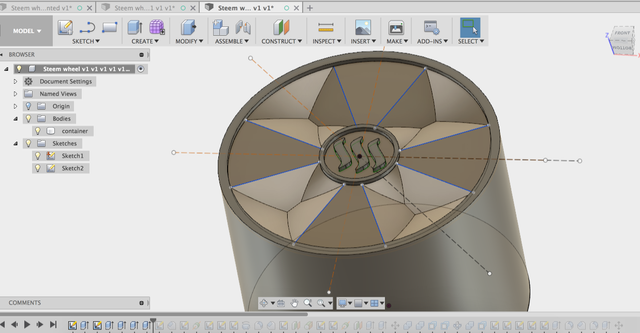

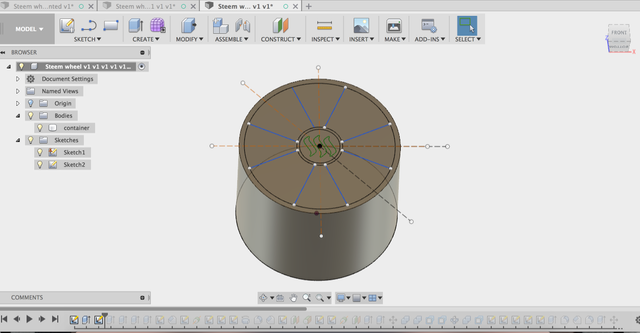

Here I created the base of the wheel disc. (Sketch > Line). I also inserted a Steemit svg file, the Steemit logo for the centre.

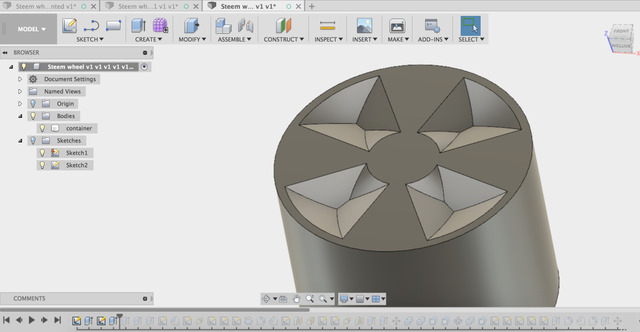

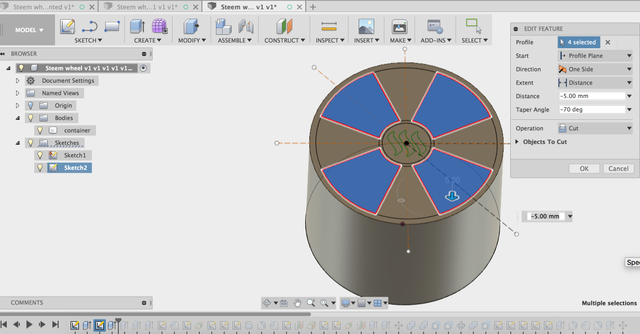

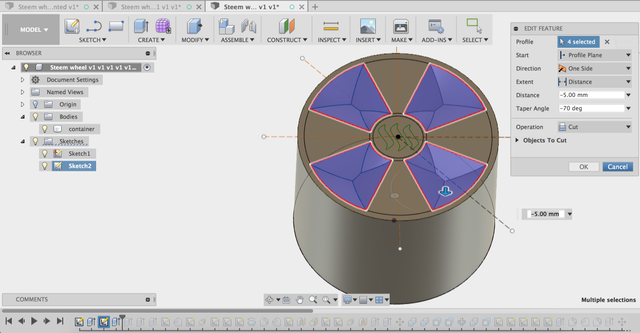

I selected the faces that I want to extrude, giving depth. The angles I tapered till -70 degrees to make it more unique.

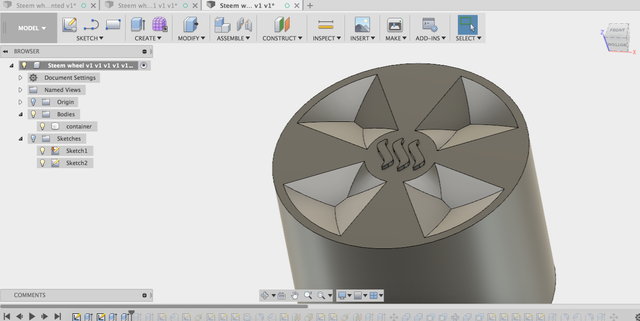

The Steemit logo here has been extruded with 1mm.


The two circles I offset and extruded with 1mm as well.

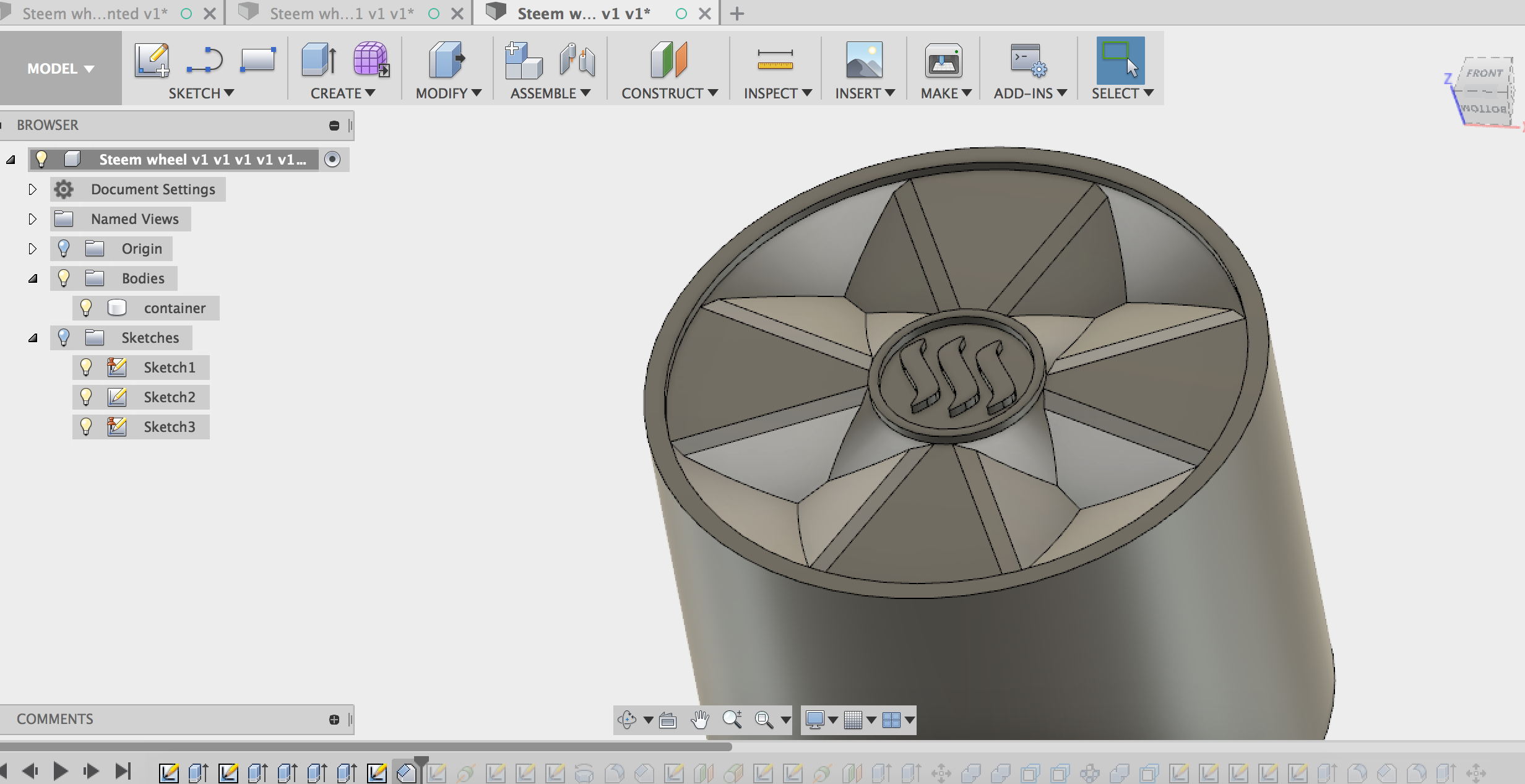

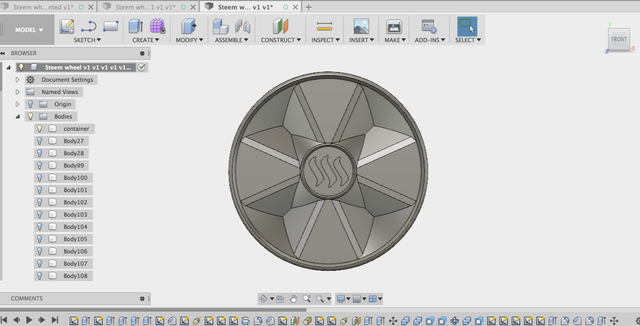

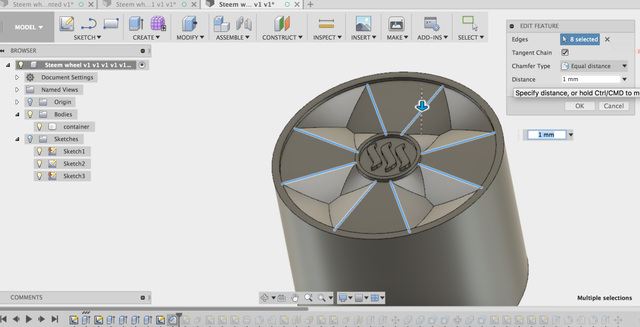

I selected the edges of the wheel disc and applied bevels. (Modify > Chamfer).

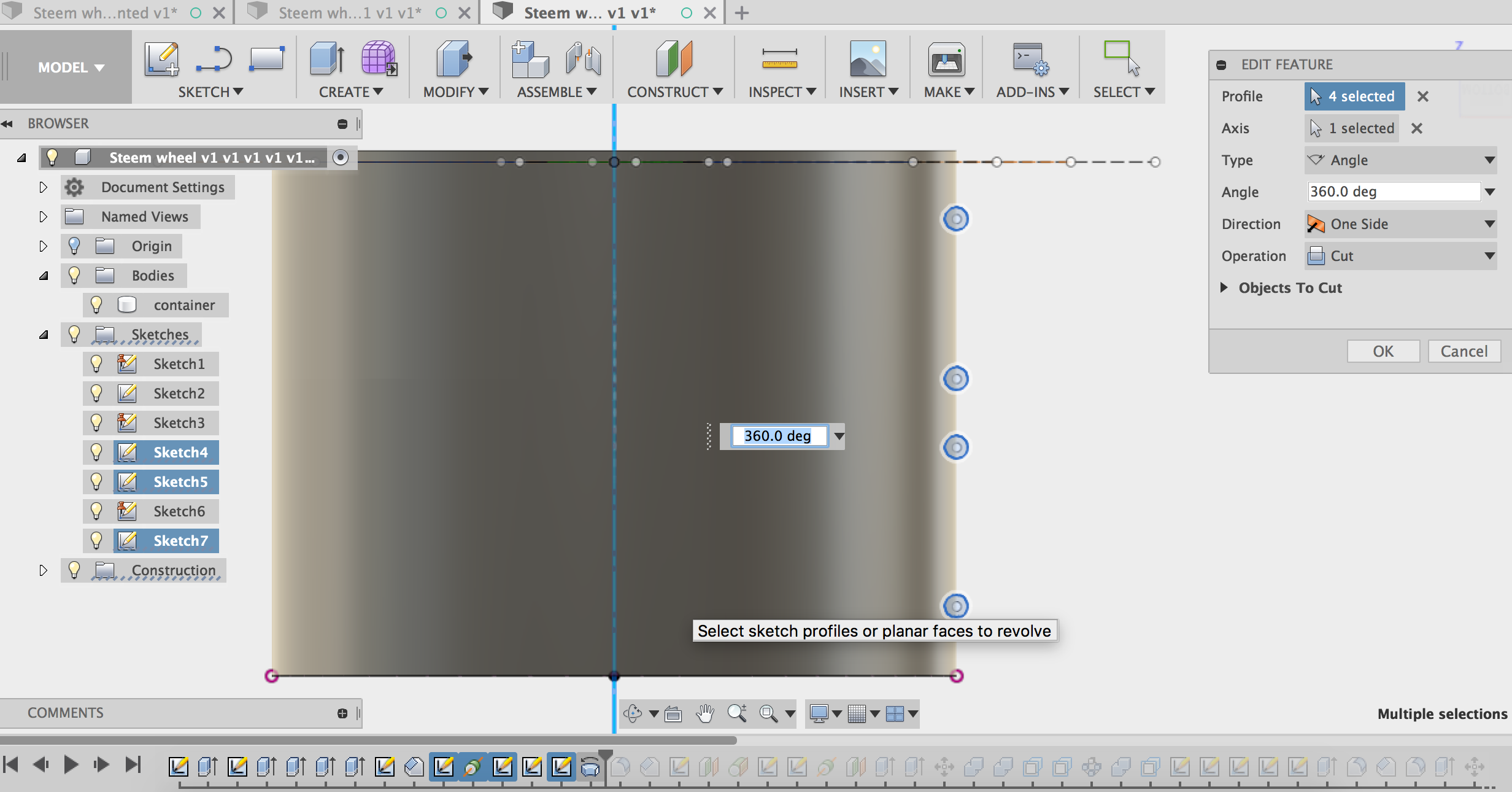

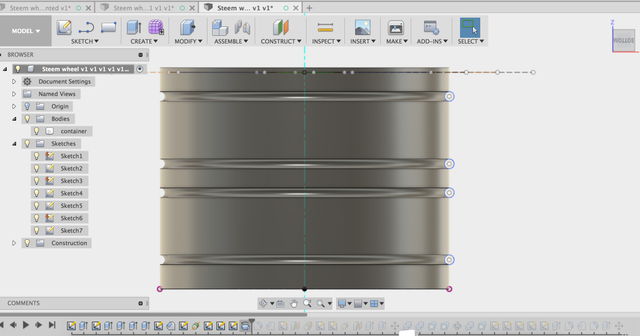

For the tire profile, I created first 4 circles and revolved the circles. (Create > Revolve).

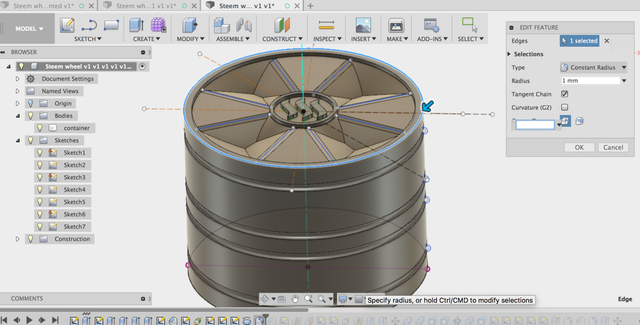

Smoothened the edges of the wheel.

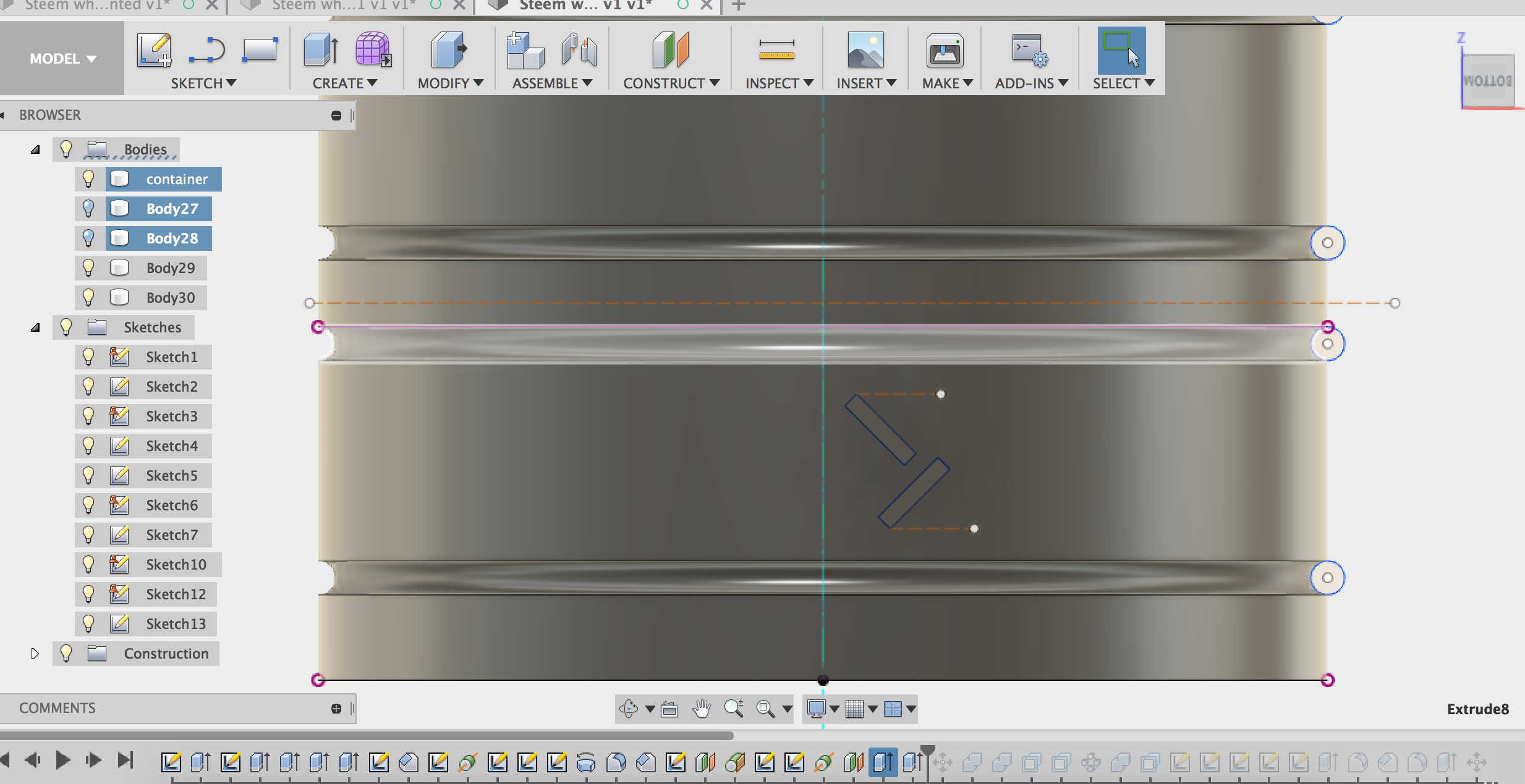

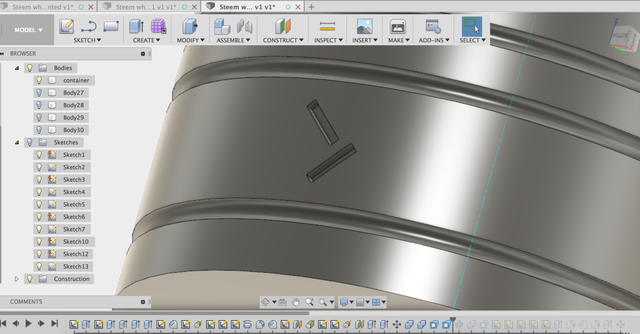

For the tire I wanted zig zag stripes. So I sketched the zig zag lines first.

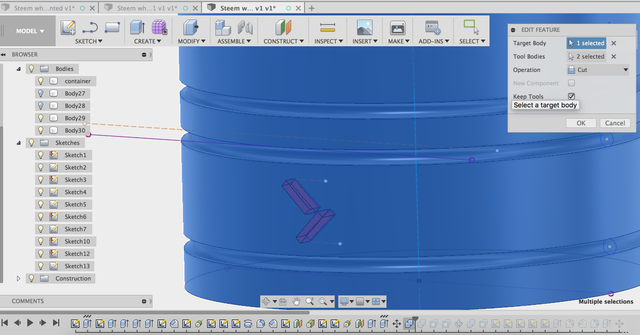

With Combine function, I made a cut in the container. It would not be possible with extrude simply because the object is round. I kept the tools( the two zig zag stripes) for making the pattern. This is needed.

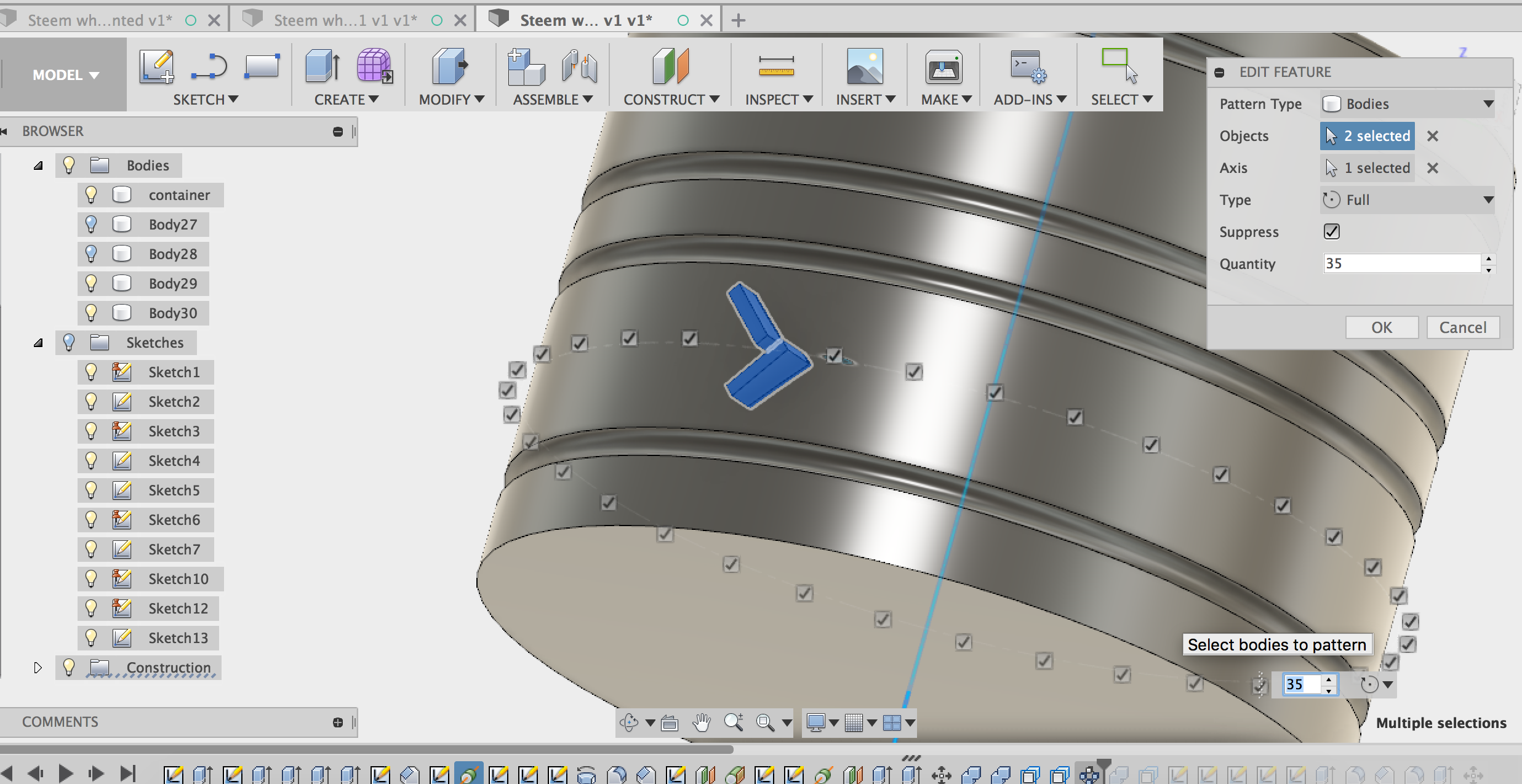

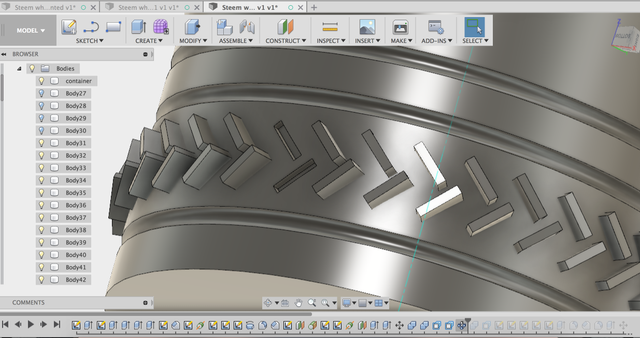

I am so happy Fusion 360 has this function, otherwise I had to do it one by one, 35 times. (Create > Pattern > Circular Pattern).

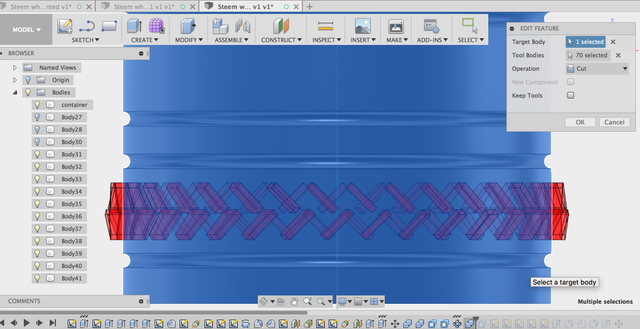

It's a pity the pattern is not extruded automatically as the 2 original zig zag bodies. So I had use the Combine and Cut function, selecting ALL zig zag bodies.

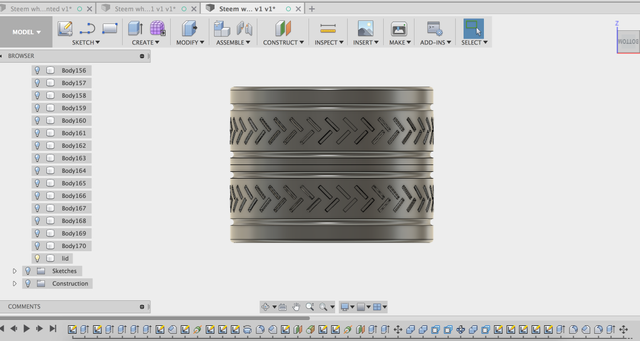

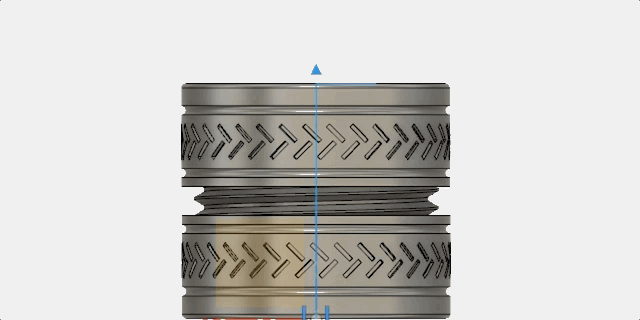

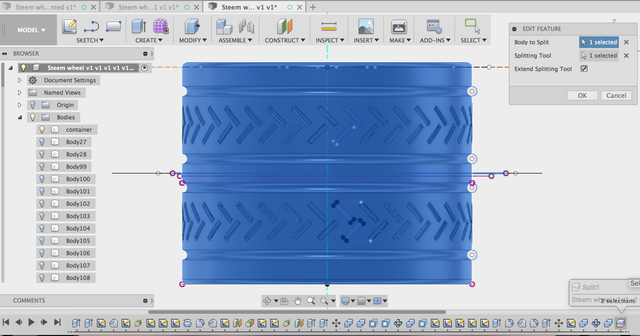

Now it is done, I did the same for the upper part of the tire. After that I split the body in two: Container and Lid. (Modify > Split Body)

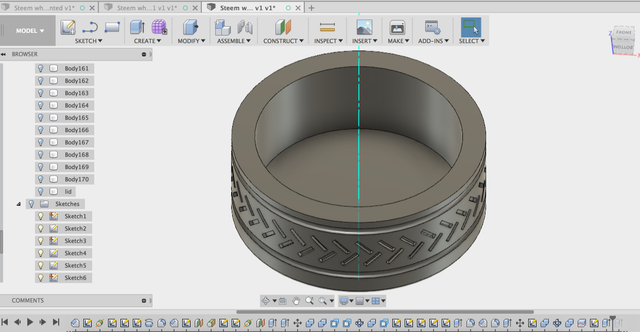

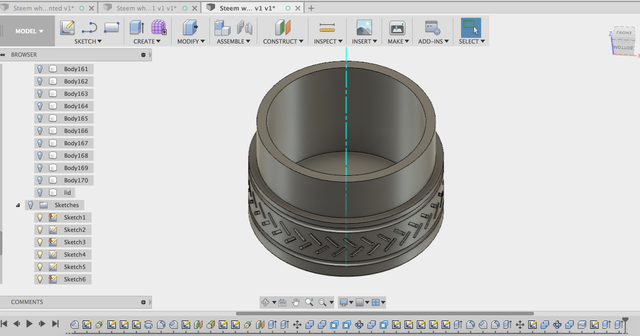

For the container, I sketched a circle and extruded it for the body butter.

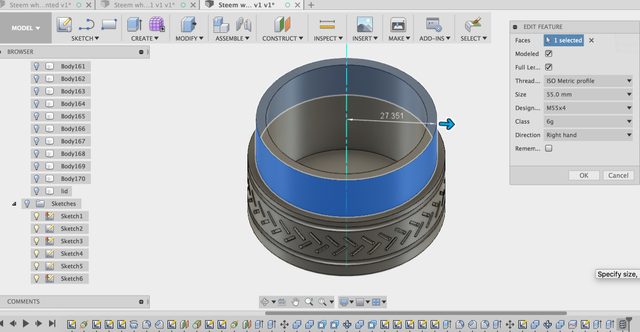

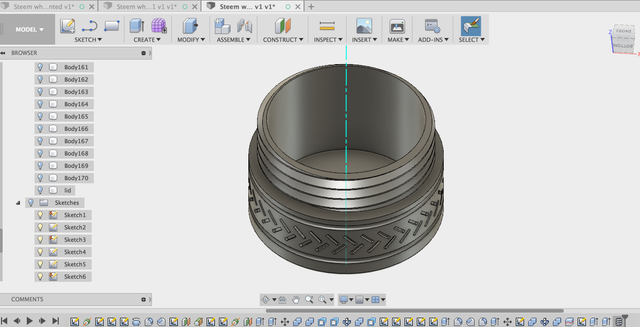

I added external threads for the container to be able to open and close.

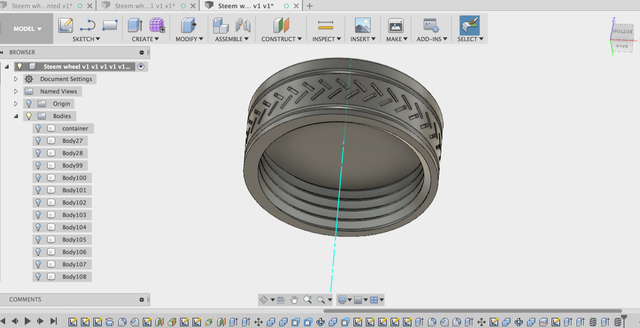

I did the same for the Lid.


This was the tutorial. In my next post I will show you the printed container and its lid with the homemade body butter for men.



Wheel 3.gif
