Accelerating STEEM with Intel Optane

in #steemdev6 years ago (edited)

Few days ago I posted about using Intel's Optane drives to cost effectively run STEEM workflows. Details about the primary tests : Using Intel Optane for STEEM blockchain seed node

Folks @ Intel and Packet have collaborated provide access to Optane based hardware for projects and they have considered STEEM blockchain community's equest & it looks like we / STEEM is on the way to become the first blockchain project to join the program !

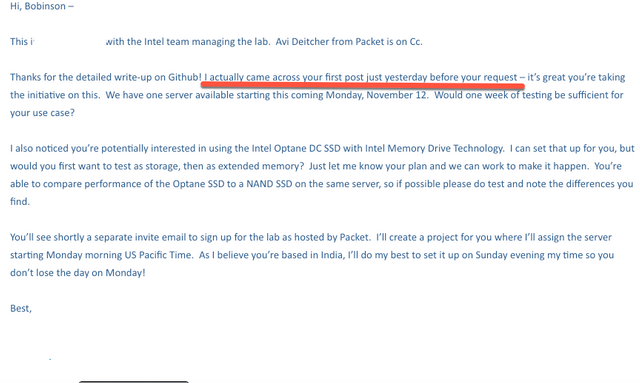

To be honest, I was surprised by the above response which said they @ Intel had already seen my post mentioning Optane!

My request is here : requesting access to test STEEM blockchain

Details of the program

Intel & Packet have partnered to provide FOSS projects access to the latest Intel technologies. The communities can conduct performance benchmarks using this hardware. Running benchmarks using latest hardware is often difficult for Open Source Projects. So initiatives like AcceleartewithOptane can help to decide on the right architecture for production work loads.

We have access to very nice hardware for a limited period in which we have to complete the tests and if possible publish the results.

Server

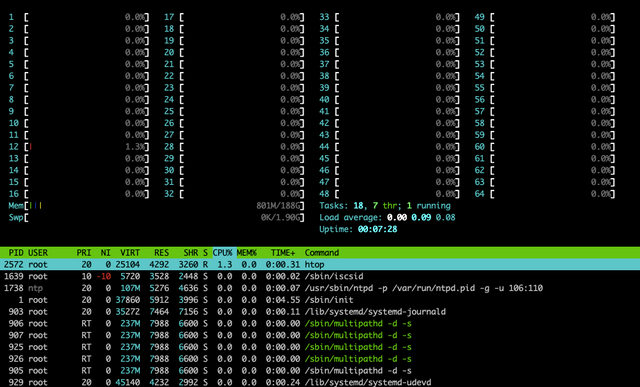

Intel(R) Xeon(R) Gold 6142 CPU @ 2.60GHz, 192 GB of RAM, Plenty of NVMe

--
NAME TYPE SIZE MODEL
nvme2n1 disk 3.7T INTEL SSDPEDKX040T7
nvme1n1 disk 698.7G INTEL SSDPE21K750GA
sda disk 223.6G INTEL SSDSC2KB24
sda2 part 1.9G
sda3 part 221.2G
sda1 part 512M
nvme0n1 disk 698.7G INTEL SSDPE21K750GA
nvme3n1 disk 698.7G INTEL SSDPE21K750GA
--

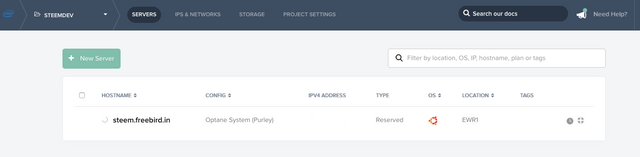

Packet's Management interface

The interface / dashboard looks more like project management tool and its refreshing. Though the best thing I liked about Packet so far is their support for BGP right there in the dashboard. (Spoiler Alert: My first job was at GoGrid/DataPipe/Rackspace & have written pretty much everything for a VM management tool starting from the SNMP polling)

The BGP management is of at-most importance to me as the BGP spoofing / poisoning / hijacking is the latest trend in town with pretty much everyone from Google to your next door ISP is a victim.

How will the testing done ?

My intention is to take inputs from the community and make it a collaborative effort where everyone can participate. Testing for replay times or RAM usage can be very easy and in the case of the "seed" & "witness" scenarios, this could be a good starting point. But when it comes to the full RPC nodes, the scenario changes as in addition to the memory and single core CPU intense workload, we will also have the incoming connections which will involve the kernel's network stack as well. To make matters little more interesting, we have RocksDB for storing parts of the blockchain. Since full RPC nodes do not just use the sequential access to the blockchain, which is going to be easier, we will have seek and parallel access to the RocksDB components making the scenario challenging.
Ideally it will be better to have few benchmark tools beyond the normal UNIX tools in the full RPC scenario.

Request everyone to share your thoughts to make this a truly community driven initiative.

The high level plan shared with Intel / Packet is as follows:


There are 3 scenarios when using Optane as storage in the blockchain domain (Which I think is going to be applicable for many other chains too) of which 2 scenarios can be tested in 1 week (5 x 24 hours) time frame. The third scenario however needs little more effort as it includes testing of RocksDB using benchmarks. ie, there are two areas namely the blockchain itself and the RocksDB based snapshot. After seeing the LMDB test results, I feel the 3rd scenario is going to be of much interest from the industry - not just the blockchain space but also from the in-memory database industry.

So in one week, we can test 2 of the following 3 scenarios:

  1. STEEM Blockchain seed node disk storage and RAM intensive workload
  2. STEEM witness node : Single Threaded (1 Core), RAM and disk intensive workload with highest possible network QoS
  3. STEEM Full RPC node: This is essentially a application server with STEEM blockchain stored in RocksDB. The workload is CPU, RAM, Disk and Network Bandwidth Intensive and will need 512GB RAM as of now. The RocksDB disk size is around 240 GB as I write this email. This configuration will take little more effort to test.

I also noticed you’re potentially interested in using the Intel Optane DC SSD with Intel Memory Drive Technology. I can set that up for you, but would you first want to test as storage, then as extended memory?

Yes, this was I was attempting for a while now. As you can see, the workload scenario 3 above needs considerable RAM and I was exploring a means to use SSD/Optane to find cheaper alternative for RAM. So this is the real objective and once the scenario1 and scenario2 are covered, we can plan to test this.

You’re able to compare performance of the Optane SSD to a NAND SSD on the same server, so if possible please do test and note the differences you find.

Yes, it’s possible. I had already done this (but not documented.)


CC: @anyx @drakos @elear @gtg @jesta @therealwolf

Sort:

Huh! This is an epic finding and indeed good news. I see a lot of positivity in this. Surely, if the initiative picks up, it'll be a great plus for the Steem blockchain.

Furthermore, the GitHub repo attached to this post does not seems valid as no ''code'' is present in it. However, I can see potentials and the value on the Steem blockchain if this request gets granted.

Your contribution has been evaluated according to Utopian policies and guidelines, as well as a predefined set of questions pertaining to the category.

To view those questions and the relevant answers related to your post, click here.


Need help? Write a ticket on https://support.utopian.io/.
Chat with us on Discord.
[utopian-moderator]

I can see potentials and the value on the Steem blockchain if this request gets granted.

The Intel team and our friends at Packet has already granted us the hardware and now I am testing it. :-)

Thank you for your review, @tykee! Keep up the good work!

Excellent! I know that the main priority of D-App creators (and me) currently is to ensure that mass onboarding can be supported by the blockchain - so any testing that can be done to assess how much load nodes running Optane can sustain would be greatly appreciated.

Agreed. That being said, simulating large amounts of load is going to be a a difficult task. @anyx has a full RPC node running which uses Optane for the RocksDB storage. I think his node will be the best to test the network performance. Right now I feel we are limited to test only the disk I/O. Testing the capability of the blockchain like STEEM also includes how good or bad the components like Appbase and RocksDB work. I think the blockchain as such which was battle tested from the days of "Graphene" and Bitshares-2.0 (& now Chainbase) - infact the right way to address Bitshares / STEEM family of blockchains is to call them as Chainbase ( https://github.com/steemit/steem/tree/master/libraries/chainbase ) based IMHO.

I see, ok. I know that the current network is alleged to be only running at a small percentage of capacity, so it may be that the actual limitation for onboarding comes not from hardware, but from resource credits and delegated steem power available for actually creating functional accounts. It would still be good to have some real world data on that though.. Plus what would occur if the faster nodes go down and we have significantly more users on board that we do currently.
The D-App teams need to be confident in advance that their marketing efforts will not result in network problems soon after.

completely agree. End to End bench marking is an item I was always requesting. There are tools available to benchmark blockchains and its possible to perform the tests. Personally I have been trying to setup a means to effectively test atleast with Tinman but with my office work I have not gone far. But with everyone's support we can do the benchmark with "Caliper". I hope Intel team can support us again once we have the caliper based test suite ready so that a formal bench-marking can be done. :-)

Hi @bobinson!

Your post was upvoted by @steem-ua, new Steem dApp, using UserAuthority for algorithmic post curation!
Your post is eligible for our upvote, thanks to our collaboration with @utopian-io!
Feel free to join our @steem-ua Discord server

Hey, @bobinson!

Thanks for contributing on Utopian.
We’re already looking forward to your next contribution!

Get higher incentives and support Utopian.io!
Simply set @utopian.pay as a 5% (or higher) payout beneficiary on your contribution post (via SteemPlus or Steeditor).

Want to chat? Join us on Discord https://discord.gg/h52nFrV.

Vote for Utopian Witness!

Great @bobinson, now I can sleep in peace. some people are really pushing our steem beyond the boundaries.

This is great as I said before. Will pass it along and try to figure something out and participate on the side.

Thanks ...

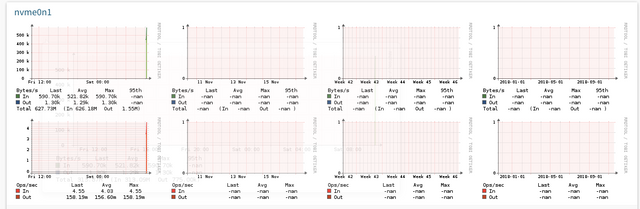

Test with optane for blog storage is undergoing. Hoping to update with some nice graphs ..

/dev/nvme0n1 688G 204G 450G 32% /0optane

Finally you got your path to show your credentials keep continue.
All the best!!

This looks interesting, though am not a developer. I feel the blockchain can gain from this, considerably.

is there any specified kind of limit, or date that people think the Steem blockchain will reach its limit, using the Optane architecture? what is it at now?

I don't think there is such a limit which is not normal to any software. In the case of STEEM the specific challenge will be to scale to meet the ever changing demands of end users. @ura-soul has commented about this above. One of the technical challenges was the ever increasing size of the block_log (blockchain) I believe with the introduction of RocksDB that is addressed now. That being said extensive testing is needed to show the scalability of the blockchain when it is working in the full RPC mode.

Excellent bobs.. Resteeming...
