How to Replace a Transistor Safely?

In the electronics industry, replacing a transistor is a common but precise technical task. Whether due to component discontinuation, supply difficulties, or design optimization needs, following the correct replacement principles ensures stable circuit performance and prevents potential failures. This article systematically explores the widely accepted industry “replacement principles,” focusing on the three main rules: same type, similar characteristics, and similar appearance.

I. What is a Transistor?

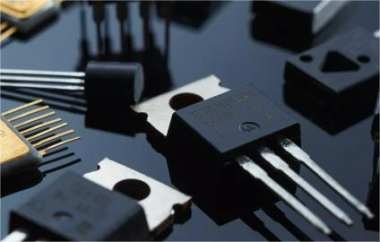

A transistor is a semiconductor device with three main pins: the Base (B), Collector (C), and Emitter (E). It can function either as a signal amplifier or a switch. Its basic principle is that a small current or voltage applied to the base controls a larger current flowing between the collector and emitter.

Transistors are widely used in a variety of devices, including audio amplifiers, logic switches, power converters, and switching circuits. Therefore, when a transistor needs replacement due to discontinuation, failure, or supply issues, careful selection of a substitute is essential. Correct replacement ensures the circuit continues to operate reliably, while a wrong choice could lead to serious problems.

II. Same Type

Using a transistor of the same type is the foundation of any replacement operation, ensuring that its basic electrical properties and physical structure match the original.

• Same Material: Transistors are primarily made from either germanium or silicon. Since these materials have fundamentally different conduction voltages and temperature characteristics, replacements must match the original material—germanium with germanium, silicon with silicon.
• Same Polarity: Transistors are structurally classified as NPN or PNP, with opposite current directions. The replacement must match the polarity exactly: NPN can only replace NPN, and PNP can only replace PNP. Using the wrong type may prevent the circuit from working or even damage components.
