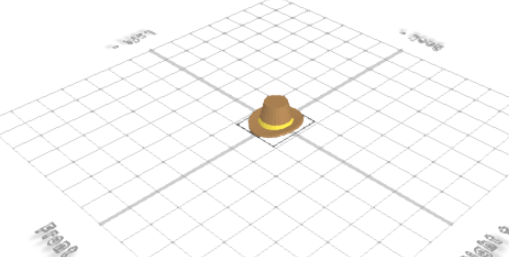

Welcome to this tutorial where we will delve into the world of cowboy hats using SelfCAD, a powerful and intuitive 3D modeling software. Whether you're a seasoned designer or a beginner looking to add a touch of the Wild West to your projects, this tutorial is your ticket to crafting a bespoke cowboy hat from the comfort of your computer.
In the next few steps, we'll guide you through the process of creating a stylish and authentic cowboy hat, exploring the various tools and features SelfCAD has to offer.
The interactive tutorial for this article can be accessed here; https://www.selfcad.com/tutorials/824u19303m6h6a5s5o3k34s1a2l6920501fu
To access the software, visit https://www.selfcad.com/,
Once you’ve launched the editor;

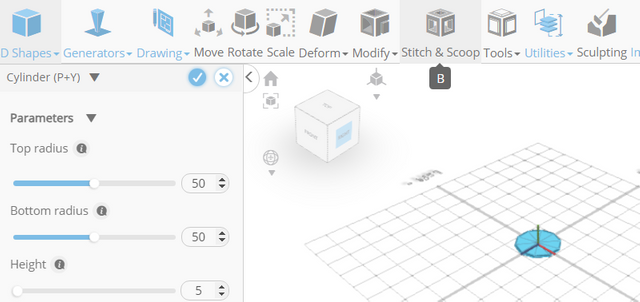

From the 3D shapes category on the Toolbar choose cylinder
Set Height to 5
Click to finalize Cylinder

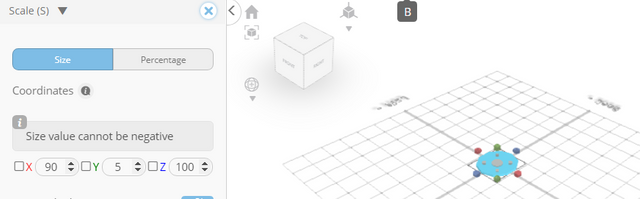

Click Scale on the Toolbar
Set x to 90
Click ‘X’ to close Transformation panel

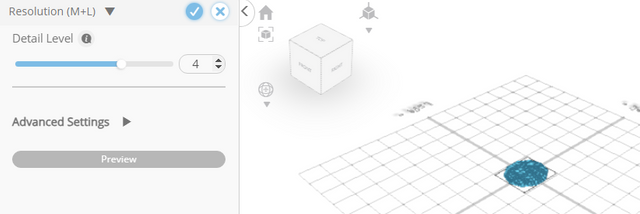

From the Modify category on the Toolbar choose Resolution
Set Detail Level to 4
Click to finalize Resolution

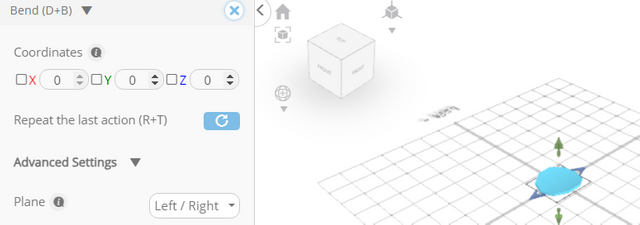

From the Deform category on the toolbar choose Bend
Set Plane to Left/Right
Set y to 30
Click ‘X’ to close Transformation panel

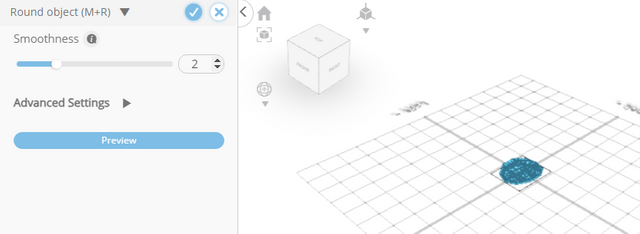

From the Modify category on the Toolbar choose Round Object
Set Smoothness to 2
Click to finalize Round Object

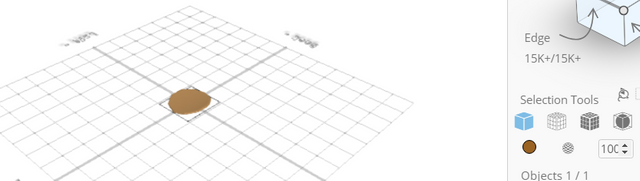

Click color picker button to change color of selected object
Click brown to change color of selected object
Click ok button to confirm color change
From the 3D shapes category on the Toolbar choose cylinder

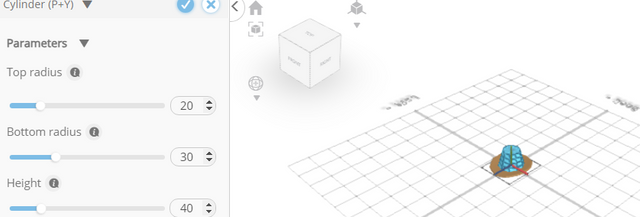

Set Top Radius to 20, Bottom Radius to 30, Height to 40, Horizontal segments to 4, position y to 4
Click to finalize cylinder

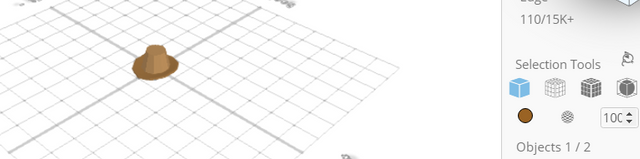

Click color picker button to change color of selected object
Click brown to change color of selected object
Click ok button to confirm color change
Click to activate Face Selection
Click Selection settings button to change selection settings
Set Loop Selection to True
Click on highlighted face to select loop from the object
Click ‘x’ to close selection settings panel

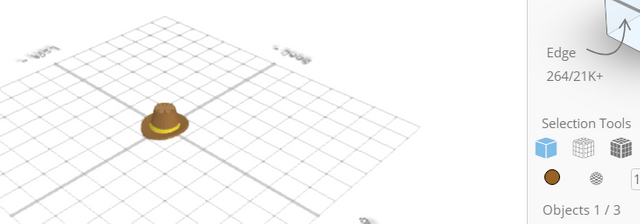

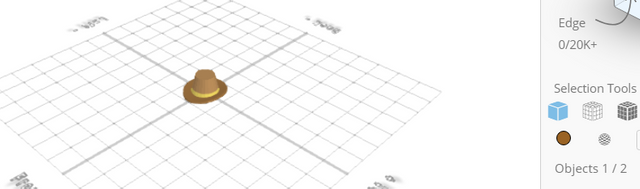

Click color picker button to change color of selected object
Click yellow to change color of selected object
Click ok button to confirm color change
Click on highlighted to deselect it
From the 3D shapes category on the Toolbar choose cylinder

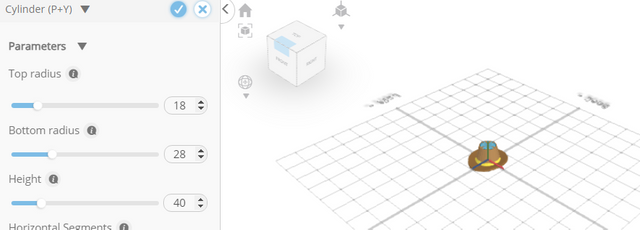

Set Top Radius to 18, Bottom Radius to 28, Height to 40
Click to finalize cylinder
Click color picker button to change color of selected object
Click yellow to change color of selected object
Click ok button to confirm color change
Click highlighted part on selection cube
Click on mesh-4, mesh-8 to select it

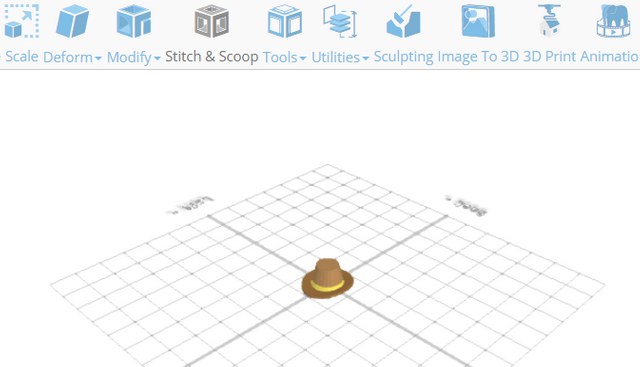

Click Stitch & Scoop on the Toolbar

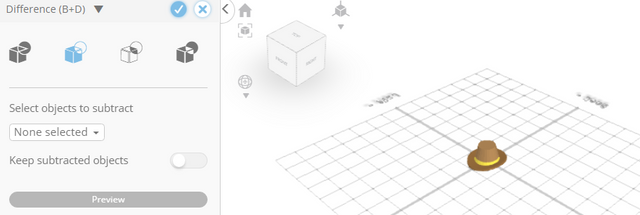

From the Tool Panel choose Difference
Click mesh-12 to subtract
Click to finalize Difference
