How To Setup Raspberry Pi Zero W Headless WiFi - From Windows

This is also the same procedure for the normal Raspberry Pi.

First off for those who don't know "Headless" means no monitor, keyboard or mouse. So the only access you have to your setup
would be SSH using Putty or something similar ( I prefer MobaXterm ) over a network and in this case WIFI.

Setting up a headless Raspberry Pi for a first time Pi user can be frustrating especially if you are new to Linux.
To setup basically we need to have an image written to a SD Card and plugged into a PC, navigate to the USB card reader it should be called "Boot"

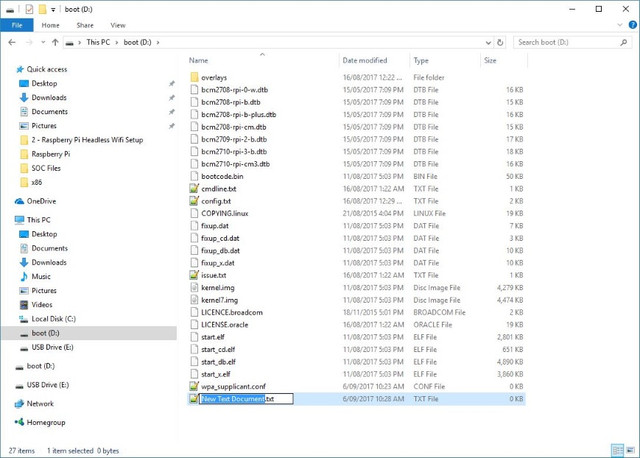

Step 1. Now right click "create new -> text document"

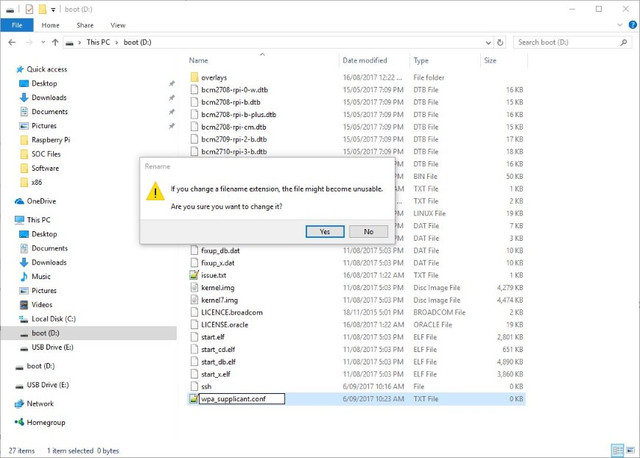

Step 2. Rename it to wpa_supplicant.conf

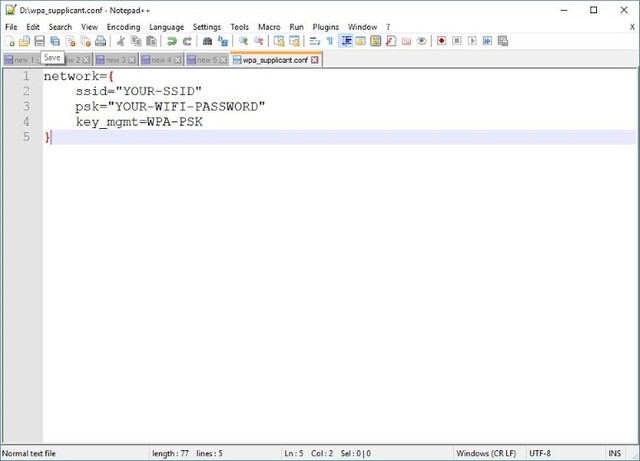

Step 3. Add Network Details - while changing to YOUR actual SSID (wifi network name) and WIFI password.

network={
ssid="YOUR-SSID"
psk="YOUR-WIFI-PASSWORD"
key_mgmt=WPA-PSK
}

---

If your Pi does not connect to the network add this to the top of wpa_supplicant file, but change to your country code.

ctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdev
update_config=1
country=AU
network={
ssid="YOUR-SSID"
psk="YOUR-WIFI-PASSWORD"
key_mgmt=WPA-PSK
}

---

Congratulations your done!

On the first boot the contents of this file will be copied into /etc/wpa_supplicant/wpa_supplicant.conf and then deleted

SSH?

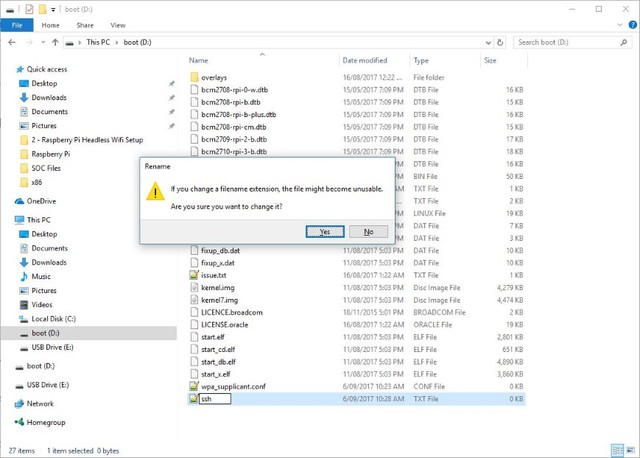

While we are here we may as well setup SSH right? Simple in the same directory create a text document and call it "ssh" and remove the .txt from the filename.

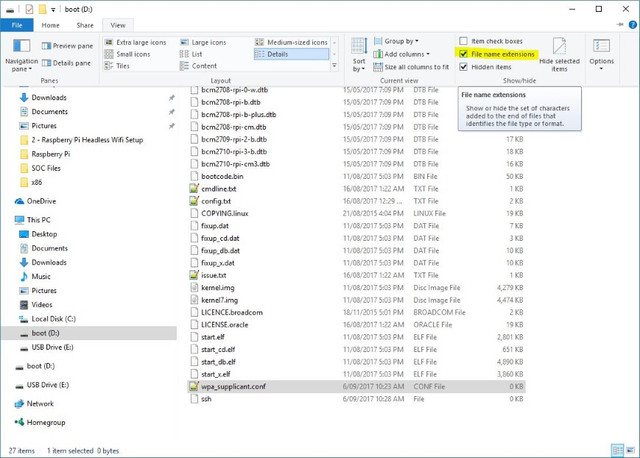

If you cannot see filename extension click "View -> then check the box Filename extensions" in the top right.

Done Again!
Peace
