Pulse Width Modulation (PWM) via Software

in #programming • 7 years ago

Pulse-width modulation is a technique that allows a microcontroller to control the speed of motors, brightness of LEDs, or average voltage without needing a DAC. If you don't have a microcontroller with on-board PWM hardware, or have run out of PWM channels, how can PWM be simulated using software?

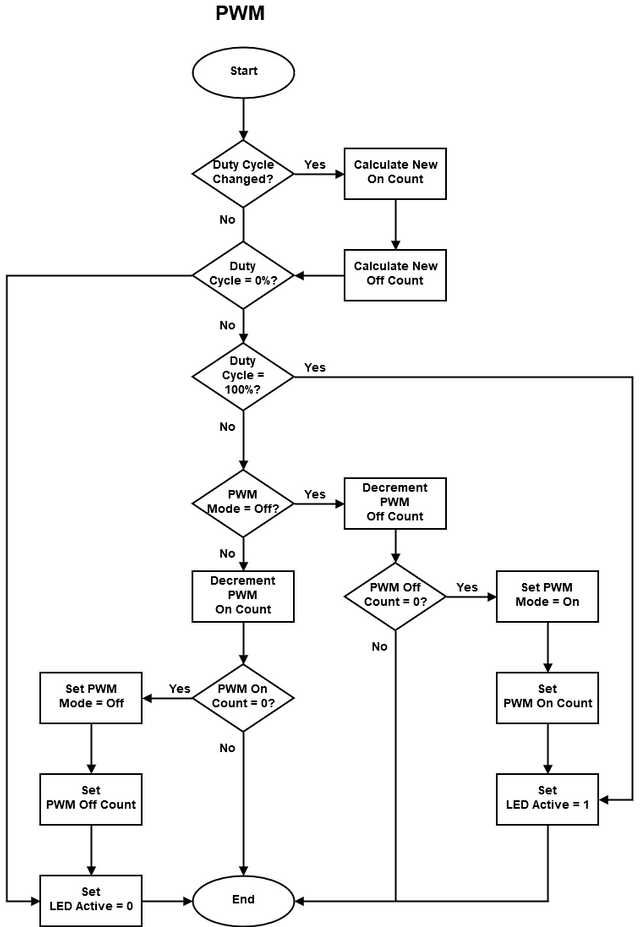

The flow diagram

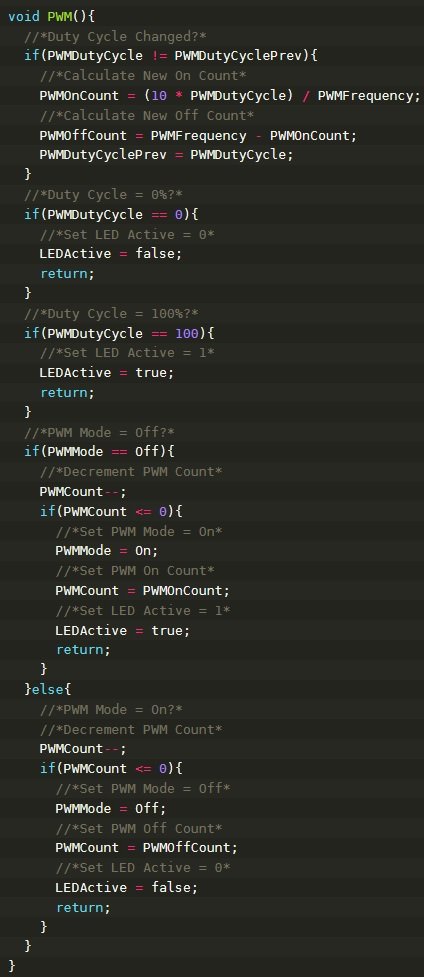

The C code


#engineering #embedded #pwm #hardware
